It is used for LED projects that need a stronger waterproof connector and clear data + power wiring, especially SPI or controlled lighting systems.
M16 Waterproof Cable Connector Series
M16 Waterproof Cable Connector Series

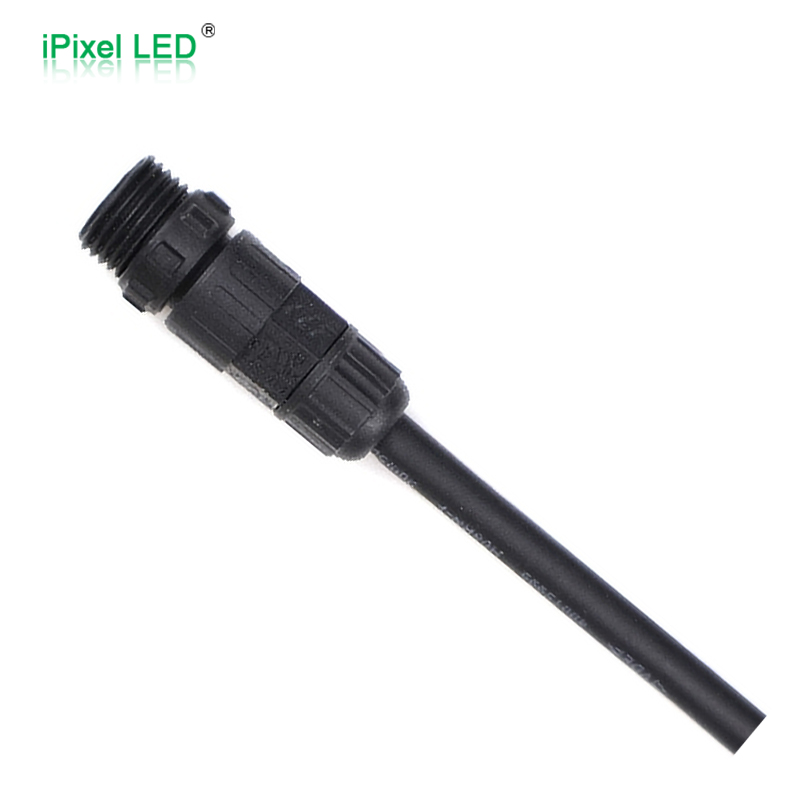

The M16 Waterproof Cable Connector Series is designed for LED projects that need a larger waterproof connector with clear signal and power wiring definition.

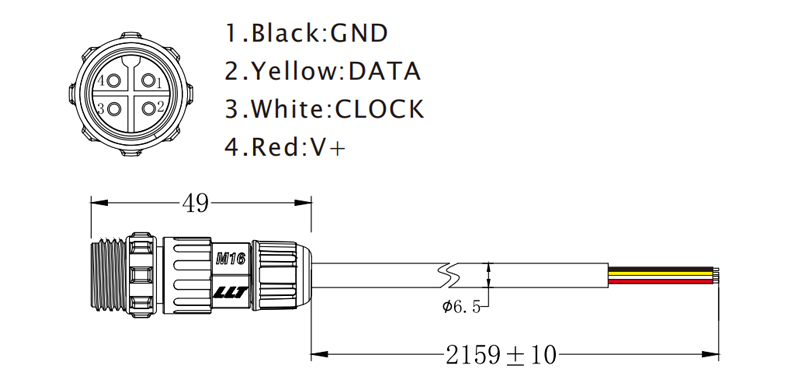

The current file includes a 4Pin M16 waterproof pigtail cable with PVC insulation, naked copper conductor, 4×18AWG cable, outer diameter 6.5mm, and a field-assemblable M16 connector structure. The line order is clearly defined as Black = GND, Yellow = DATA, White = CLOCK, Red = V+, making it suitable for SPI, data + power, and customized LED control wiring.
Product Series Specification Matrix
| Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Outer Diameter | Line Order | Notes |
|---|---|---|---|---|---|---|---|---|
| 4Pin M16 Waterproof Pigtail Cable | 4Pin | Waterproof Pigtail Cable | Field-Assemblable M16 Male Connector / LLT-M16-15004M1061 | DLGT-02159-V4 | 4×18AWG | φ6.5mm | Black = GND / Yellow = DATA / White = CLOCK / Red = V+ | Suitable for SPI / data + power wiring |
FAQ
The listed line order is: Black = GND, Yellow = DATA, White = CLOCK, Red = V+.
Yes. Since it includes GND, DATA, CLOCK, and V+, it can be used for SPI-type LED systems that require separate data and clock signals.
Yes. Connector gender, cable length, cable material, wire gauge, and line order can be customized according to the final project.
