S010840ZC3PZ is a 10mm RGB COB strip with 840 LEDs/m and 50mm cut length. S0121134ZC3PZ is a 12mm RGB COB strip with 1134 LEDs/m and 55.55mm cut length.

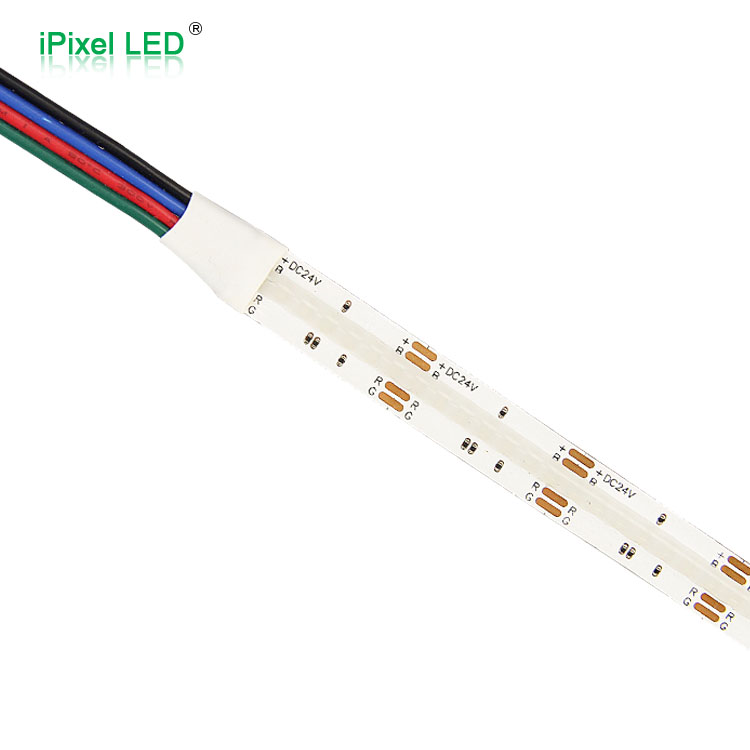

RGB COB LED Strip Series

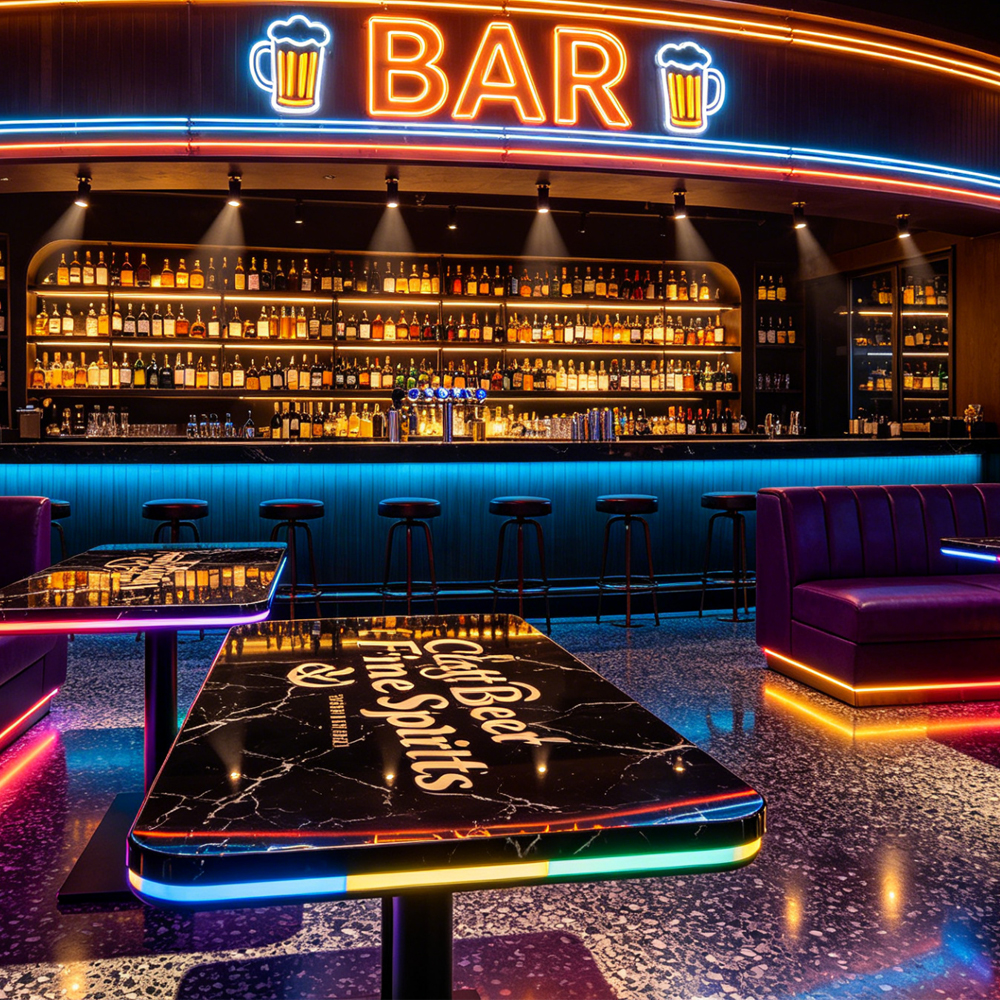

This RGB COB LED Strip Series is designed for smooth, dotless RGB color-changing lighting in decorative, display, furniture, architectural and ambient lighting applications. Compared with traditional SMD RGB strips, the COB structure creates a more continuous light surface with reduced visible LED dots.
The series includes 10mm 840 LEDs/m and 12mm 1134 LEDs/m versions. Both models use DC24V, PWM control, RGB color, IP20 / IP65 options, and standard 5m/roll length. The datasheets describe the products as high-density COB RGB strips with even and soft light, high efficiency, double-layer PCB for voltage drop / heat dissipation / flexibility, and customizable roll length.
DC24V840/1134LEDs/m10/12mm WidchRGBIP20/IP65
Overview & Key Features
Series Overview
This series combines two RGB COB strip options into one selection platform. The 10mm 840 LEDs/m version is suitable for projects that need a narrower RGB COB strip, while the 12mm 1134 LEDs/m version is suitable when higher LED density and smoother RGB visual effect are required.
Both products are low-voltage DC24V RGB COB strips and should be used with a matching DC24V power supply and PWM RGB LED controller.
Key Features

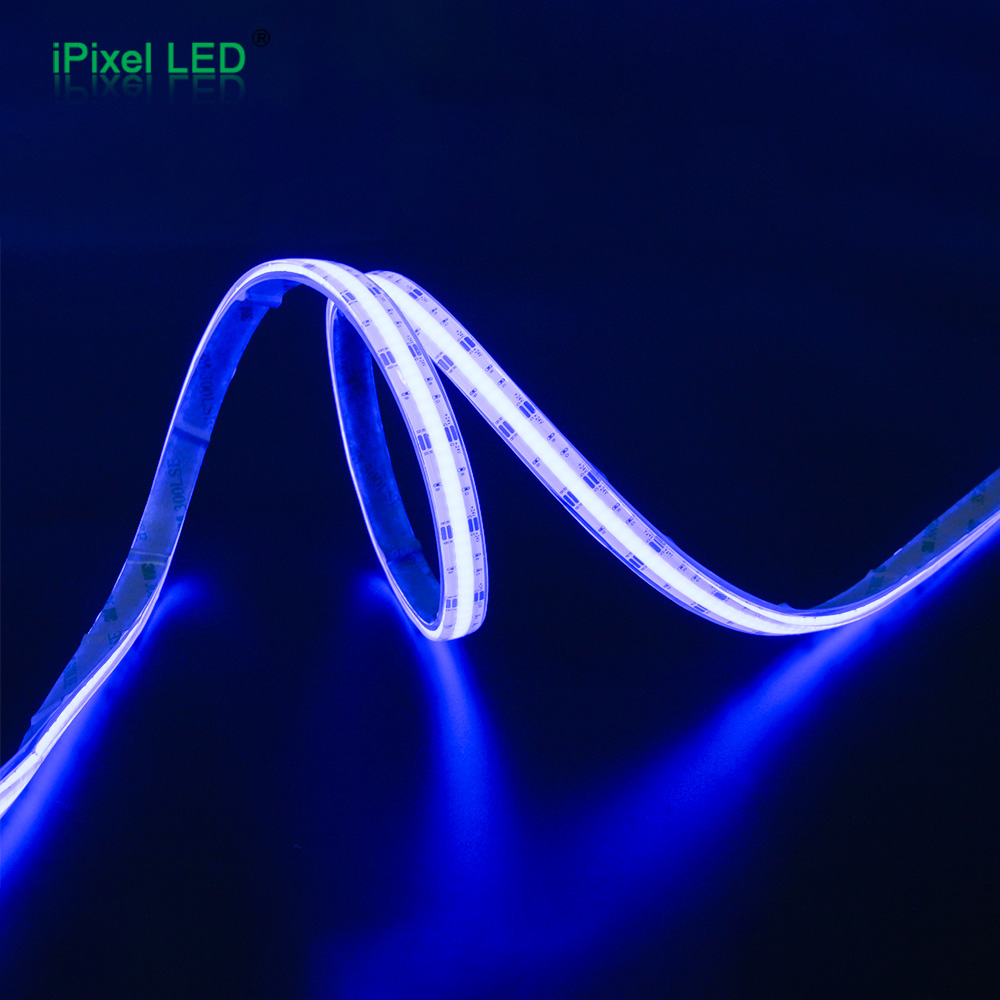

- Dotless RGB COB lighting effect
- DC24V low-voltage input
- PWM RGB control
- 10mm and 12mm PCB width options
- 840 LEDs/m and 1134 LEDs/m options

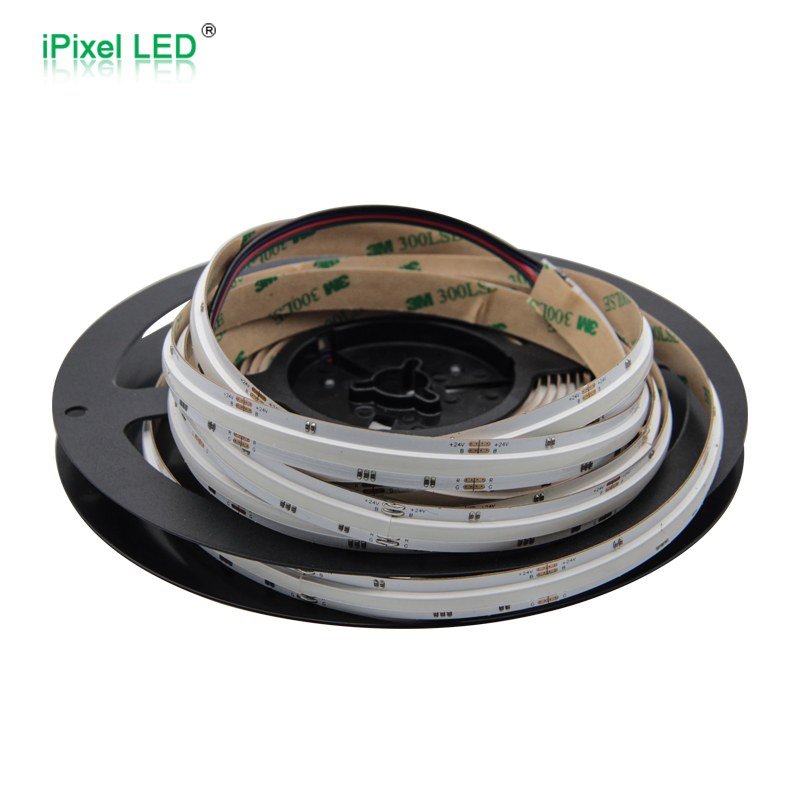

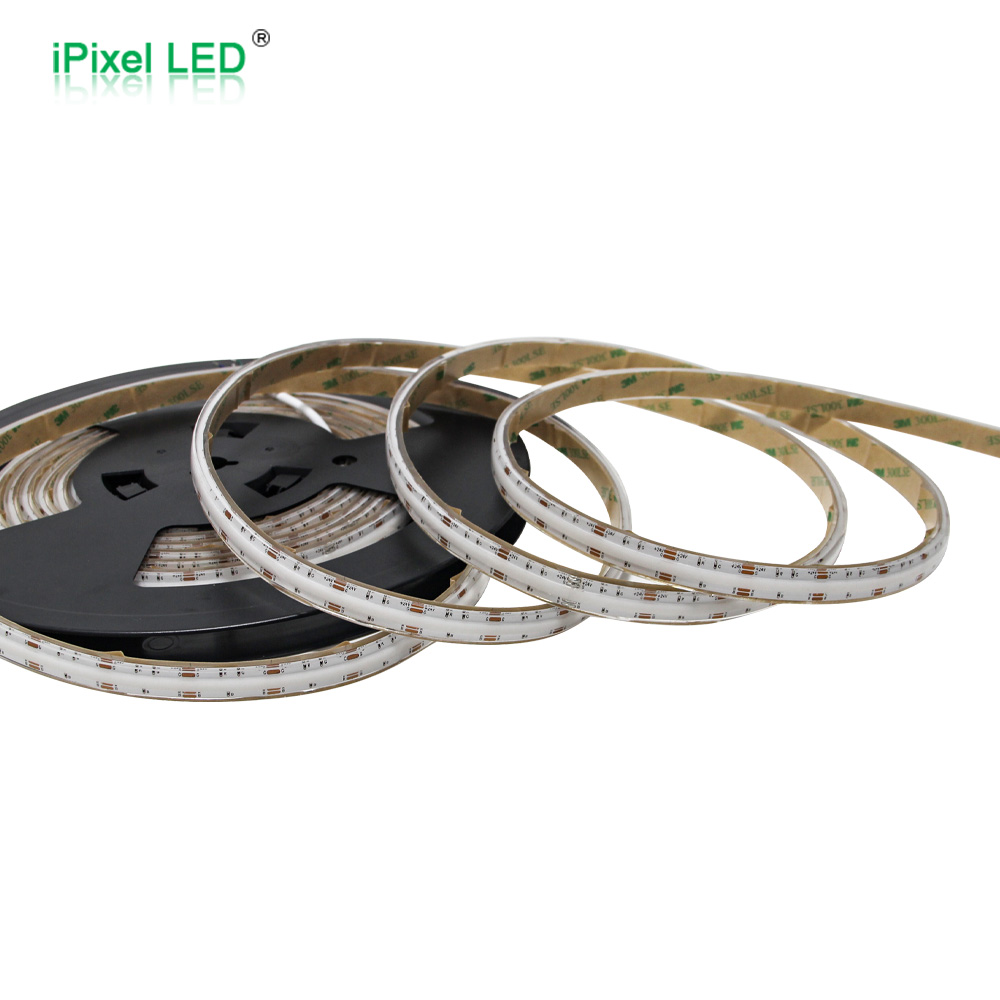

- Standard 5000mm / 5m roll length
- IP20 / IP65 protection options
- 180° beam angle
- High-density COB structure for smooth light output
- Double-layer PCB for voltage drop, heat dissipation and flexibility
- Suitable for color-changing linear lighting and ambient lighting projects
- Custom length available for OEM projects
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S010840ZC3PZ | 840 | DC24V | 15W | RGB COB / PWM | 10mm | RGB | 50mm | R:126 / G:385 / B:58.5lm |
| S0121134ZC3PZ | 1134 | DC24V | 15W | RGB COB / PWM | 12mm | RGB | 55.55mm | R:114 / G:470 / B:67lm |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need narrower RGB COB strip | S010840ZC3PZ — 10mm PCB width, suitable when the profile or installation space is narrower. |
| Need higher LED density and smoother RGB effect | S0121134ZC3PZ — 1134 LEDs/m, suitable for premium dotless RGB linear lighting. |
| Need shorter cutting length | S010840ZC3PZ — 50mm cut length. |
| Need higher green-channel output | S0121134ZC3PZ — datasheet lists G:470lm/m. |
| Project uses DC24V RGB PWM controller | Both models — both are DC24V RGB strips with PWM control. |
| Need 10mm aluminum profile compatibility | S010840ZC3PZ — 10mm PCB width. |
| Need wider 12mm high-density RGB COB | S0121134ZC3PZ — 12mm PCB and 1134 LEDs/m. |
| Need indoor dry installation | IP20 version — suitable for dry indoor profile or cabinet installation. |
| Need additional surface protection | IP65 version — silicone tube protection option; final size and optical data should be confirmed after IP process. |

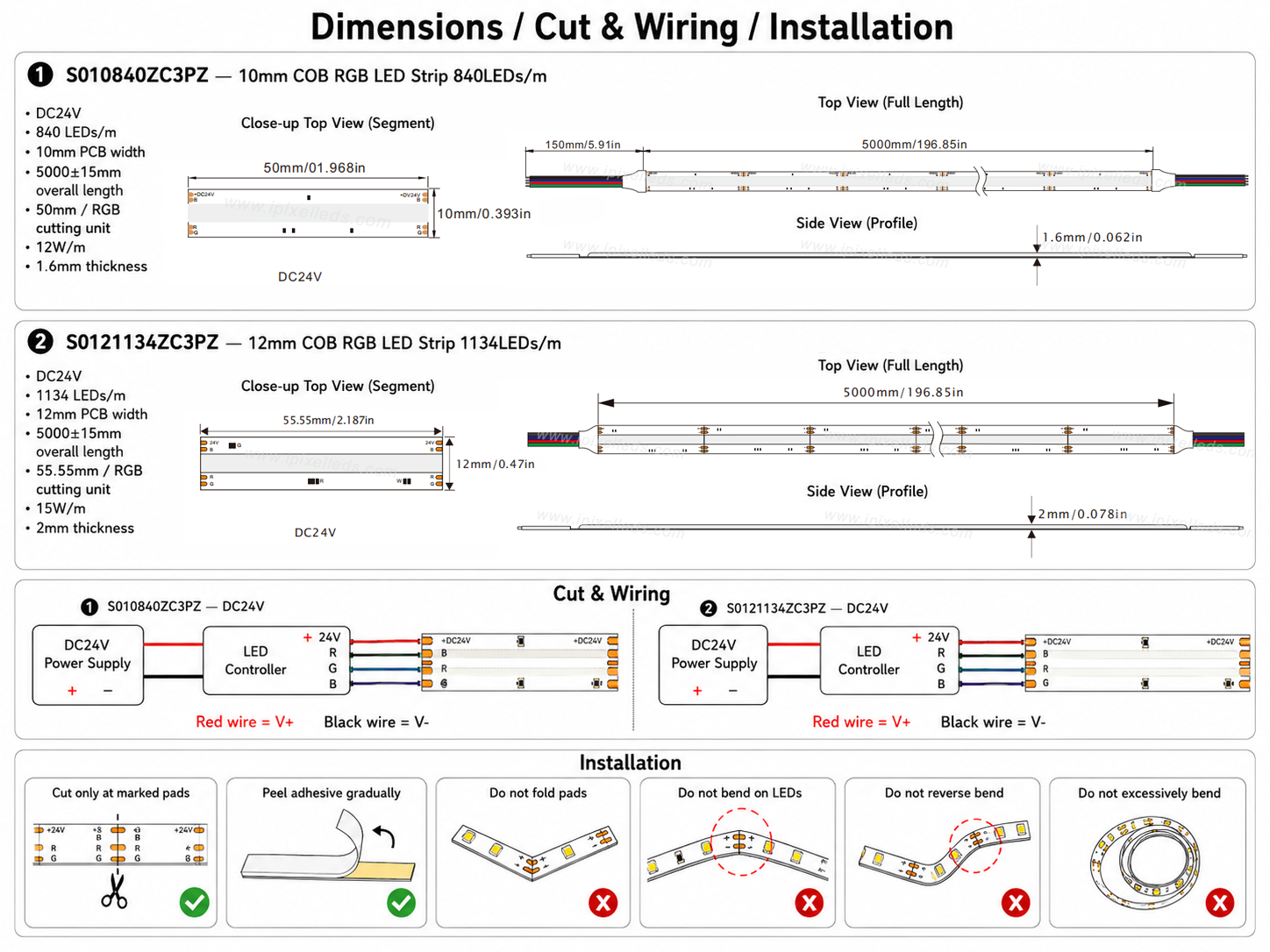

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Both models use DC24V input. |
| LED Type | COB | High-density COB structure for smooth, dotless RGB output. |
| ColorType | RGB | Red, green and blue color mixing. |
| Color Range | RGB | S010840ZC3PZ wavelength: R 615–630nm, G 520–535nm, B 450–460nm. S0121134ZC3PZ wavelength: R 620–625nm, G 520–525nm, B 460–465nm. |
| PCB Width | 10mm / 12mm | 10mm for narrower installation; 12mm for higher-density RGB COB version. |
| Power | 15W/m | Both formal datasheet tables list 15W/m. |
| Control | PWM RGB controller | Controller must match RGB channel wiring and DC24V load. |
| IPRating | IP20 / IP65 | IP20 for dry indoor use; IP65 silicone tube option available. IP protection process may affect size, CCT and luminous flux. |
| Length | 5m standard / custom length | Datasheets show standard 5m/roll; length can be customized. |
| Connector | Bare wire / RGB connector / custom connector | Connector type should match DC24V / R / G / B wiring. |
| Mounting | Adhesive tape / aluminum profile / clips | Aluminum profile is recommended for protection, positioning and heat dissipation. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing; OEM packaging can be discussed. |
Related Items
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination
Retail Shelving & Display Fixtures (Illuminated Displays)
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
S0121134ZC3PZ has higher density, with 1134 LEDs/m.
S010840ZC3PZ is better for narrower profiles because it uses a 10mm PCB.
Both models use DC24V.
