A guardrail tube is normally installed horizontally or along a building outline. A meteor tube is usually installed vertically and creates falling, chasing or snowfall effects.
Custom LED Pixel Tube & Linear Lighting Series
Custom LED Pixel Tube & Guardrail Light Series
The Custom LED Pixel Tube Series covers linear guardrail lights, programmable meteor tubes, automatic snowfall tubes, suspended 3D pixel tubes and single-color LED tubes.
Different structures can be developed according to the installation direction, viewing angle, tube diameter, required length, pixel quantity, control protocol, waterproof level and wiring system.
The products shown on this page are reference custom projects rather than one standardized stock series. Final electrical, optical and mechanical specifications are confirmed according to the project requirements.
Product Series Specification Matrix
Series Overview
The Custom LED Pixel Tube Series covers linear guardrail lights, programmable meteor tubes, automatic snowfall tubes, suspended 3D pixel tubes and single-color LED tubes.
Different structures can be developed according to the installation direction, viewing angle, tube diameter, required length, pixel quantity, control protocol, waterproof level and wiring system.
The products shown on this page are reference custom projects rather than one standardized stock series. Final electrical, optical and mechanical specifications are confirmed according to the project requirements.
Key Features
- DMX512, SPI and built-in automatic-effect options
- RGB, RGBW and single-color configurations
- Linear, meteor, snowfall, 3D and 360° structures
- Single-side, double-side and 360° illumination options
- Custom tube diameter, profile and length
- Project-specific pixel quantity and LED spacing
- Clear, frosted and milky-white optical covers
- Indoor and outdoor protection structures
- SPI, DMX512 and project-specific Art-Net control systems
- Custom connectors, power distribution and wiring harnesses
1. Guardrail & Linear Pixel Tubes
Horizontal or linear LED tubes for building outlines, stage backgrounds, commercial decoration and synchronized pixel effects.
| Reference Model | Structure | Light Type | Control | Voltage | Diameter / Profile | Length | Key Feature |
|---|---|---|---|---|---|---|---|
| B080108CC4LZ | Round Linear Tube | RGBW, 4000K White | To Be Confirmed | DC24V | Ø80mm | Custom | Large-diameter RGBW linear tube |

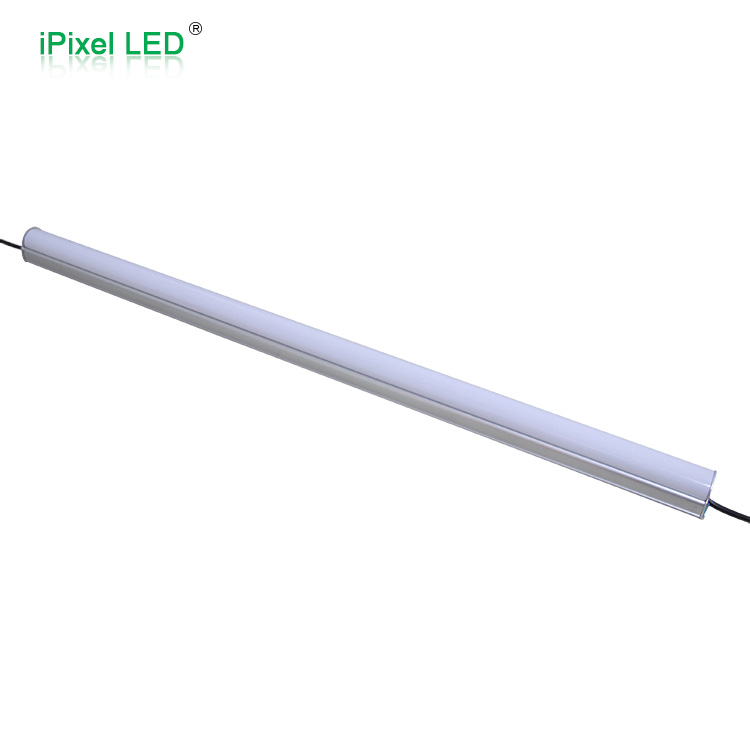

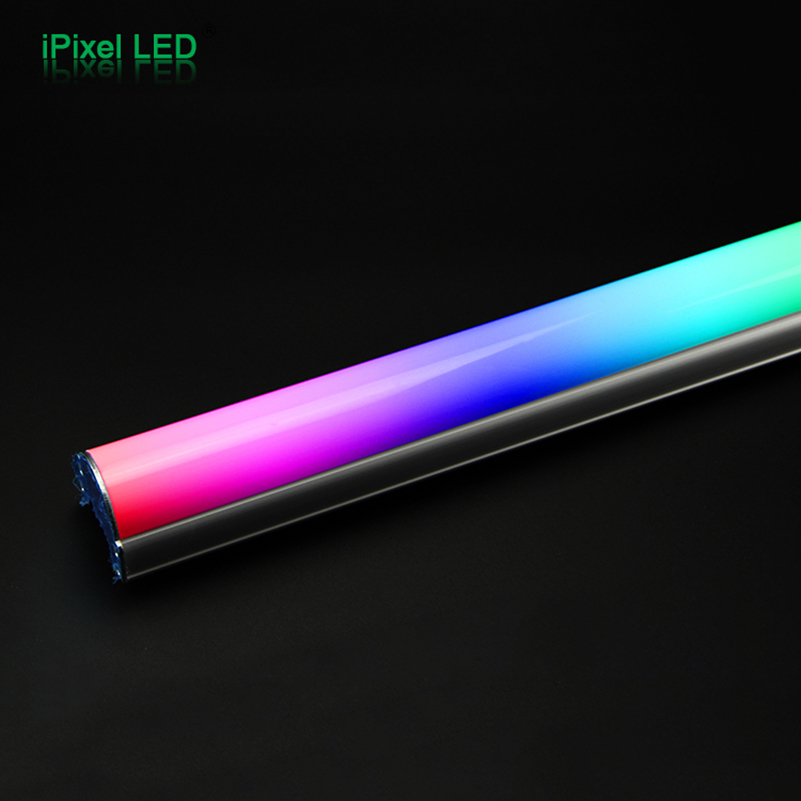

| B050048DB3DG* | Aluminum + PC Guardrail Tube | RGB | DMX512, 16 Pixels | DC12V | 50 × 40mm | 1000mm | Architectural outline and stage lighting |
| 51100174 | Linear LED Tube | To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Custom | Historical project |
| 51100073 | Linear LED Tube | To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Custom | Historical project |
| 51100045 | Linear LED Tube | To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Custom | Historical project |
| 51100009 | Linear Pixel Tube | To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Custom | Duplicate historical pages consolidated into one reference model |
*B050048DB3DG is a representative current configuration: 1000mm, 16 pixels, DMX512, DC12V, 12W, IP65, with an aluminum housing and PC cover.
2. Meteor, Snowfall & 3D Pixel Tubes
Vertically installed or suspended tubes for falling-light effects, animated ceilings and multi-directional pixel lighting.
| Product Type | Light Direction | Control Option | Typical Structure | Recommended Application |
|---|---|---|---|---|

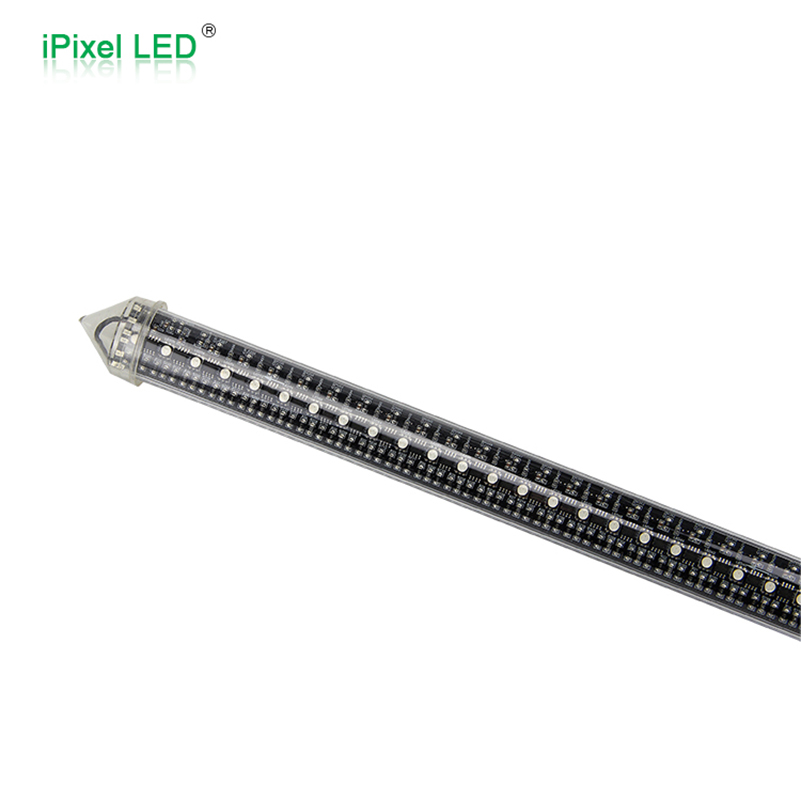

| Addressable Meteor Tube | Single-Side or Double-Side | SPI | Vertical Linear Tube | Stage, shop windows and decorative hanging effects |
| Automatic Snowfall Tube | Single-Side / Two-Side | Built-In Auto Program | Vertical Tube | Trees, façades and seasonal decoration |
| DMX Meteor Tube | Single-Side or 360° | DMX512 | Vertical Pixel Tube | Large synchronized installations |

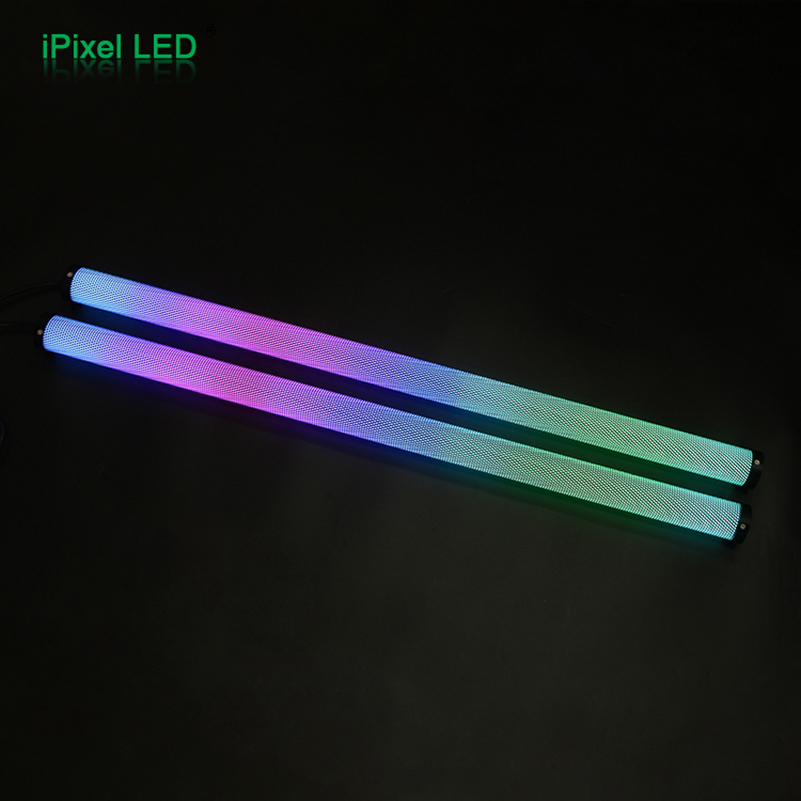

| 3D Pixel Tube | 360° | DMX512 / Art-Net System | Suspended Round Tube | Airports, malls and entertainment ceilings |
| Different-Length Tube Set | 360° | DMX512 | Mixed-Length Tubes | Large ceiling animation systems |
| SK6812 Meteor Tube | Model-Dependent | SPI | Individually Addressable Tube | Chasing and programmed effects |
| WS2812B LED Tube | Model-Dependent | SPI | Pixel Tube | Small and medium digital projects |
Selected milky-white DMX 3D pixel tubes provide uniform 360° illumination and can be developed in mixed lengths for large suspended installations. Art-Net control, T-connectors and project-specific power distribution can be integrated for synchronized ceiling systems.
3. Single-Color LED Tubes
Static white or single-color LED tubes for decorative lighting, equipment lighting and projects that do not require pixel animation.
| Reference Model | Tube Diameter | Light Color | Control | Voltage | Length | Key Feature |
|---|---|---|---|---|---|---|
| 51100048 | Ø40mm / Ø50mm | Single Color White | On/Off or PWM | To Be Confirmed | Custom | White alternative to RGB meteor tubes |
| 51600016 | To Be Confirmed | Single Color / To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Historical custom tube |
| 51600009 | To Be Confirmed | To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Historical custom tube |
| 51600003 | To Be Confirmed | To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Historical custom tube |
| PL-TD50F60V5 | Approx. Ø50mm* | To Be Confirmed | To Be Confirmed | To Be Confirmed | Custom | Model data requires original specification |
*The model name may indicate a 50mm structure, but the final diameter must be confirmed against the original specification before publication.
Customization Capability Matrix
| Customization Item | Available Options |
|---|---|
| Product Structure | Guardrail Tube / Meteor Tube / Snowfall Tube / 3D Tube / Linear Tube |
| Light Direction | Single-Side / Double-Side / 360° |
| Light Color | Single Color / RGB / RGBW |
| Control Method | On/Off / PWM / Built-In Auto Program / SPI / DMX512 |
| Network Control | Art-Net, Project-Dependent |
| Tube Diameter | Ø40 / Ø50 / Ø80mm / Custom |
| Profile Structure | Round PC Tube / Aluminum + PC Cover / Custom |
| Length | Standard or Project-Specific |
| Pixel Quantity | Project-Specific |
| LED Package | 2835 / 5050 / SK6812 / WS2812B / Project-Specific |
| Lens / Cover | Clear / Frosted / Milky White |
| Illumination Effect | Visible Pixels / Diffused Light / No-Shadow 360° Light |
| IP Rating | Indoor / IP65 / Higher Protection Subject to Design |
| Connector | Waterproof Input / Output / T-Connector / Custom Harness |
| Installation | Clip-Mounted / Suspended / Vertical / Horizontal |
| Power Distribution | End Feed / Daisy Chain / Branch Connection |
| Controller | SPI / DMX512 / Art-Net System |
Not every option can be freely combined. Tube length, voltage, pixel quantity, power distribution and signal distance must be evaluated as one complete system.
How to Choose
| Project Requirement | Recommended Product |
|---|---|
| Building façade outline | DMX Guardrail Tube |
| Stage or nightclub background | Linear DMX Pixel Tube |
| Falling-light animation | Addressable Meteor Tube |
| Simple automatic falling effect | Auto Snowfall Tube |
| Large synchronized vertical installation | DMX Meteor Tube |
| Suspended ceiling animation | 360° 3D Pixel Tube |
| Uniform light without visible shadows | Milky White 360° Tube |
| Static white decorative lighting | Single-Color LED Tube |
| Mixed custom lengths | DMX 3D Tube System |
| Small programmable project | SPI SK6812 / WS2812B Tube |
| Large networked project | DMX512 + Art-Net System |
FAQ
SPI is suitable for compact and medium-sized pixel systems with direct digital signal control. DMX512 is more suitable for professional, synchronized and larger architectural or entertainment projects.

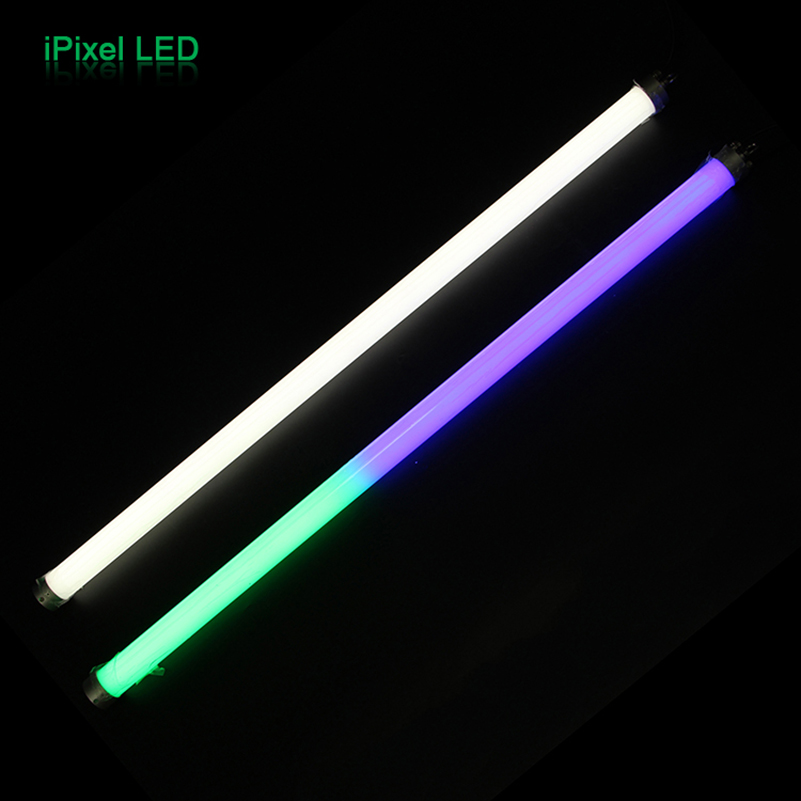

Yes. Selected round-tube structures provide multi-directional or 360° illumination. Milky-white covers can reduce visible hot spots and shadows.
Yes. Length, diameter, pixel quantity and LED spacing can be developed according to the installation drawing.
