No. This series is a standard PWM RGBW strip without pixel control.

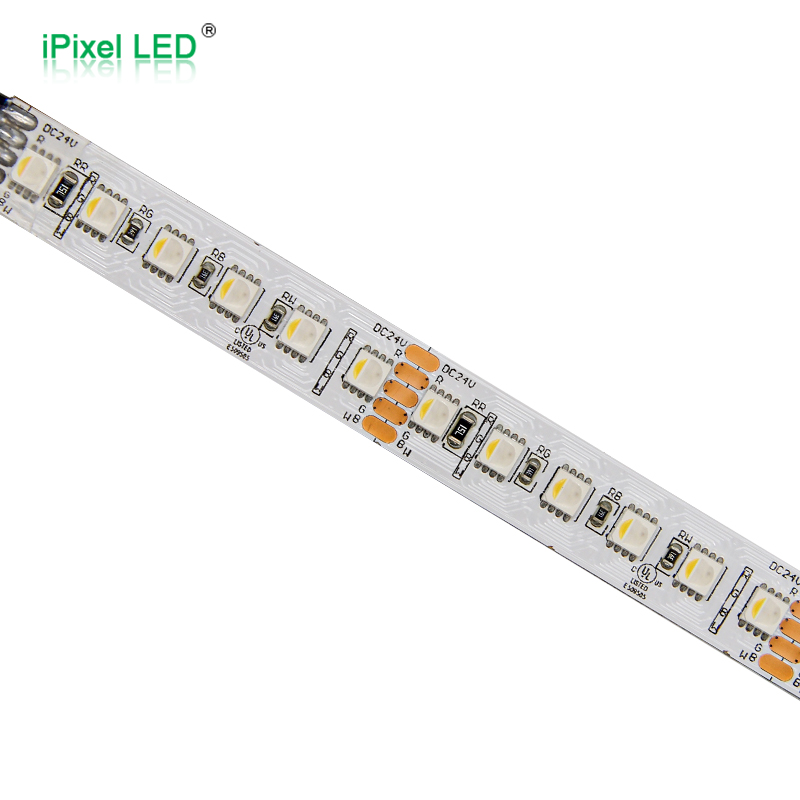

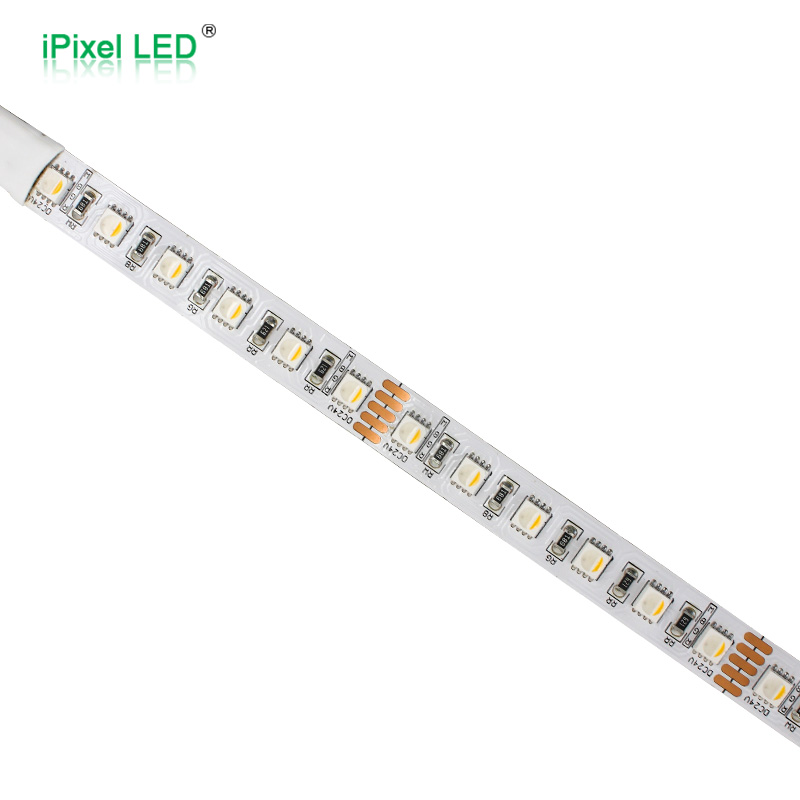

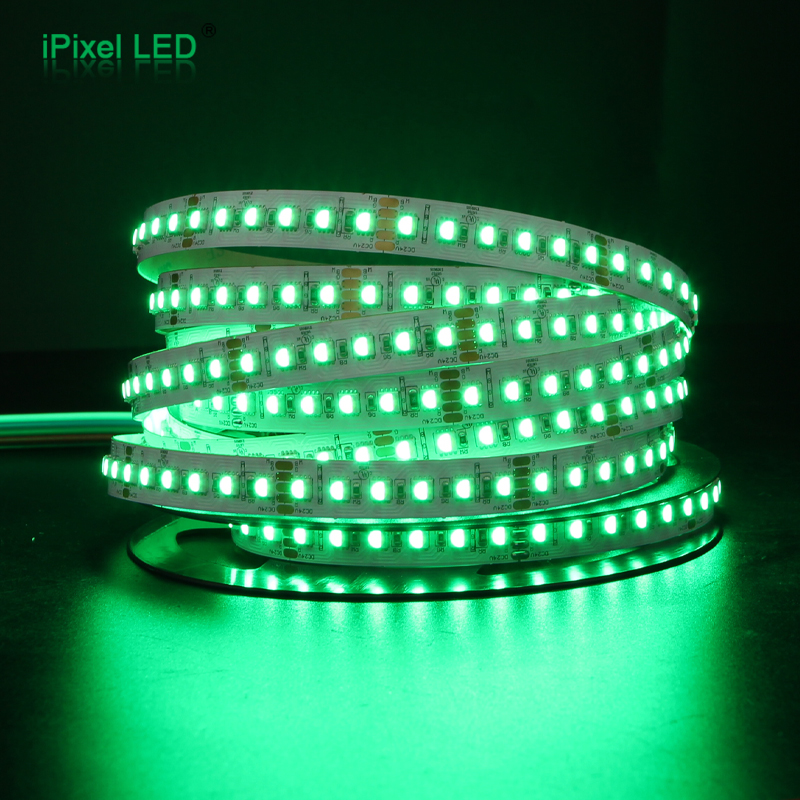

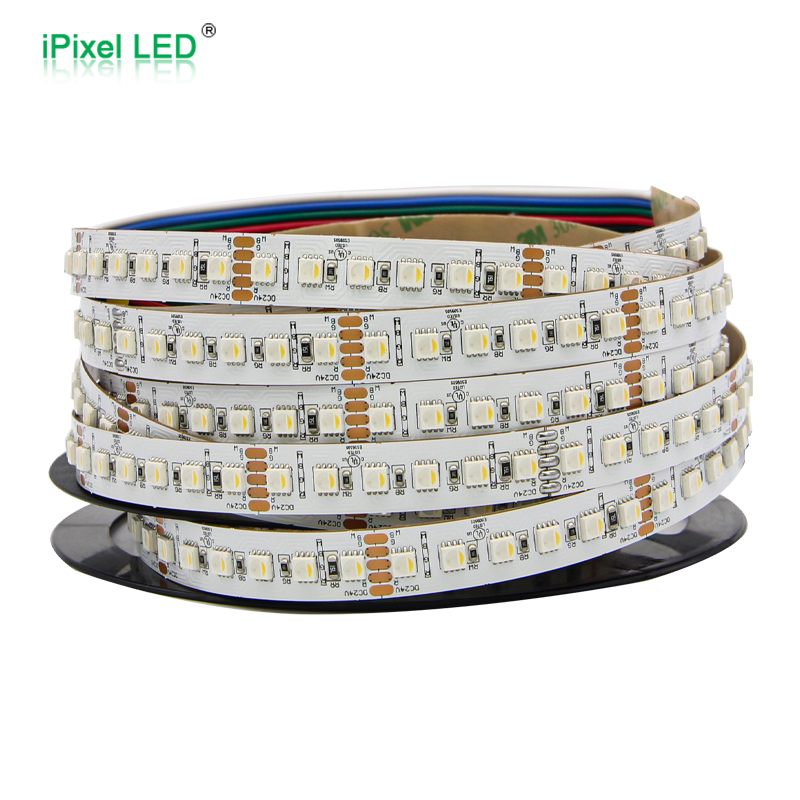

SMD4040 RGBW Flexible LED Strip Series
- This is a PWM control RGBW color LED strip without Pixel
- 96/120pcs SMD RGBW 4040 LEDs per meter, 5meters/reel
- The PCB is 3 Ounce thick copper
- Both ends have 5pin bare wires for powering
- 3M tape attached on backside of FPC
DC24V96/120LEDs/m10/12mm WidchRGBWPWM
Overview & Key Features
Series Overview

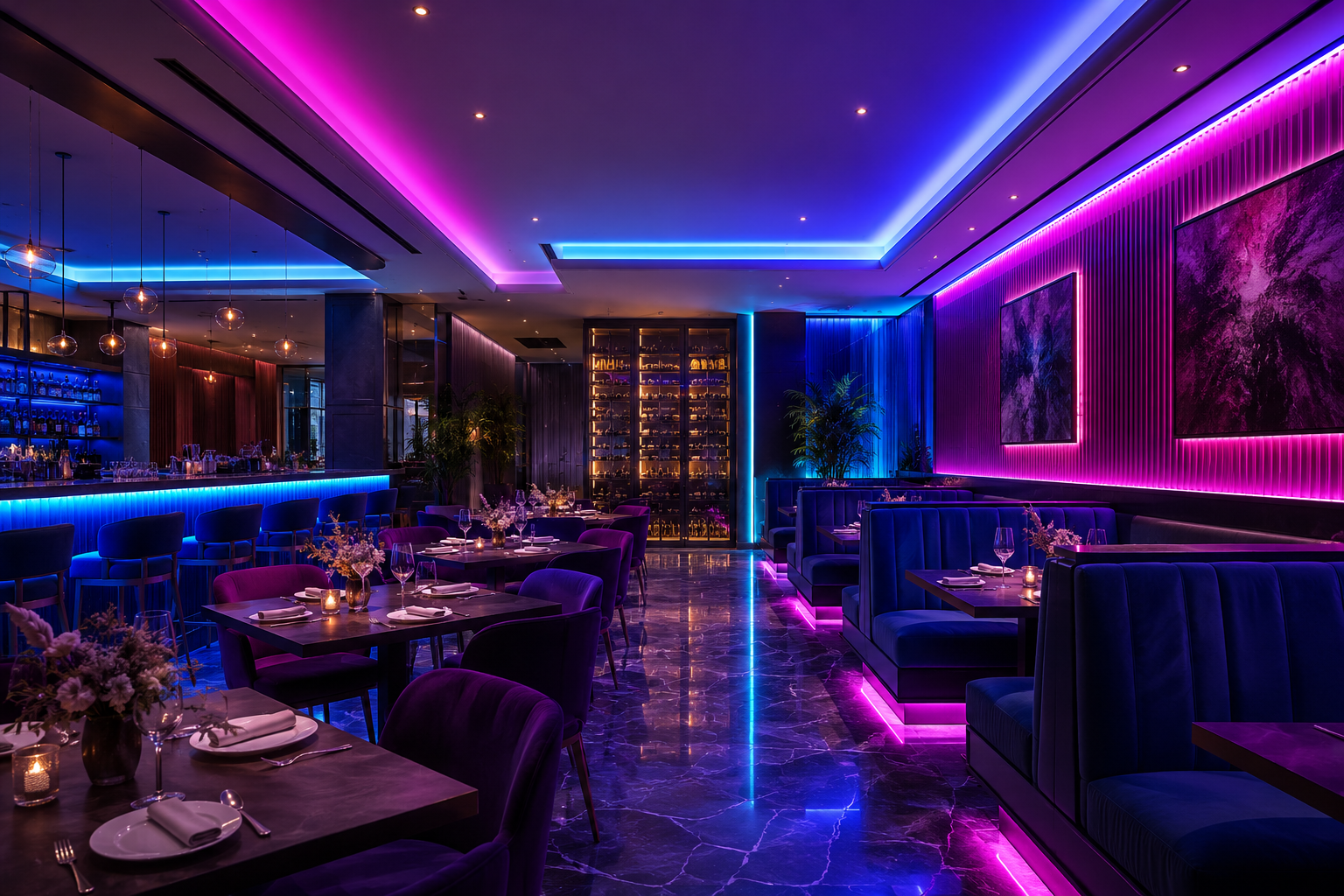

This SMD4040 RGBW flexible LED strip series is designed for projects requiring RGB color mixing plus a dedicated white channel in a compact SMD4040 LED package. It is a standard PWM-controlled RGBW strip without pixel addressing, making it suitable for decorative lighting, display fixtures, entertainment equipment, furniture lighting, commercial linear lighting and OEM lighting assemblies.
The series includes a 96 LEDs/m version with 10mm PCB and a 120 LEDs/m version with 12mm PCB. Both operate at DC24V and use 5-pin bare wire connection for RGBW control.
Key Features
- SMD4040 RGBW LED package for RGB color and white channel output.
- Non-pixel PWM control, suitable for standard RGBW controllers.
- DC24V constant voltage operation.
- 96 LEDs/m and 120 LEDs/m options for different brightness and uniformity needs.
- 10mm PCB version for more compact RGBW installation.
- 12mm PCB version for higher density and stronger output.
- 3oz copper PCB for improved current carrying capacity.
- Both ends with 5-pin bare wires for powering and control.
- 3M adhesive backing on FPC.
- 5m per reel standard length.
- IP20 / IP64 / IP65 / IP67 options shown in the datasheet structure drawings.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Lumen/m | PCB Width | Cutting Length | Control | IP Rating |
|---|---|---|---|---|---|---|---|---|
| S010096TC4PZ | SMD4040 96LEDs/m | DC24V | 15W/m | R:91 / G:328 / B:63 / W:277 lm/m | 10mm | 62.5mm / 6LED | PWM | IP20 / IP65 |
| S012120TC4PZ | SMD4040 120LEDs/m | DC24V | 24W/m | R:137 / G:432 / B:85 / W:413 lm/m | 12mm | 50mm / 6LED | PWM | IP20 / IP64 / IP65 / IP67 |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a narrower PCB installation space | S010096TC4PZ, 10mm PCB |
| Need higher density and brighter white light output | S012120TC4PZ, 120 LEDs/m |
| Need lower power | S010096TC4PZ, 15W/m |
| Need a shorter cutting pitch | S012120TC4PZ, 50mm / 6LED |
| Need standard RGBW control | Both models are suitable; use a PWM RGBW controller |
| Need a DC24V system for lower current | Both models are suitable |
| Need better light uniformity | Prefer S012120TC4PZ (8.33mm LED pitch) |
| Need a waterproof version | Choose IP64 / IP65 / IP67; final version must be confirmed |
| Need pixel‑level control / chasing / animation effects | Do not choose this series; select a Digital / Addressable RGBW LED Strip instead |
| Need softer, grain‑free RGBW light output | Consider the COB RGBW series |

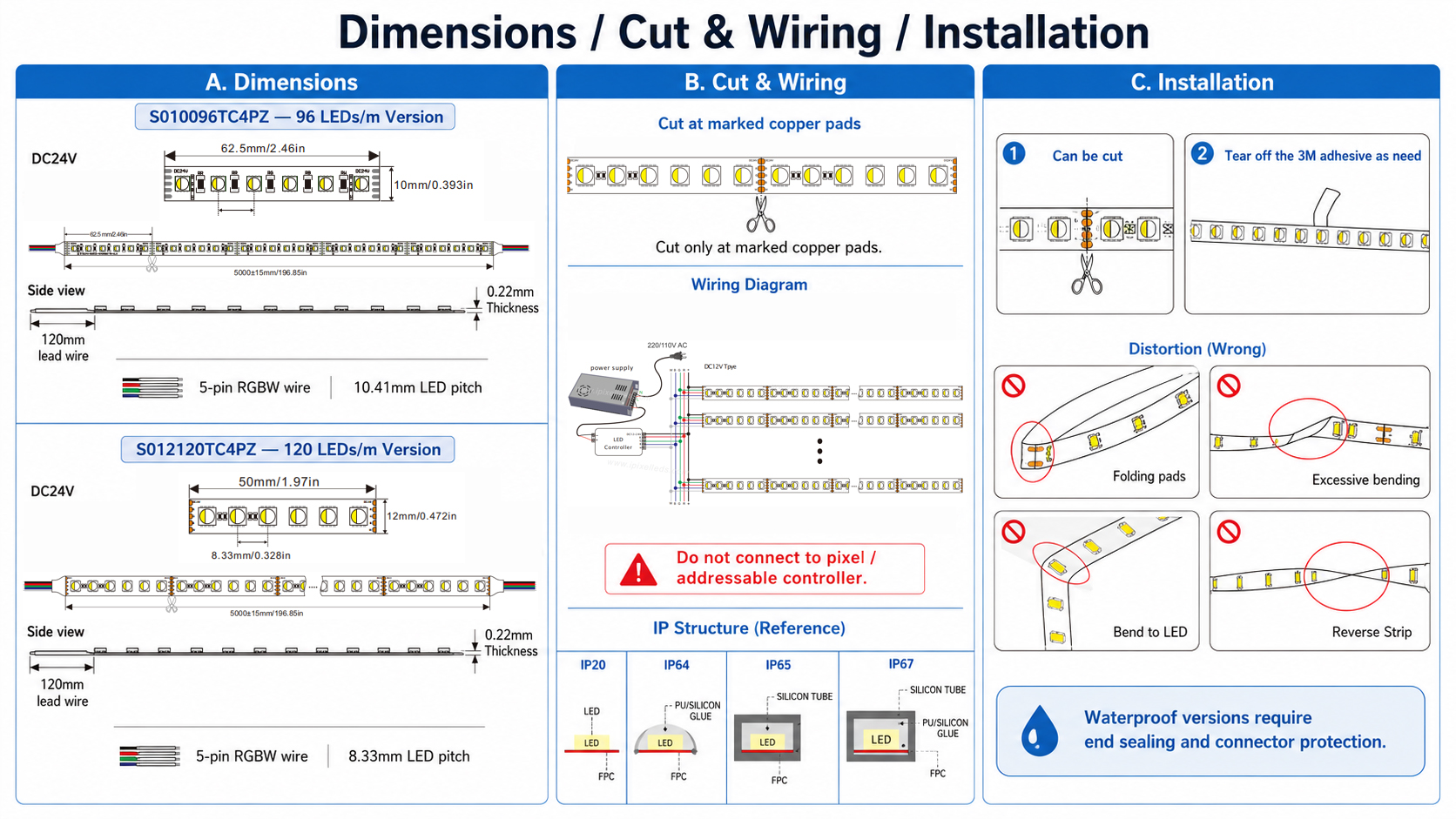

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Standard input for both models |
| LED Type | SMD4040 RGBW | RGB + white channel |
| LED Density | 96 / 120 LEDs/m | Select by brightness and uniformity |
| PCB Width | 10mm / 12mm | Match installation space or profile width |
| White Channel | 3000K / 4000K / 6500K | Confirm exact CCT before order |
| Control | PWM RGBW control | Requires compatible RGBW controller |
| IP Rating | IP20 / IP64 / IP65 / IP67 | Final availability depends on model and sealing process |
| PCB Copper | 3oz copper | Listed in product description |
| Length | 5m standard / custom length | Custom length can be discussed |
| Cable | 5-pin bare wire / custom wire length | For RGBW channel wiring |
| Connector | Bare wire / terminal / custom connector | Based on installation method |
| Mounting | 3M tape / clips / aluminum profile | Aluminum profile helps heat dissipation and protection |
| Accessories | Power supply / RGBW controller / dimmer | Select according to project requirements |
Related Items
EV Charging Stations LED Lighting
16-Pixel DMX512 Addressable LED Guardrail Tube (Aluminum + PC Cover) | B050048DB3DG | 1m RGB IP65
Kart Track Pixel Lighting Project with WS2811 30LEDs/m SPI RGB LED Strip
Moscow Sheremetyevo International Airport | Ø80mm Milky White No-Shadow DMX512 3D Pixel LED Tube (B080072CB3DS)
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
The 96 LEDs/m version uses a 10mm PCB and 62.5mm cutting unit. The 120 LEDs/m version uses a 12mm PCB, higher density and 50mm cutting unit.
Use a compatible RGBW PWM controller with DC24V power supply.
Yes, waterproof options are shown in the datasheets. Final IP availability should be confirmed by model, sealing method and connector treatment.
