No. This series is an analog high-power LED module series. It does not include WS2811, SM16714, Data In, or Data Out control.
High Power Analog LED Module Series
High Power Analog LED Module Series
The High Power Analog LED Module Series is designed for compact point lighting, backlighting, edge lighting, decorative lighting, recreational machines, entertainment equipment, signage, and custom equipment illumination.
This series includes both single color high power LED modules and RGB high power LED modules. The products are built on aluminum board structures for better heat dissipation and are intended to be installed on a metal plate or heat-dissipation surface.
The series is suitable for customers who need a compact, bright, solder-pad LED module rather than a digital SPI-controlled module.
DC5V20/22mm Widthsingle color/RGBIP20
Overview & Key Features
Series Overview
This series provides two main options:

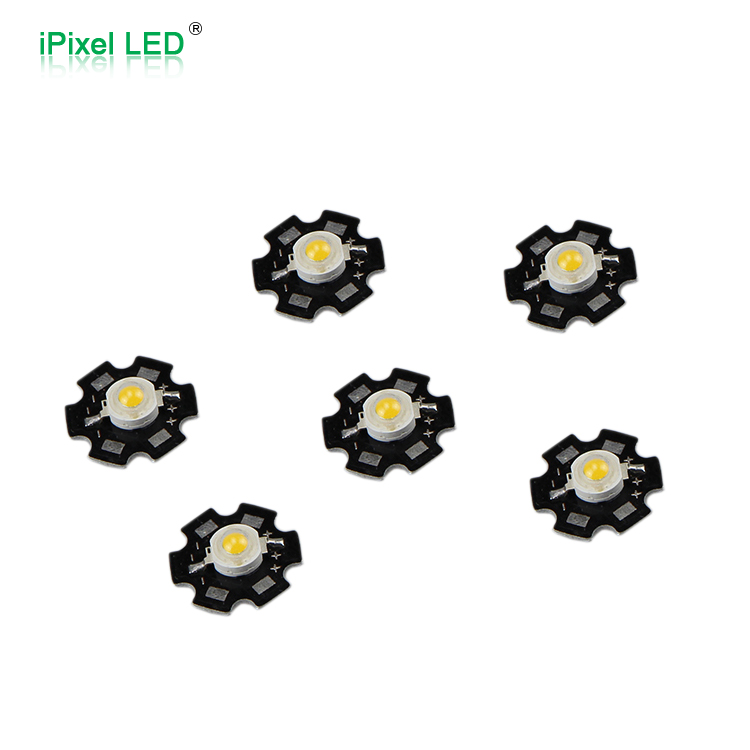

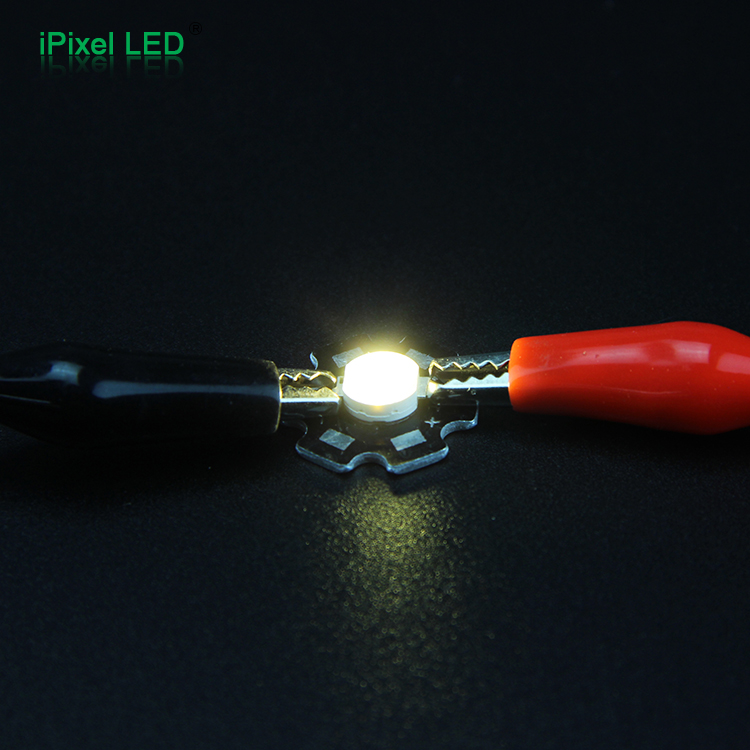

- M020001MA1LZ: 1W single color LED module, available in Red, Green, Blue, Yellow, White and Warm White.

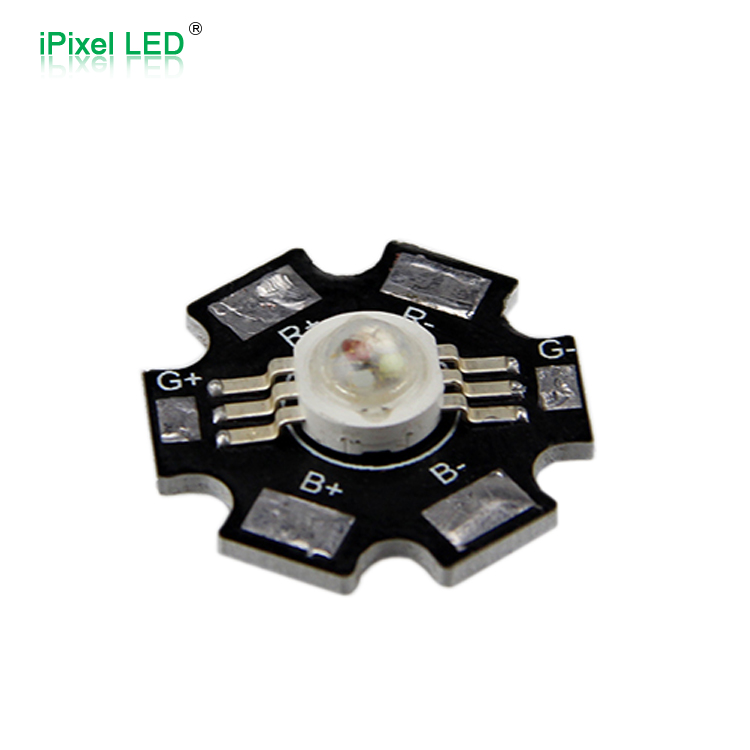

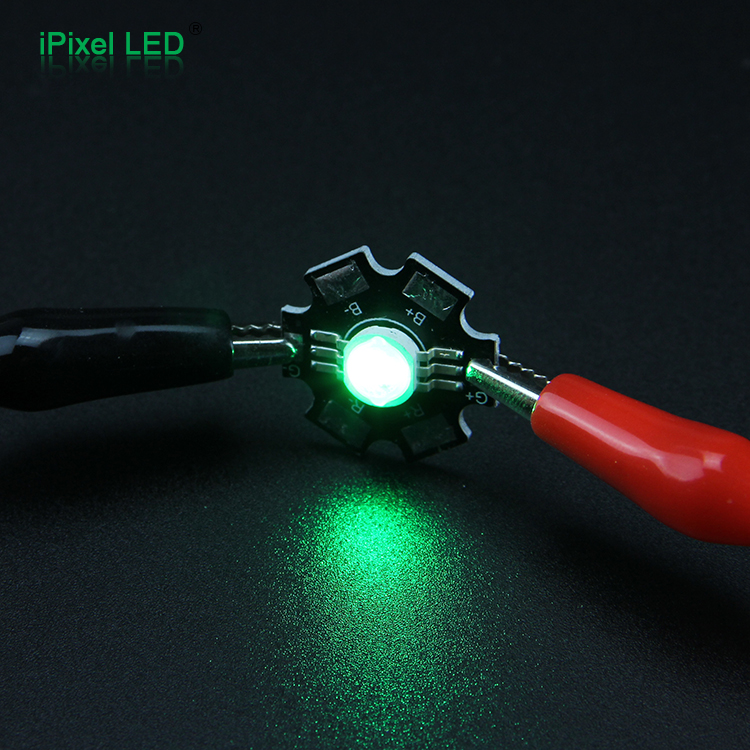

- M022001MA3PZ: 3W RGB LED module with independent R / G / B solder pads.
Both products use high-power “imitation lumen lamp beads” and require proper heat dissipation during installation. M020001MA1LZ is a φ20mm module, while M022001MA3PZ is a φ22mm RGB module.
Key Features
- Compact high-power LED module design
Small-size LED point module for backlighting, edge lighting, equipment lighting, and decoration projects. - Aluminum board for heat dissipation
Designed to be mounted on a metal plate or heat-dissipation surface. - No 3M adhesive on the back
Installation should be done mechanically or with proper thermal conductive method, depending on the project. - Single color and RGB options
M020001MA1LZ supports multiple single colors; M022001MA3PZ supports RGB color mixing. - Independent solder pads
M020001MA1LZ provides positive and negative pads for soldering cable; M022001MA3PZ provides separate R / G / B positive and negative solder pads. - Wide beam angle
Both products use a 140° beam angle, suitable for broad-area point illumination. - Project-based customization potential
Suitable for customized equipment, lighting effects, display, and decorative projects.
Product Series Specification Matrix
| Model No | LED Qty/pcs | Voltage | Power/pcs | Size (mm) | IP Rate | CCT | Luminance | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| M020001MA1LZ | 1 LED/pcs | Red / Yellow: 2.0–2.8V; Green / Blue / White / Warm White: 3.2–3.8V | 1W/pcs Max | φ20mm | IP20 | Red 620–630nm / Green 520–530nm / Blue 460–470nm / Yellow 585–595nm / White 6000–7000K / Warm White 3000–3300K | Red 75–105lm / Green 75–105lm / Blue 30–60lm / Yellow 75–105lm / White 160–240lm / Warm White 160–200lm | Download |
| M022001MA3PZ | 1 LED/pcs | R: 2.2–2.6V; G: 3.2–3.8V; B: 3.2–3.8V | 3W/pcs | φ22mm | IP20 | R: 622nm / G: 523nm / B: 467nm | R: 64lm / G: 68lm / B: 10lm | Download |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a simple single color high-power point light | M020001MA1LZ |
| Need RGB color mixing with separate R / G / B channels | M022001MA3PZ |
| Need white or warm white for decorative lighting | M020001MA1LZ White / Warm White |
| Need RGB effect but not SPI digital control | M022001MA3PZ |
| Need smaller module size | M020001MA1LZ, φ20mm |
| Need higher total power RGB output | M022001MA3PZ, 3W RGB |
| Need backlighting or edge lighting | Both options, depending on color requirement |
| Need programmable digital effects | Do not choose this series; use SPI digital module series instead |
| Need direct soldering to wires | Both options are suitable |
| Need better thermal reliability | Install on aluminum plate or other heat-dissipation surface |

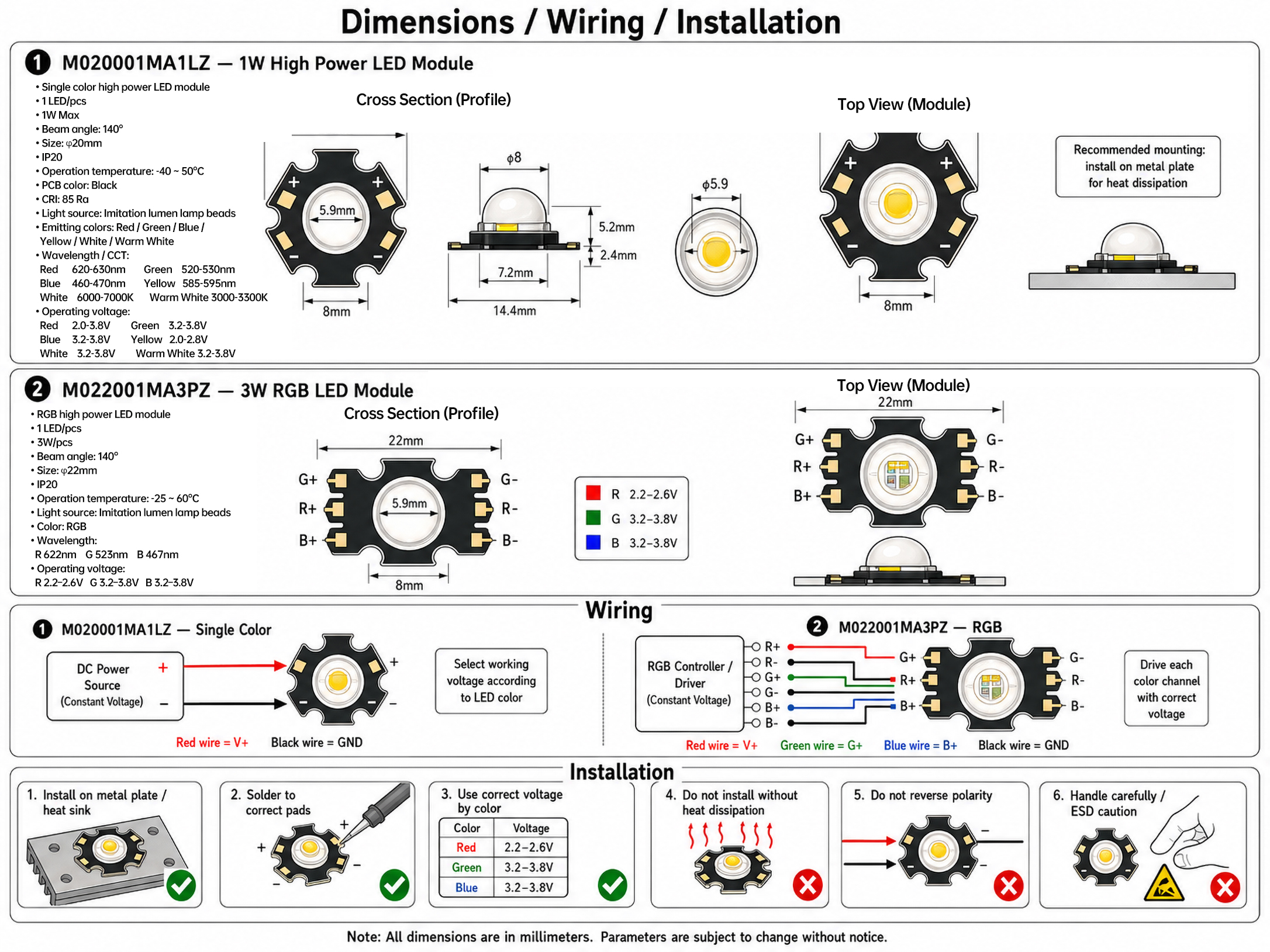

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | 2.0–2.8V / 2.2–2.6V / 3.2–3.8V depending on color | Each color has different working voltage |
| LED Type | Imitation lumen lamp beads | High-power point light LED package |
| Color Type | Single color / RGB | M020 is single color; M022 is RGB |
| Color Range | Red, Green, Blue, Yellow, White, Warm White, RGB | M020 supports multiple single colors; M022 supports RGB |
| Size (mm) | φ20mm / φ22mm | Depends on model |
| Power | 1W/pcs / 3W/pcs | Not W/m; should be marked as power per piece |
| IP Rating | IP20 | Indoor / protected installation |
| Length | Not applicable | Module product, not strip product |
| Connector | Solder pads / customized lead wire | Cable can be soldered according to project |
| Mounting | Metal plate / heat sink / screw or thermal conductive mounting | Proper heat dissipation is required |
| Packing | Anti-static bag / project packing | M020 datasheet mentions anti-static bag every 5 pcs |
Related Items
Retail Shelving & Display Fixtures (Illuminated Displays)
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Cabinet & Furniture Lighting – Dotless, Tight Tolerance & Easy Installation
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
M020001MA1LZ is a 1W single color module. M022001MA3PZ is a 3W RGB module with independent R / G / B solder pads.
Yes. It has separate R, G, and B channels, so RGB color mixing is possible if driven correctly.
Not recommended. The datasheets suggest installation on a plate for heat dissipation.
