Series Overview
This series combines addressable digital control with COB light output. Compared with traditional SMD digital RGB strips, the COB structure helps reduce visible LED dots and creates a smoother linear lighting effect.
The S008630ZC3SF(C) is an 8mm DC24V digital RGB COB strip with 630 LEDs/m and 180° beam angle. The S010840ZC3SF(C) is a 10mm DC24V side-emitting digital RGB COB strip with 840 LEDs/m and 120° beam angle, designed for edge-lighting demand.
Key Features
- Digital RGB COB LED strip series
- DC24V low-voltage input
- SPI-WS2811 addressable control
- 10 pixels/m
- 100mm cutting length
- 8mm and 10mm PCB width options
- 630 LEDs/m and 840 LEDs/m options
- Front-emitting and side-emitting versions available
- IP20 / IP65 protection options
- Standard 5000mm / 5m roll length
- Smooth and soft COB light output
- Double-layer PCB for voltage drop, heat dissipation and flexibility

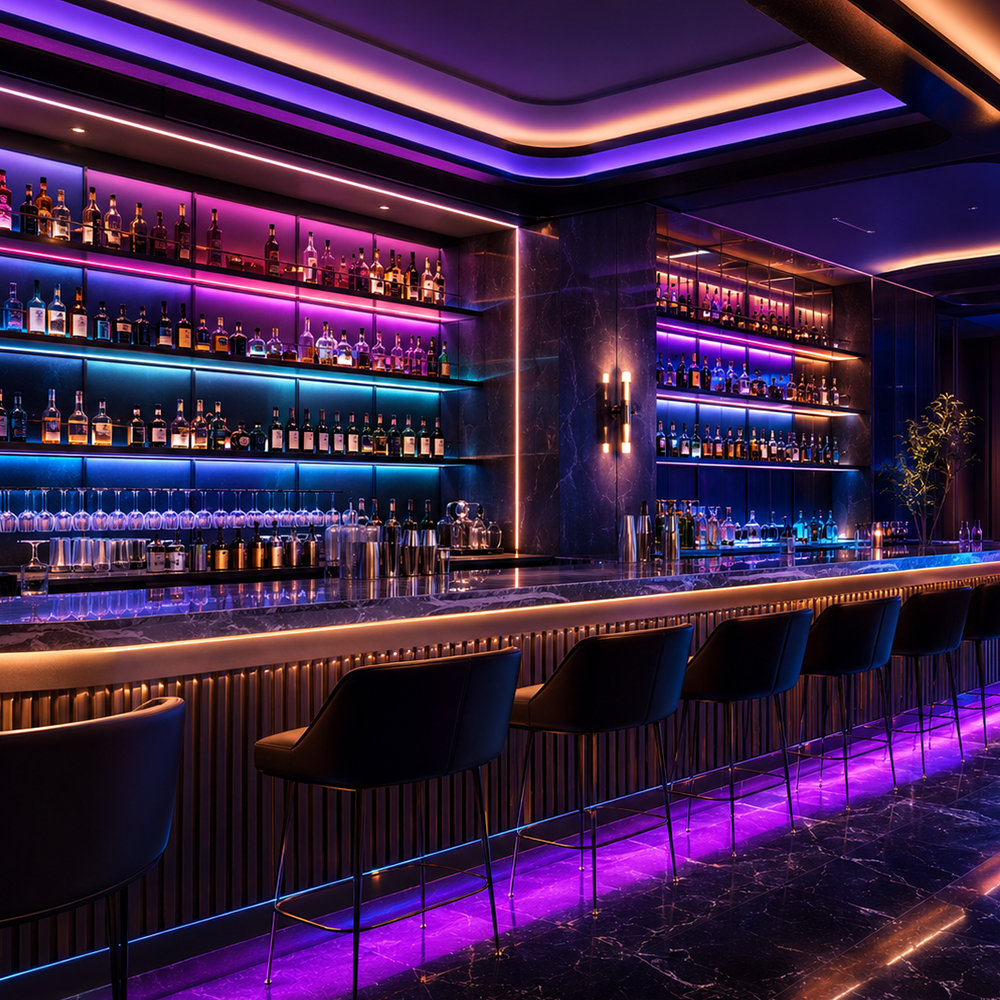

- Suitable for signage, display fixtures, edge lighting, entertainment lighting and architectural linear effects
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| S008630ZC3SF(C) | 630 | DC24V | 12W | Digital RGB COB / SPI-WS2811 / Front-emitting | 8mm | RGB | 100mm | Download |
| S010840ZC3SF(C) | 840 | DC24V | 13W | Side-emitting Digital RGB COB / SPI-WS2811 | 10mm | RGB | 100mm | Download |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need regular front-emitting digital RGB COB strip | S008630ZC3SF(C) — 8mm PCB, 630 LEDs/m, 180° beam angle. |
| Need side-emitting / edge-lighting digital RGB COB strip | S010840ZC3SF(C) — 10mm PCB, side-emitting structure, 120° beam angle. |
| Need narrower PCB width | S008630ZC3SF(C) — 8mm PCB width. |
| Need higher LED density | S010840ZC3SF(C) — 840 LEDs/m. |
| Project uses DC24V SPI-WS2811 control | Both models — both are DC24V and SPI-WS2811 controlled. |
| Need 100mm cutting unit | Both models — both use 100mm cutting length. |
| Need lower bending diameter | S008630ZC3SF(C) — datasheet shows bending diameter ≥20mm. |
| Need side-slot or special profile installation | S010840ZC3SF(C) — designed for side-emitting edge lighting. |
| Need IP65 surface protection | IP65 option — available for both models; final size and optical data should be confirmed after IP process. |

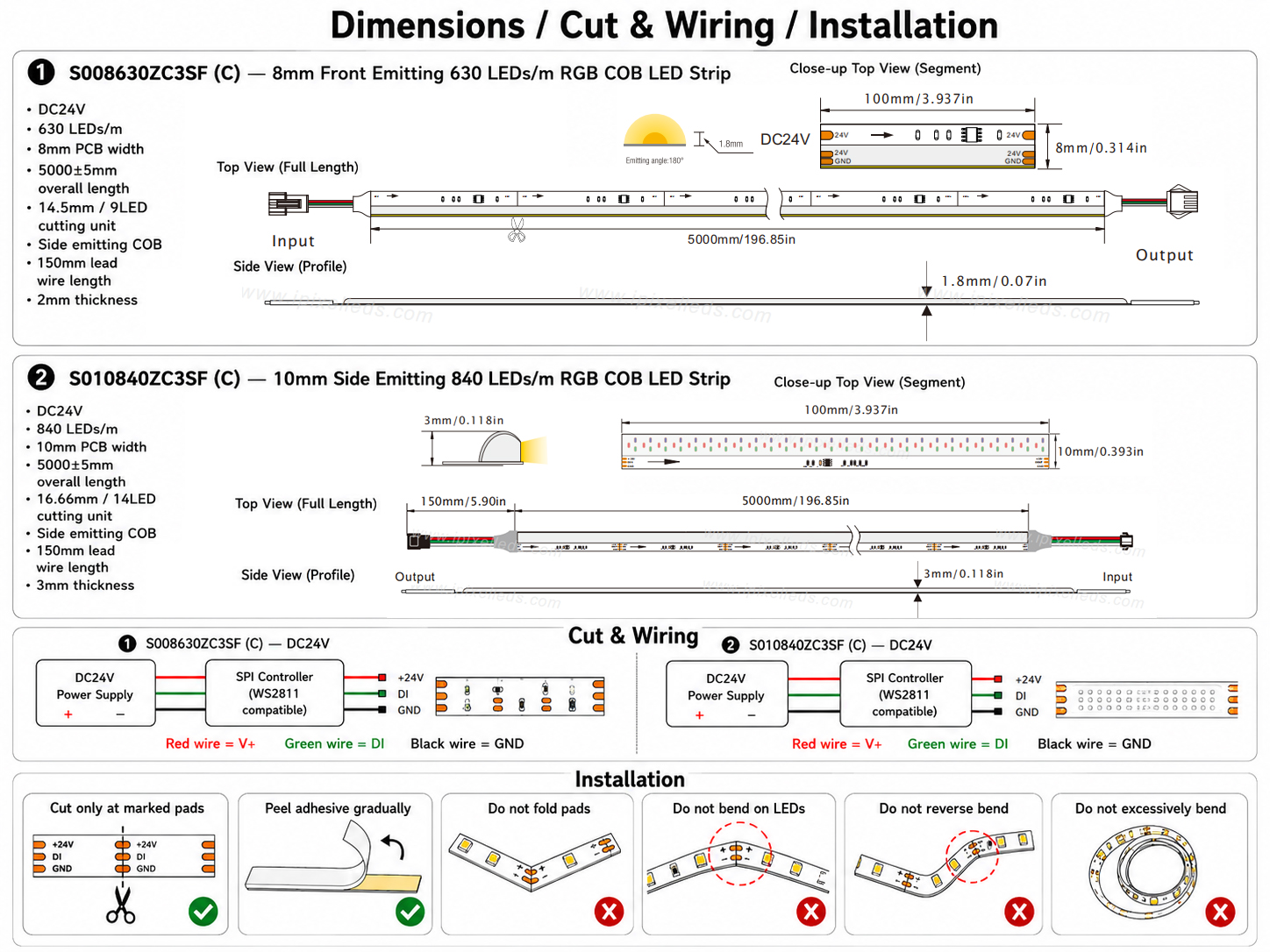

Structure & Installation
![]()
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Both models use DC24V low-voltage input. |
| LED Type | COB | High-density COB structure for smooth dotless digital RGB output. |
| ColorType | RGB | RGB dynamic color-changing effect. |
| Color Range | RGB | Wavelength: R 615–630nm, G 520–535nm, B 450–460nm. |
| PCB Width | 8mm / 10mm | 8mm for regular digital RGB COB; 10mm for side-emitting digital RGB COB. |
| Power | 12W/m / 13W/m | S008630ZC3SF(C) is 12W/m; S010840ZC3SF(C) is 13W/m. |
| Control | SPI-WS2811 | Controller must match WS2811 protocol, DC24V input and total pixel quantity. |
| IPRating | IP20 / IP65 | IP20 for dry indoor use; IP65 silicone tube option available. IP process may affect final size and optical output. |
| Length | 5m standard / custom length | Both datasheets show standard 5m/roll; length can be customized. |
| Connector | Bare wire / SPI connector / custom connector | Connector should match DC24V / DI / GND and signal direction. |
| Mounting | Adhesive tape / aluminum profile / clips | Aluminum profile is recommended for heat dissipation, mechanical protection and cleaner installation. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing. OEM packaging can be discussed. |
