Mini cut COB has a shorter cutting unit than standard COB strip, while free cut COB provides an even shorter cutting length. In this series, the free cut version can be cut every 3.78mm, which is suitable for projects requiring very accurate length matching.
Mini Cut & Free Cut COB LED Strip Series

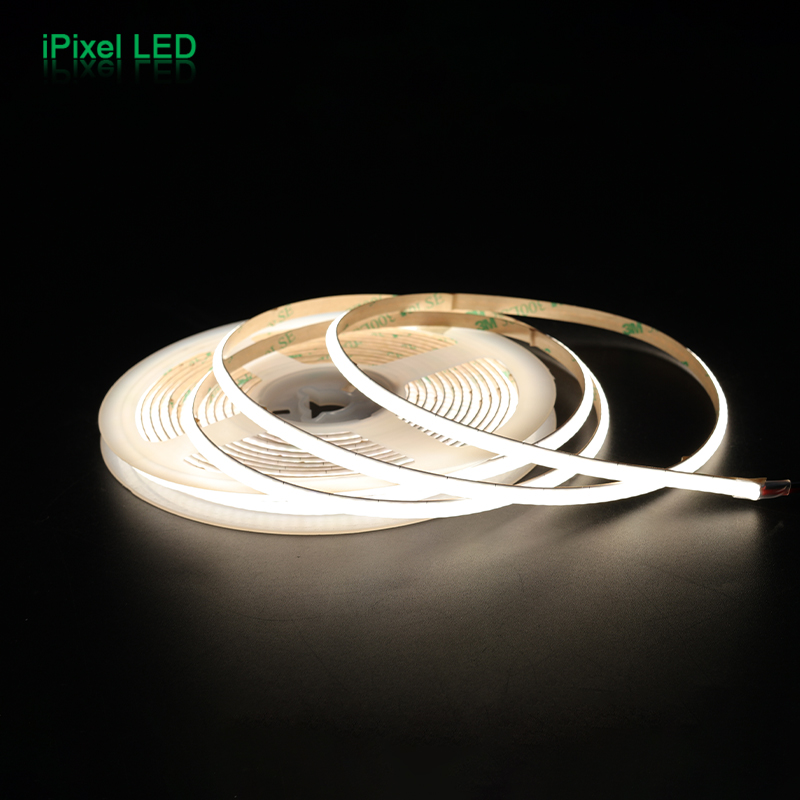

This Mini Cut & Free Cut COB LED Strip Series uses high-density COB chips on flexible FPC to deliver smooth, dotless linear lighting, with 5mm / 8mm PCB options and short cutting lengths from 3.78mm to 12.5mm for precise furniture, cabinet, display and profile lighting applications.
DC12V/DC24V320/528LEDs/m5/8mm WdthSingle ColorIP20/IP65
Overview & Key Features
Series Overview
This Mini Cut & Free Cut COB LED Strip Series is designed for projects that require smooth, dotless linear lighting with more flexible cutting accuracy. The series includes 5mm mini cut COB, 8mm free cut COB, and 8mm high-output mini cut COB options, covering DC12V and DC24V systems.

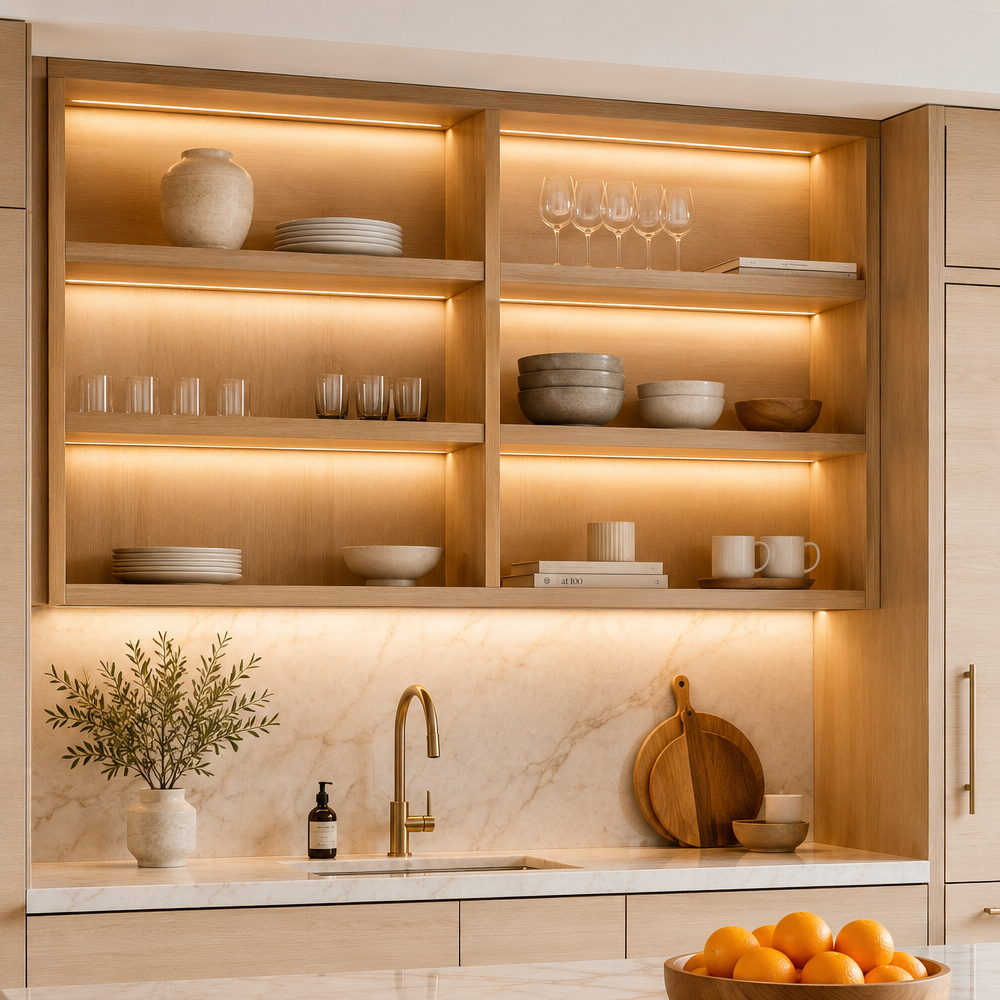

With cut lengths from 3.78mm to 12.5mm, this series is especially suitable for furniture lighting, display fixtures, cabinet lighting, shelf lighting, and other applications where the final strip length needs to match the structure precisely. The uploaded datasheets show COB single color models with 3000K / 4000K / 6500K options, CRI 90, IP20 / IP65 options, and 5m standard roll length.
Key Features
- Dotless COB light output with smooth and uniform illumination
- Mini cut and free cut options for accurate length matching
- 5mm and 8mm PCB width options
- DC12V and DC24V versions available
- 3000K / 4000K / 6500K standard white options
- CRI 90 for good color rendering
- IP20 / IP65 protection options
- Standard 5m/roll, custom length available
- Suitable for furniture, display, cabinet, shelf and linear profile lighting
- Compatible with low-voltage power supply and PWM dimming
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S005320ZB1LZ | 320 | DC12V | 8W | 5mm Mini Cut COB | 5mm | 3000K / 4000K / 6500K | 12.5mm | 800lm/m |

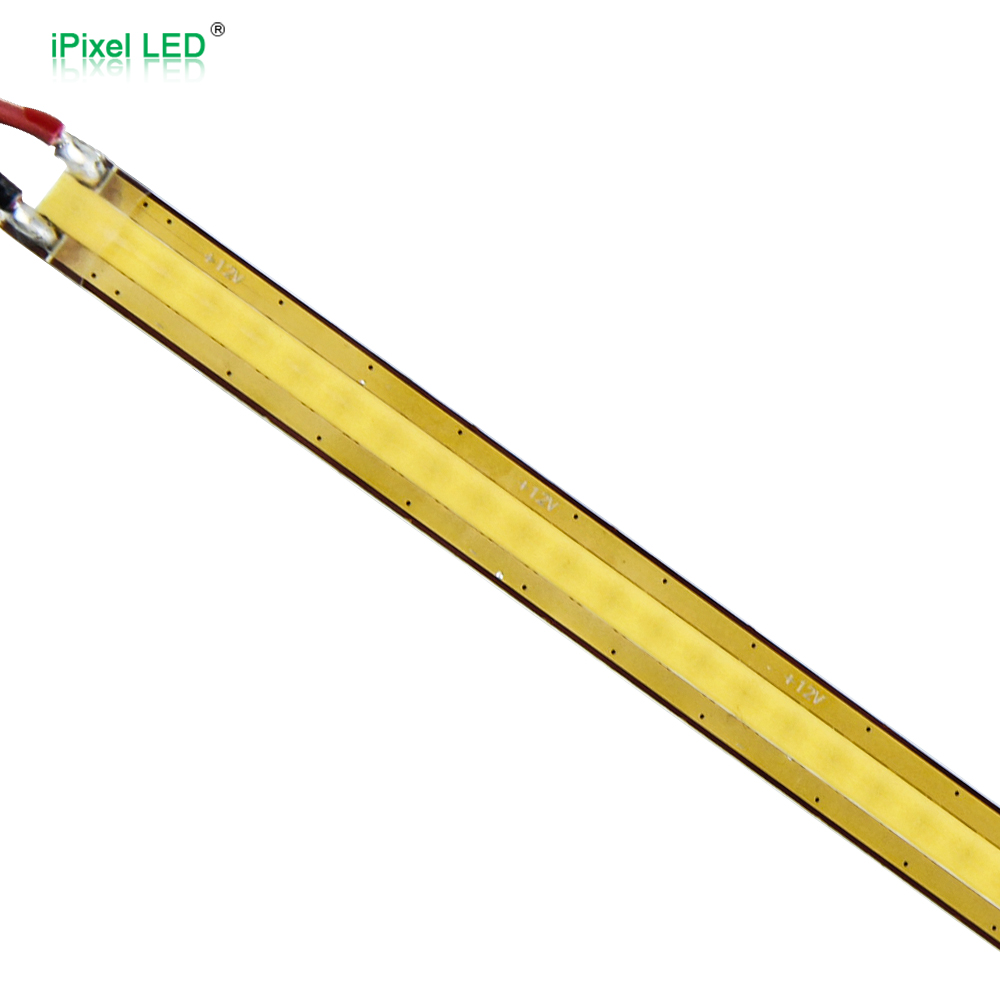

| S008528ZB1LZ(M) | 528 | DC12V | 10W | 8mm Free Cut COB | 8mm | 3000K / 4000K / 6500K | 3.78mm | 650lm/m |
| S008528ZC1LZ(M) | 528 | DC24V | 10W | 8mm Free Cut COB | 8mm | 3000K / 4000K / 6500K | 3.78mm | 600lm/m |

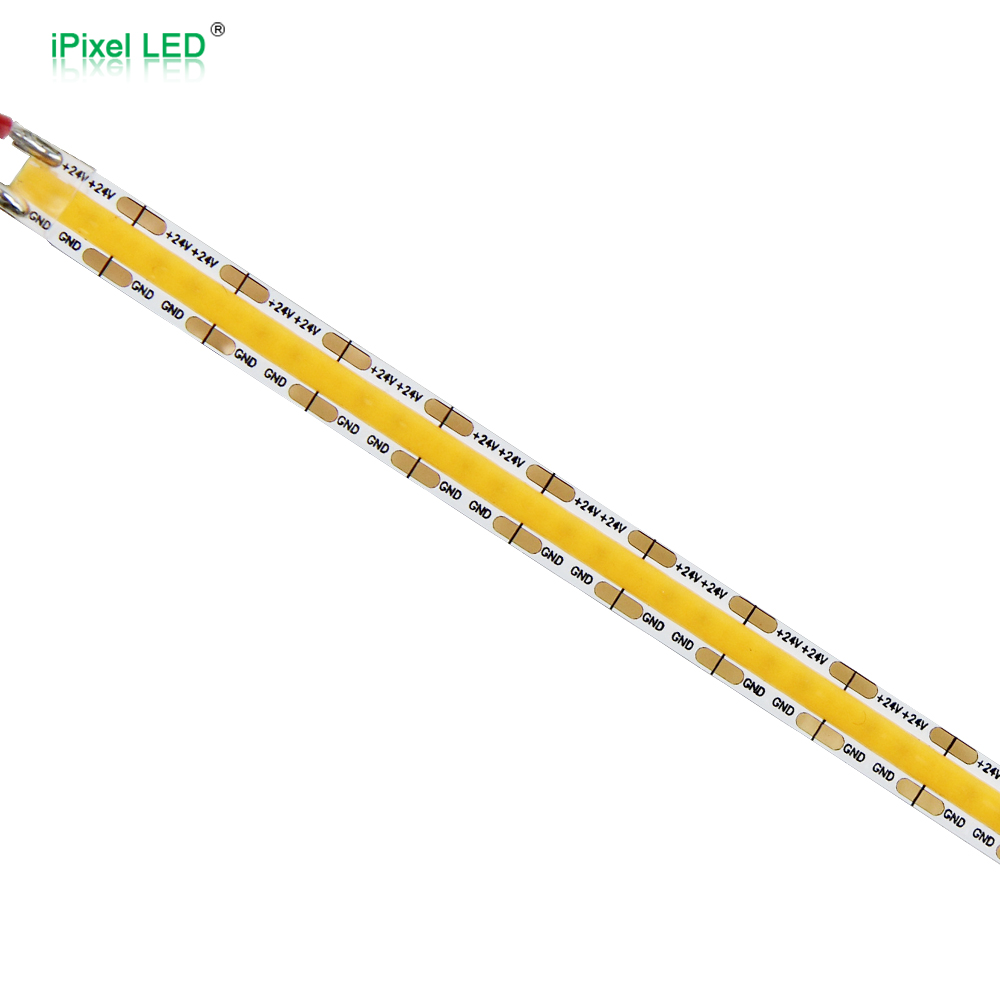

| S008528ZC1LZ | 528 | DC24V | 10W | 8mm Mini Cut COB | 8mm | 3000K / 4000K / 6500K | 11.36mm | 875lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need slim 5mm COB strip with short cut length | S005320ZB1LZ — 5mm PCB, DC12V, 12.5mm cut, suitable for furniture and compact linear lighting. |
| Need the shortest possible cut length | S008528ZB1LZ(M) / S008528ZC1LZ(M) — 3.78mm free cut design, suitable for precise-length installation. |
| Project uses DC12V system and requires free cut | S008528ZB1LZ(M) — DC12V, 8mm PCB, 3.78mm cut, 650lm/m. |
| Project uses DC24V system and requires free cut | S008528ZC1LZ(M) — DC24V, 8mm PCB, 3.78mm cut, 600lm/m. |
| Need higher lumen output in 8mm COB strip | S008528ZC1LZ — DC24V, 875lm/m, 11.36mm cut, suitable when brightness is more important than ultra-short cut length. |
| Need better voltage-drop control for longer low-voltage runs | DC24V options — S008528ZC1LZ(M) or S008528ZC1LZ. |
| Need compact furniture or display lighting | 5mm or 8mm COB options — select by groove size, required brightness and cutting accuracy. |

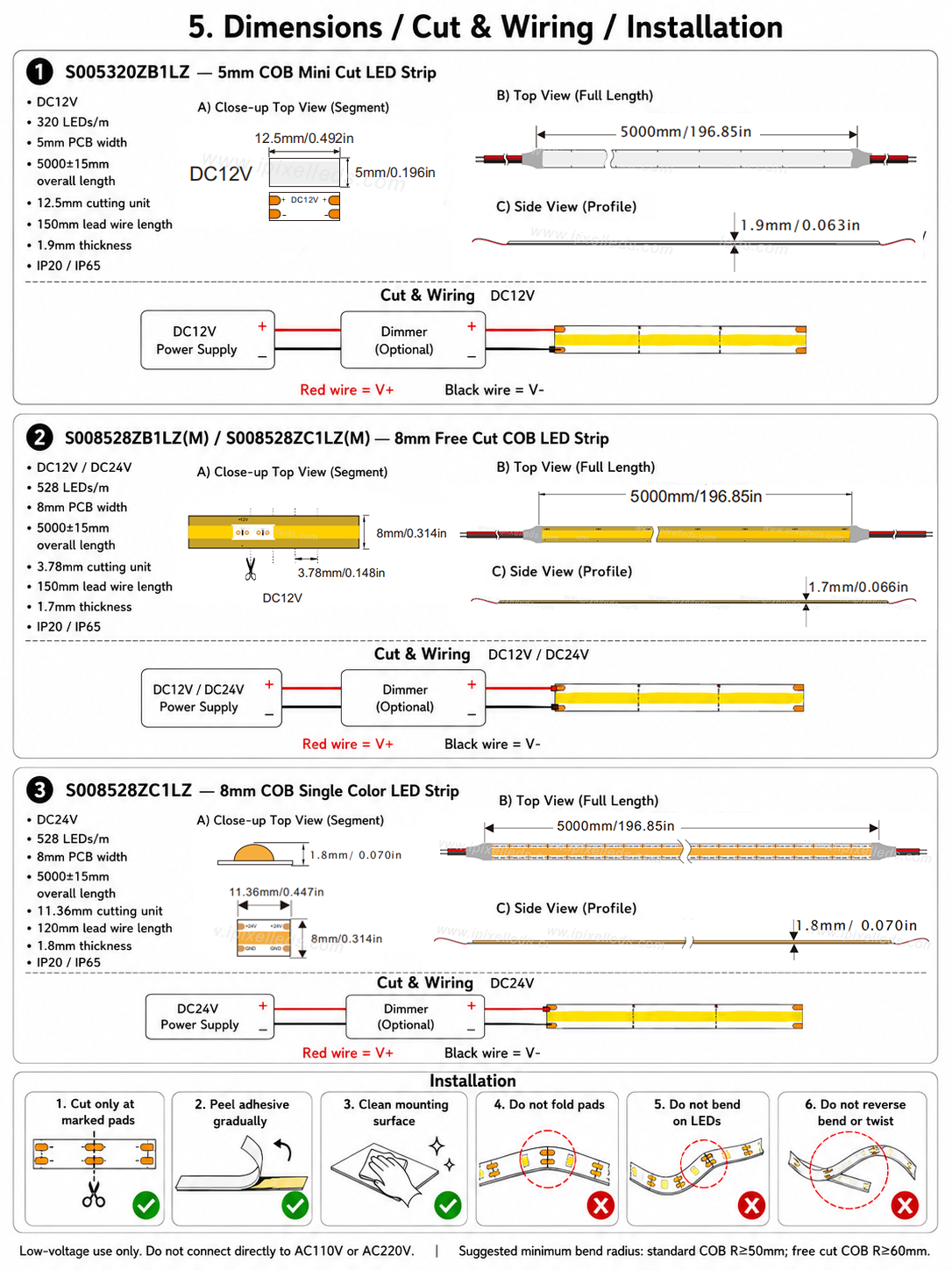

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V is available for S005320ZB1LZ and S008528ZB1LZ(M). DC24V is available for S008528ZC1LZ(M) and S008528ZC1LZ. |
| LED Type | COB | High-density chip-on-board structure for dotless and uniform linear lighting. |
| ColorType | Single Color | This series is for single color white COB LED strip. |
| Color Range | 3000K / 4000K / 6500K | Standard CCT options from the datasheets. |
| PCB Width | 5mm / 8mm | 5mm for slim grooves; 8mm for higher-output or free-cut structure. |
| Power | 8W/m / 10W/m | 5mm model is 8W/m; 8mm models are 10W/m. |
| Control | On/off / PWM dimming / RF dimmer option | Controller or dimmer must match voltage and load. |

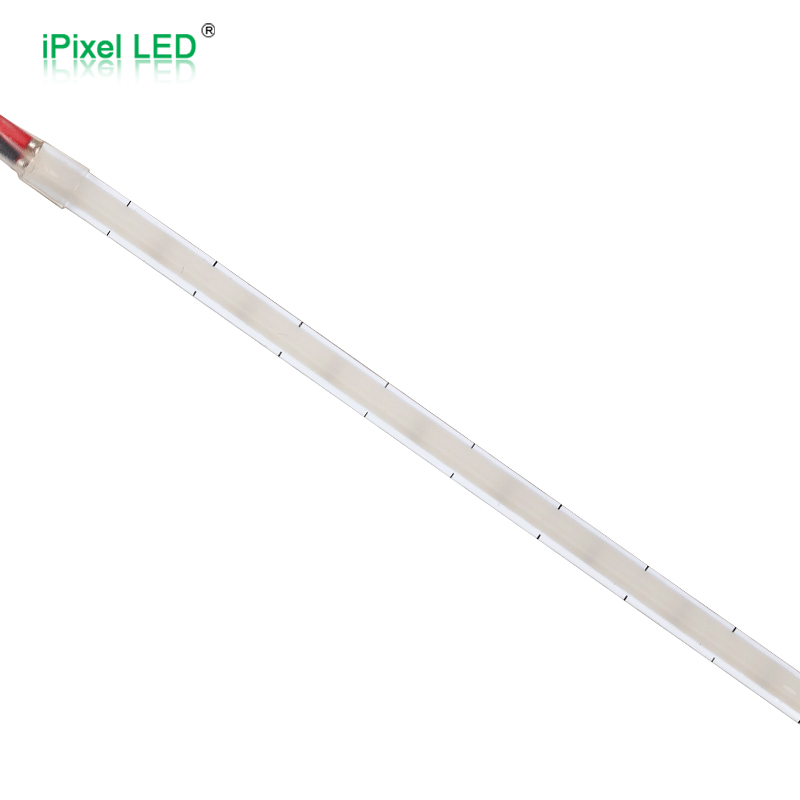

| IPRating | IP20 / IP65 | IP20 for dry indoor use; IP65 silicone tube option for additional surface protection. IP process may affect size, CCT and lumen output. |
| Length | 5m standard / custom length | Datasheets show standard 5m/roll; length can be customized. |
| Connector | Bare wire / soldered lead wire / terminal / custom connector | Connector type should be confirmed according to project wiring design. |
| Mounting | Adhesive tape / aluminum profile / clips | Aluminum profile is recommended for heat dissipation and mechanical protection. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packaging; OEM packing can be discussed. |
Related Items
Cabinet & Furniture Lighting – Dotless, Tight Tolerance & Easy Installation
Coffee Machine Lighting – Heat/Steam/Chemical Resistance & Glare-Controlled Downlight
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
RV Lighting – 12V Robustness, Vibration Resistance & Safe Installation
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
S008528ZB1LZ(M) / S008528ZC1LZ(M) has the shortest cut length, 3.78mm.
Among these models, S008528ZC1LZ has the highest listed output at 875lm/m.
Choose S005320ZB1LZ, because it uses a 5mm PCB and has a 12.5mm cutting unit.
