Series Overview

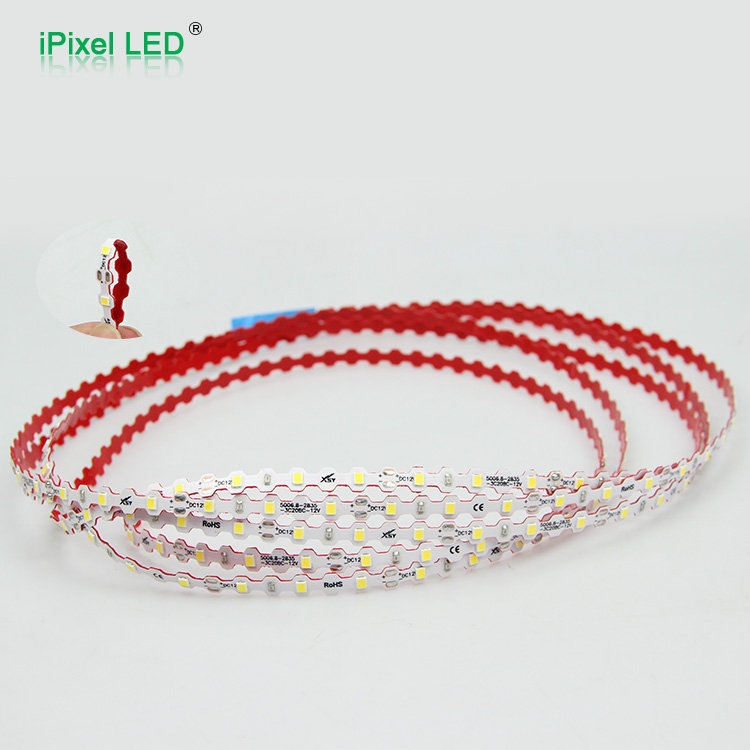

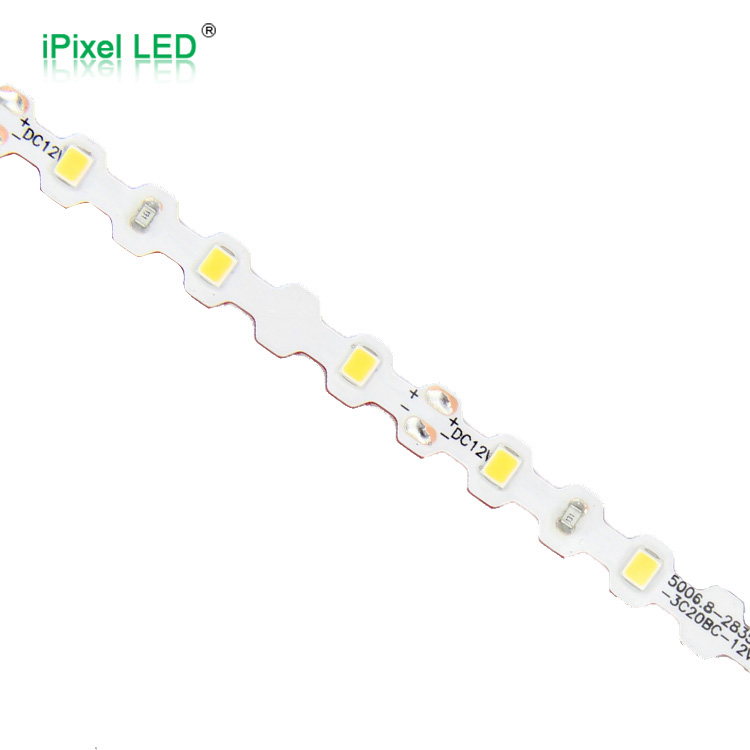

This series features S-shaped (zigzag) single-color 2835 flexible strips at 60 LEDs/m, IP20 non-waterproof, standard 5m reel with custom lengths available. The unique S-shaped design allows bending at any angle, breaking the limits of straight-line installations. Available in 6mm (DC12V/24V, 4.8W/m) and 7mm (DC12V, 6W/m) widths, with CCT options of 3000K/4000K/6500K, Ra90, and SDCM<5 for excellent color consistency.
Key Features
- S-shaped (zigzag) circuit design enables bending at any angle for flexible shaping.
- High CRI Ra90 with pure CCT (SDCM<5).
- Ultra‑narrow 6mm/7mm width suits tight spaces and curved surfaces.
- DC12V/24V options (6mm version) for diverse power requirements.
- Flexible cutting (6mm: 50mm/3LED or 100mm/6LED; 7mm: 50mm/3LED).
- IP20 indoor only; ESD protection recommended during installation.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CRI | PCB Width | Cutting Length | IP Rating | Lumen/m | Length | Spec Sheet |
|---|
| S006060BB1LZ(S) | 60 | 12V | 4.8W | Ra90 | 6mm | 50mm / 3 LEDs | IP20 | 515lm | 5M | Download |
| S006060BC1LZ(S) | 60 | 24V | 4.8W | Ra90 | 6mm | 100mm / 6 LEDs | IP20 | 515lm | 5M | Download |
| S007060BB1LZ(S) | 60 | 12V | 6W | Ra90 | 7mm | 50mm / 3 LEDs | IP20 | 541lm | 5M | Download |
How to Choose
| Project Requirement | Recommended Option |
|---|
| Narrow installation space with serpentine bending required | 6mm S Shape |
| DC24V needed for lower current or longer runs | 6mm DC24V version |
| Need slightly higher power and brightness | 7mm DC12V version |

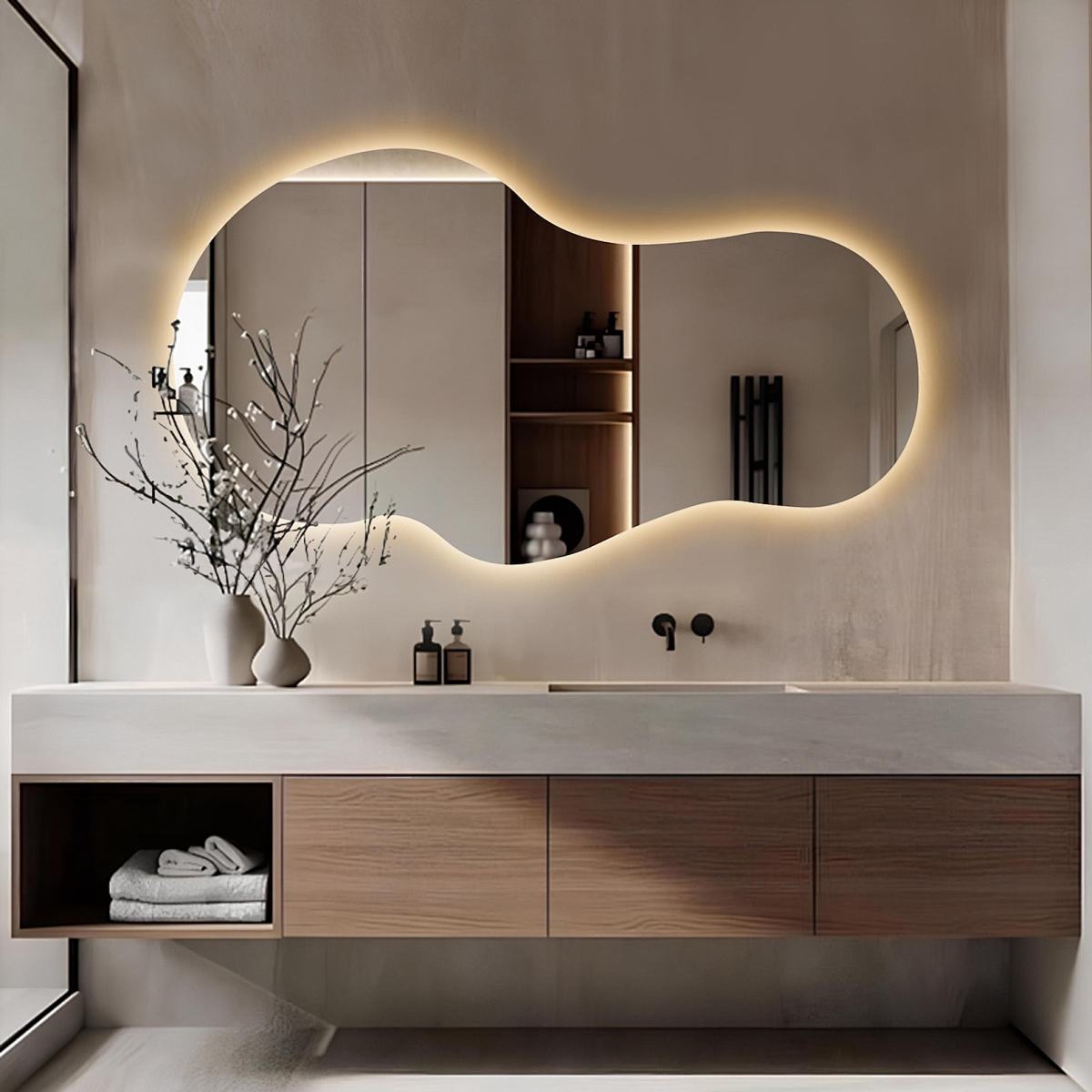

| Irregular lettering, curves, corners, and shaped installations | S Shape / Zigzag series |
| Damp or outdoor environments | Not recommended for direct use; this series is currently IP20 only |
| Waterproof serpentine light strip required | Needs project‑based re‑evaluation of the structure; direct commitment is not recommended at this stage |

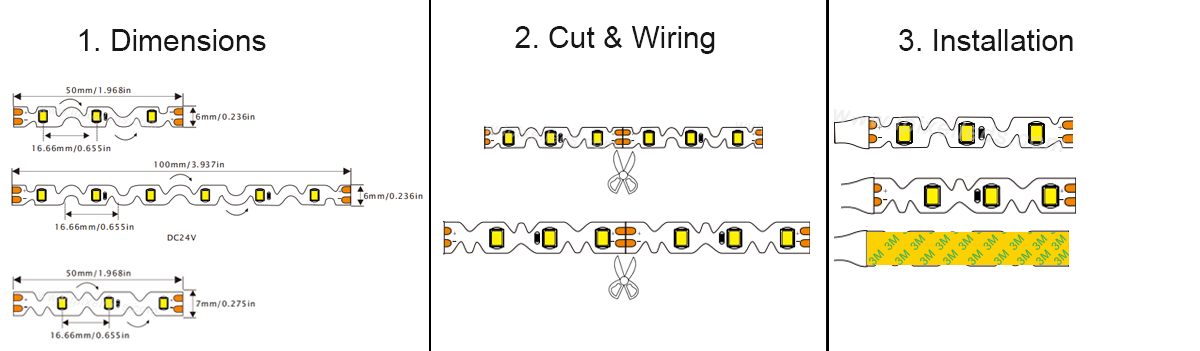

Structure & Installation

Protection, Customization & Options
| Item | Options/Details | Remarks |
|---|
| IP Rating | IP20/IP65 | IP65 Silicone Coating. |
| Color Option | RGB | Other CCTs available on request. |

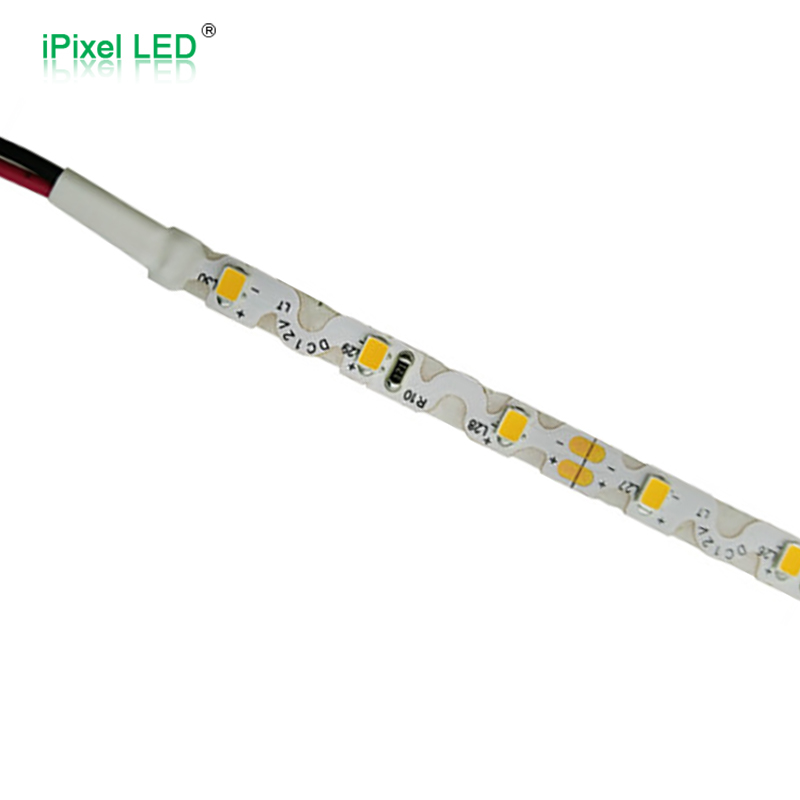

| Connector | Wiring Sequence / Color | Fast connectors for easy installation. |
| Length | 5M (Standard) | Custom lengths available. |
| PCB Color | White | Other PCB color available (Black). |
