Normal COB strip emits light upward from the front surface. This series emits light from the side, making it more suitable for edge lighting, side slots and special profile structures.

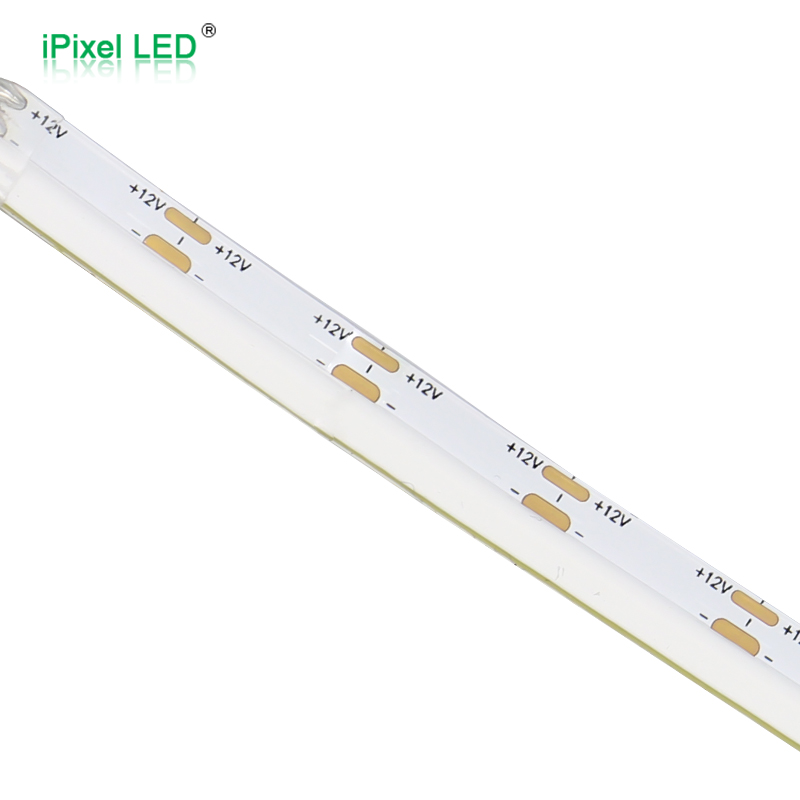

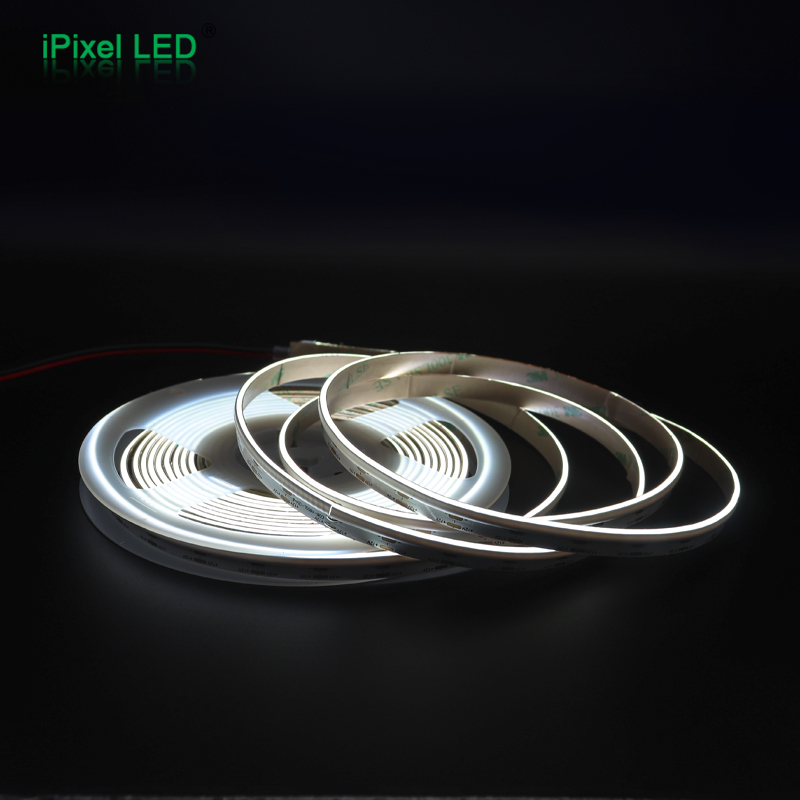

Side-Emitting Single Color COB LED Strip Series

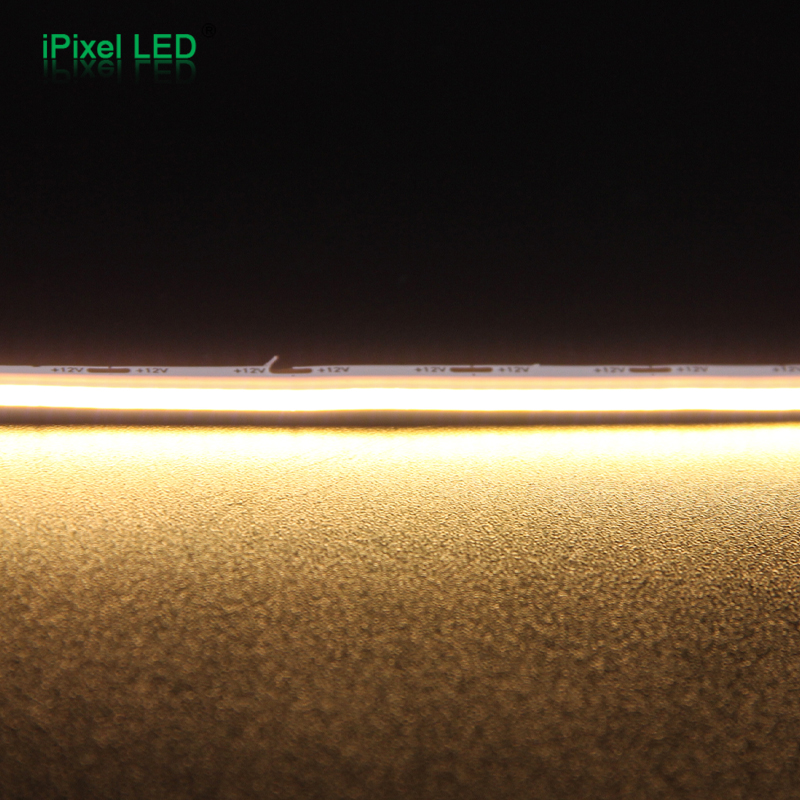

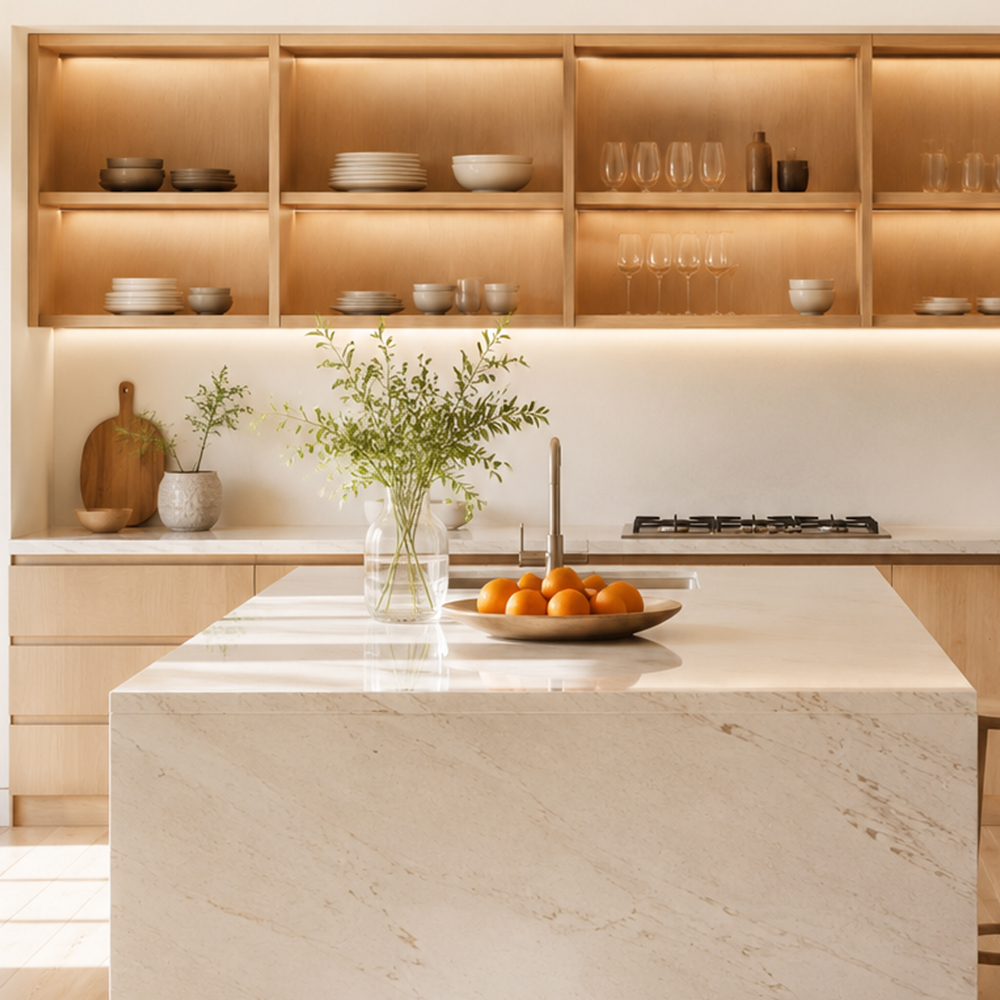

This side-emitting COB LED strip is designed for edge lighting, side-slot installation and special profile lighting where light needs to emit from the side rather than directly upward. With high-density 480 LEDs/m COB structure, the strip delivers soft and uniform light output, making it suitable for cabinet edges, display fixtures, signage edges, profile lighting and decorative linear applications.
The series includes DC12V and DC24V versions, both with 8mm PCB width, 10W/m power, 800lm/m output and IP20/IP65 protection options. The DC12V version has a 16.5mm cut length, while the DC24V version has a 33mm cut length.
DC12V/DC24V480LEDs/m8mm WidchSingle ColorIP20/IP65
Overview & Key Features
Series Overview
This product series is positioned for projects where standard front-emitting COB strip cannot create the required edge-lighting effect. The side-emitting structure allows the strip to be installed in side grooves, edge channels or profile structures while directing the light outward from the side.
Key Features
- Side-emitting COB structure for edge lighting applications
- 480 LEDs/m high-density COB design
- Smooth and soft light output
- DC12V and DC24V options
- 8mm PCB width
- 10W/m power
- 800lm/m luminous output
- 120° beam angle
- 3000K / 4000K / 6500K white options
- CRI 80
- SDCM <5
- IP20 / IP65 protection options

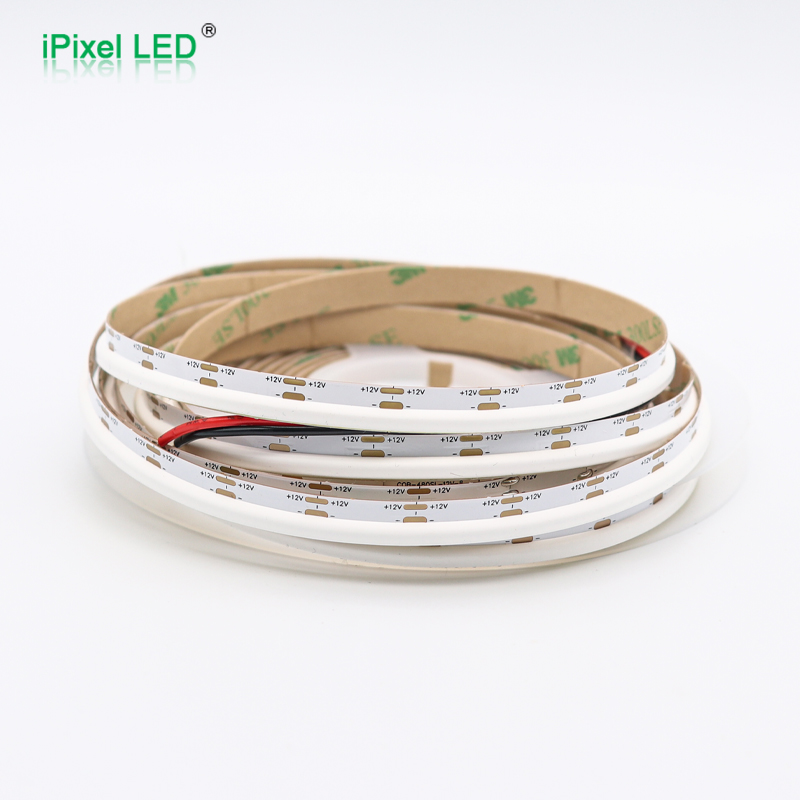

- Standard 5m/roll, custom length available
- Suitable for edge lighting, side slots and special profile lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S008480ZB1LZ(C) | 480 | DC12V | 10W | Side-Emitting COB / Single Color | 8mm | 3000K / 4000K / 6500K | 16.5mm / 8LED | 800lm/m |
| S008480ZC1LZ(C) | 480 | DC24V | 10W | Side-Emitting COB / Single Color | 8mm | 3000K / 4000K / 6500K | 33mm / 16LED | 800lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Project uses DC12V power platform | S008480ZB1LZ(C) — DC12V, 16.5mm cut length, suitable for shorter low-voltage runs or existing 12V systems. |
| Project uses DC24V power platform | S008480ZC1LZ(C) — DC24V, 33mm cut length, suitable for 24V furniture, display or profile lighting systems. |
| Need shorter cutting unit | S008480ZB1LZ(C) — 16.5mm / 8LED cut length gives more flexible length matching. |
| Need lower current for similar power level | S008480ZC1LZ(C) — DC24V version is more suitable when the project prefers a 24V platform. |
| Edge lighting or side-view light output | Both models — both are side-emitting COB strips designed for edge lighting demand. |
| Indoor dry installation | IP20 version — suitable for dry indoor profile, cabinet and display applications. |
| Need extra surface protection | IP65 version — suitable when additional surface protection is required; final size, CCT and lumen should be confirmed after IP process. |

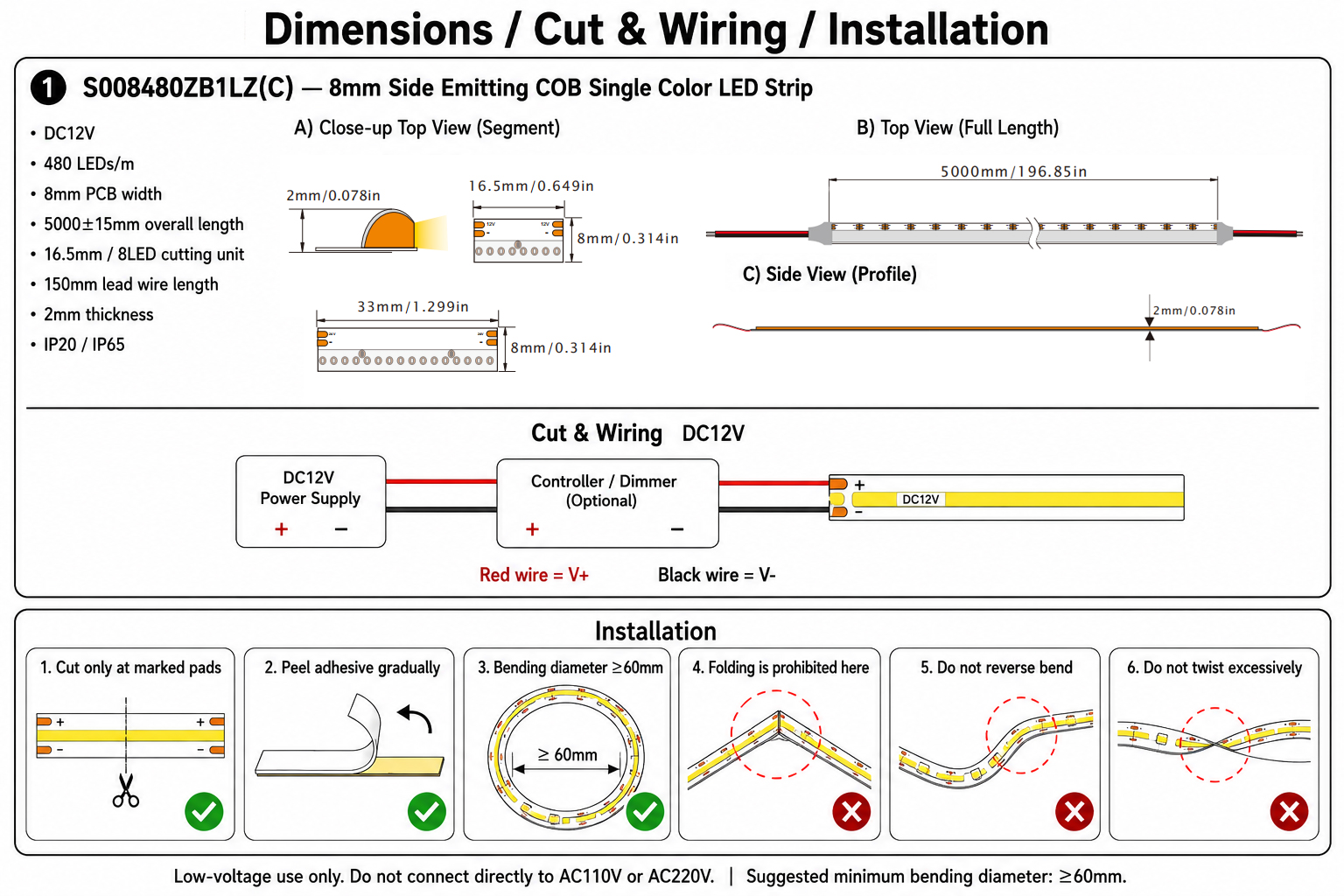

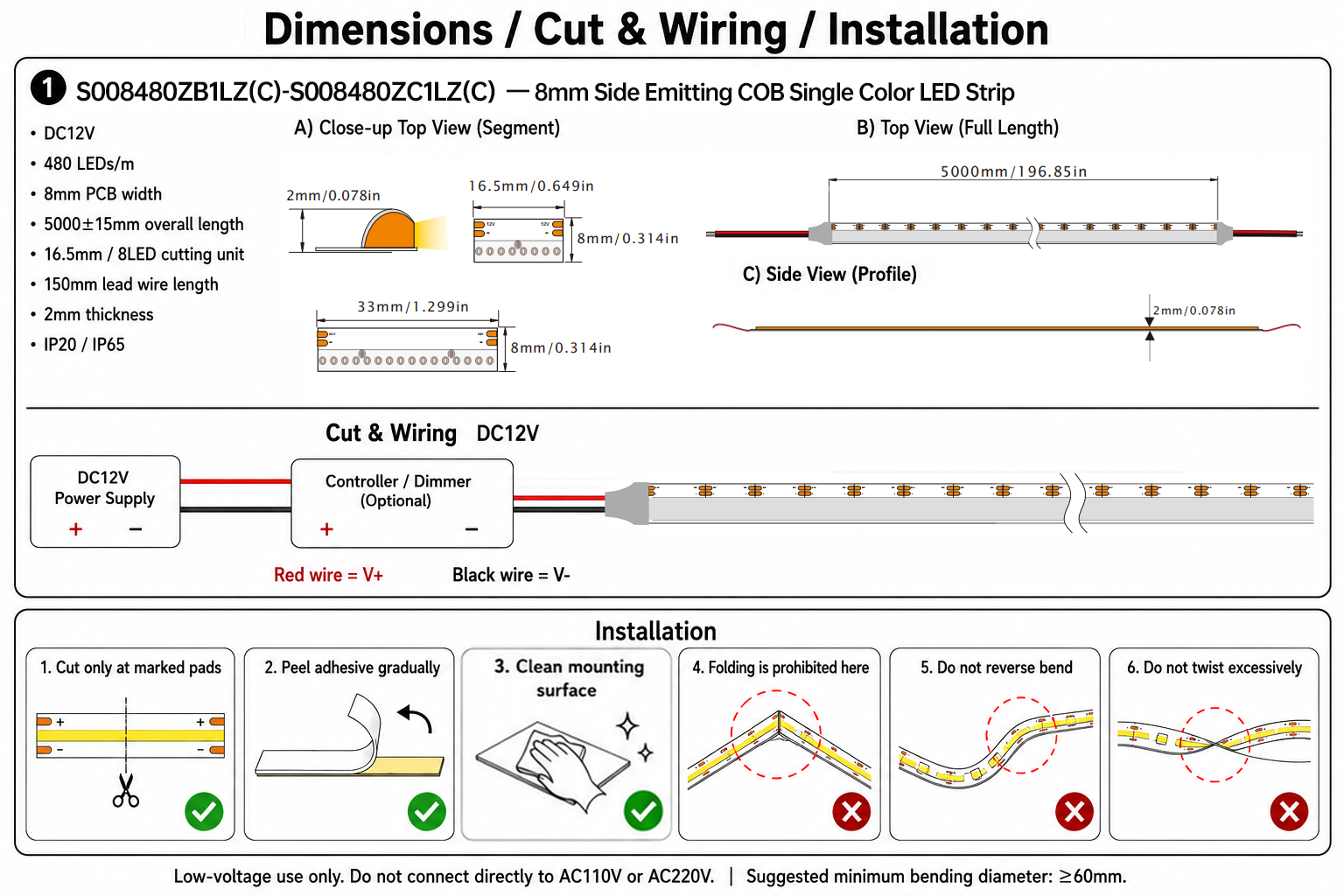

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V version is S008480ZB1LZ(C); DC24V version is S008480ZC1LZ(C). |
| LED Type | COB | High-density COB structure for smooth and soft side-emitting light. |
| ColorType | Single Color | This page is for single color white side-emitting COB strip. |
| Color Range | 3000K / 4000K / 6500K | Standard white CCT options from the datasheet. |
| PCB Width | 8mm | Designed for side-emitting edge lighting and profile applications. |
| Power | 10W/m | Both DC12V and DC24V versions are listed as 10W/m in the Product Datasheet table. |
| Control | On/off / low-voltage dimming / RF dimmer option | Controller or dimmer should match voltage and load. |
| IPRating | IP20 / IP65 | IP20 for dry indoor use; IP65 for additional surface protection. IP processing may affect size, CCT and luminous flux. |
| Length | 5m standard / custom length | Datasheet states standard 5m/roll, length can be customized. |
| Connector | Bare wire / soldered lead wire / terminal / custom connector | Standard drawing shows lead wire connection; connector can be customized for OEM assembly. |
| Mounting | Adhesive tape / aluminum profile / clips | Choose by project structure. Profile or clips are recommended where positioning and heat dissipation are important. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheet shows reel, antistatic bag and carton packing. OEM packing can be discussed. |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
This series includes DC12V and DC24V versions.
The DC12V version has a 16.5mm / 8LED cut length. The DC24V version has a 33mm / 16LED cut length.
Standard white options are 3000K / 4000K / 6500K.
