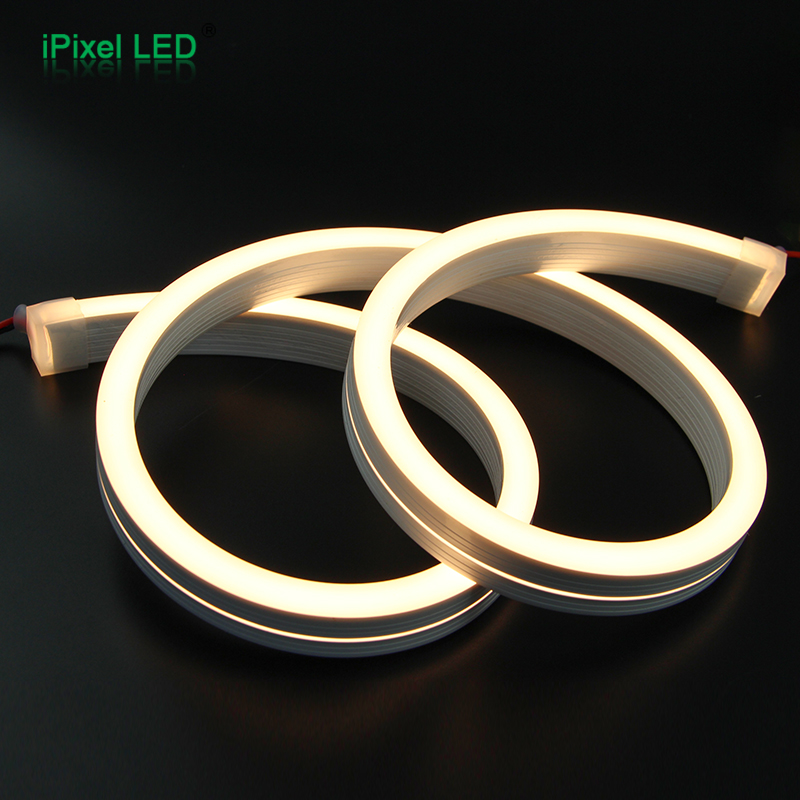

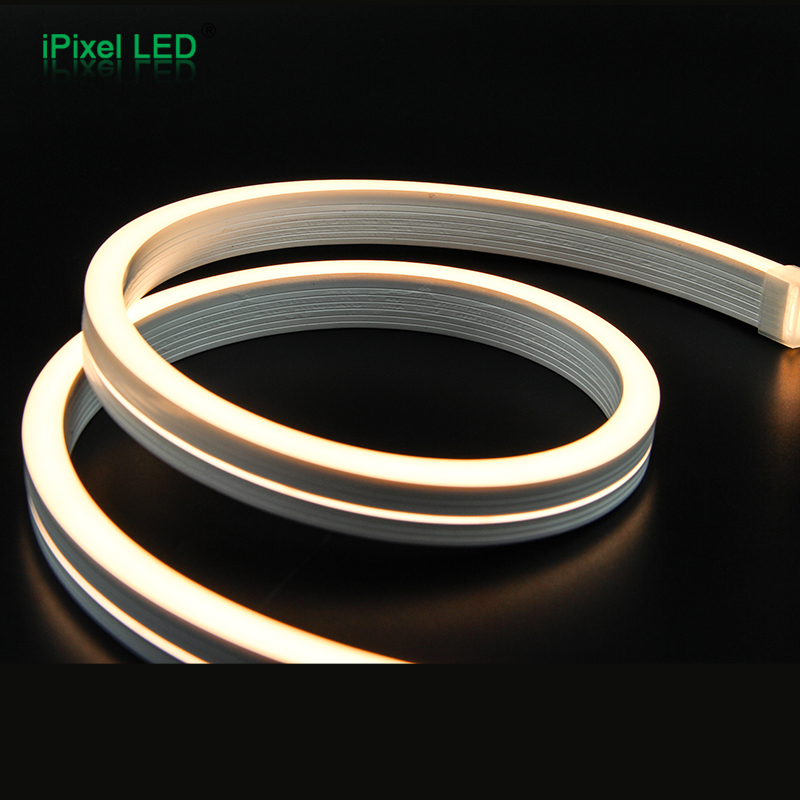

It is a 10×18mm three-sided side-view neon flex, designed to provide a broader visible luminous surface than standard single-side neon flex.
10×18 Three-Sided LED Neon Flex Series
The 10×18 Three-Sided LED Neon Flex Series is designed for applications requiring a wider luminous surface and more visible light output than standard single-side neon flex. With a 10×18mm three-sided side-view structure, it provides soft, uniform, dot-free illumination for signboard lighting, indoor/outdoor decorative lighting, and architectural contour applications.
This model uses DC24V, SMD2835, 120 LEDs/m, 10W/m, and supports 3000K / 4000K / 6500K white light options. The standard length is 5025±15mm, with a maximum length of 15m under proper power-feeding conditions.
DC24V120LEDs/m10mm WidthSingle colorIP67
Overview & Key Features
Series Overview

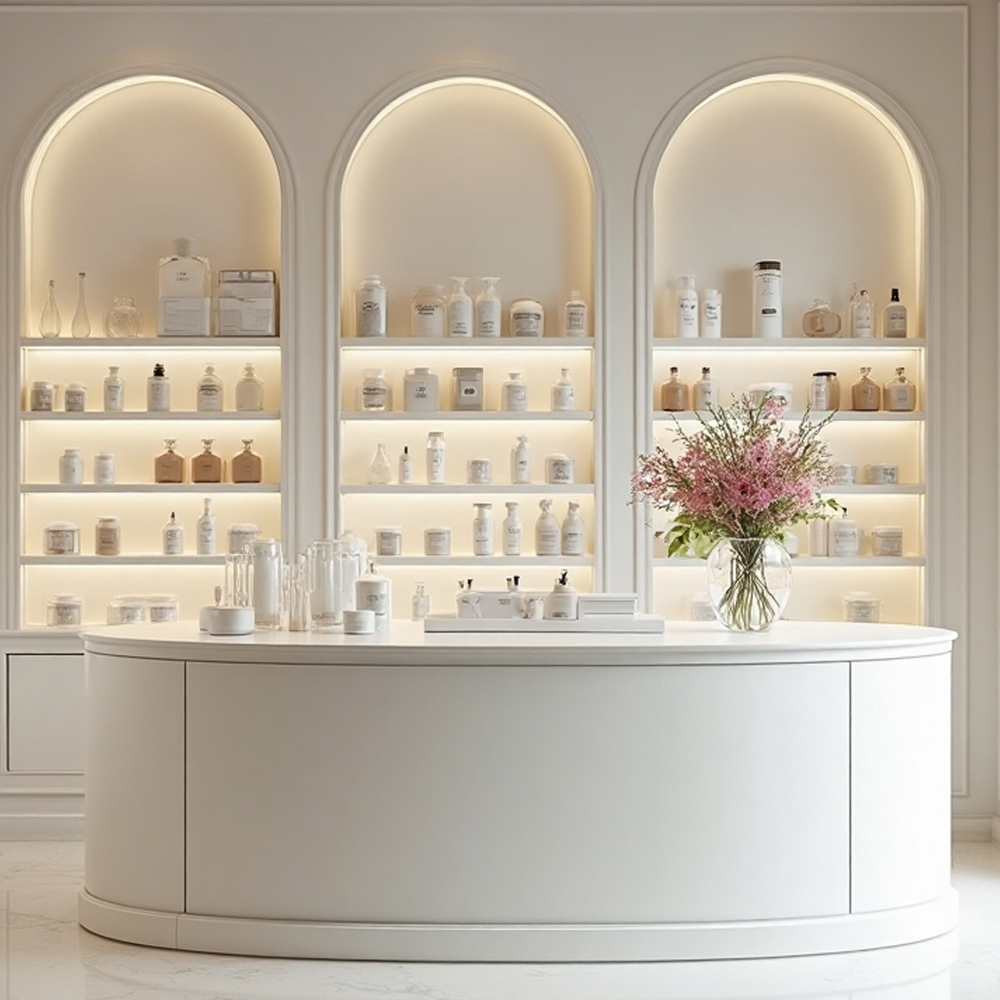

This product is positioned as a three-sided white neon flex for projects where the light needs to be more visible from multiple viewing angles. Compared with a normal single-side neon profile, the three-sided structure gives a broader luminous appearance and is better suited for signage, contour lines, decorative borders, and applications where the illuminated body itself is part of the visual design.
The silicone body uses high-transmittance, environmentally friendly material with good flexibility. The original specification states UV resistance, flame resistance, salt liquid resistance, and acid/alkali corrosion resistance.
Key Features
- 10×18mm three-sided side-view neon flex
- DC24V constant-voltage design
- SMD2835, 120 LEDs/m
- 10W/m power
- 3000K / 4000K / 6500K white options
- CRI ≥80
- 540 lm/m typical brightness
- 50mm cutting length
- IP67 listed
- 5025±15mm standard length
- 15m max length
- R＞80mm bending reference
- Straight outlet and side outlet options
- Suitable for indoor and outdoor applications
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N010120BC1LZ | 120 pcs/m | DC24V | 10W/m | Single Color / 2-wire | 10mm | 3000K / 4000K / 6500K | 50mm | W: 540 lm/m | N1018 Three-Sided |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need visible light from more than one side | N010120BC1LZ Three-Sided Neon Flex |
| White decorative contour lighting | 3000K / 4000K / 6500K according to project atmosphere |
| Outdoor signage or architectural outline | IP67 version with proper end sealing |
| Longer installation length | DC24V version, with power fed from both ends when longer than 5m |
| Higher visual brightness than slim side-view neon | 10×18mm three-sided structure |
| Standard project installation | Use matching buckle / aluminum profile |
| Site cutting required | Cut at 50mm cutting points and seal both ends after cutting |

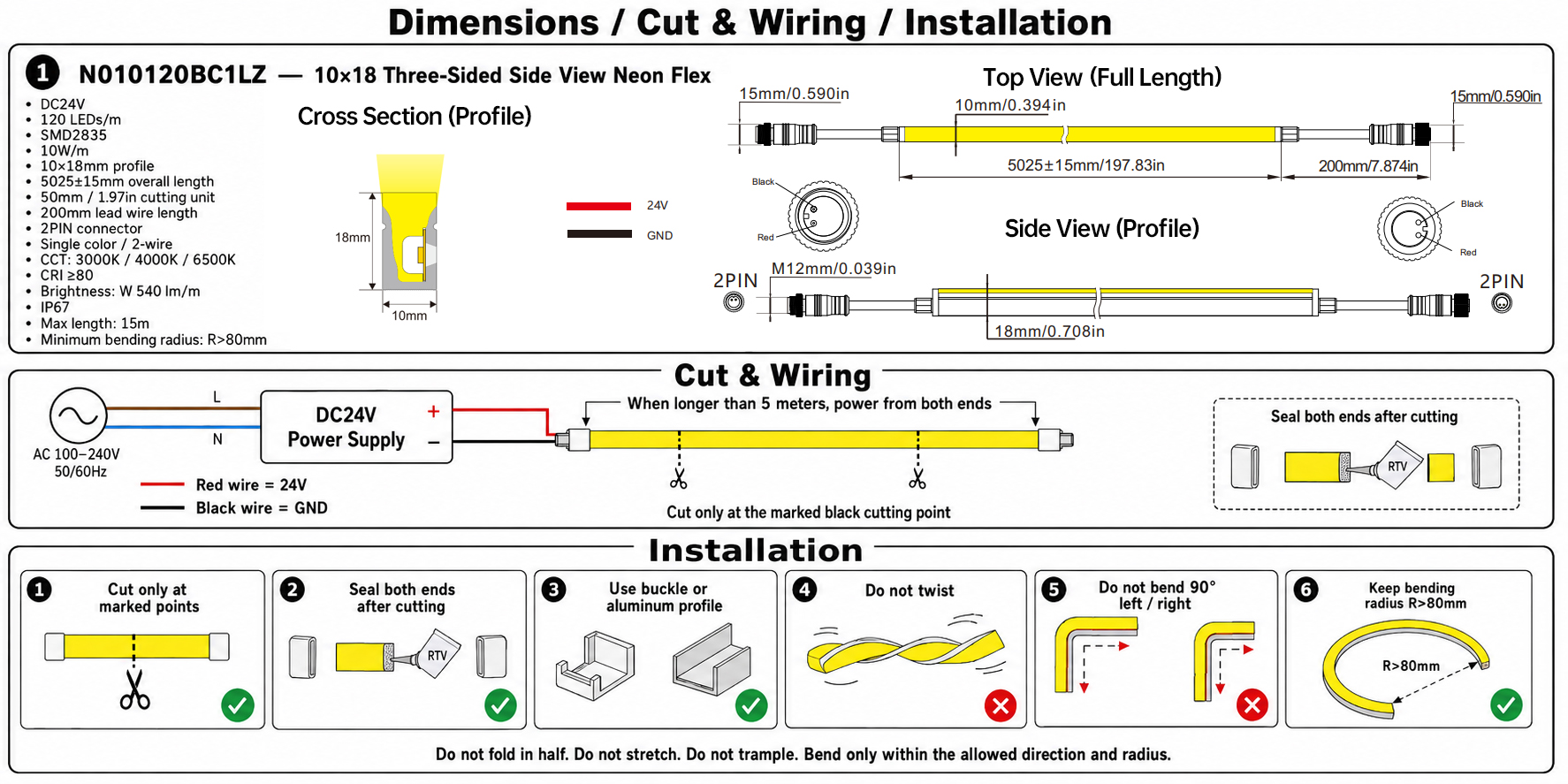

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Use DC24V isolated constant-voltage power supply. The instruction recommends reserving 20% power margin. |
| LED Type | SMD2835 | 120 LEDs/m. |
| Color Type | Single Color White | This model is a white-light three-sided neon flex, not RGB or digital pixel version. |
| Color Range | 3000K / 4000K / 6500K | CRI ≥80, typical brightness W: 540 lm/m. |

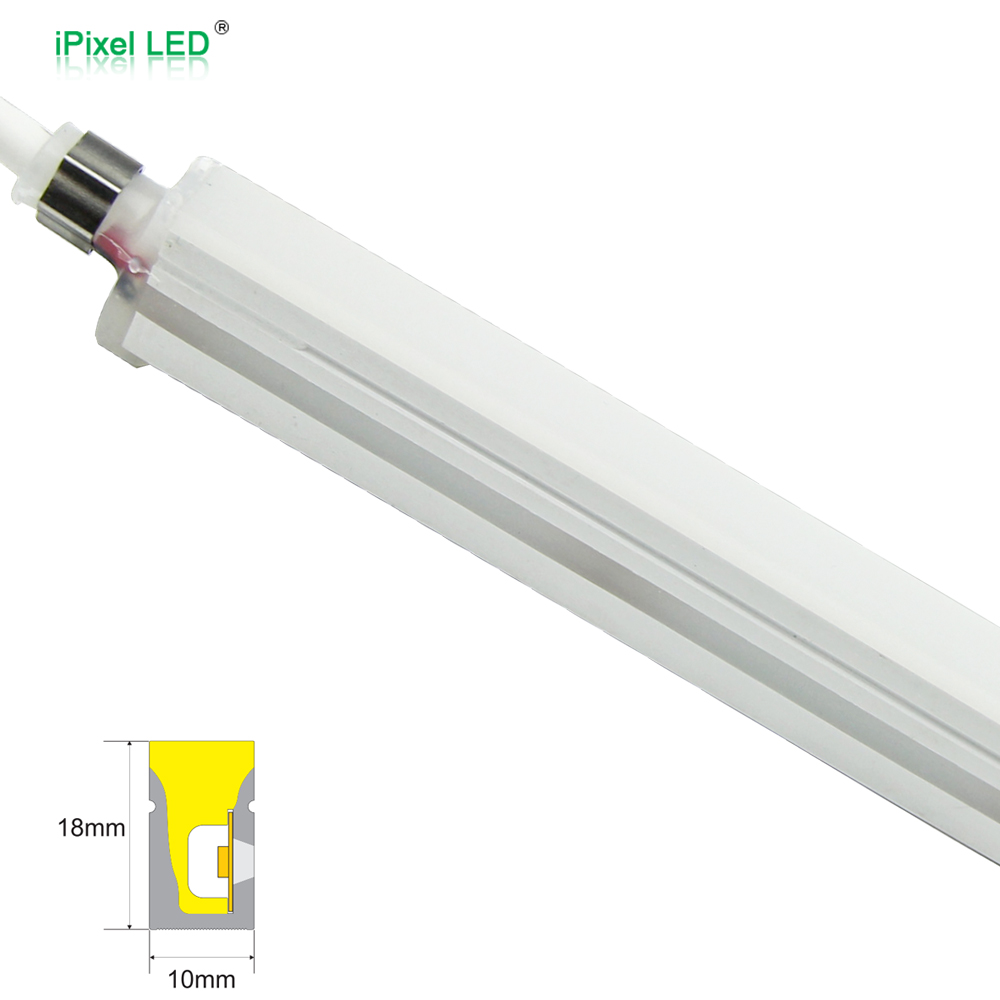

| PCB Width | 10mm | Suggested final wording: PCB / Profile Width: 10mm. Full profile size is 10×18mm. |
| Power | 10W/m | Product label also shows 10W/m max. |
| Control | Single Color / 2-wire | Red wire = 24V; Black wire = GND. |
| IP Rating | IP67 | Cover page and product label show IP67. Note: IP67 is not suitable for long-term immersion according to the instruction. |
| Length | 5025±15mm standard length; max 15m | When longer than 5m, power should be supplied from both ends. |
| Connector | 2PIN connector / straight outlet / side outlet / end cap sealing | Mechanical drawings show molded straight outlet and side outlet structures. |
| Mounting | Buckle / aluminum profile / shapable mounting slot | Buckle: L20×W12.5×H14mm; aluminum profile: L1000×W12.5×H14mm. |

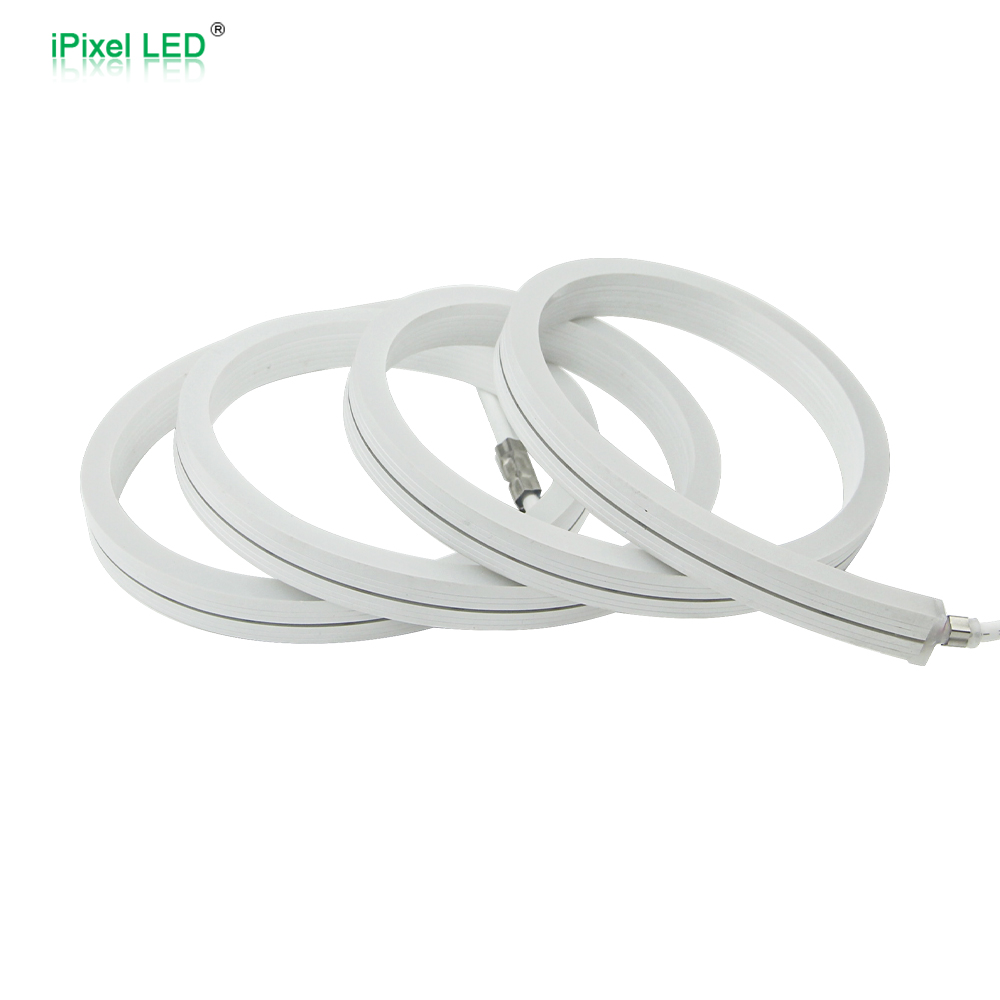

| Packing | 5m roll; carton / single carton / wooden case | Packaging page shows 20m carton packing, 80m carton packing, and customized wooden case option. |
Related Items
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
Electric Fireplace Lighting – High-Temp Stability, Long Life & Safe Integration
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
It is single-color white. Available CCT options are 3000K / 4000K / 6500K.
It uses DC24V.
The power is 10W/m.
