Dual-signal strips support break-point resume. If one LED becomes damaged, the following LEDs can continue working, depending on the failure condition and wiring design.
Dual-Signal Addressable RGB LED Strip Series
His Addressable RGB LED Strip Series is designed for digital RGB lighting applications that require higher reliability, flexible voltage options and programmable pixel effects. The series includes DC5V SK6813 dual-signal strips, DC12V HC2815 / WS2815 dual-signal strips, DC12V / DC24V TM1934 dual-signal strips, and a DC24V HC2824 addressable RGB option.
The dual-signal versions support break-point resume: if one LED is damaged or physically removed, the rest of the strip can continue working, making them suitable for gaming equipment, entertainment lighting, commercial decoration, signage, display fixtures and long-running dynamic lighting projects. The uploaded datasheets describe SK6813, HC2815 / WS2815 and TM1934 versions as dual-signal or break-point resume products, while the HC2824 model is positioned as a 24V individually controlled addressable RGB strip.
DC5V/DC12V/DC24V30/60/144LEDs/m10/12mm WidchRGBIP20/IP65
Overview & Key Features
Series Overview
This series gives customers several digital RGB options based on voltage, density, IC type and reliability requirement.
For DC5V high-pixel applications, SK6813 versions provide 30 / 60 / 144 LEDs per meter with dual-signal backup. For DC12V projects, HC2815 / WS2815 versions reduce voltage drop and keep dual-signal reliability. For DC12V / DC24V long-run projects, TM1934 versions provide dual-signal options with lower pixel density per meter. For DC24V individual-pixel control, the HC2824 version provides 60 LEDs/m and 60 pixels/m with 24V input.
Key Features
- Addressable RGB LED strip series
- Dual-signal / break-point resume options
- DC5V / DC12V / DC24V voltage options
- SK6813, HC2815 / WS2815, TM1934 and HC2824 control options
- 30 / 60 / 144 LEDs per meter options
- SMD5050 RGB LED package
- 10mm and 12mm PCB width options
- 1 LED / 3 LED / 6 LED cutting options depending on model
- White and black PCB options on selected models
- IP20 / IP64 / IP65 / IP67 options depending on model
- Standard 5m roll for most models; 1m high-density versions for some 144LEDs/m models
- Suitable for gaming, signage, entertainment, display and commercial dynamic RGB lighting
Product Series Specification Matrix

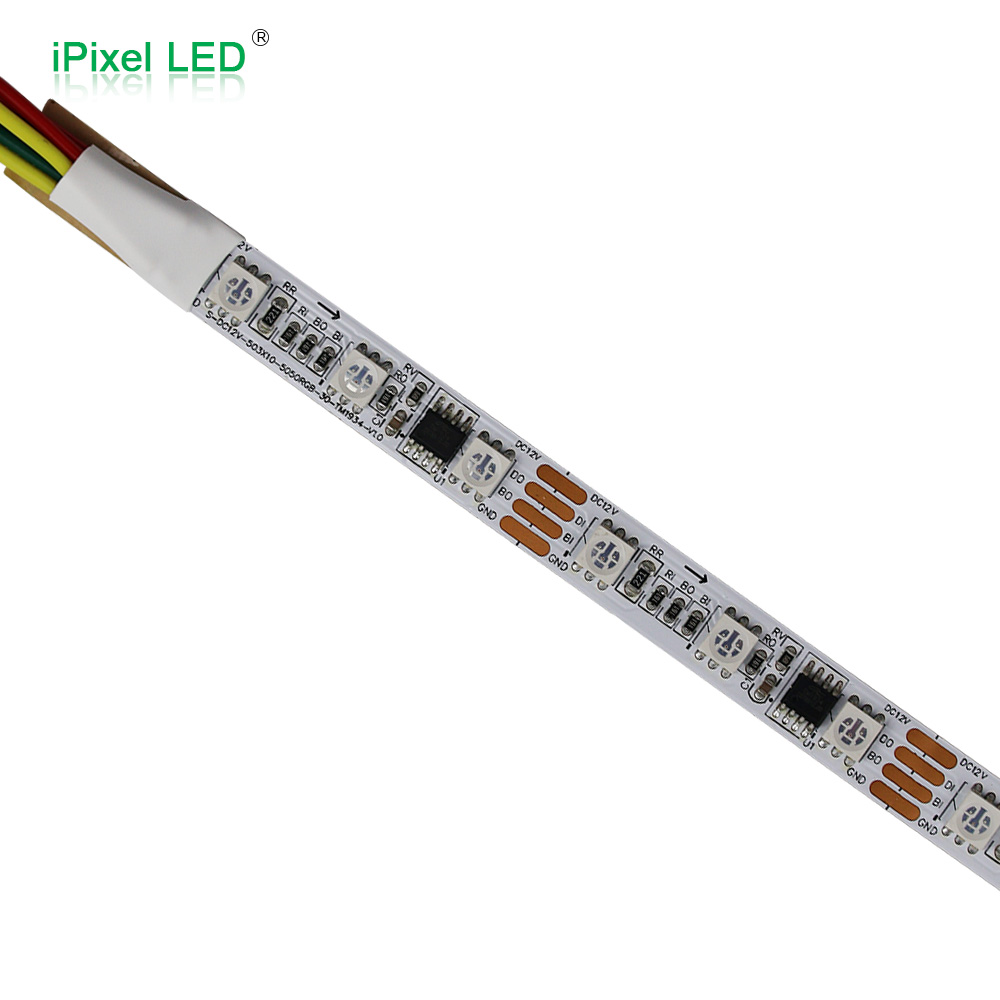

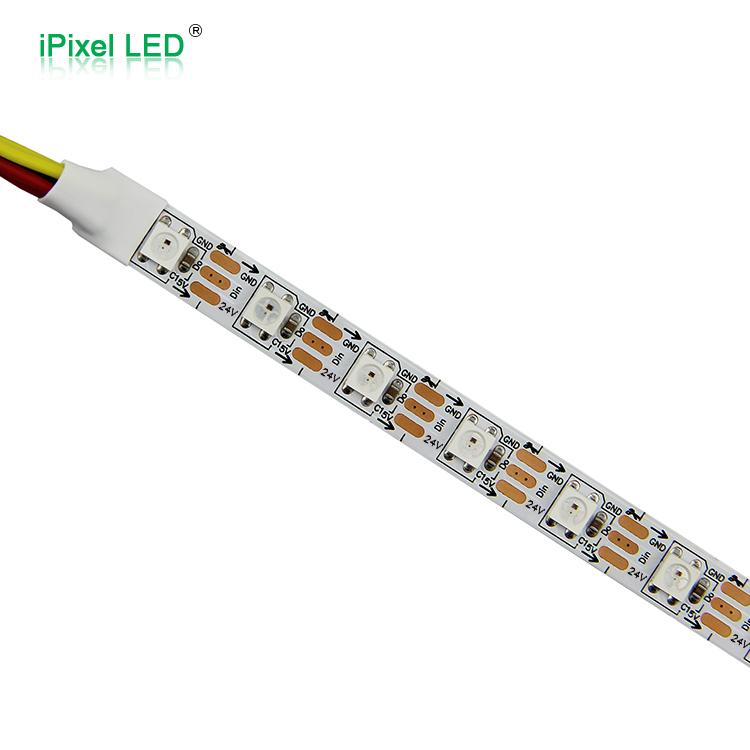

| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| S010030CA3SA6 | 30 | DC5V | 6W | SPI / SK6813 | 10mm | RGB | 33.33mm / 1LED | R:35 / G:99 / B:20lm | SK6813 dual-signal RGB |
| S010030CA3SD7 | 30 | DC5V | 6W | SPI / SK6813 | 10mm | RGB | 33.33mm / 1LED | R:33 / G:95 / B:20lm | SK6813 dual-signal RGB |
| S010060CA3SA6 | 60 | DC5V | 12W | SPI / SK6813 | 10mm | RGB | 16.66mm / 1LED | R:63 / G:184 / B:39lm | SK6813 dual-signal RGB |
| S010060CA3SD7 | 60 | DC5V | 12W | SPI / SK6813 | 10mm | RGB | 16.66mm / 1LED | R:60 / G:188 / B:40lm | SK6813 dual-signal RGB |
| S012144CA3SA6 | 144 | DC5V | 24W | SPI / SK6813 | 12mm | RGB | 6.9mm / 1LED | R:184 / G:496 / B:108lm | SK6813 high-density dual-signal RGB |
| S012144CA3SD7 | 144 | DC5V | 24W | SPI / SK6813 | 12mm | RGB | 6.94mm / 1LED | R:146 / G:469 / B:103lm | SK6813 high-density dual-signal RGB |
| S010030CB3SB7 | 30 | DC12V | 4.5W | HC2815 / WS2815 | 10mm | RGB | 33.33mm / 1LED | R:20 / G:72 / B:17lm | 12V dual-signal RGB |
| S010060CB3SB7 | 60 | DC12V | 9W | HC2815 / WS2815 | 10mm | RGB | 16.66mm / 1LED | R:40 / G:157 / B:38lm | 12V dual-signal RGB |
| S012144CB3SB7 | 144 | DC12V | 20W | HC2815 / WS2815 | 12mm | RGB | 6.94mm / 1LED | R:30 / G:87 / B:18lm | 12V high-density dual-signal RGB |
| S010060CB3SE0 | 60 | DC12V | 14.4W | SPI / TM1934 | 10mm | RGB | 50mm / 3LED | R:94 / G:247 / B:53lm | TM1934 dual-signal RGB |
| S010060CC3SE0 | 60 | DC24V | 14.4W | SPI / TM1934 | 10mm | RGB | 100mm / 6LED | R:94 / G:247 / B:53lm | TM1934 dual-signal RGB |
| S010060CC3SB7 | 60 | DC24V | 9W | HC2824 | 10mm | RGB | 16.66mm / 1LED | R:148 / G:327 / B:46lm | 24V addressable RGB |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need DC5V dual-signal RGB strip | Choose SK6813 versions: S010030CA3SA6 / S010030CA3SD7 / S010060CA3SA6 / S010060CA3SD7 / S012144CA3SA6 / S012144CA3SD7. |
| Need lower power and wider pixel spacing | Choose 30LEDs/m versions: S010030CA3SA6 / S010030CA3SD7 or S010030CB3SB7. |
| Need balanced density and common project use | Choose 60LEDs/m versions. They balance brightness, density and power. |
| Need high-density close-view RGB effects | Choose 144LEDs/m versions: S012144CA3SA6 / S012144CA3SD7 or S012144CB3SB7. |
| Need lower voltage drop than DC5V | Choose DC12V or DC24V versions: HC2815 / WS2815, TM1934 or HC2824 models. |
| Need break-point resume reliability | Choose SK6813, HC2815 / WS2815 or TM1934 dual-signal versions. |
| Need DC24V long-run design | Choose S010060CC3SE0 or S010060CC3SB7. |
| Need every LED individually addressable at DC24V | Choose S010060CC3SB7 / HC2824, 60 pixels/m. |
| Need shortest cutting length | Choose 144LEDs/m versions, 6.9 / 6.94mm per LED. |
| Need 12mm PCB high-density layout | Choose S012144CA3SA6 / S012144CA3SD7 / S012144CB3SB7. |

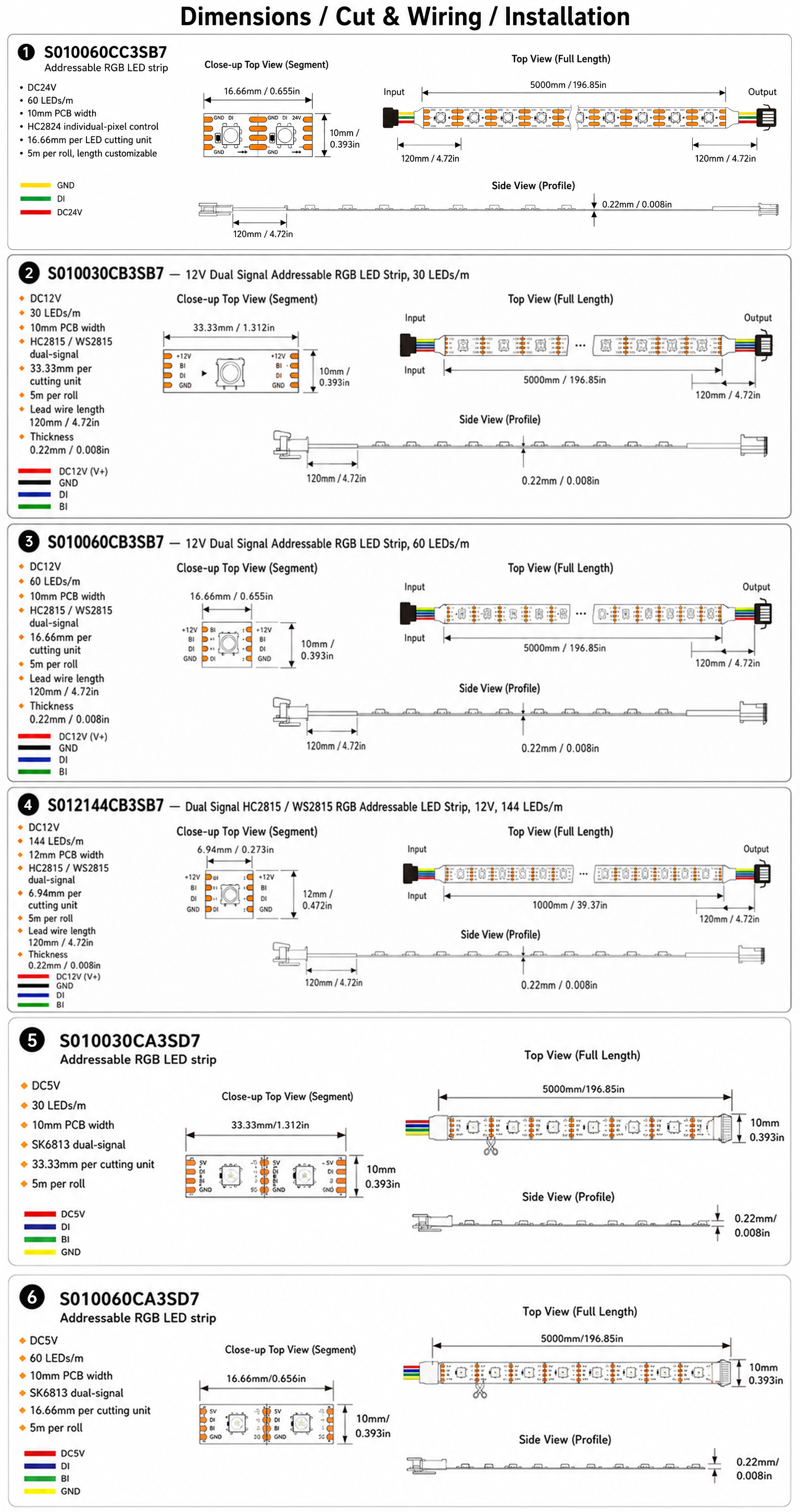

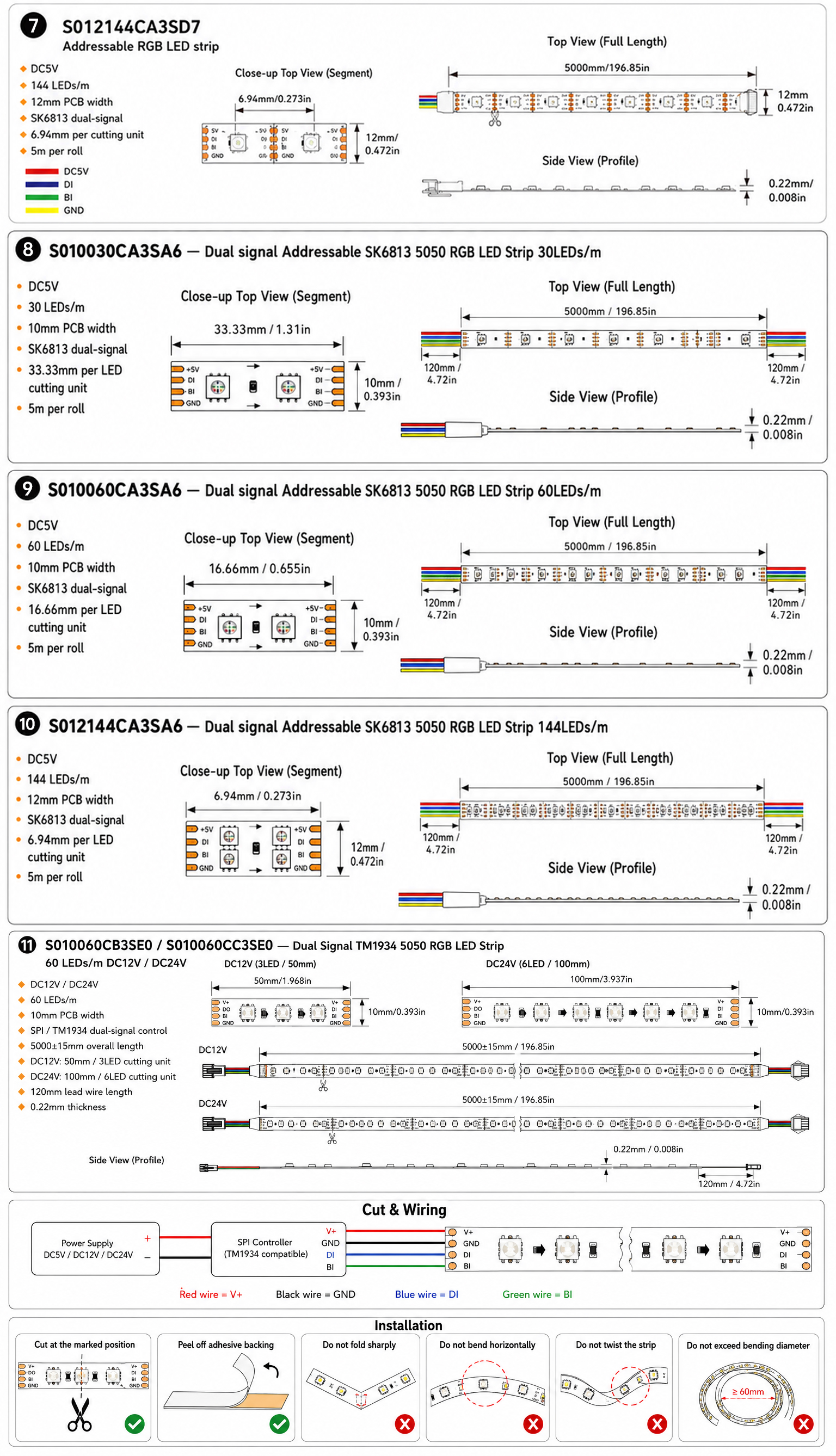

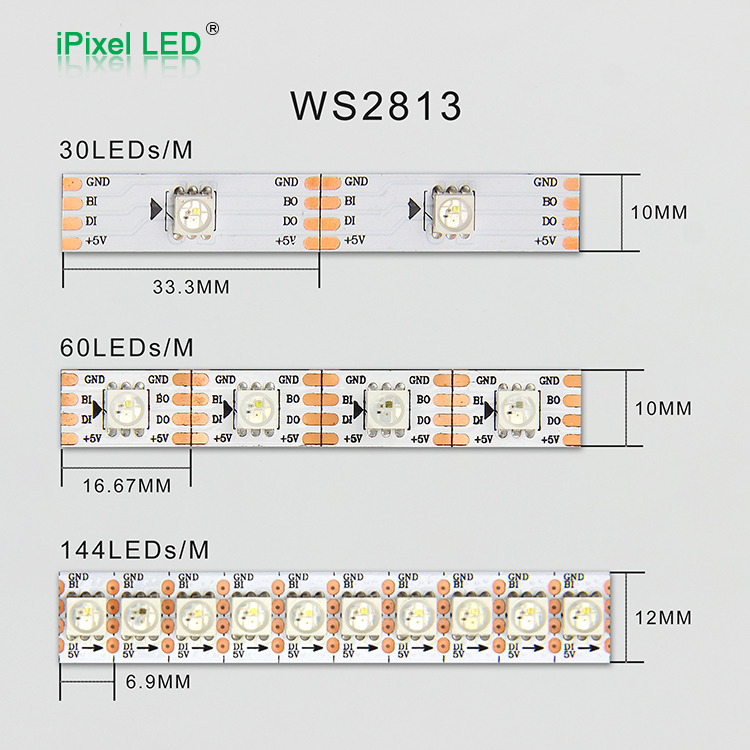

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V / DC12V / DC24V | Select by power system, wiring distance and voltage-drop requirement. |
| LED Type | SMD5050 RGB | All listed models use SMD5050 RGB LEDs. |
| ColorType | RGB | Programmable red, green and blue color mixing. |
| Color Range | RGB | Typical wavelength range: R 615–630 / 620–625nm, G 520–535 / 520–525nm, B 450–460 / 460–465nm. |
| PCB Width | 10mm / 12mm | 10mm for most 30 / 60LEDs/m models; 12mm for 144LEDs/m high-density models. |
| Power | 4.5W/m / 6W/m / 9W/m / 12W/m / 14.4W/m / 20W/m / 24W/m | Depends on voltage, density and IC type. |
| Control | SK6813 / HC2815 / WS2815 / TM1934 / HC2824 | Controller must match IC protocol, voltage and pixel quantity. |
| IPRating | IP20 / IP64 / IP65 / IP67 | Availability depends on model. IP process may affect final size, CCT and luminous flux. |
| Length | 5m standard / 1m high-density / custom length | Most models are 5m/reel; some 144LEDs/m high-density versions are shown as 1m/reel or 1000mm size. |
| Connector | 4-pin JST SM / custom connector / bare wire | Dual-signal models require wiring that supports backup data line. |
| Mounting | 3M adhesive tape / aluminum profile / silicone clips / end caps | Use profile or clips when mechanical fixing and heat dissipation are important. |
| Packing | Reel / antistatic bag / carton / OEM packing | Standard packing can be adjusted for project or OEM requirement. |
Related Items
Retail Shelving & Display Fixtures (Illuminated Displays)
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
This series includes SK6813, HC2815 / WS2815, TM1934 and HC2824 options.
The SK6813 models are DC5V, including 30 / 60 / 144LEDs/m versions.
The HC2815 / WS2815 models include DC12V 30 / 60 / 144LEDs/m options. TM1934 also has a DC12V version.
