Yes. It uses SK6805 addressable control, with 1 LED per pixel.

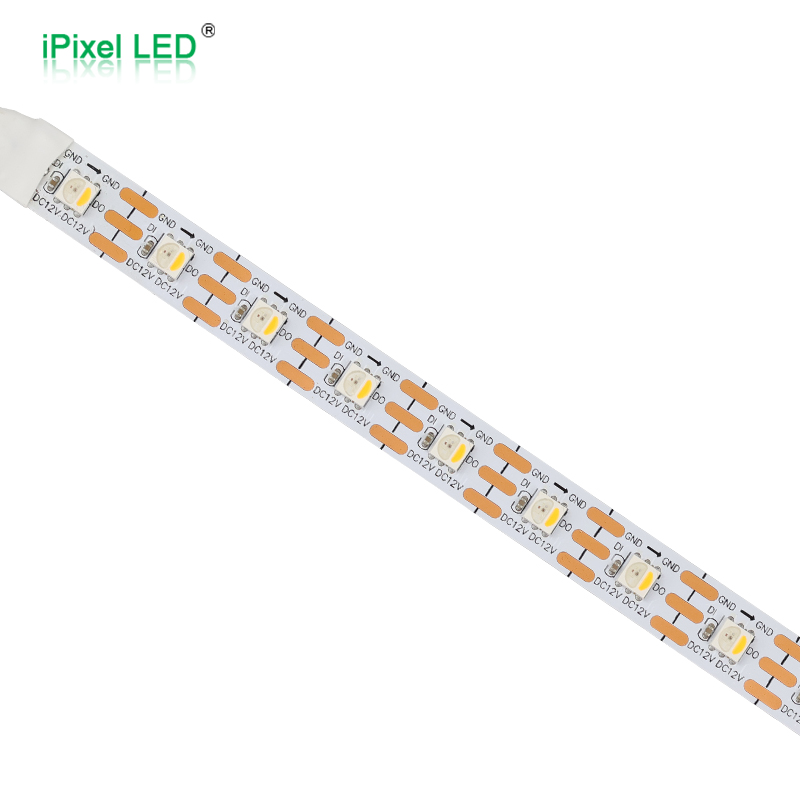

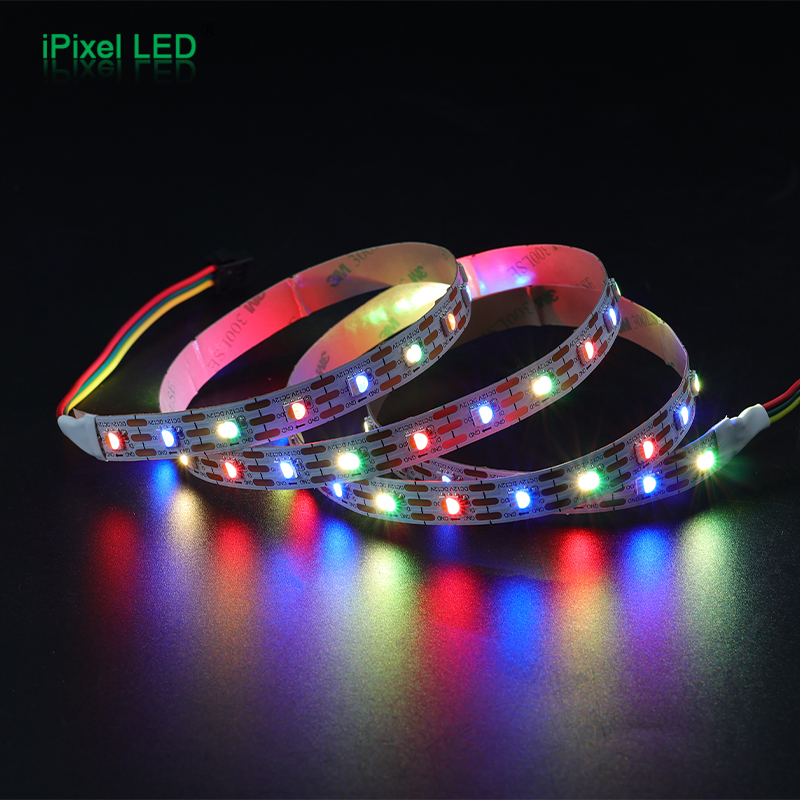

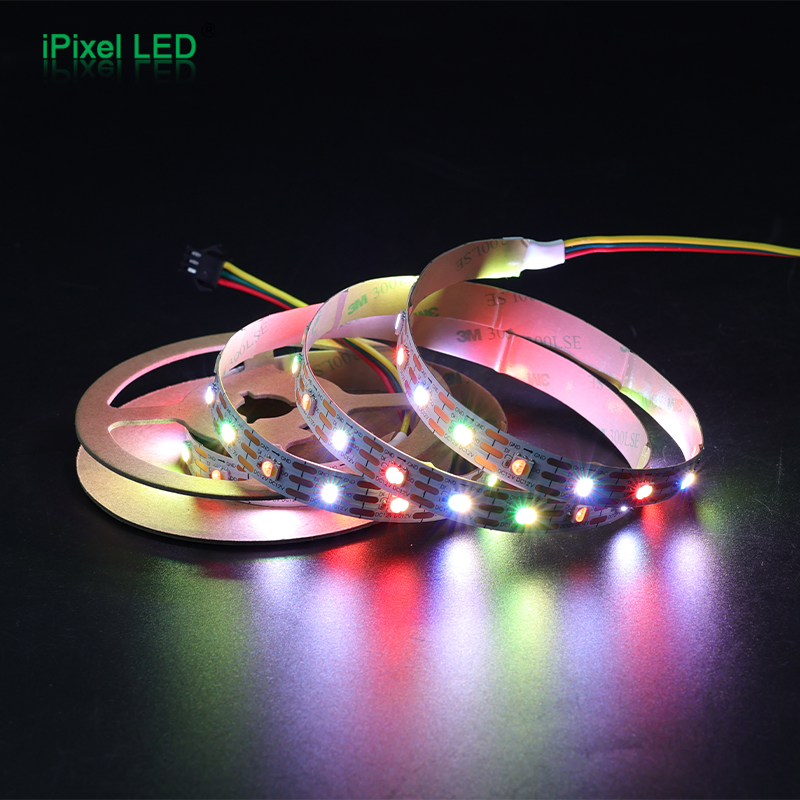

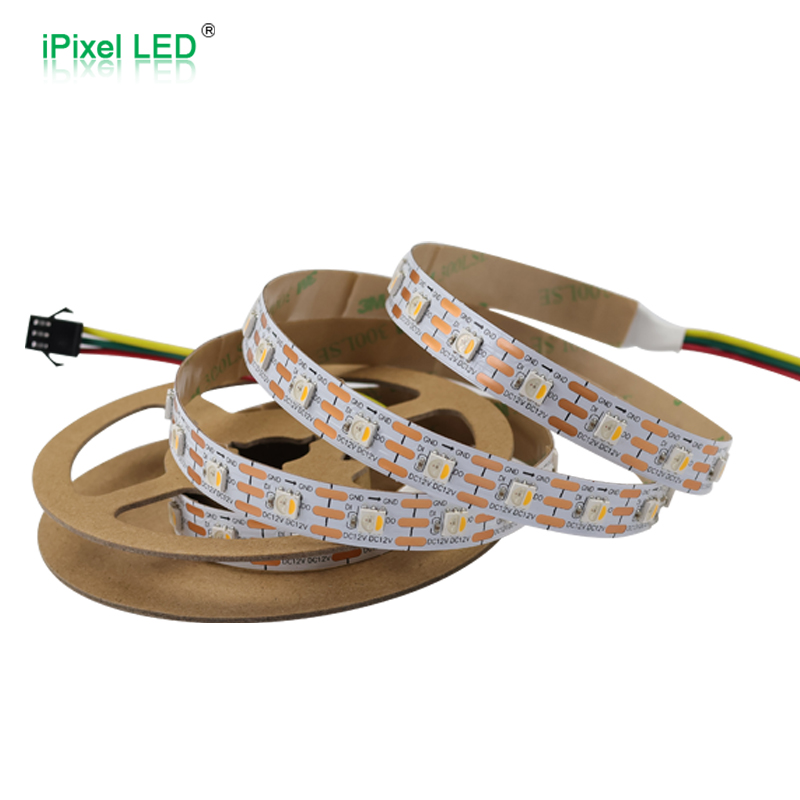

SMD5050 SK6805 RGBW Addressable LED Strip – 60 LEDs/m, DC12V
SMD5050 SK6805 RGBW Addressable LED Strip – 60 LEDs/m, DC12V
- This led strip with 60pcs high quality 12V SMD5050 RGBW LED chips
- Use SPI controller, 60Pixels/m, 1 LED per section
- Input voltage is DC12V
- Flexible PCB with white / black color
- 1+2 ounce copper FPC, 12mm width
- Standard 5M/roll, length can be customized
DC12V60 LEDs/m12mm WidthRGBWSK6805
Overview & Key Features
Series Overview
This SMD5050 SK6805 RGBW addressable LED strip is designed for digital lighting projects that require RGB color effects plus an independent white channel. Each LED section can be individually controlled through an SPI controller, allowing pixel-based color effects and white-light output in one strip.
Compared with DC5V SK6812 RGBW strips, this model uses DC12V input, which can help reduce current in some project wiring layouts while still keeping 1 LED per pixel control. It uses a 12mm flexible PCB, 60 LEDs/m, 60 pixels/m and 16.66mm / 1LED cutting length.
Key Features
- SMD5050 RGBW LED chips with RGB + white channel.
- SK6805 addressable control, SPI controller compatible.
- DC12V constant voltage input.
- 60 LEDs/m and 60 pixels/m.
- 1 LED per section / 1 LED per pixel.
- 16.66mm / 1LED cutting length.
- 12mm PCB width.
- 21W/m power design.
- RGBW white options: 3000K / 4000K / 6500K.
- White or black flexible PCB can be provided according to project requirement.
- 1+2 oz copper FPC mentioned in datasheet.
- Standard 5m per roll, customized length available.
- IP20 / IP64 / IP65 / IP67 options.
- Suitable for display lighting, gaming equipment, entertainment devices, decorative pixel lighting and OEM digital lighting assemblies.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Lumen/m | PCB Width | Cutting Length | Control | Pixel Density | Color | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| S012060CB4SA1 | SMD5050 60LEDs/m | DC12V | 21W/m | R:222 / G:350 / B:78 / W:792 lm/m | 12mm | 16.66mm / 1LED | SPI / SK6805 | 60 Pixels/m | RGB+W: 3000K / 4000K / 6500K | Download |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a DC12V RGBW color‑changing light strip | Choose S012060CB4SA1 |
| Need 1 LED / Pixel individually controllable | Suitable |
| Need an RGBW pixel control solution with lower current than DC5V | Suitable, DC12V input |
| Need RGB dynamic effects + white channel | Suitable |
| Need standard pixel density of 60 LEDs/m | Suitable |
| Need 12mm PCB installation space | Suitable |
| Need an IP‑rated version | Select IP64 / IP65 / IP67 and confirm sealing method |
| Need higher density and shorter pixel pitch | Consider SK6812 144 LEDs/m or other high‑density digital RGBW strip |
| Need DC24V for long‑distance project wiring | Consider UCS2904 / WS2814 DC24V digital RGBW series |
| Need standard non‑pixel RGBW | Choose non‑pixel RGBW LED strip instead |

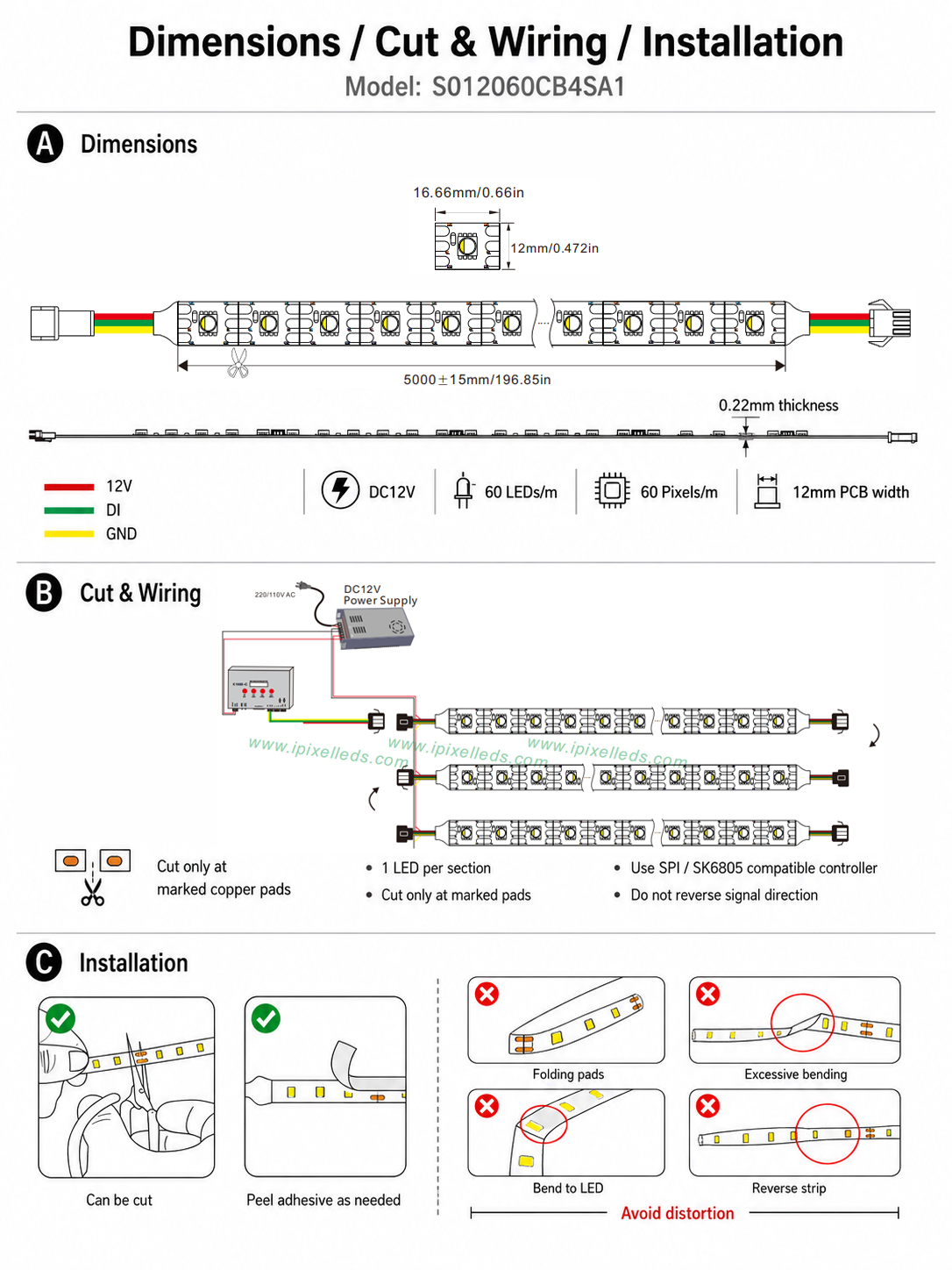

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V | Standard input |
| IC / Protocol | SK6805 / SPI | Compatible SPI controller required |
| LED Type | SMD5050 RGBW | RGB + white channel |
| LED Density | 60 LEDs/m | Select density |
| Pixel Density | 60 Pixels/m | 1 LED per pixel |
| PCB Width | 12mm | Confirm profile or installation space |
| PCB Color | White / Black | Mentioned in datasheets |
| White Channel | 3000K / 4000K / 6500K | Confirm final CCT before order |
| Control | SPI digital control | Do not use non-pixel RGBW controller |
| IP Rating | IP20 / IP64 / IP65 / IP67 | Depends on waterproof structure and sealing process |
| Length | 5m standard / custom length | Custom length available |
| Cable | 3-wire input/output | DC12V / DI / GND |
| Connector | Standard connector / custom connector | Based on project requirement |
| Mounting | 3M tape / aluminum profile / clips | Higher power version needs heat consideration |
| Accessories | DC12V power supply, SPI controller, connector | Match voltage and control protocol |
Related Items
6×12mm Single-Sided LED Neon Flex (Side Bend) IP67 | N0612 | DC5V/12V/24V
Ø50mm 360° IC RGB Pixel Ball Light (WS2801/DMX512) – P050006CC3DB8
Germany Stage Decoration – 12V Dual-Signal Addressable RGB LED Strip 60LEDs/m (S010060CB3SB7)
IP68 DC24V Constant Current Waterproof LED Strip 120LEDs/m 10W/m (S012120BC1HZ / N1506)
FAQ
This model uses DC12V and SK6805 control. Most SK6812 RGBW strips are DC5V. The voltage and controller compatibility must be confirmed before use.
Use an SPI controller compatible with SK6805 protocol.
The cutting length is 16.66mm / 1 LED.
