It is more accurate to call it an RGB+CCT strip because it has RGB plus two white channels: warm white and cool white.

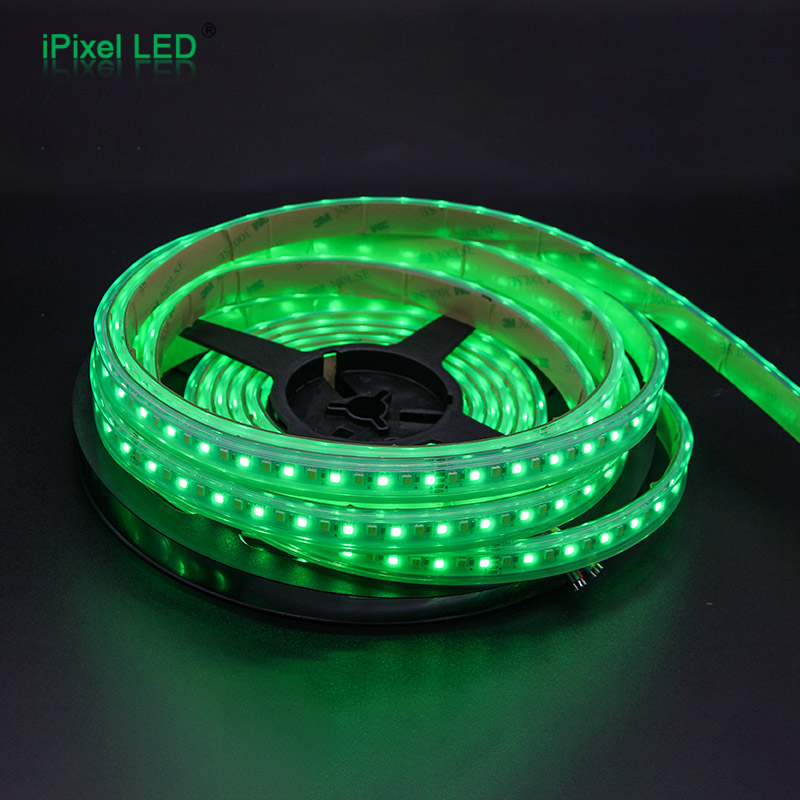

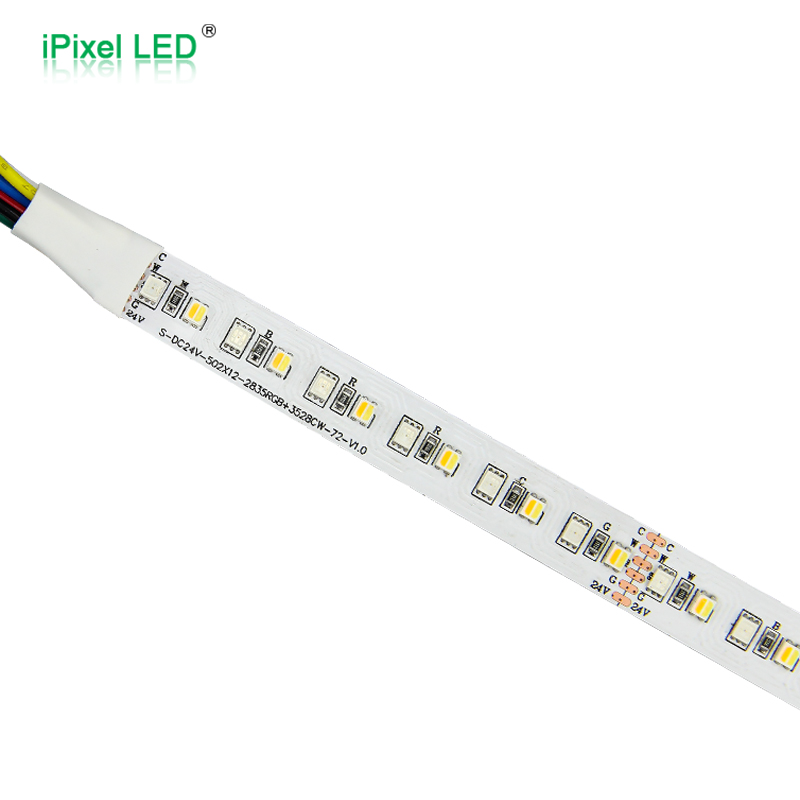

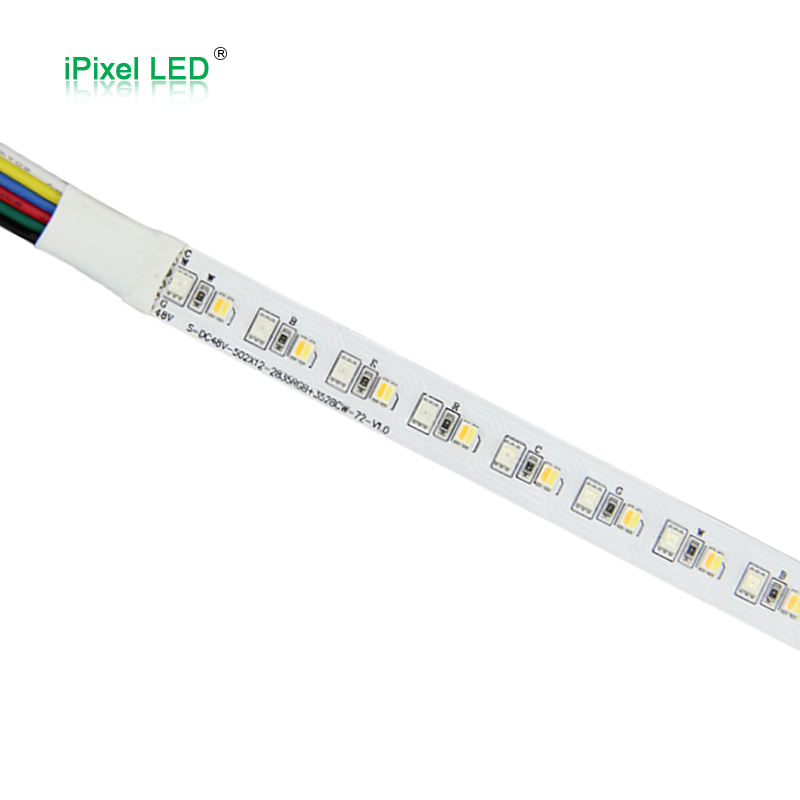

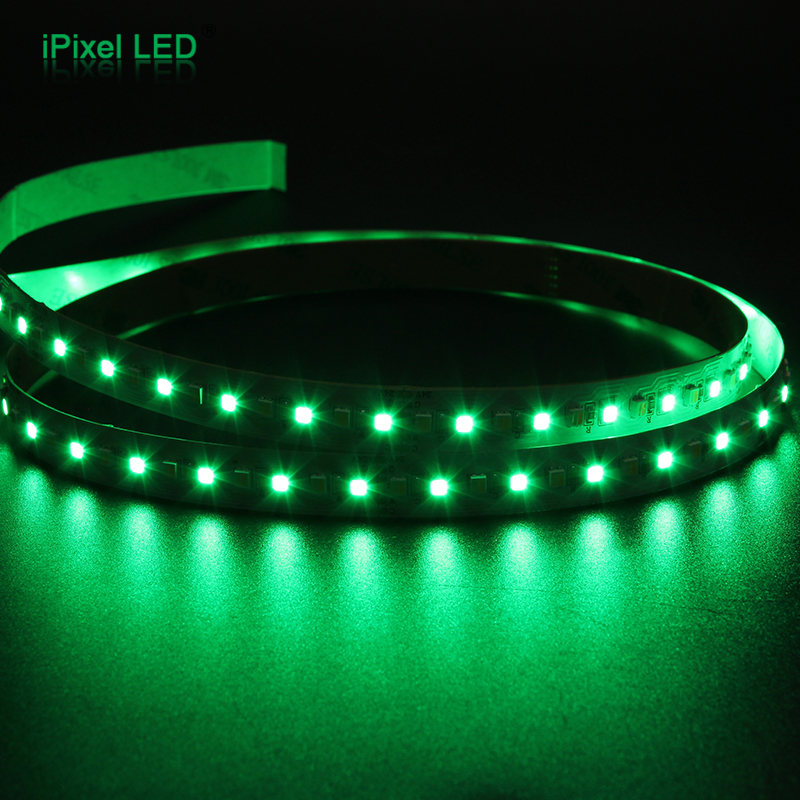

RGB+CCT Flexible LED Strip Series – 144 LEDs/m
- This is a PWM control RGBW color LED strip without Pixel
- 72pcs SMD2835 RGB + 72pcs SMD3528 WW per meter
- 12mm PCB, 3 Ounce copper
- All soldering Pads are very large, allowing you to
easily cut and reconnect
- Both ends have 6pin bare wires for powering
- 3M tape attached on backside of FPC
DC24V/48V144LEDs/m12mm WidchRGBCWPWM
Overview & Key Features
Series Overview
This RGB+CCT flexible LED strip series is designed for projects that require both colorful RGB lighting and adjustable white light. Compared with standard RGBW strips, RGB+CCT provides two independent white channels, allowing the lighting system to adjust between warm white and cool white while also supporting RGB color effects.
The series includes DC24V and DC48V versions. The DC24V version is suitable for standard low-voltage RGB+CCT projects, while the DC48V version helps reduce current and can be more suitable for longer wiring or project-based installations. Both versions use 12mm flexible PCB, 144 LEDs/m, 26W/m power and PWM control.
Key Features
- 5-channel RGB+CCT lighting: R / G / B / WW / CW.
- 72pcs SMD2835 RGB + 72pcs SMD3528 dual-white LEDs per meter.
- 144 LEDs/m high-density layout.
- DC24V and DC48V versions available.
- 26W/m power design.
- 12mm white FPC.
- PWM control, suitable for compatible RGB+CCT controllers.
- 3000K warm white + 6500K cool white.
- 3M adhesive backing on FPC.
- Standard 5m per roll, custom length available.
- IP20 / IP64 / IP65 / IP67 options.
- Large soldering pads, easier for cutting and reconnection.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Lumen/m | PCB Width | Cutting Length | Control | IP Rating |
|---|---|---|---|---|---|---|---|---|
| S012144AC5PZ | SMD 2835RGB+3528WW 144LEDs/m | DC24V | 26W/m | R:100 / G:306 / B:67 / WW:370 / CW:380 lm/m | 12mm | 83.3mm / 12LED | PWM | IP20 / IP64 / IP65 / IP67 |
| S012144BJ5PZ | SMD 2835RGB+3528WW 144LEDs/m | DC48V | 26W/m | R:59 / G:230 / B:47 / WW:230 / CW:220 lm/m | 12mm | 166.66mm/24LED | PWM | IP20 / IP64 / IP65 / IP67 |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Standard RGB+CCT project | S012144AC5PZ, DC24V |
| Need a shorter cutting pitch | S012144AC5PZ, 83.3mm / 12LED |
| Need lower current and better for longer wiring | S012144BJ5PZ, DC48V |
| Need RGB color + tunable white | Both models are suitable |
| Need warm‑white to cool‑white adjustment | Both models are suitable, 3000K + 6500K |
| Customer already has a DC24V RGB+CCT control system | Choose the DC24V version |
| Project uses a DC48V system at the fixture end | Choose the DC48V version |
| Need more flexible on‑site cutting | Prefer the DC24V version |
| Need lower line current | Prefer the DC48V version |
| Need a standard RGBW single‑white channel | Do not choose this series; select an RGBW LED Strip instead |
| Need pixel‑level control effects | Do not choose this series; select a Digital / Addressable LED Strip |

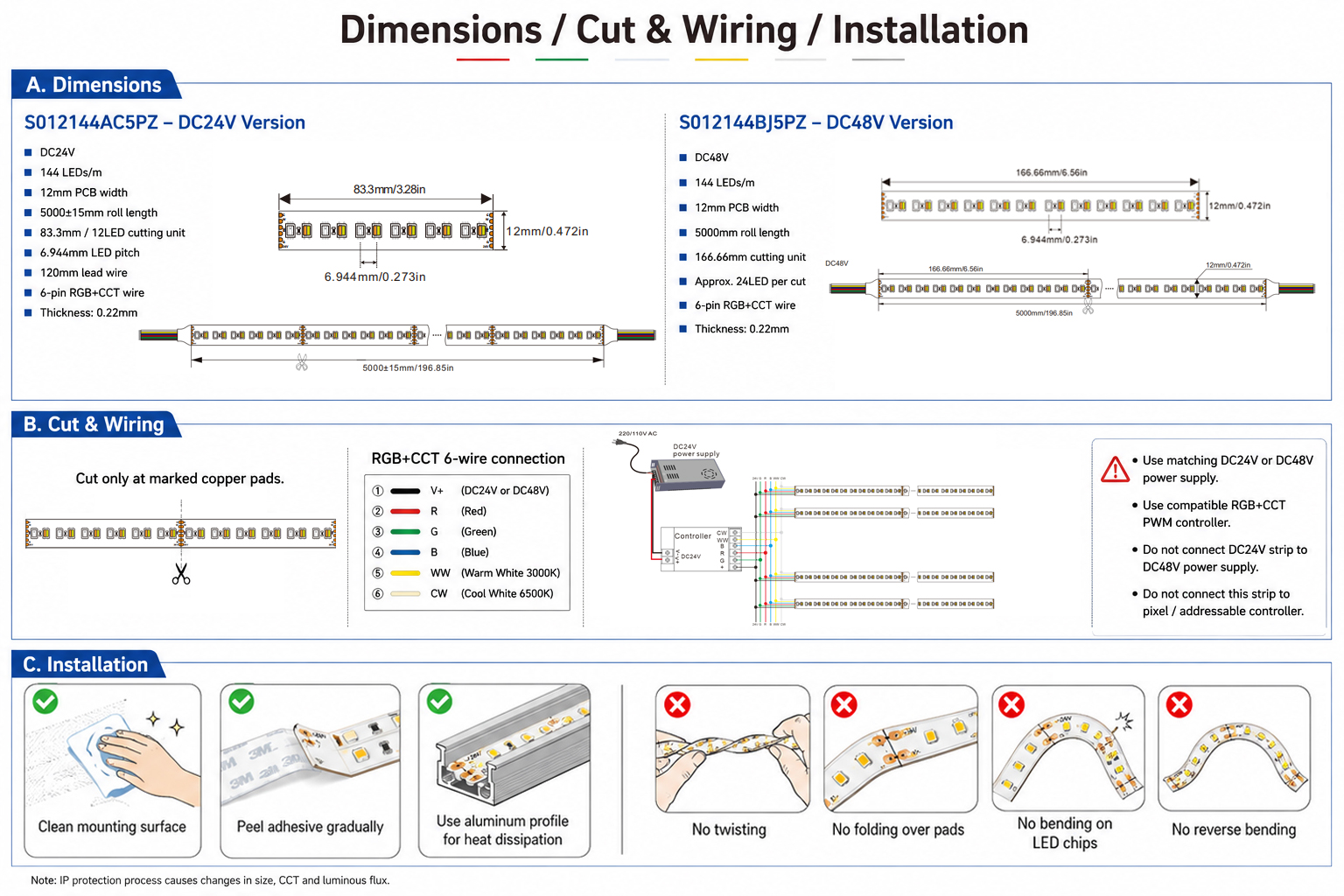

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V / DC48V | Choose according to project wiring and power system |
| LED Type | SMD2835 RGB + SMD3528 dual white | RGB + warm white + cool white |
| Channel | 5-channel RGB+CCT | R / G / B / WW / CW |
| PCB Width | 12mm | White FPC |
| Power | 26W/m | Both versions |
| CCT | WW 3000K + CW 6500K | Other CCT can be evaluated by project |
| Control | PWM RGB+CCT control | Requires compatible 5-channel controller |
| Cutting Length | 83.3mm / 166.66mm | Depends on voltage version |
| IP Rating | IP20 / IP64 / IP65 / IP67 | IP process changes size, CCT and luminous flux |
| PCB Copper | 1+2oz copper for DC24V; 3oz copper for DC48V | Based on datasheet description |
| Length | 5m standard / custom length | Custom length can be discussed |
| Cable | 6-pin bare wire / custom wire length | For RGB+CCT connection |
| Connector | Bare wire / terminal / custom connector | Based on installation method |
| Mounting | 3M tape / silicone clip / aluminum profile | Confirm according to IP version and heat dissipation |
| Accessories | Power supply, RGB+CCT controller, screw, silicone clip, end cap | Select by voltage and IP rating |
Related Items

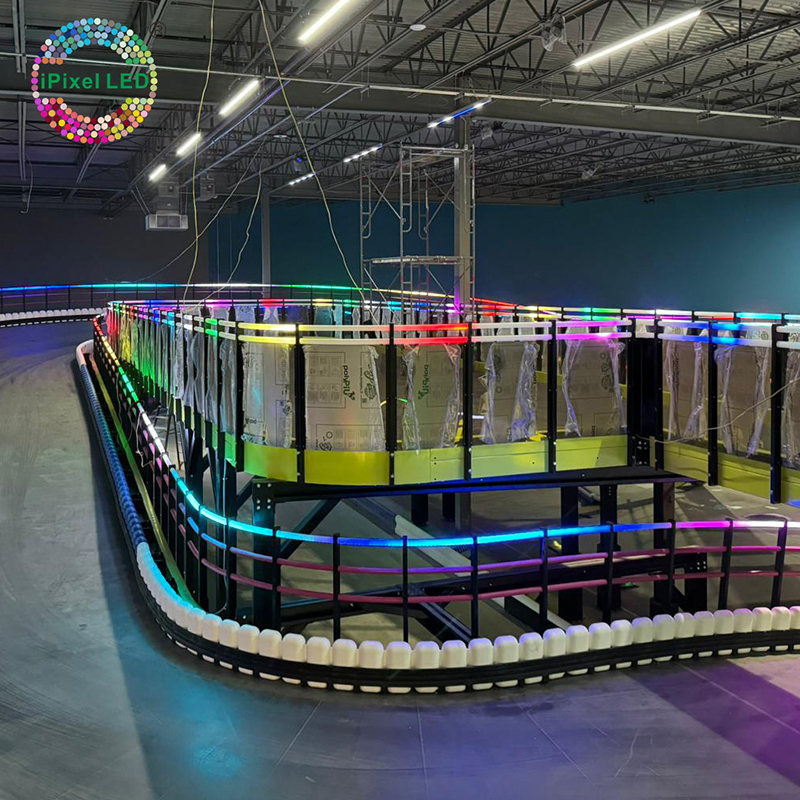

Kart Track Pixel Lighting Project with WS2811 30LEDs/m SPI RGB LED Strip

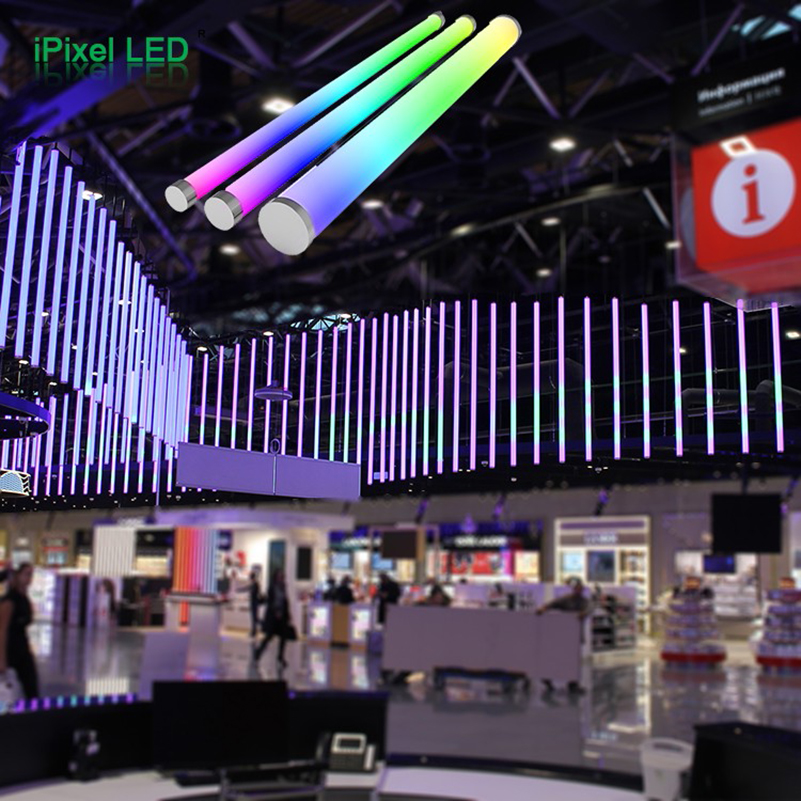

Moscow Sheremetyevo International Airport | Ø80mm Milky White No-Shadow DMX512 3D Pixel LED Tube (B080072CB3DS)

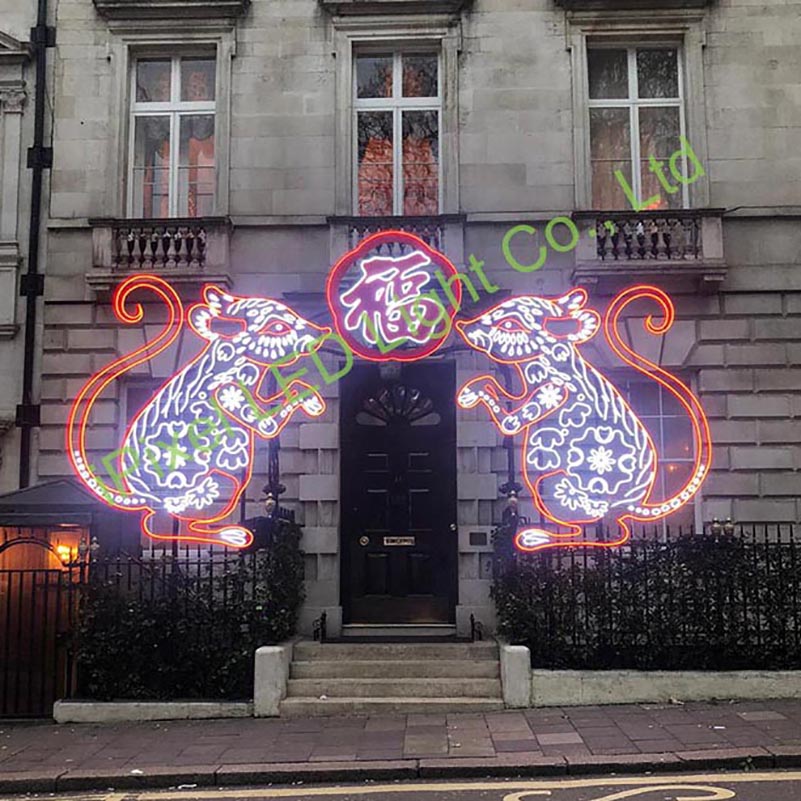

Symbol of Rat Installation | 6×12mm Single-Sided Side-View Silicone Neon Flex (N006120BC1LZ / N0612)
Blackpool UK Promenade Decoration | 12×22mm RGB Digital Neon Flex (N012060CB3SF/N012060CC3SF, N1222-Arc)
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Normal RGBW has RGB plus one white channel. This series has RGB plus warm white and cool white channels, so it can adjust white color temperature.
DC24V has a shorter cutting unit of 83.3mm. DC48V has a longer cutting unit of 166.66mm but helps reduce current for project wiring.
Use a compatible RGB+CCT PWM controller with 5-channel output.
