The main difference is voltage and cutting length. N020120BB1LZ is DC12V with 25mm cut, while N020120BC1LZ is DC24V with 50mm cut.

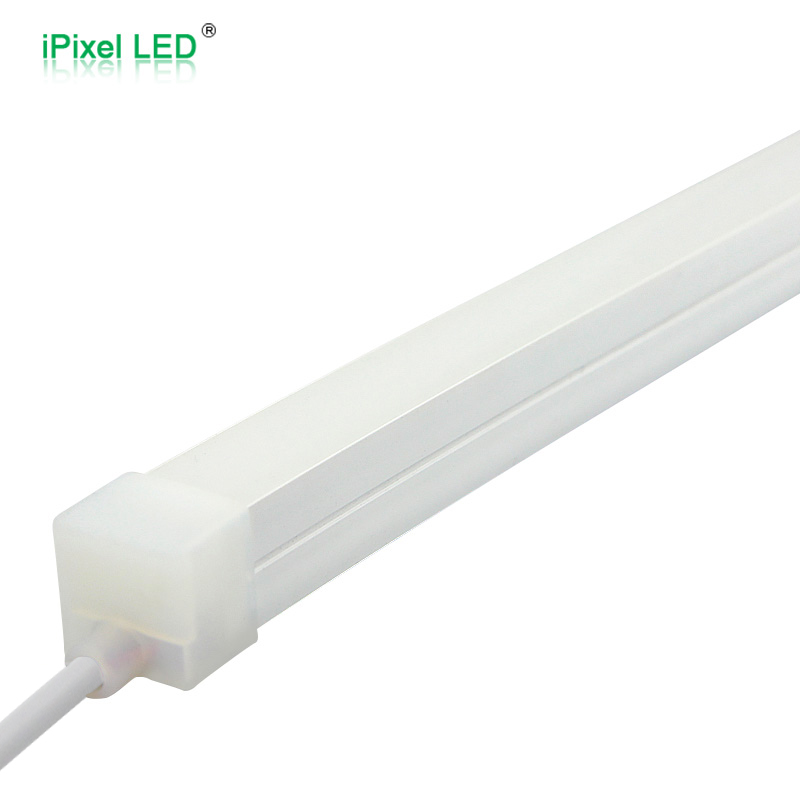

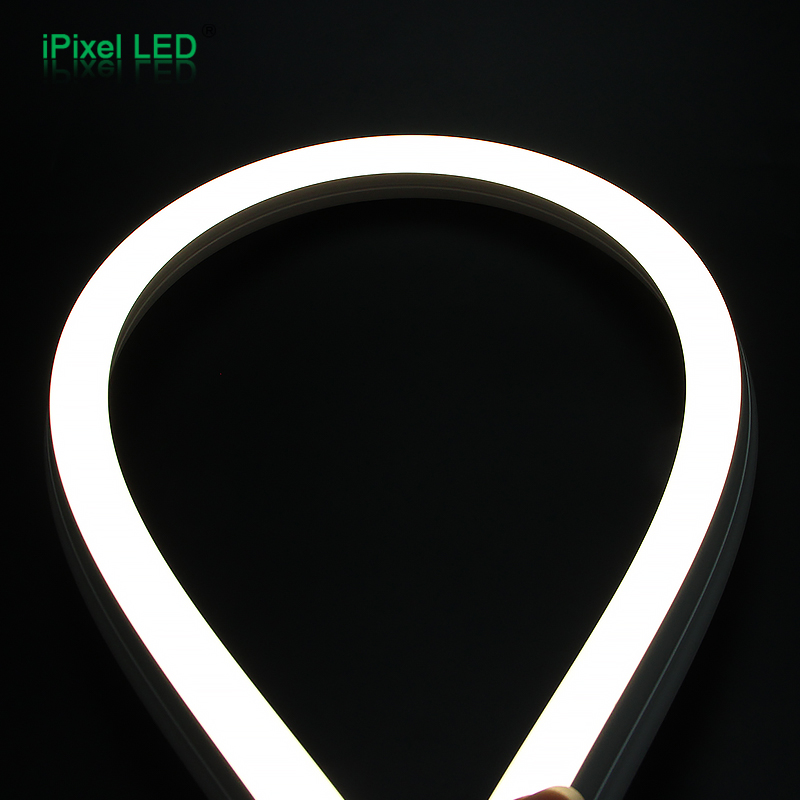

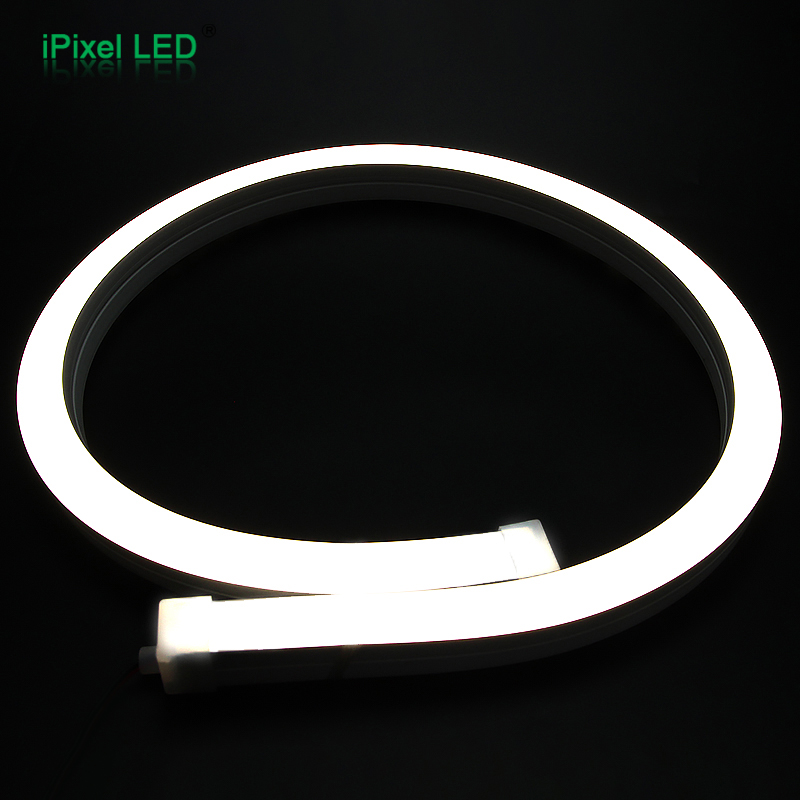

N2020 Single-Sided Neon Flex Series

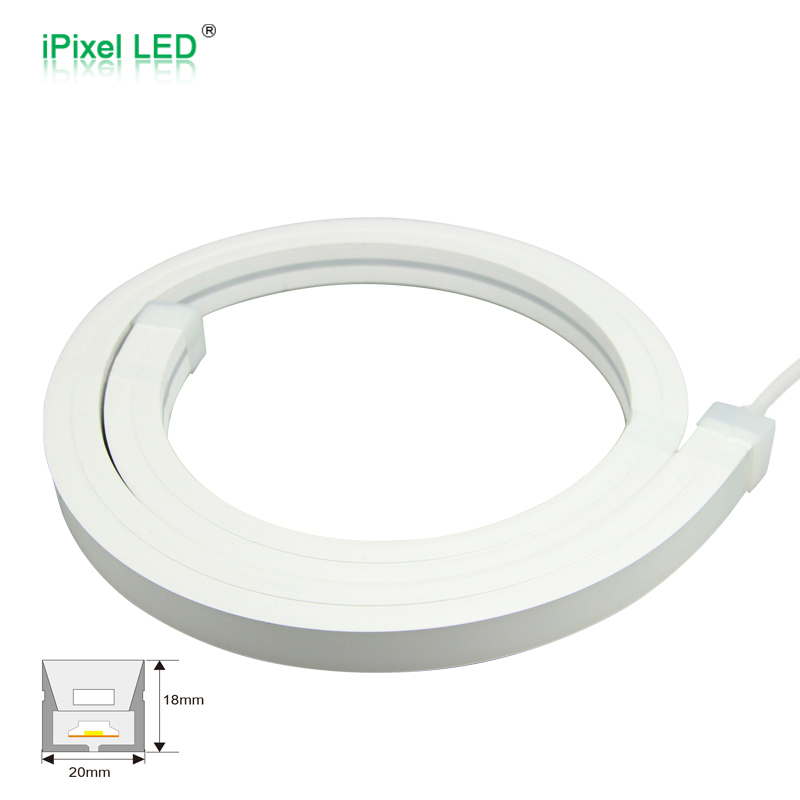

The N2020 Single-Sided Neon Flex Series is a 20×20mm silicone neon flex designed for single-sided light output, soft dotless illumination, and reliable indoor/outdoor contour lighting. The series includes DC12V and DC24V versions, using SMD2835 LEDs, 120 LEDs/m, 10W/m, and IP67 protection.

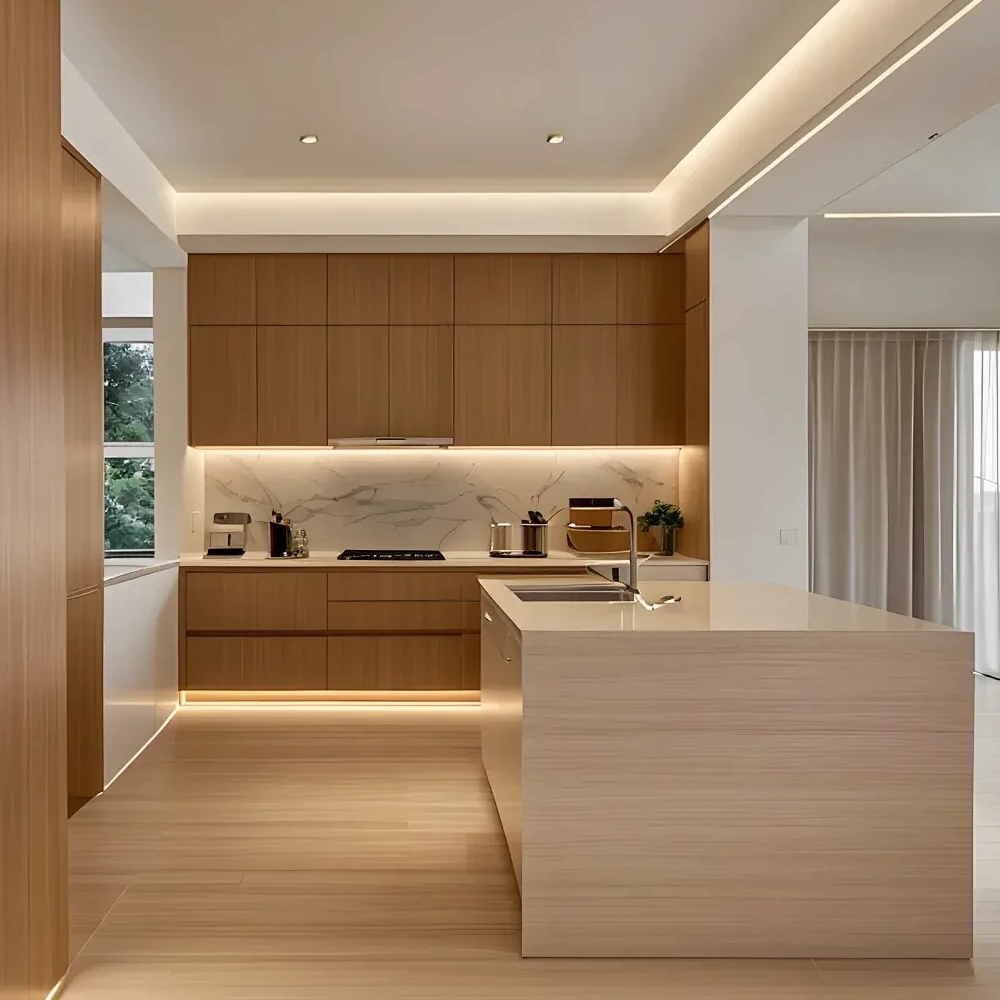

This series is suitable for signage lighting, architectural outlines, outdoor decoration, interior decorative lighting, and large-profile neon contour applications. Compared with smaller neon profiles, the 20×20mm body provides a stronger visual presence and a wider illuminated surface.
DC12V/DC24V120LEDs/m20mm WidthSingle ColorIP67
Overview & Key Features
Series Overview
The N020120BB1LZ(N2020) is the DC12V version, with 25mm cutting length and 10m max length.
The N020120BC1LZ(N2020) is the DC24V version, with 50mm cutting length and 15m max length.
Both versions share the same 20×20mm single-sided neon structure, 120PCS/m SMD2835 LED layout, 10W/m power rating, W:487lm/m brightness, IP67 protection, and 5025±15mm standard length.
Key Features
- 20×20mm single-sided neon flex
- Up/down bending structure
- SMD2835 LED source
- 120 LEDs/m
- DC12V / DC24V options
- 10W/m constant-voltage design
- White CCT options: 3000K / 4000K / 6500K
- CRI ≥80
- W:487lm/m typical brightness
- IP67 protection
- UL Listed E509505 / CE / RoHS / CB / REACH shown in datasheet
- UV resistant, flame resistant, saltwater resistant, solvent resistant
- 5025±15mm standard length
- 10m / 15m max length depending on voltage
- 3-year quality assurance, working life ≥36,000 hours
- Suitable for indoor and outdoor decorative lighting, signboard lighting, and architectural contour applications
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N020120BB1LZ(N2020) | 120 LEDs/m | DC12V | 10W/m | Constant Voltage | 20×20mm profile | 3000K / 4000K / 6500K | 25mm | W:487lm/m | N2020 Single-Sided, DC12V, max 10m |
| N020120BC1LZ(N2020) | 120 LEDs/m | DC24V | 10W/m | Constant Voltage | 20×20mm profile | 3000K / 4000K / 6500K | 50mm | W:487lm/m | N2020 Single-Sided, DC24V, max 15m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need DC12V system compatibility | N020120BB1LZ(N2020) |
| Need DC24V system compatibility | N020120BC1LZ(N2020) |
| Need shorter cutting interval | N020120BB1LZ — 25mm cut |
| Need longer max run length | N020120BC1LZ — max 15m |
| Need lower current and better voltage-drop control | N020120BC1LZ |
| Need large-profile neon visual effect | Both models |
| Need outdoor signage or building contour lighting | Both models |
| Need 3000K / 4000K / 6500K white options | Both models |
| Need lengths over 5m | Prefer DC24V and feed power from both ends |
| Need strong visual line for façade or signage | N2020 profile is more suitable than smaller neon sizes |

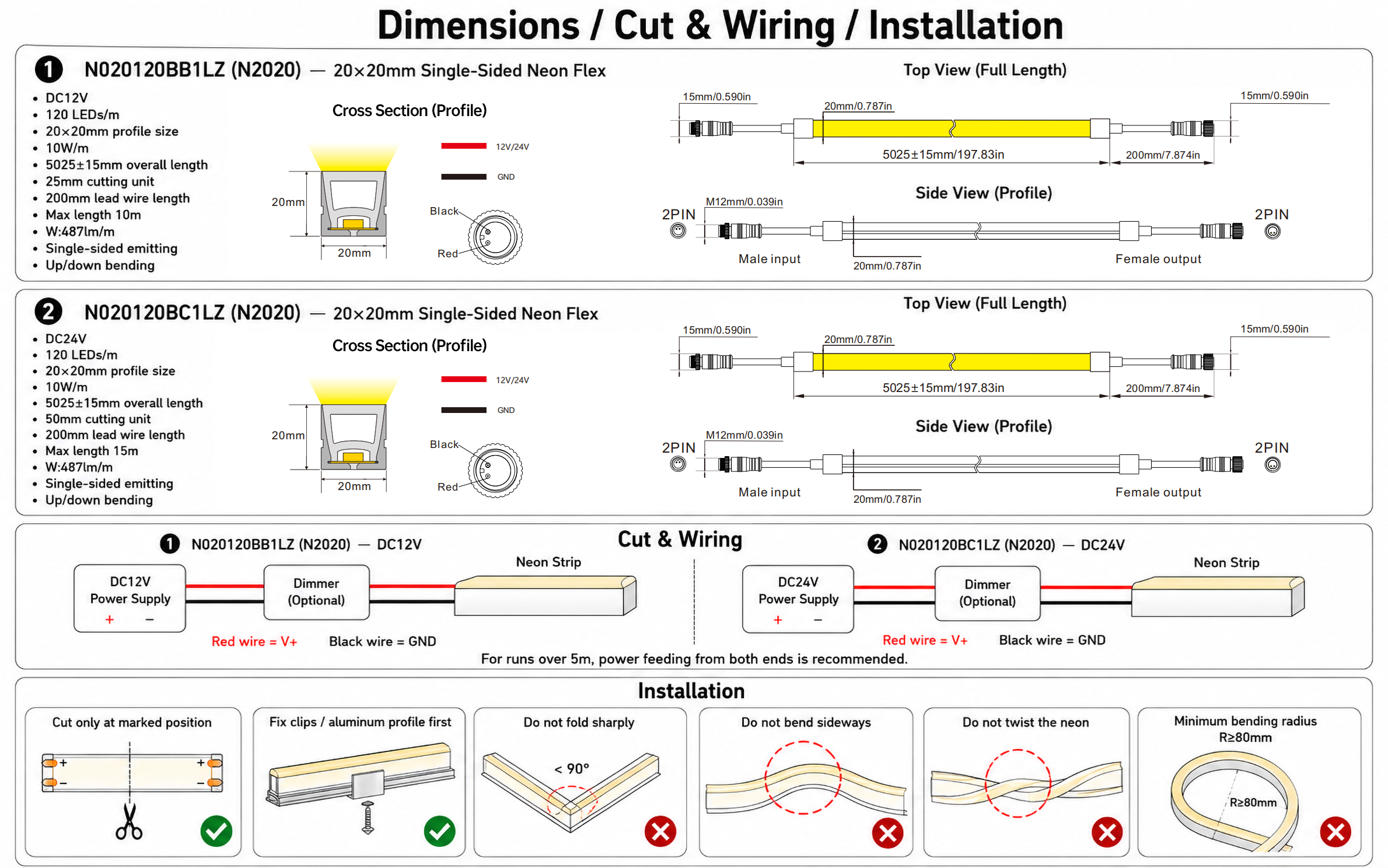

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V: N020120BB1LZ; DC24V: N020120BC1LZ |
| LED Type | SMD2835 | 120 LEDs/m |
| ColorType | Single color white | Constant-voltage white neon |
| Color Range | 3000K / 4000K / 6500K | Confirm final CCT before order |
| PCB Width | 20×20mm profile | For neon products, this refers to the silicone profile size |
| Power | 10W/m | Same for both voltage versions |
| Control | Constant voltage | Compatible with DC constant-voltage power supply or dimmer |
| IPRating | IP67 | Suitable for indoor/outdoor use, not for immersion |
| Length | 5025±15mm standard / custom length | Max length: DC12V 10m; DC24V 15m |
| Connector | 2PIN connector / straight outlet / side outlet / bottom outlet | Outlet options shown in mechanical drawings |
| Mounting | Buckle / aluminum profile / shapable mounting slot | Buckle size L20×W22.5×H21.5mm; aluminum profile L1000×W22.5×H21.5mm |
| Packing | Carton / wooden case / custom packing | Standard packaging and wooden case options shown in datasheet |
Related Items

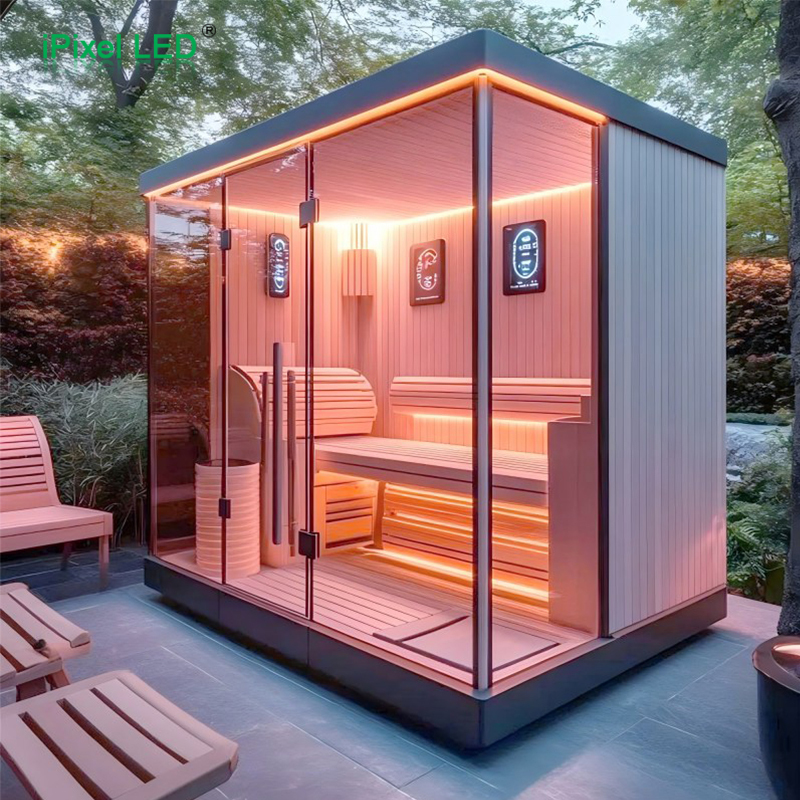

Sauna & Spa Lighting – High Heat/Humidity, Safe Low Voltage & Sealing
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability

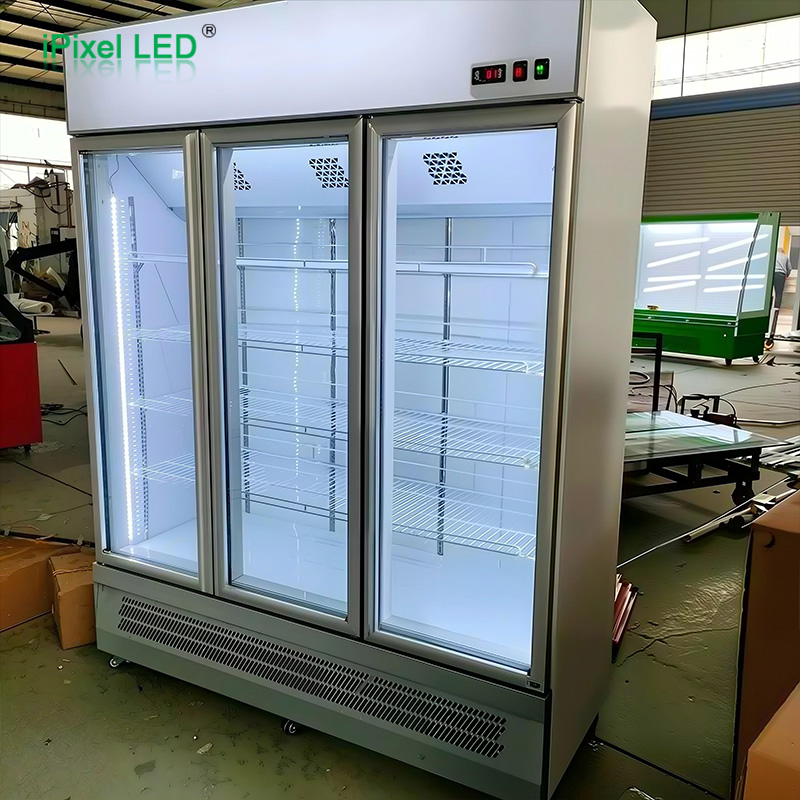

Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. Both models use a 20×20mm profile, 120 LEDs/m, 10W/m, and W:487lm/m brightness.
N020120BB1LZ(N2020), because it has a 25mm cutting length.
N020120BC1LZ(N2020), because the DC24V version supports up to 15m maximum length.
