This is an RGB DMX512 LED strip. It does not have an independent white channel.

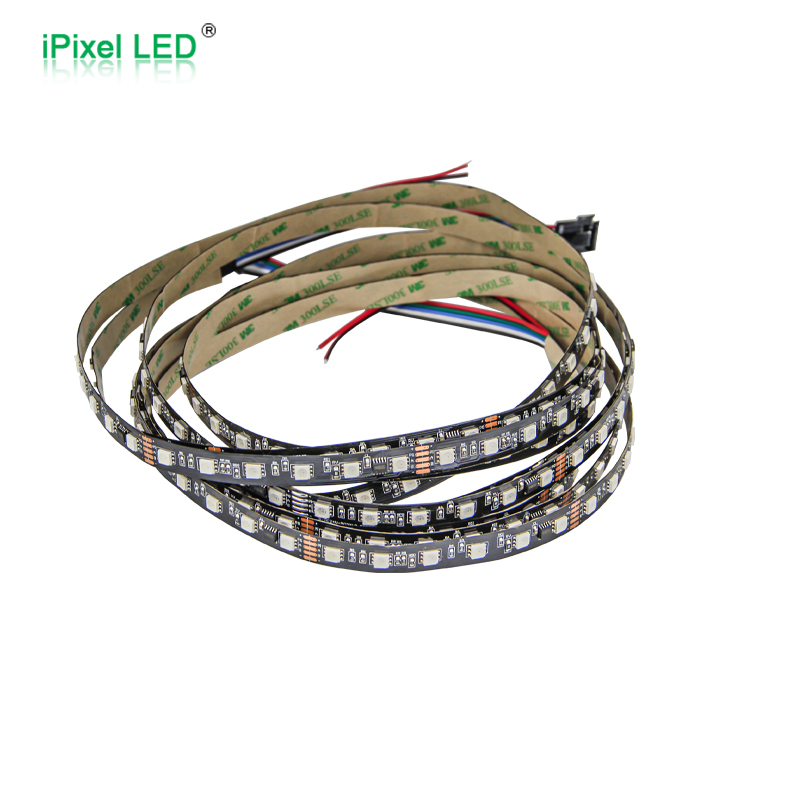

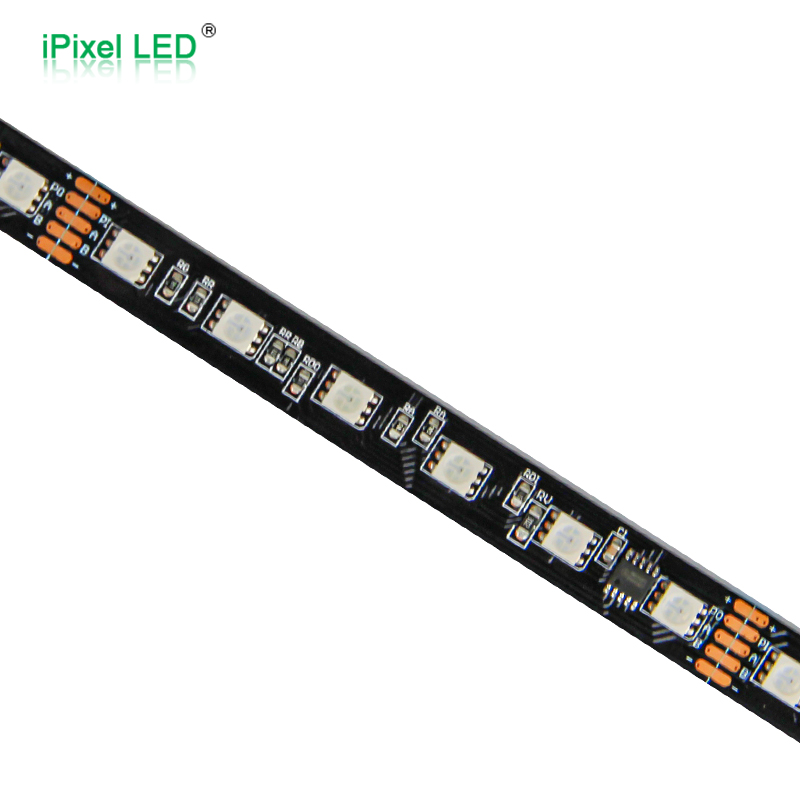

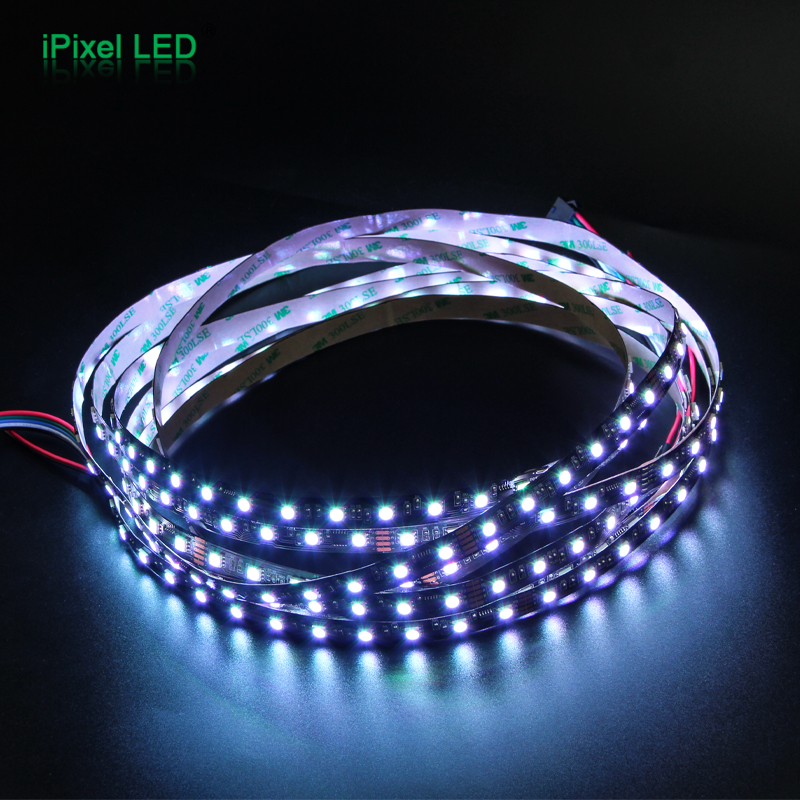

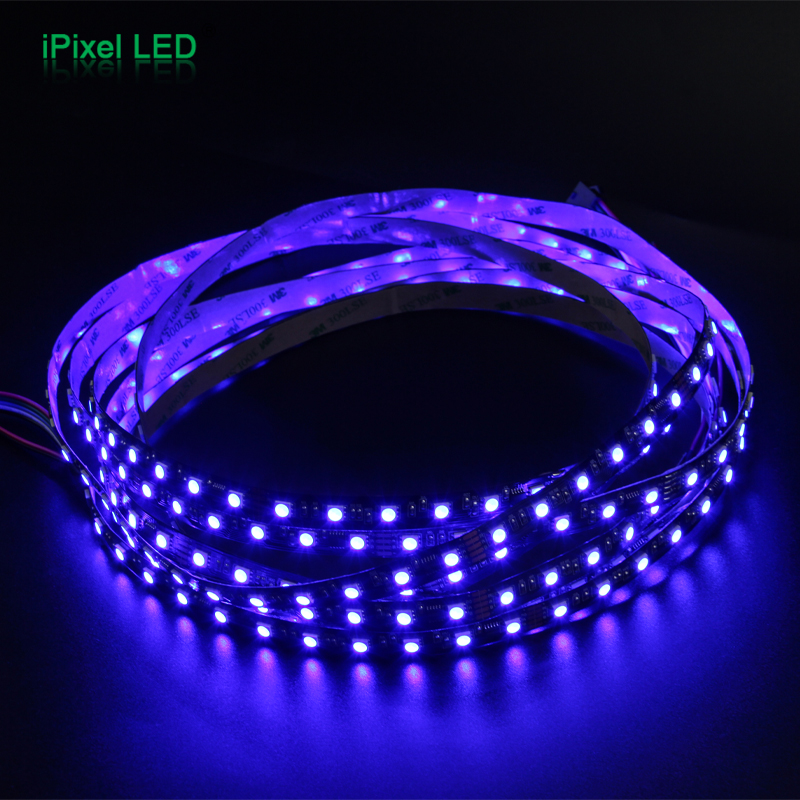

Auto Address DMX512 5050 RGB LED Strip – 60 LEDs/m, DC24V
- Auto Addressing DMX512 RGB LED strip, you don't need use a address coder
- 30 DMX channels per meter (10Pixels)
- The whole strip is 5meters long, but the cutting unit is 100mm contains 6pcs LEDs and 3 channels
- 300P 3M tape attached on backside of PCB
- IP Rate: IP20, IP64, IP65, IP67
- It's easy to run with any standard DMX512 controller
DC24V60LEDs/m12mm WidchRGBDMX/Hi512E/TM512AC
Overview & Key Features
Series Overview
This Auto Address DMX512 5050 RGB LED strip is designed for professional RGB lighting projects that require DMX512 control without manual address coding. Compared with standard DMX strips that require an address coder, this version supports auto addressing, making installation and setup easier for multi-segment RGB lighting systems.
The strip uses SMD5050 RGB LEDs, operates at DC24V, and provides 60 LEDs/m with 10 pixels/m. Each 100mm section contains 6 LEDs and 3 DMX channels, making it suitable for architectural lighting, entertainment lighting, signage, commercial display and OEM RGB lighting assemblies.
Key Features
- Auto Addressing DMX512 RGB LED strip.
- No address coder required for normal addressing setup.
- SMD5050 RGB LED package.
- DC24V constant voltage operation.
- 60 LEDs/m.
- 10 Pixels/m.
- 30 DMX channels per meter.
- 100mm / 6LED cutting unit.
- 3-channel RGB control.
- 12mm FPC width.
- 300P 3M adhesive backing.
- 5m per roll.
- IP20 / IP64 / IP65 / IP67 options.
- Compatible with standard DMX512 controller systems.
Product Series Specification Matrix
| Product Model | LED Qty/m | Voltage | Power/m | Lumen/m | PCB Width | Cutting Length | Control | Pixel Density | Color |
|---|---|---|---|---|---|---|---|---|---|
| S012060CC3DE1 / S012060CC3DC0 | SMD5050 60LEDs/m | DC24V | 12W/m | R:89 / G:227 / B:56 lm/m | 12mm | 100mm/6LED | DMX / Hi512E / TM512AC | 10 Pixels/m | RGB |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a DMX512 RGB light strip | Choose this model |
| Need auto‑addressing and don't want to manually set addresses | Choose the Auto Address version |
| Need RGB three‑channel control | Choose this model |
| Need standard density of 60 LEDs/m | Choose this model |
| Need 100mm cutting pitch | Choose this model |
| Need 12mm PCB | Choose this model |
| Need RGBW with a white channel | Do not choose this model; select a DMX512 RGBW LED Strip instead |
| Need single‑color white DMX dimming | Do not choose this model; select a DMX 2835 Single Color LED Strip instead |
| Need higher‑density RGBW effects | Consider the DMX512 RGBW 84 / 120 LEDs/m series |
| Need for outdoor or damp environments | Choose IP65 / IP67 and confirm end sealing and connector solutions |

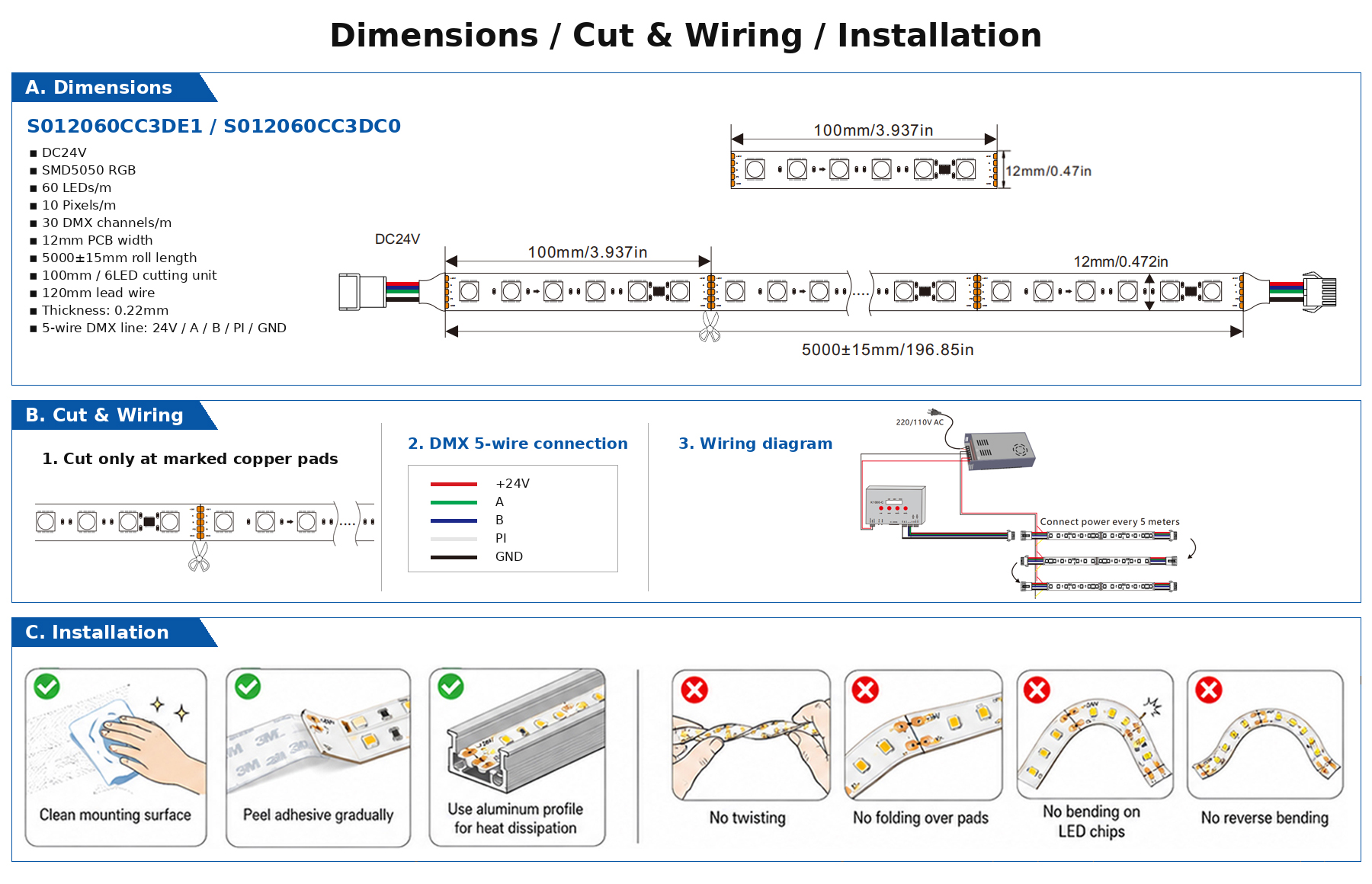

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Standard input |
| LED Type | SMD5050 RGB | RGB 3-channel |
| Control | DMX / Hi512E / TM512AC | Auto addressing DMX512 |
| LED Density | 60 LEDs/m | Standard density |
| Pixel Density | 10 Pixels/m | 30 DMX channels/m |
| PCB Width | 12mm | Confirm profile or groove size |
| Cutting Length | 100mm/6LED | 3 channels per section |
| IP Rating | IP20 / IP64 / IP65 / IP67 | Depends on waterproof structure |
| Length | 5m standard / custom length | 3 channels per section |
| Adhesive | 300P 3M tape | Custom length available |
| Cable | 5-wire DMX input/output | 24V / A / B / PI / GND |
| Mounting | 3M tape / aluminum profile / clips | Profile recommended for better heat dissipation |
| Accessories | DC24V power supply, DMX controller, aluminum profile | Select according to project requirement |
Related Items
Symbol of Rat Installation | 6×12mm Single-Sided Side-View Silicone Neon Flex (N006120BC1LZ / N0612)
Blackpool UK Promenade Decoration | 12×22mm RGB Digital Neon Flex (N012060CB3SF/N012060CC3SF, N1222-Arc)

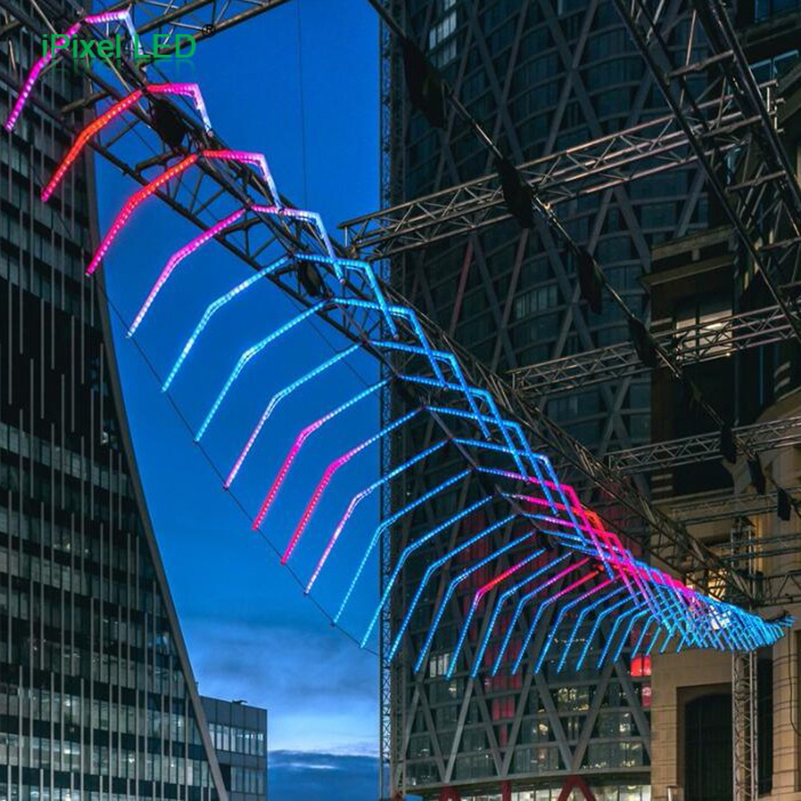

France Linear Lighting Project with WS2815 Dual-Signal RGB LED Strip
Madrid UEFA Champions League Final | 15×15 3D Digital Neon Flex (N015120BC3SC / N1515)
Programmable Linear Lighting Project | DC24V WS2811 Digital RGB LED Strip 60LEDs/m (S010060CC3SF)
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
It means the strip can work without using a separate address coder for normal address setup, making installation easier.
It uses 30 DMX channels per meter, based on 10 pixels/m and 3 channels per pixel.
The cutting length is 100mm, with 6 LEDs and 3 channels per section.
