The main difference is voltage. N011480ZB1LZ is DC12V, while N011480ZC1LZ is DC24V.

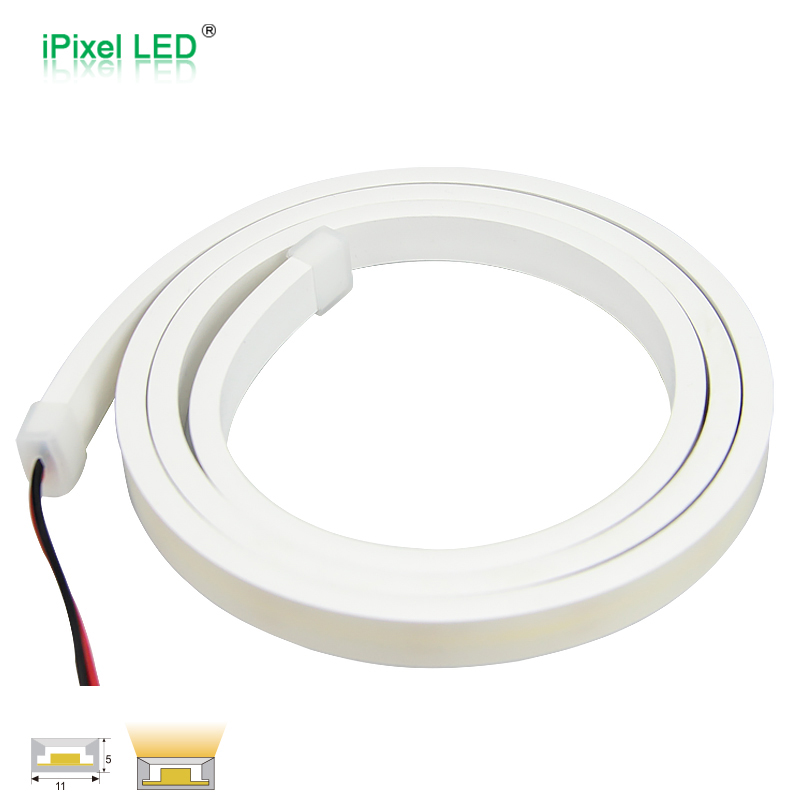

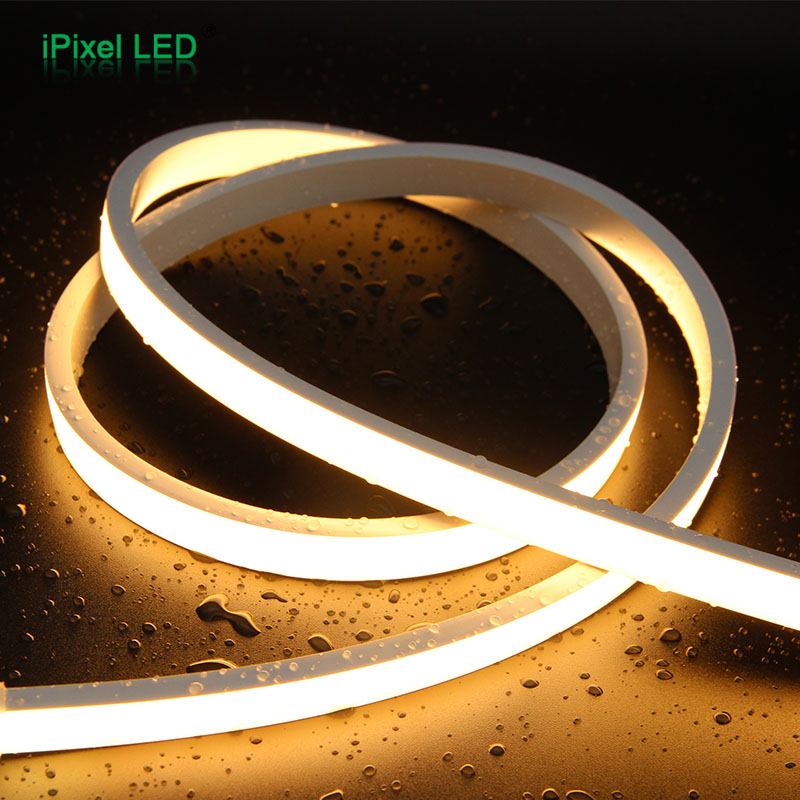

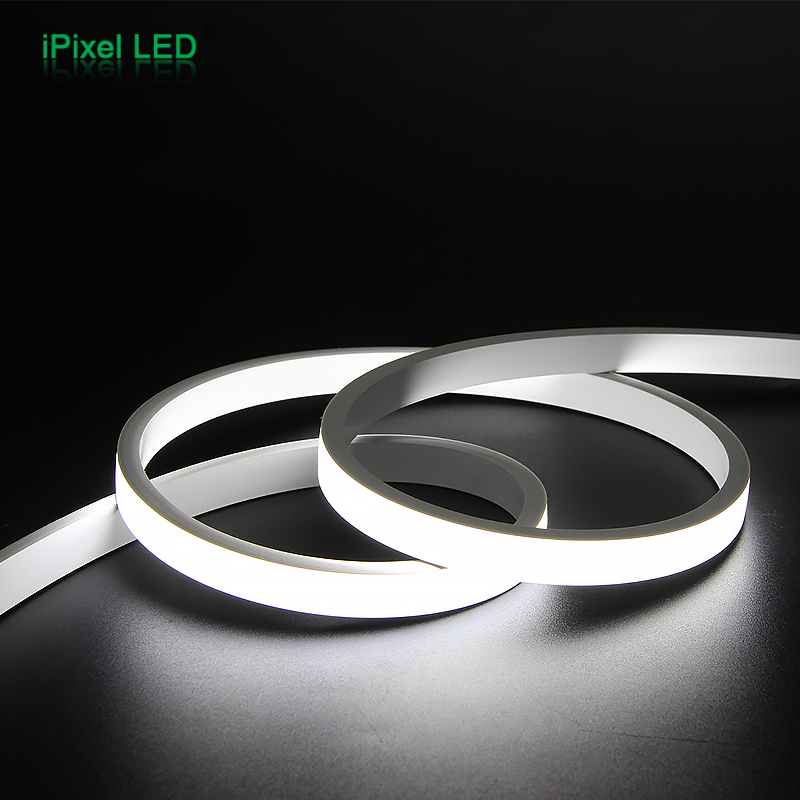

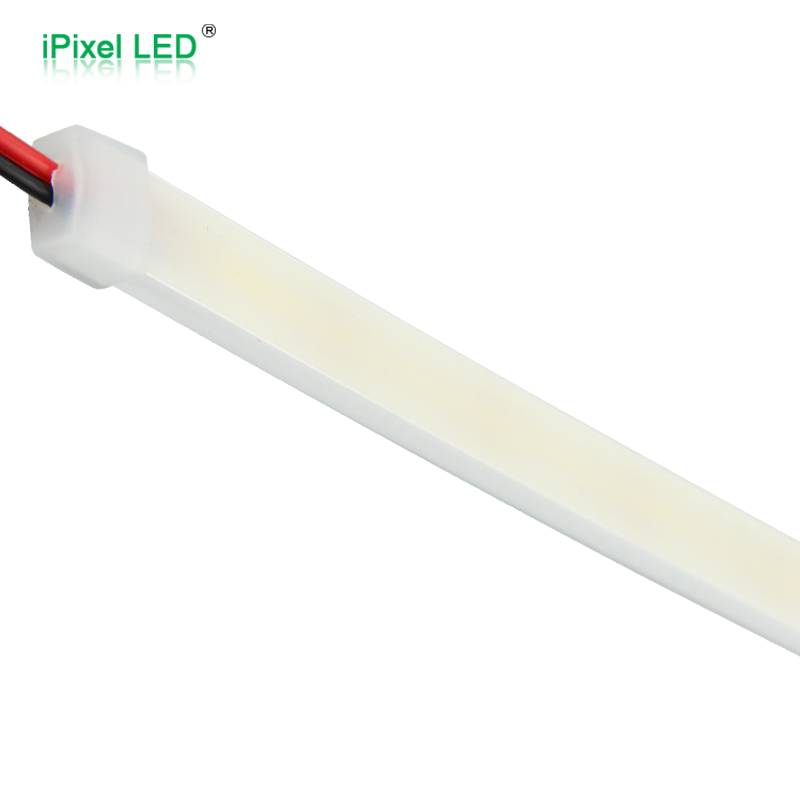

N1105 COB Top-View Neon Flex Series
This N1105 COB Top-View Neon Flex Series is designed for compact dotless linear lighting applications where a slim 11×5mm neon profile is required. The series includes DC12V and DC24V versions, both using COB LED chips, translucent silicone diffuser material, and a top-view structure for uniform light output without visible spots.
Both models are rated 10W/m, 480 LEDs/m, IP65, and 5m per roll, with 3000K / 4000K / 6000K white options and R / G / B color options. The datasheets state that each roll includes 10pcs aluminum clips for installation, approximately 2pcs per meter.
DC12V/DC24V480EDs/m11mm WdichSingle ColorIP65
Overview & Key Features
Series Overview
The N011480ZB1LZ is the DC12V version, suitable for shorter runs, lower-voltage systems, small decorative lighting and projects where DC12V power is already used.
The N011480ZC1LZ is the DC24V version, suitable for projects requiring lower current, longer wiring distance, and better voltage-drop control compared with DC12V systems.
Both versions use the same 11×5mm top-view silicone neon structure, designed to bend up and down with light projecting upward. The datasheets show a minimum bending diameter of 60mm and forbid twisting or bending in the wrong direction.
Key Features
- 11×5mm slim COB neon flex series
- Top-view light output
- DC12V / DC24V options
- COB LED chip, dotless light effect
- 480 LEDs/m high-density light source
- 10W/m power rating
- W: 780lm/m listed brightness
- 120° beam angle
- IP65 waterproof for outdoor use
- Silicone diffuser, soft and uniform light output
- Anti-UV, anti-aging, anti-yellowing silicone material
- 5m standard roll length, custom length available
- Designed for up/down bending
- Minimum bending diameter: 60mm
- Each roll includes 10pcs aluminum clips

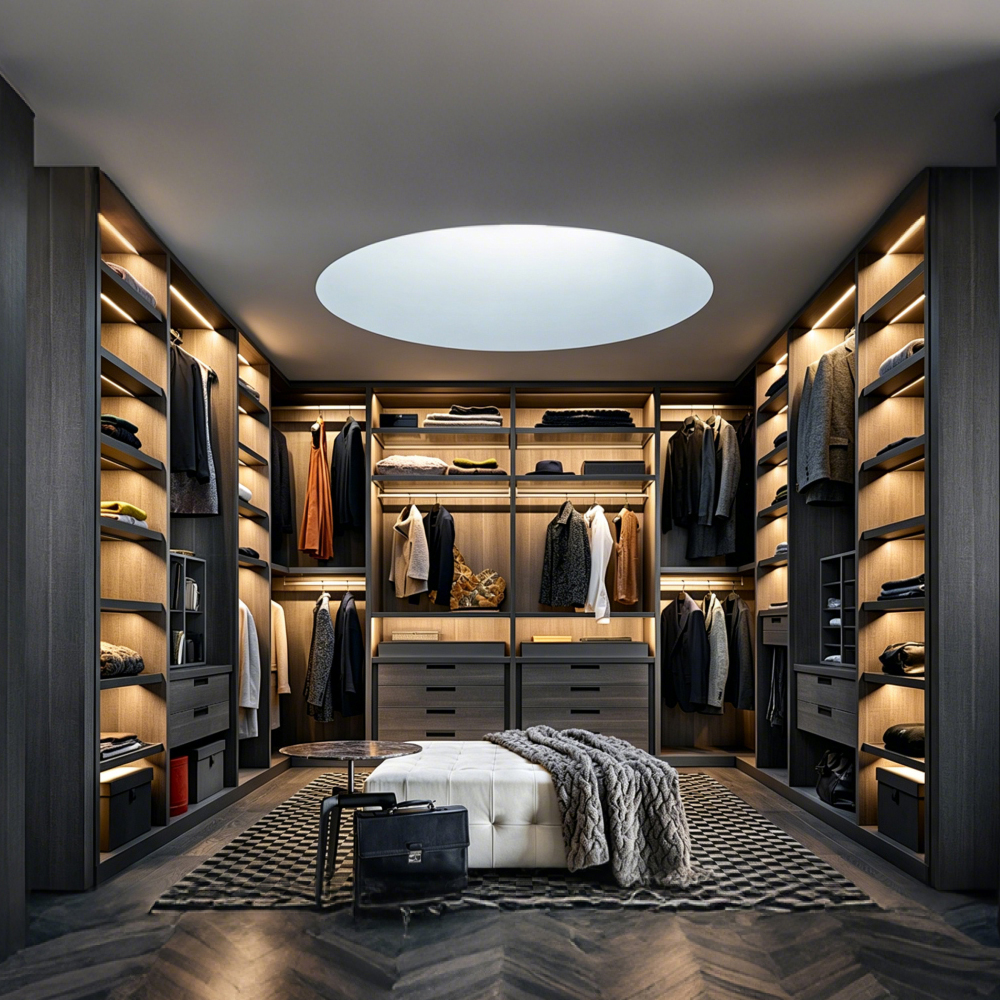

- Suitable for cabinet lighting, signage, decorative contour lighting and compact linear lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N011480ZB1LZ | 480 | DC12V | 10W/m | Constant Voltage | 11×5mm profile | R / G / B / W: 3000K / 4000K / 6000K | Side cutting marks; cutting length not listed | W: 780lm/m | N1105 COB Top-View Neon, DC12V |
| N011480ZC1LZ | 480 | DC24V | 10W/m | Constant Voltage | 11×5mm profile | R / G / B / W: 3000K / 4000K / 6000K | Side cutting marks; cutting length not listed | W: 780lm/m | N1105 COB Top-View Neon, DC24V |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need DC12V system compatibility | N011480ZB1LZ |
| Need DC24V system compatibility | N011480ZC1LZ |
| Need lower current for longer wiring | N011480ZC1LZ |
| Need compact 11×5mm dotless neon | Both models |
| Need top-view light output | Both models |
| Need IP65 outdoor protection | Both models |
| Need 3000K / 4000K / 6000K white option | Both models |
| Need R / G / B single-color option | Both models |
| Need cabinet, signage or decorative linear lighting | Both models |
| Need stable brightness over longer layout | Prefer DC24V version, with power feeding method confirmed by project length |

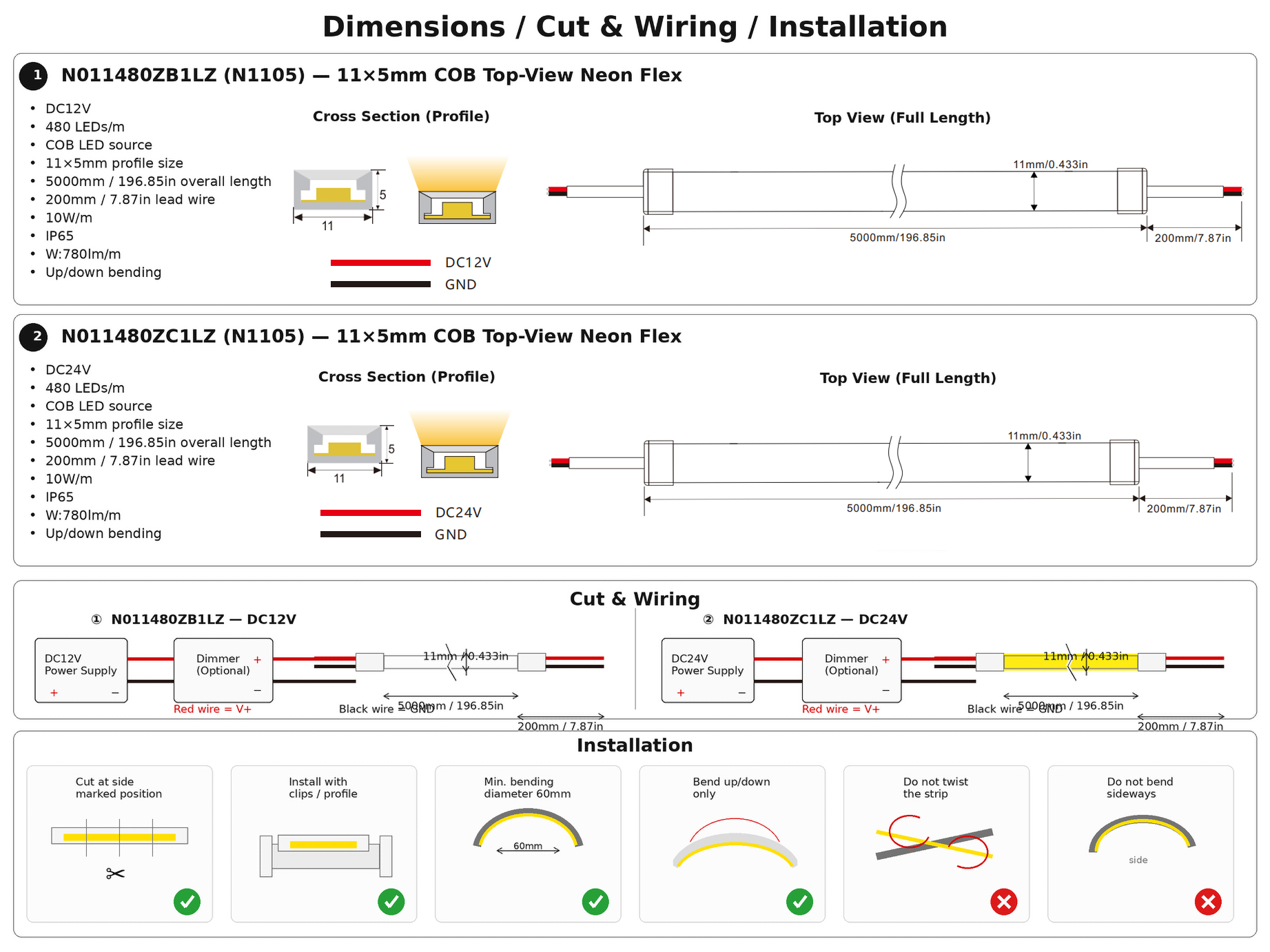

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V: N011480ZB1LZ; DC24V: N011480ZC1LZ |
| LED Type | COB | High-density COB light source for dotless output |
| ColorType | Single color | R / G / B / W options |
| Color Range | 3000K / 4000K / 6000K; R:620–625nm / G:520–525nm / B:460–465nm | White and monochrome color options shown in datasheets |
| PCB Width | 11×5mm profile | For neon products, this refers to the silicone profile size |
| Power | 10W/m | Same for both voltage versions |
| Control | Constant voltage | Can work with matching CV power supply; dimmer can be added if required |
| IPRating | IP65 | Suitable for outdoor use with correct sealing and installation |
| Length | 5m standard / custom length | Standard length is 5m/roll; custom length available |
| Connector | Bare wire / end cap / custom wire outlet | End cap shown in accessories |
| Mounting | Aluminum clips / PC clips | Each roll includes 10pcs clips; clip size shown as 22.8×7×5.4mm |
| Packing | Reel / project packing | Confirm by custom length, connector and order quantity |
Related Items
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Outdoor Shade Lighting – UV/Waterproof Reliability & Fast Assembly
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability
Medical Refrigeration Lighting – Traceability, Reliability Pack & Low-Temp Stability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. Both are listed as 11×5mm, 10W/m, 480 LEDs/m, and W:780lm/m.
Yes. Both models use COB LED chips for soft, uniform and dotless light output.
Yes. Both datasheets list IP65 waterproof for outdoor use, but sealing and installation method must be correct.
