The main differences are PCB width, LED package, voltage, control IC, LED density and pixel density. The series covers 4mm, 5mm, 7mm and 12mm PCB widths.

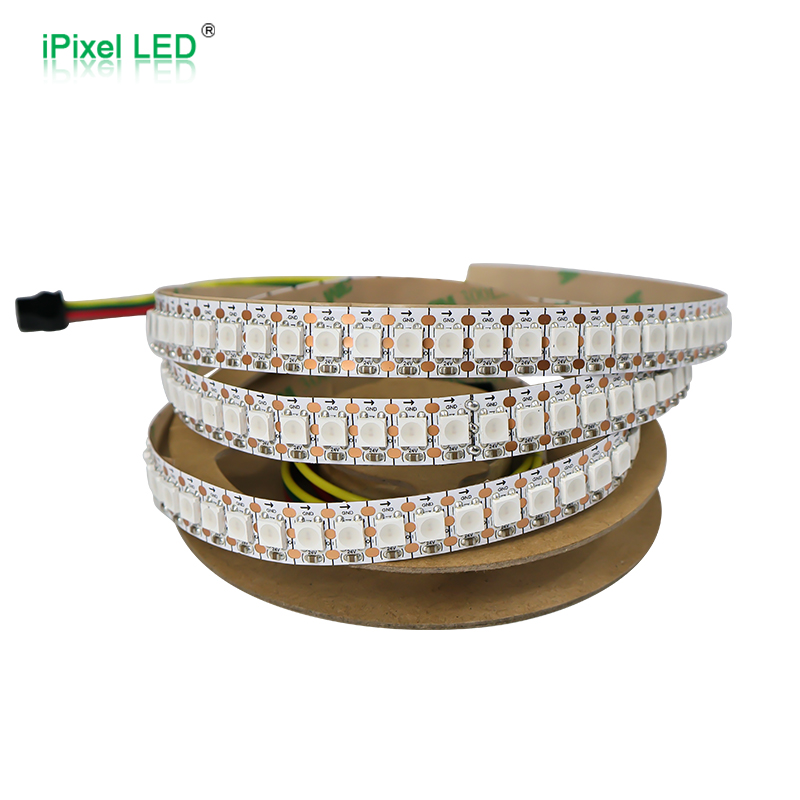

Ultra Narrow / Skinny Addressable LED Strip Series
This Narrow & High-Density Addressable RGB LED Strip Series is designed for compact, slim and pixel-controlled RGB lighting applications. The series includes 4mm, 5mm, 7mm and 12mm PCB width options, covering SK6812, SK6805, TM1903 and HC2824 digital control solutions. It is suitable for small installation grooves, signage, display fixtures, gaming equipment, decorative lighting, pixel effects and OEM dynamic RGB lighting systems.
The series includes DC5V and DC24V options, with 60 / 120 / 144 / 150 LEDs per meter and 20 / 60 / 144 / 150 pixels per meter depending on model. The uploaded datasheets show that these models use flexible FPC, RGB output, 120° beam angle, 3M adhesive backing, and IP20 / IP64 / IP65 protection options depending on model.
DC5V/DC24V60/120/144/150LEDs/m4/5/7/12mm WidchRGBIP20/IP65
Overview & Key Features
Series Overview
This series is suitable when a project needs addressable RGB effects but the installation space, PCB width, voltage or pixel density is different from standard 10mm digital LED strips.
The 4mm versions are suitable for narrow grooves and compact installations. The 5mm DC24V TM1903 version is suitable when a slim PCB and 24V system are both required. The 7mm skinny SK6812 version provides high-density DC5V pixel control. The 12mm HC2824 version provides high-density DC24V individual pixel control with 144 LEDs/m and 144 pixels/m.
Key Features
- Addressable RGB LED strip series
- Narrow and high-density options
- DC5V / DC24V voltage options
- 4mm / 5mm / 7mm / 12mm PCB width options
- SK6812 / SK6805 / TM1903 / HC2824 control options
- 60 / 120 / 144 / 150 LEDs per meter
- 20 / 60 / 144 / 150 pixels per meter
- Cuttable from 6.66mm to 50mm depending on model
- RGB dynamic lighting effects
- Flexible FPC construction
- 120° beam angle
- IP20 / IP64 / IP65 options depending on model
- 3M adhesive backing
- Suitable for compact grooves, signage, display fixtures, gaming equipment and OEM RGB lighting systems
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|

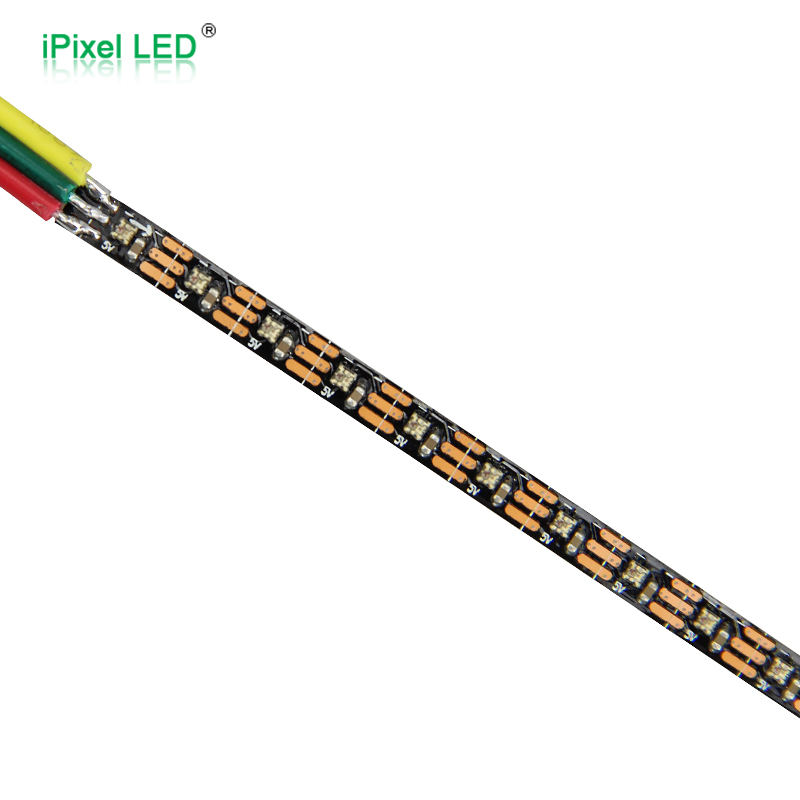

| S004060DA3SA1 | 60 | DC5V | 12W | SPI / SK6812 | 4mm | RGB | 16.66mm / 1LED | R:61 / G:172 / B:40lm | 4mm SK6812 3535 RGB, 60 pixels/m |

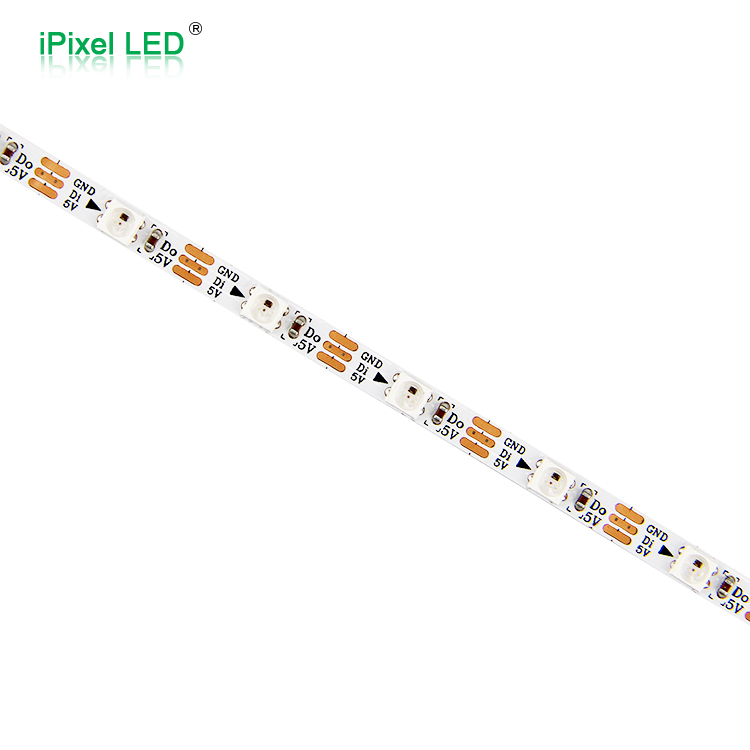

| S004150UA3SA8 | 150 | DC5V | 12W | SPI / SK6805 | 4mm | RGB | 6.66mm / 1LED | R:43 / G:130 / B:27lm | 4mm tiny 1515 RGB, 150 pixels/m |
| S005120BC3SC | 120 | DC24V | 24W | SPI / TM1903 | 5mm | RGB | 50mm | R:157 / G:415 / B:94lm | 5mm 2835 RGB, 20 pixels/m |
| S007144DA3SA1 | 144 | DC5V | 24W | SPI / SK6812 | 7mm | RGB | 6.94mm / 1LED | R:146 / G:444 / B:112lm | Skinny 3535 RGB, 144 pixels/m |
| S012144CC3SB7 | 144 | DC24V | 24W | HC2824 | 12mm | RGB | 6.94mm / 1LED | R:355 / G:785 / B:112lm | 24V 5050 RGB, 144 pixels/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need 4mm narrow addressable RGB strip | Choose S004060DA3SA1 or S004150UA3SA8. |
| Need 4mm SK6812 with 3535 RGB LED | Choose S004060DA3SA1 — 60 LEDs/m, 60 pixels/m, DC5V. |
| Need very small RGB LED package and higher pixel density | Choose S004150UA3SA8 — 1515 RGB LED, 150 LEDs/m, 150 pixels/m. |
| Need narrow PCB but DC24V system | Choose S005120BC3SC — 5mm PCB, DC24V, TM1903, 120 LEDs/m. |
| Need high-density skinny DC5V RGB effect | Choose S007144DA3SA1 — 7mm PCB, 144 LEDs/m, SK6812. |
| Need high-density DC24V individual pixel control | Choose S012144CC3SB7 — DC24V, HC2824, 144 LEDs/m and 144 pixels/m. |
| Need shortest cutting length | Choose S004150UA3SA8 — 6.66mm / 1LED, or S007144DA3SA1 / S012144CC3SB7 — 6.94mm / 1LED. |
| Need lower current for longer wiring | Choose DC24V models: S005120BC3SC or S012144CC3SB7. |
| Need highest listed RGB lumen output | Choose S012144CC3SB7 — R:355 / G:785 / B:112lm. |
| Need IP65 option | Most models list IP20 / IP65; confirm final waterproof structure before order. |

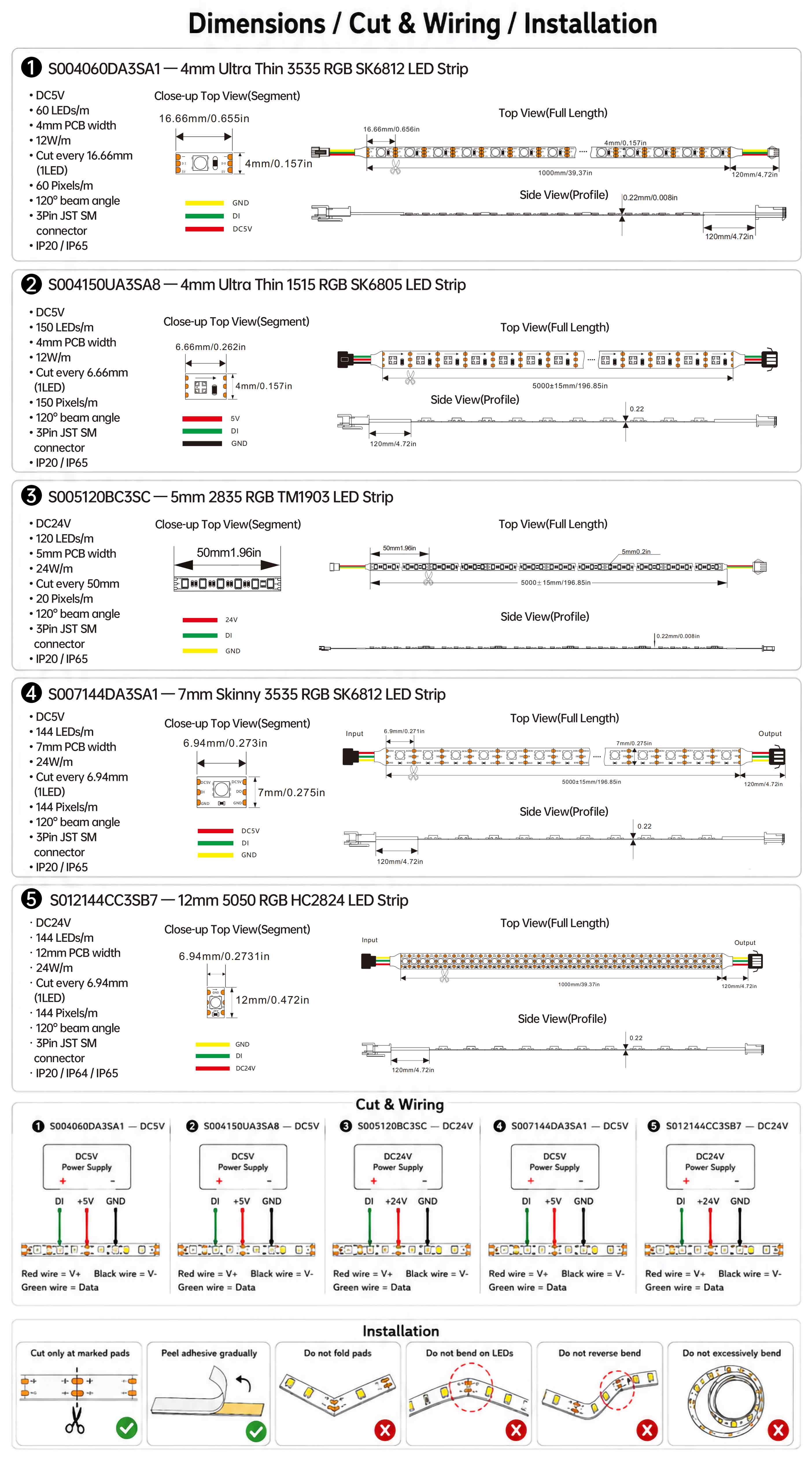

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V / DC24V | DC5V for SK6812 / SK6805 versions; DC24V for TM1903 / HC2824 versions. |
| LED Type | SMD1515 / SMD2835 / SMD3535 / SMD5050 RGB | Select by PCB width, brightness, density and visual effect. |
| ColorType | RGB | Programmable red, green and blue color mixing. |
| Color Range | RGB wavelength range | Typical range: R 615–630 / 620–625nm, G 520–535 / 520–525nm, B 450–460 / 460–465nm depending on model. |
| PCB Width | 4mm / 5mm / 7mm / 12mm | 4mm and 5mm for narrow grooves; 7mm for skinny high-density; 12mm for 24V high-density 5050. |
| Power | 12W/m / 24W/m | Select by brightness, density and thermal requirement. |
| Control | SPI / SK6812 / SK6805 / TM1903 / HC2824 | Controller must match IC protocol, voltage and pixel quantity. |
| IPRating | IP20 / IP64 / IP65 | Availability depends on model; IP process may affect size and luminous flux. |
| Length | 1000mm / 5000mm / custom length | Some models show 1000mm size, while others show 5000mm. Confirm final standard reel length before order. |
| Connector | JST SM connector / bare wire / custom connector | Connector should match voltage, data direction and installation method. |
| Mounting | 3M adhesive tape / aluminum profile / clips | Aluminum profile is recommended for higher power or long operating time. |
| Packing | Reel / antistatic bag / carton / OEM packing | Standard reel and carton packing are shown; OEM packing can be discussed. |
