DE2007 is suitable for LED strips up to 20mm width, including wide LED strips or double-row LED strips for higher brightness applications.

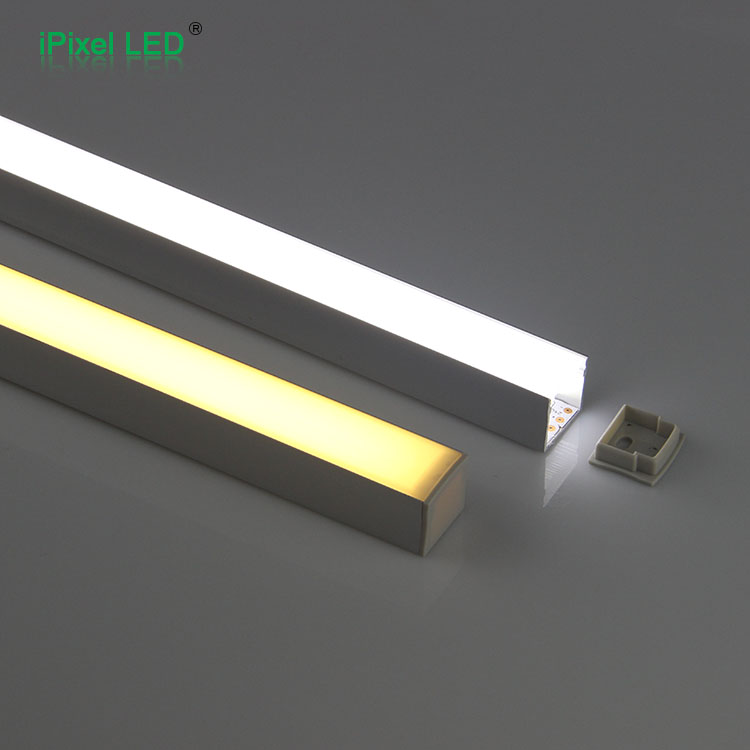

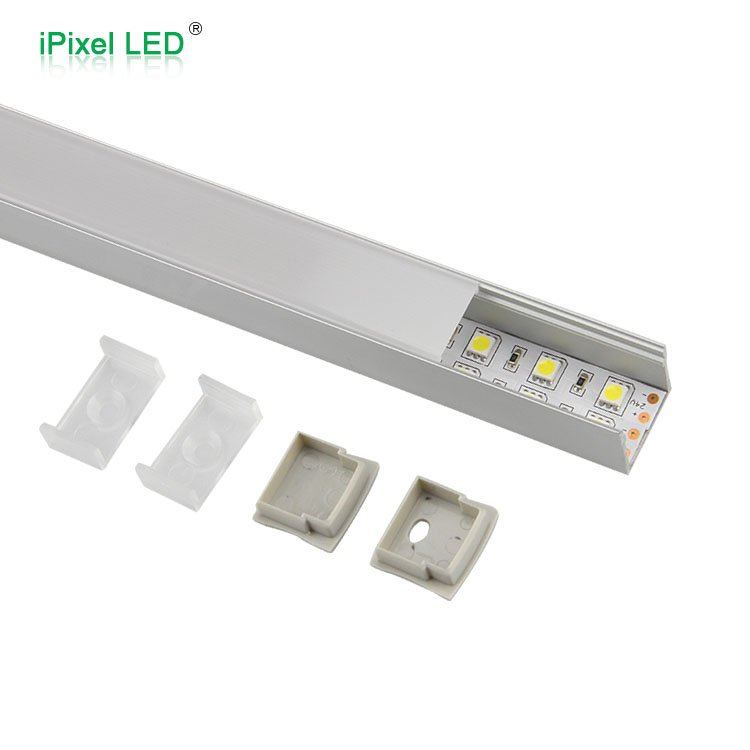

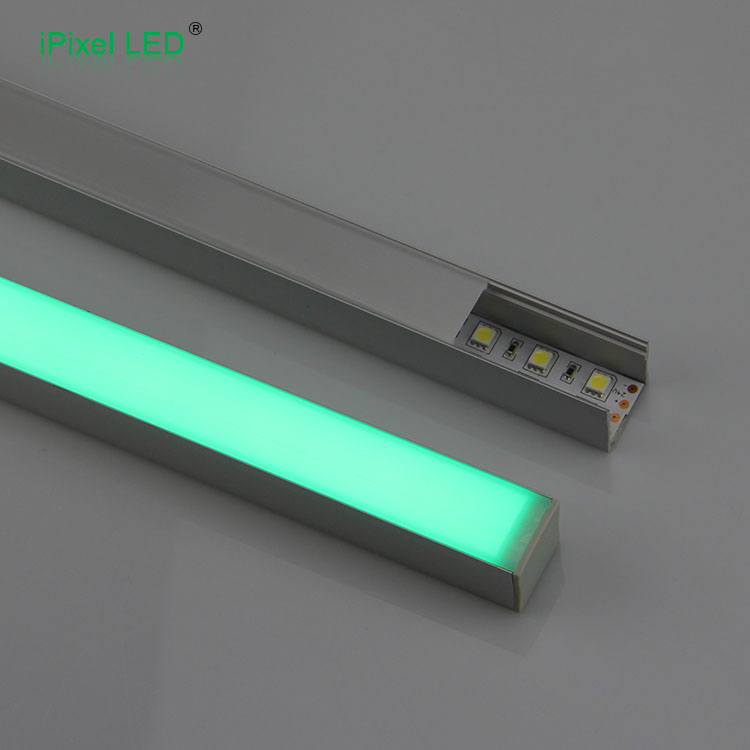

DE2007 Aluminum LED Profile
Material: AL6063-T5
Surface: Anodized
PC Cover: Diffuser/Transparent
LED Strip width: 20mm(Max)
Recommend LED Strip type: 2x60leds/m (5050) 2x120leds/m(3528)

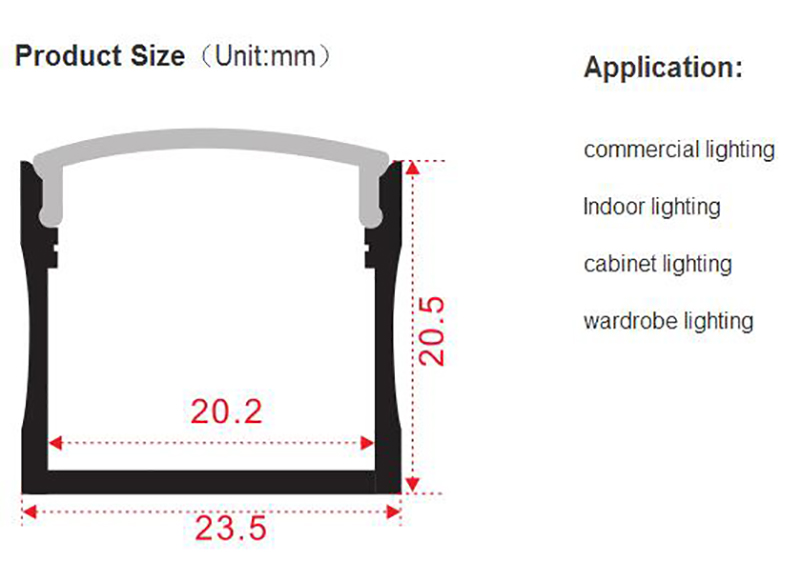

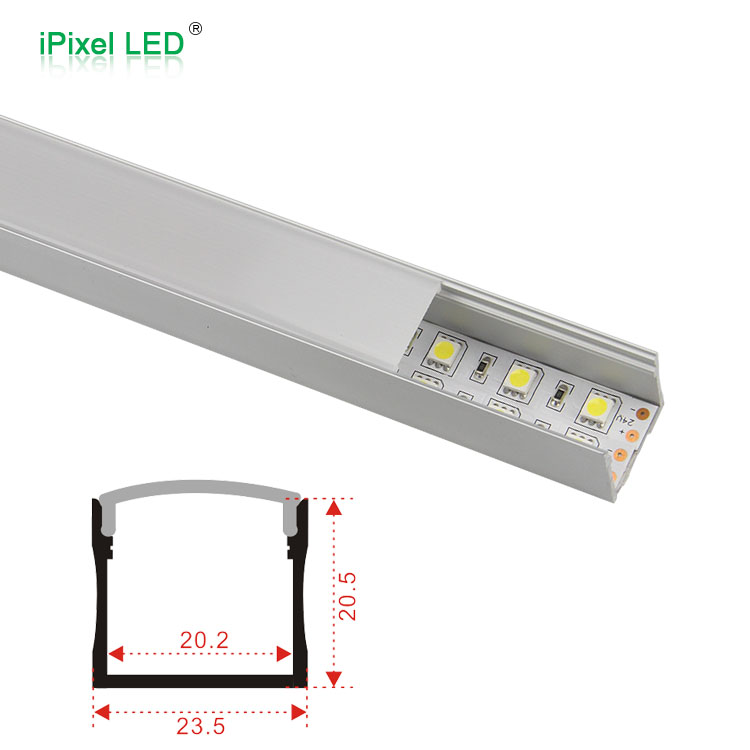

Bar Size: W 23.5xH 20.5mm
Bar Length: 100-3000mm
Product Description
1.These LED aluminum channel and diffuser solutions are perfect for back lighting and edge lighting applications.
2.Aluminum U channel is a versatile way to create the perfect LED light installation for any situation.
3.It is rugged, durable, and also works well as an LED heatsink, thereby extending the life of your LED light strips.
4.We offer a vast array of shapes and sizes for extruded aluminum channel, allowing you to create
everything from flush mounted accent lighting to hanging LED fixtures.
5.When combined with the interchangeable accessories and a bit of creativity.

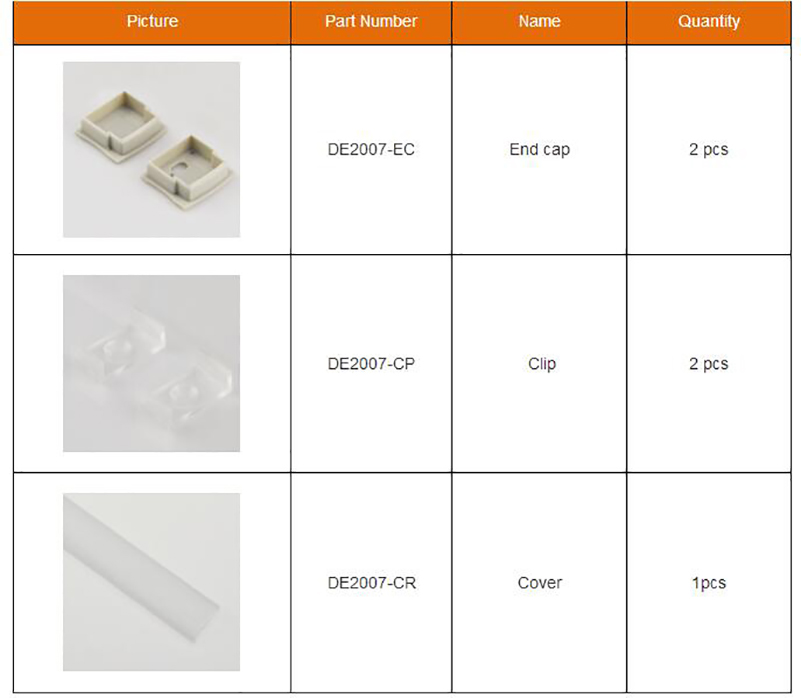

Accessories：
Related Items
Retail Shelving & Display Fixtures (Illuminated Displays)
Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
FAQ
DE2007 has a taller 23.5 × 20.5mm aluminum body, which provides more internal space, better light diffusion, and a cleaner illuminated line effect.
Yes. DE2007 can be matched with diffused or transparent PC covers, allowing customers to choose between softer lighting or higher light transmission.
DE2007 is commonly used for back lighting, edge lighting, cabinet lighting, display lighting, commercial lighting, and indoor linear lighting, especially where a deeper aluminum profile is required.
