The main differences are voltage and cutting length:
BB1LZ = DC12V, 50mm cut
BC1LZ = DC24V, 25mm cut

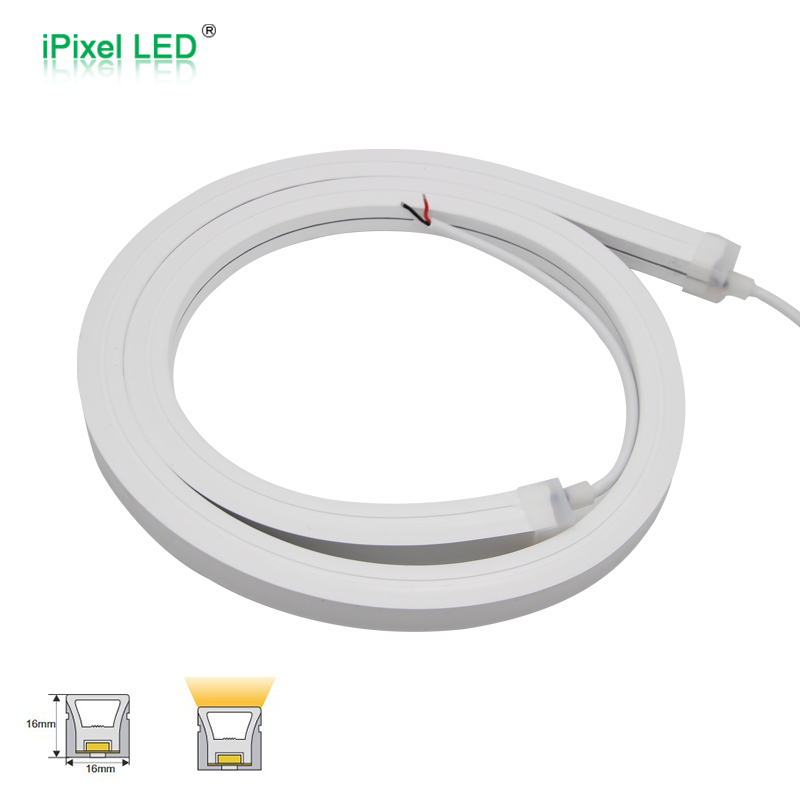

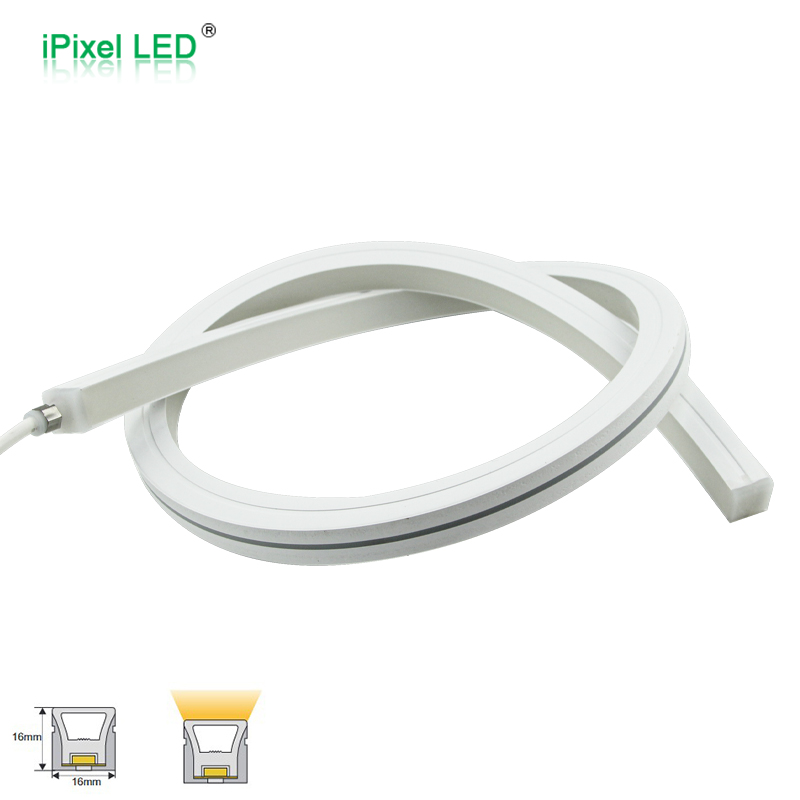

N1616 Single-Sided Neon Flex Series
he N1616 Single-Sided Neon Flex Series is a 16×16mm silicone neon flex designed for single-sided light output with uniform, soft illumination.
This series includes DC12V and DC24V versions, making it suitable for both standard decorative projects and longer-run installations with finer cutting flexibility.

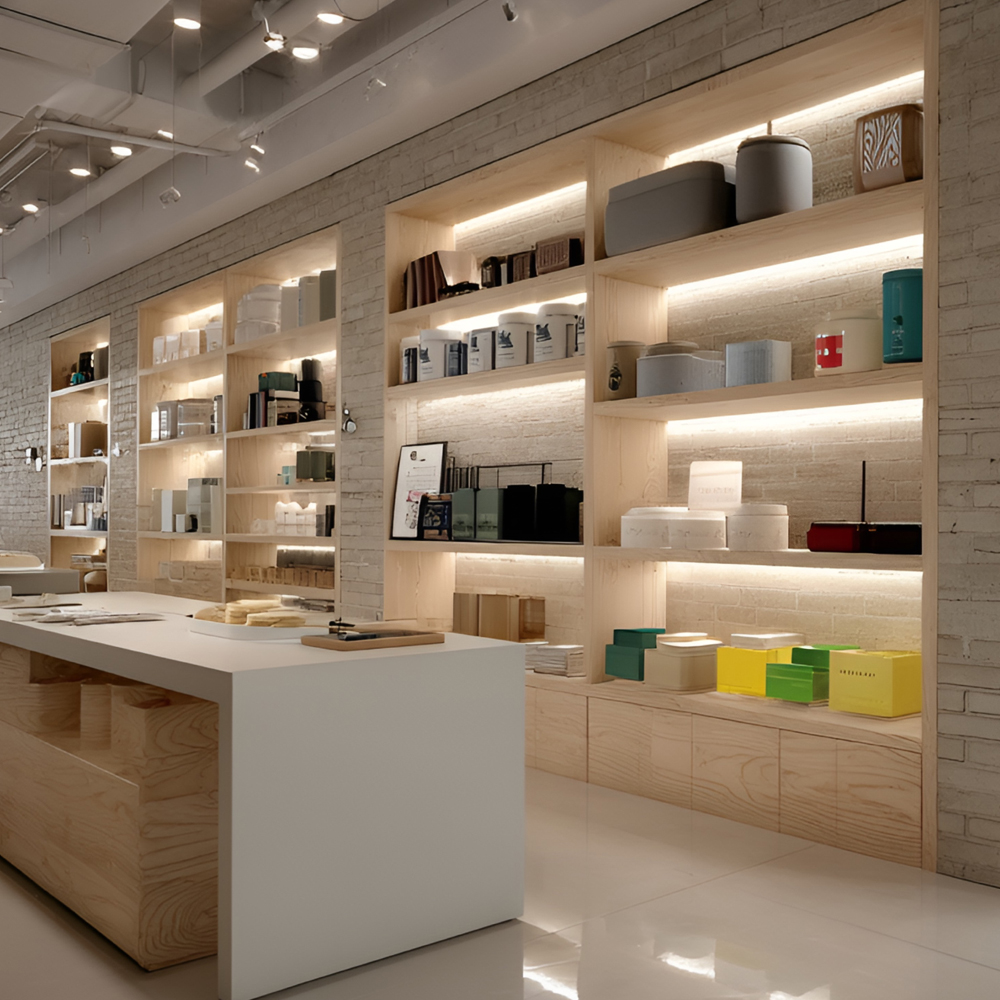

Built with 120 LEDs/m SMD2835, the series offers stable performance, good bending flexibility, and reliable outdoor durability for applications such as signage lighting, façade outlines, landscape accents, and indoor/outdoor decorative lighting.
DC12V/DC24V120EDs/m16mm WdichSingle ColorIP67
Overview & Key Features
Series Overview
The N1616 series combines a clean silicone body, soft dot-free lighting effect, and practical installation options. It is designed for projects that need a square-profile neon look, up-and-down bending, and IP67 outdoor protection.
The key difference between the two models is mainly:
- N016120BB1LZ = DC12V, 50mm cut
- N016120BC1LZ = DC24V, 25mm cut
Both models share the same outer structure, optical performance direction, and installation method.
Key Features
- 16×16mm single-sided neon flex
- Single-sided emitting surface
- Up-and-down bendable
- SMD2835, 120 LEDs/m
- 10W/m constant-voltage design
- DC12V and DC24V versions available
- 3000K / 4000K / 6000K options
- CRI ≥80

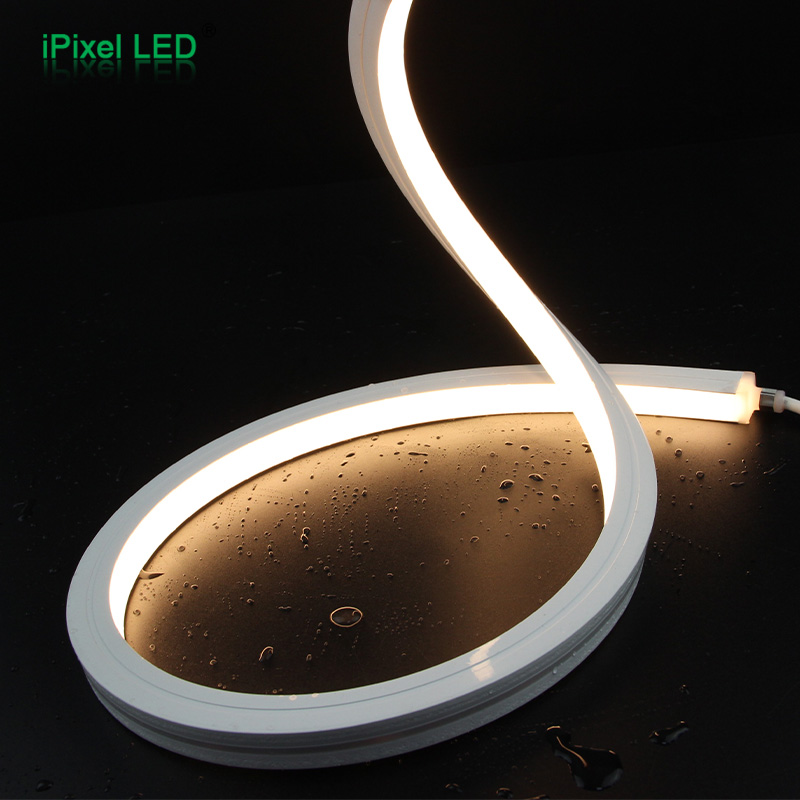

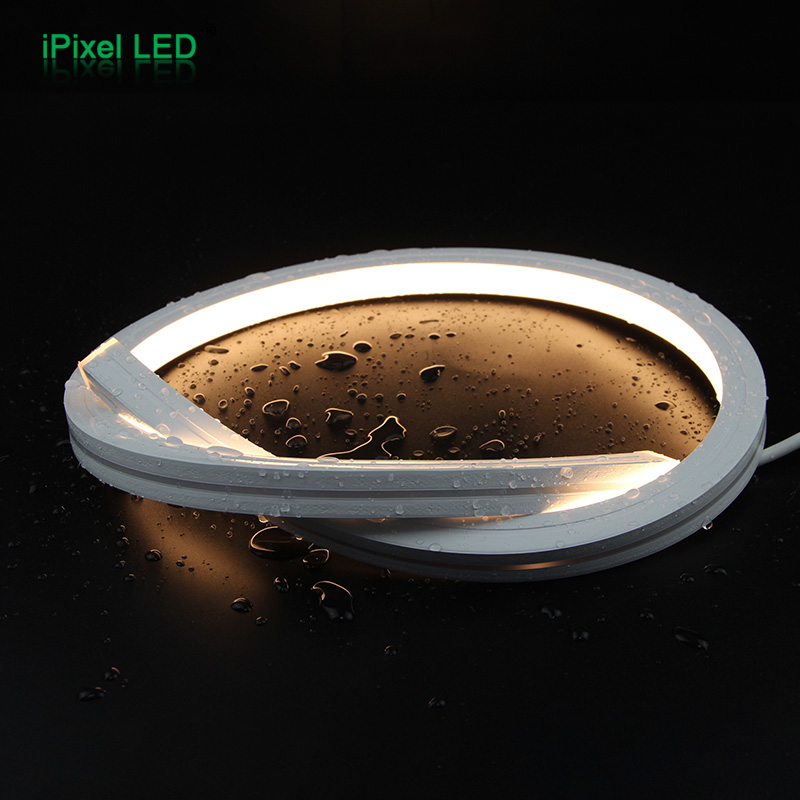

- Soft and uniform light output
- High-transmittance silicone housing
- IP67 protection
- UV-resistant, corrosion-resistant, flame-retardant
- Suitable for indoor and outdoor use
- Rated life ≥36,000 hours
- 3-year warranty
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N016120BB1LZ (N1616) | 120 LEDs/m | DC12V | 10W/m | Constant Voltage | N/A / 16×16mm body | 3000K / 4000K / 6000K | 50mm | 487 lm/m* | Single-sided |
| N016120BC1LZ (N1616) | 120 LEDs/m | DC24V | 10W/m | Constant Voltage | N/A / 16×16mm body | 3000K / 4000K / 6000K | 25mm | 487 lm/m* | Single-sided |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need shorter cutting interval for more precise field installation | N016120BC1LZ (DC24V, 25mm cut) |
| Need standard low-voltage system for shorter runs | N016120BB1LZ (DC12V, 50mm cut) |
| Outdoor decorative or façade contour lighting | Either model, depending on voltage system |
| Need smoother voltage performance over longer runs | N016120BC1LZ (DC24V) |
| Signage or architectural outline lighting | Either model |
| Indoor decorative lighting with soft uniform glow | Either model |
| Want the same appearance but different electrical platform | Choose BB1LZ for 12V or BC1LZ for 24V |

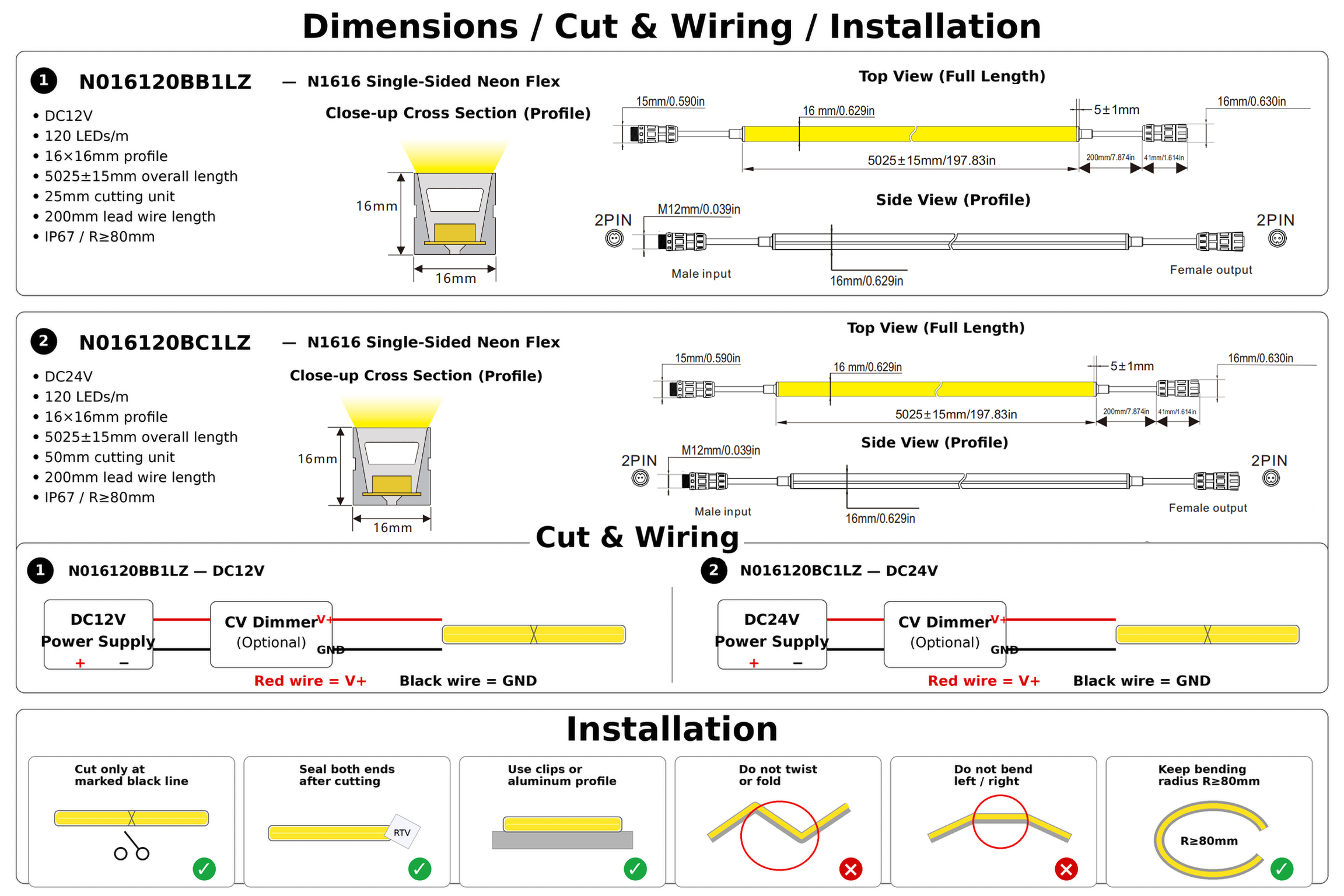

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | Choose based on system design and cut interval |
| CCT | 3000K / 4000K / 6000K | Standard white color options |
| Emitting structure | Single-sided | Same family appearance |
| End cap type | Straight outlet / Side outlet / Bottom outlet / Sealed end cap | For different cable exit needs |
| Mounting method | Mounting clip / Aluminum profile / Pre-installation slot | Based on project installation style |
| Connector | 2PIN male / female / IP65 connector | For system connection |
| Cable outlet direction | Left outlet / Right outlet | Based on input/output layout |
| Standard length | 10m | Custom length should be reconfirmed |
| Max run length | 15m | Over 5m, power feeding from both ends is recommended |
| Waterproof treatment | Glue sealing after cutting | Necessary for field-cut sections |
| Power supply | 240W waterproof / 400W rainproof / 350W non-waterproof | Select by application environment |
| Customization | Custom length / packaging / wiring configuration | Confirm tolerances before order |
Related Items
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. The series is rated IP67 and is suitable for outdoor and indoor applications.
Yes, but it must be cut only at the marked cutting positions, and both ends must be properly sealed with glue and end caps afterward.
The recommended minimum bending radius is R ≥ 80mm.
