Wired sensors provide a direct connection with the LED system, offering stable control performance and reliable operation for OEM furniture applications.
Wired Sensor Switch Series for LED Cabinet Lighting
Wired Sensor Switch Series for LED Cabinet Lighting
Wired Sensor Solutions for Smart Cabinet Lighting
The Wired Sensor Switch Series provides reliable and flexible control solutions for LED cabinet lighting systems.
Designed with compact embedded sensor structures, the series offers multiple control options including touch dimming, hand gesture sensing, human body detection and door control.
These sensors are ideal for furniture manufacturers, cabinet lighting brands and OEM lighting projects requiring clean installation and intelligent lighting control.
Overview & Key Features
Overview
The Wired Sensor Switch Series is developed for low-voltage LED furniture lighting applications.
Unlike wireless sensors, these wired sensors provide direct and stable connection between the sensor and LED lighting system, making them suitable for mass production furniture applications where reliability and easy integration are required.
Multiple sensing methods are available to meet different lighting control requirements:
- Touch control
- Hand gesture sensing
- Human motion detection
- Door opening/closing detection
Key Features
- Direct wired connection for stable control
- Compatible with DC12-24V LED lighting systems
- Compact embedded installation design
- Multiple sensing options available
- Single-point control up to 60W
- Suitable for cabinet and furniture lighting
- Available in gray and white colors
Product Series Specification Matrix
| Product Name | Control Method | Size | Material | Voltage | Load Power | Sensing Distance | Color |
|---|---|---|---|---|---|---|---|
| Touch Dimmer | Touch Control | 13.5×16.5mm | ABS | DC12-24V | ≤60W | - | Gray / White |
| Hand Scanning Sensor | Hand Gesture Detection | 17×12mm | ABS | DC12-24V | ≤60W | ≤10cm | Gray / White |
| Human Body Sensor | Motion Detection | 17×16.5mm | ABS | DC12-24V | ≤60W | 3-5m | Gray / White |
| Gate Sensor | Door Open/Close Detection | 17×12mm | ABS | DC12-24V | ≤60W | ≤10cm | Gray / White |
How to Choose
| Requirement | Recommended Sensor | Application |
|---|---|---|
| Touch ON/OFF or dimming control | Touch Dimmer | Kitchen cabinet, wardrobe |
| Contactless switching | Hand Scanning Sensor | Kitchen, bathroom cabinet |
| Automatic lighting detection | Human Body Sensor | Wardrobe, storage cabinet |
| Door opening control | Gate Sensor | Cabinet door lighting |

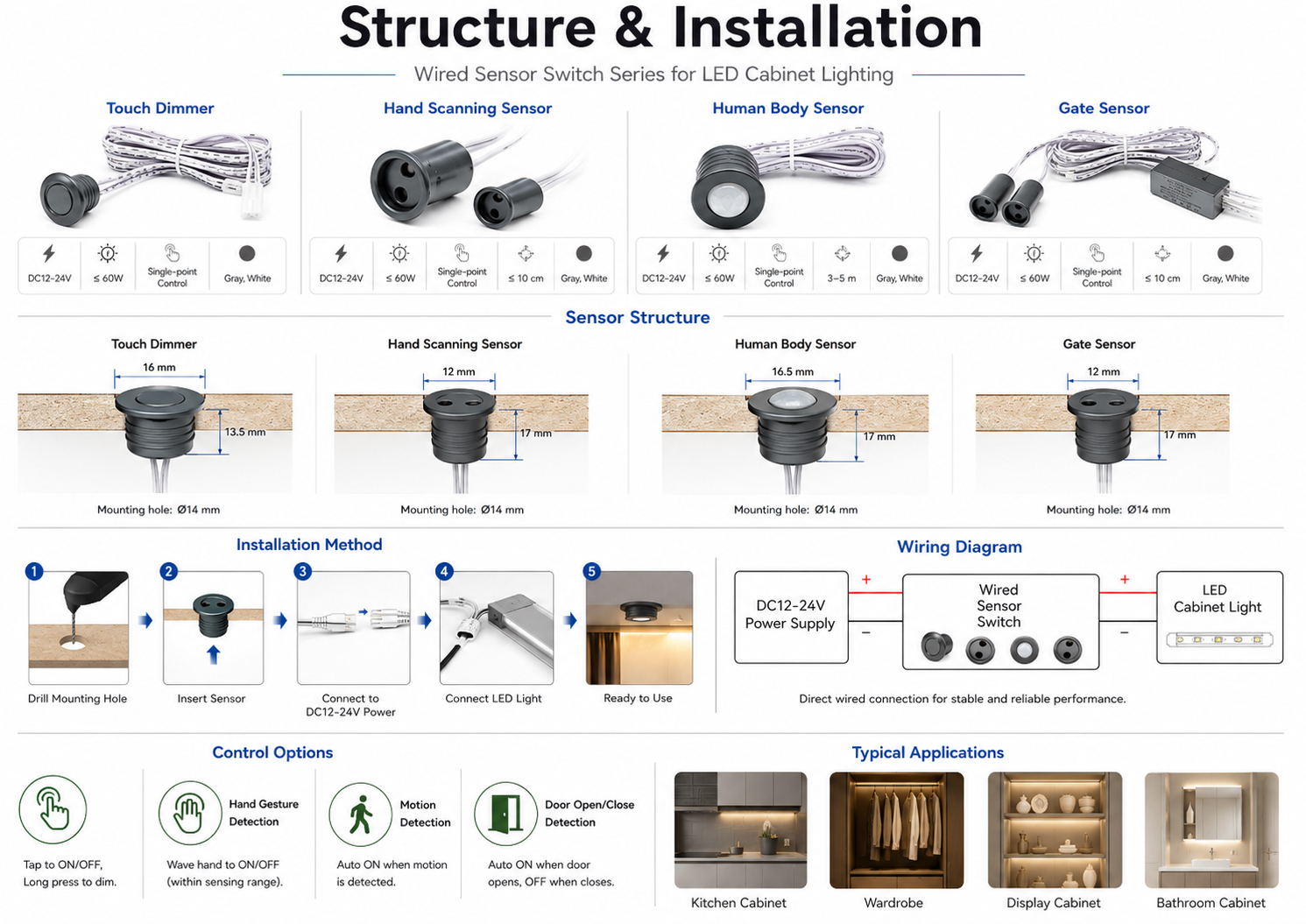

Structure & Installation
Customization Options
| Item | Options |
|---|---|
| Sensor Type | Touch / Gesture / Motion / Door Sensor |
| Voltage | DC12V / DC24V |
| Cable Length | Customized |
| Housing Color | Gray / White |
| Connector | Customized |
| Installation Method | Embedded Mounting |
FAQ
The series supports DC12-24V LED lighting systems.
The standard single-point control load is up to 60W.
It depends on the application:
Touch control → Touch Dimmer
Hand-free operation → Hand Scanning Sensor
Automatic lighting → Human Body Sensor
Door-controlled lighting → Gate Sensor
Yes. Cable specifications and connection solutions can be customized for OEM projects.
