Cabinet & Furniture LED Linear Light System
Cabinet & Furniture LED Linear Light System

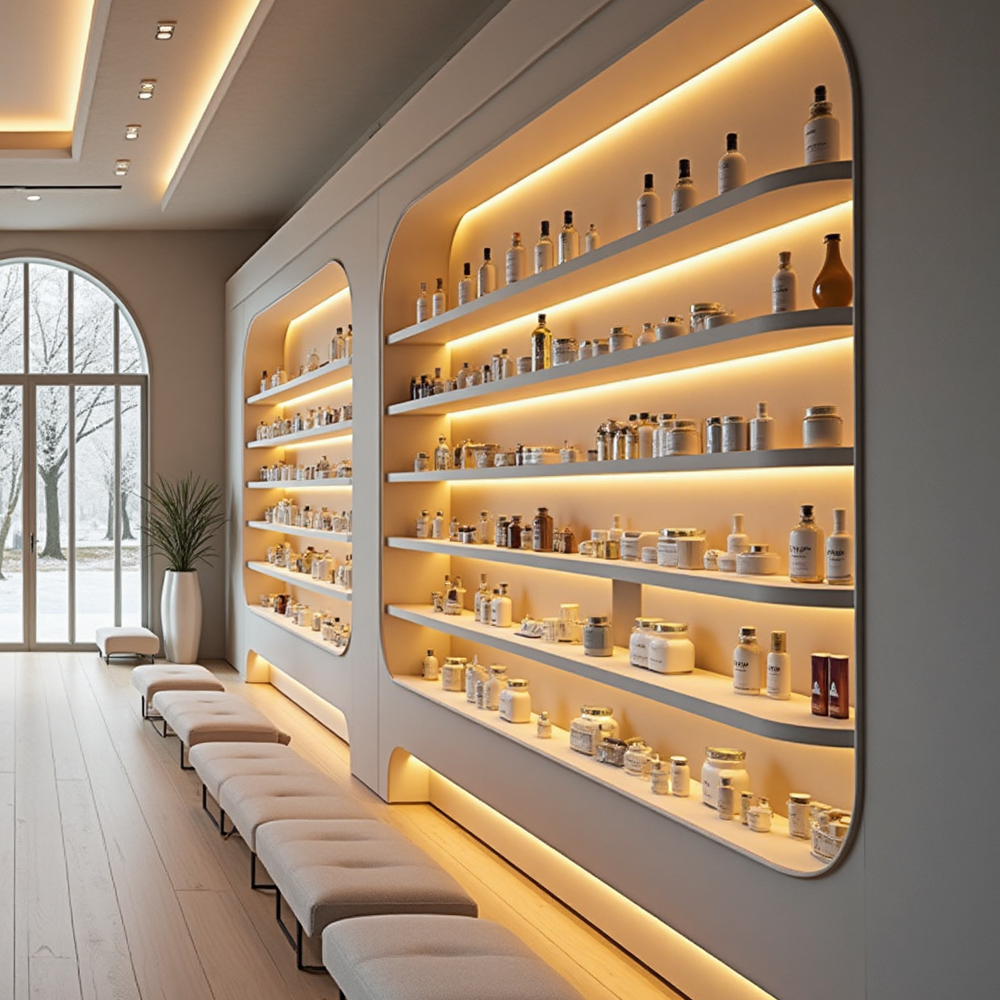

The Cabinet & Furniture LED Linear Light System is designed for wardrobes, cabinets, closets, bookshelves, wine cabinets, bathroom cabinets, kitchen cabinets, decorative cabinets, and display furniture.
This series includes multiple structure and control options, including COB linear light bars, hand sweep sensor cabinet lights, foot-switch cabinet lights, and solder-free recessed linear lights. It is suitable for customers who need soft, uniform, low-voltage linear lighting integrated into furniture or cabinet structures.
The product family provides different installation choices:
Surface-mounted COB light bar
Ultra-thin hand-sweep sensor light
Square-profile hand-sweep sensor light
Recessed solder-free linear light
DC12V130/300/320LED Qty10/11/16/22mm WidthSingle ColorIP20/IP40
Overview & Key Features
Series Overview
This series focuses on soft light, easy installation, cabinet integration, and customized length. The COB versions provide uniform light without obvious light spots, while the solder-free version supports plug-and-play installation with conductive plug connection.
The hand sweep sensor versions allow non-contact switching and dimming control, with sensing distance around 0–10cm. The solder-free embedded version is designed for recessed cabinet slots, hidden clips, and higher-end furniture lighting.
Key Features
- Multiple cabinet lighting solutions
Covers foot switch, hand sweep sensor, external switch, and solder-free recessed installation. - Soft and uniform linear light
COB versions provide smooth lighting with no obvious light spots, suitable for furniture and cabinet interiors. - Hand sweep sensor option
B016320ZB1LZ and B022320ZB1LZ support hand sweep induction, non-contact switching, and brightness adjustment by hand blocking. - Ultra-thin structure option
B022320ZB1LZ is an ultra-thin COB hand sweep sensor light, with profile height noted as about 6.73mm in the datasheet. - Solder-free plug-and-play option
B010130YB1LZ uses a plug-type solder-free design with conductive plug connection, reducing installation labor. - Custom length support
The products support customized length according to cabinet or furniture requirements. - Suitable for furniture and display applications
Typical applications include kitchen, closet, cabinet, furniture, bath light, wardrobe, bookshelf, wine cabinet, pantry shelf, and showcase.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | SMD Type | CCT | Luminance | Spec Sheet |
|---|---|---|---|---|---|---|---|
| B011300ZB1LZ | 300 LEDs/m | DC12V | Approx. 8W/m / 3.6W per 450mm pcs | COB | 6500K | 150lm per 450mm pcs | Download |
| B016320ZB1LZ | 320 LEDs/m | DC12V | 8W/m | COB | 3000K / 4000K / 6500K | 501lm/m | Download |
| B022320ZB1LZ | 320 LEDs/m | DC12V | 8W/m | COB | 3000K / 4000K / 6500K | 402lm/m | Download |
| B010130YB1LZ | 130 LEDs/m | DC12V | 8W/m | SMD2025 | 3000K / 4000K / 6500K | Not specified in current datasheet | Download |
Additional parameters
| Model No | Size | IP Rate | Control / Switching | Material / Structure | Ra |
|---|---|---|---|---|---|

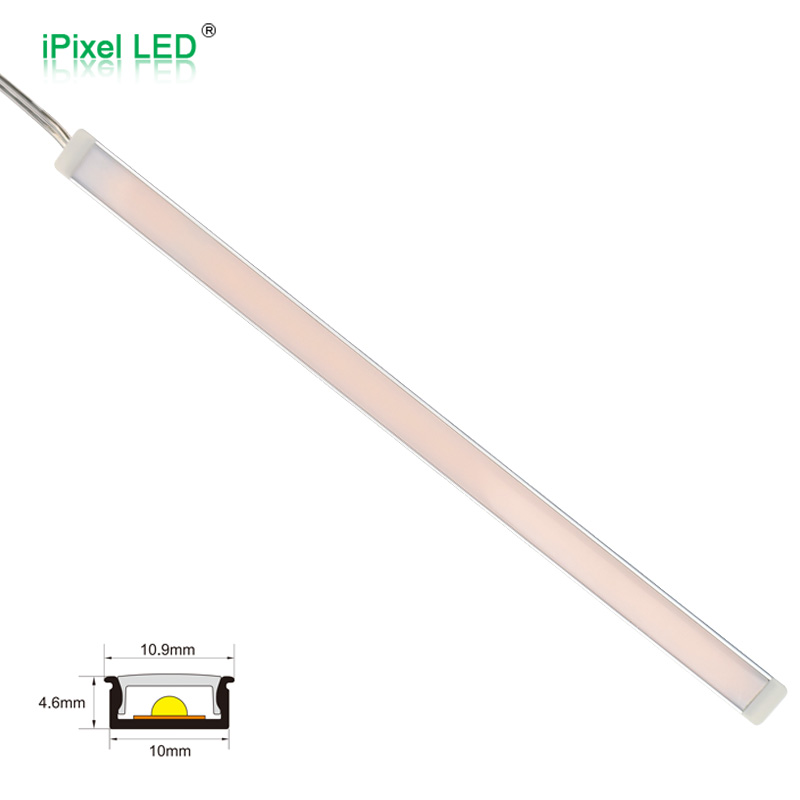

| B011300ZB1LZ | 450×10×5mm | IP20 | Foot switch | Aluminum profile + COB strip | 80 |
| B016320ZB1LZ | 1000×16×16mm | IP40 | Hand sweep sensor | Aluminum profile + COB strip | 80 |
| B022320ZB1LZ | 1000×21.7×9mm | IP40 | Hand sweep sensor | Ultra-thin aluminum profile + COB strip | 80 |

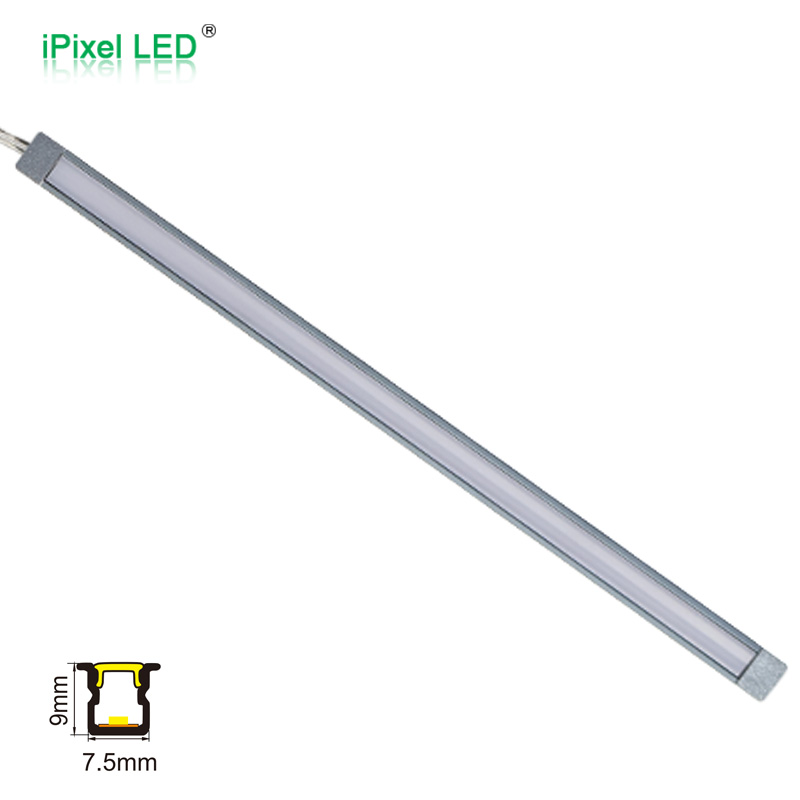

| B010130YB1LZ | 200×10×9mm | IP20 | External switch / solder-free plug | Recessed aluminum profile + plastic cover | 90 |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need simple cabinet or wardrobe light with foot switch | B011300ZB1LZ |
| Need non-contact hand sweep control | B016320ZB1LZ or B022320ZB1LZ |
| Need higher brightness among sensor models | B016320ZB1LZ |
| Need ultra-thin cabinet installation | B022320ZB1LZ |
| Need recessed cabinet groove installation | B010130YB1LZ |
| Need solder-free plug-and-play installation | B010130YB1LZ |
| Need soft continuous light without visible LED dots | COB models: B011300 / B016320 / B022320 |
| Need higher-end cabinet appearance with hidden installation | B010130YB1LZ |
| Need cabinet, wardrobe, bath light or furniture lighting | All models can be selected according to structure |
| Need 3000K / 4000K / 6500K options | B016320 / B022320 / B010130 |
| Need 6500K standard cabinet light | B011300ZB1LZ |

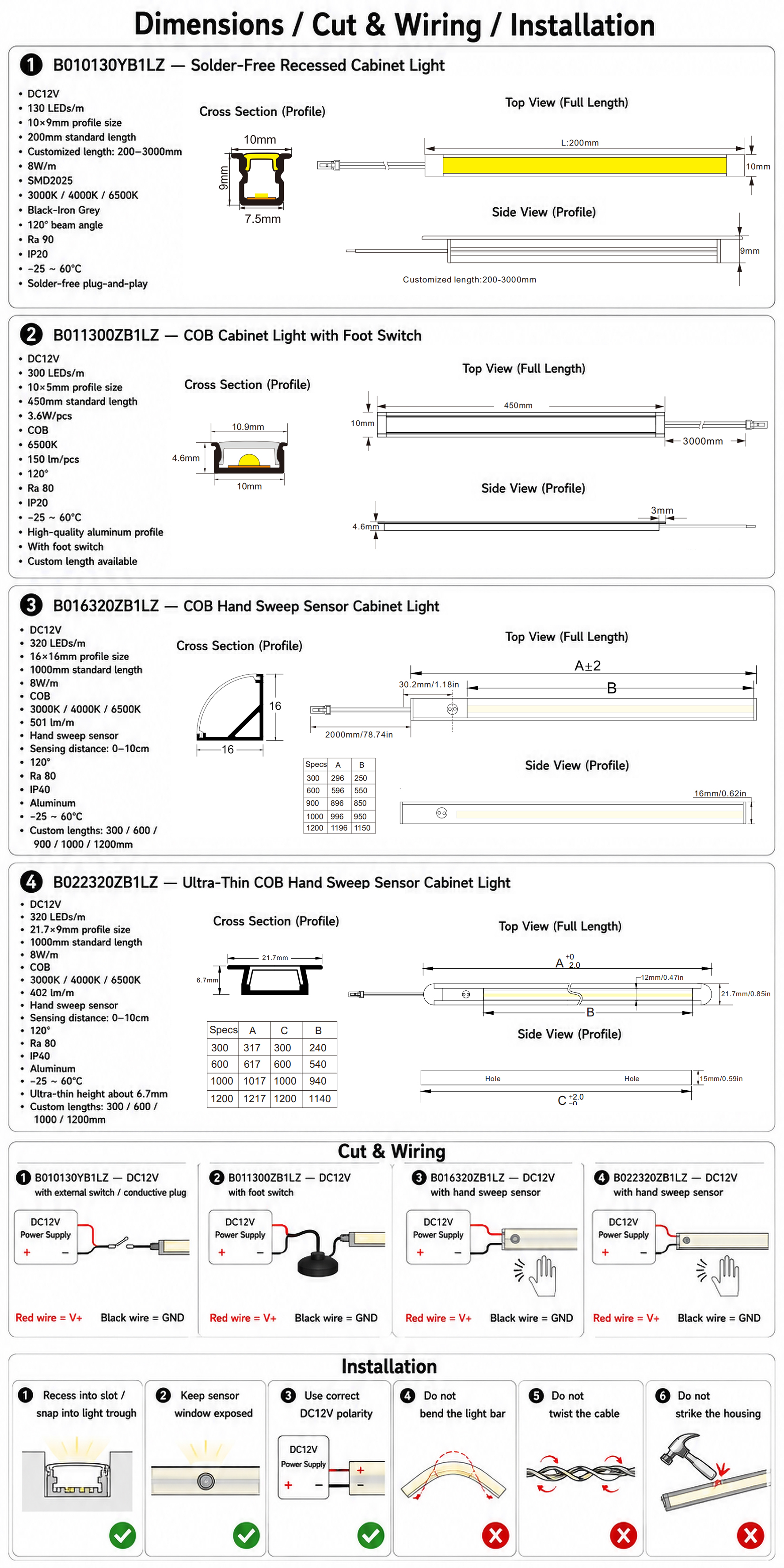

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V | Standard voltage for all models |
| LED Type | COB / SMD2025 | COB for B011300, B016320, B022320; SMD2025 for B010130 |
| Color Type | Single color white | Cabinet and furniture lighting |
| Color Range | 6500K / 3000K / 4000K / 6500K | B011300 standard 6500K; others support 3000K/4000K/6500K |
| Size (mm) | 450×10×5mm / 1000×16×16mm / 1000×21.7×9mm / 200×10×9mm | Depends on model |
| Power | 3.6W/pcs / 8W/m | B011300 is 3.6W per 450mm pcs; others are 8W/m |
| IP Rating | IP20 / IP40 | B011300 and B010130 are IP20; B016320 and B022320 are IP40 |
| Length | 200mm / 450mm / 300–1200mm / custom length | Custom length available according to project |
| Connector | Lead wire / DC connector / conductive plug / customized connector | B010130 supports solder-free conductive plug |
| Mounting | Snap-in light trough / recessed slot / hidden clips / surface mounting | Depends on cabinet structure |
| Packing | Individual packing / project bulk packing / OEM packing | Packaging can be adjusted for project delivery |
