B010096BB1LZ is a 10mm-wide DC12V high-efficiency rigid bar with 96 LEDs/m and 5W/m. B005240BC1LZ is a 5mm ultra-narrow DC24V rigid bar with 240 LEDs/m and 8W/m.
Magnetic Shelf LED Light Bar Series
High Efficiency LED Rigid Bar Series for Retail Display Lighting
The High Efficiency LED Rigid Bar Series is designed for retail display fixtures, shelves, showcases, cosmetic counters, jewelry displays, mobile phone showrooms, eyewear shops, bookcases, and other commercial display lighting applications.
This series uses high-brightness SMD2835 LEDs on an FR4 rigid PCB, offering high luminous efficiency, high color rendering, low-voltage operation, and flexible installation for different display structures.
Two main options are available:

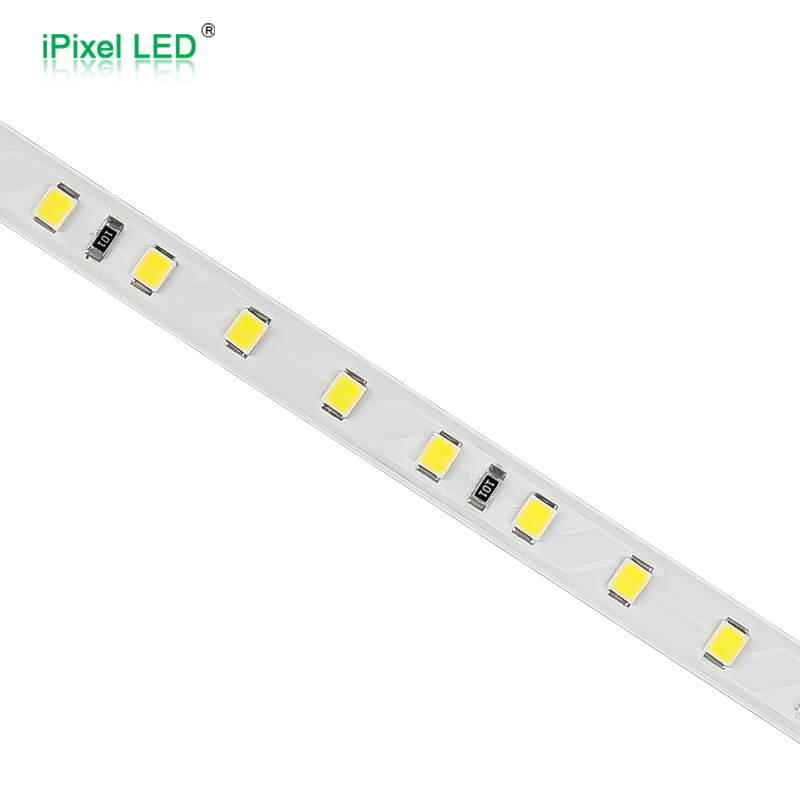

B010096BB1LZ: 10mm width, DC12V, 96 LEDs/m, 5W/m, up to 180lm/W.

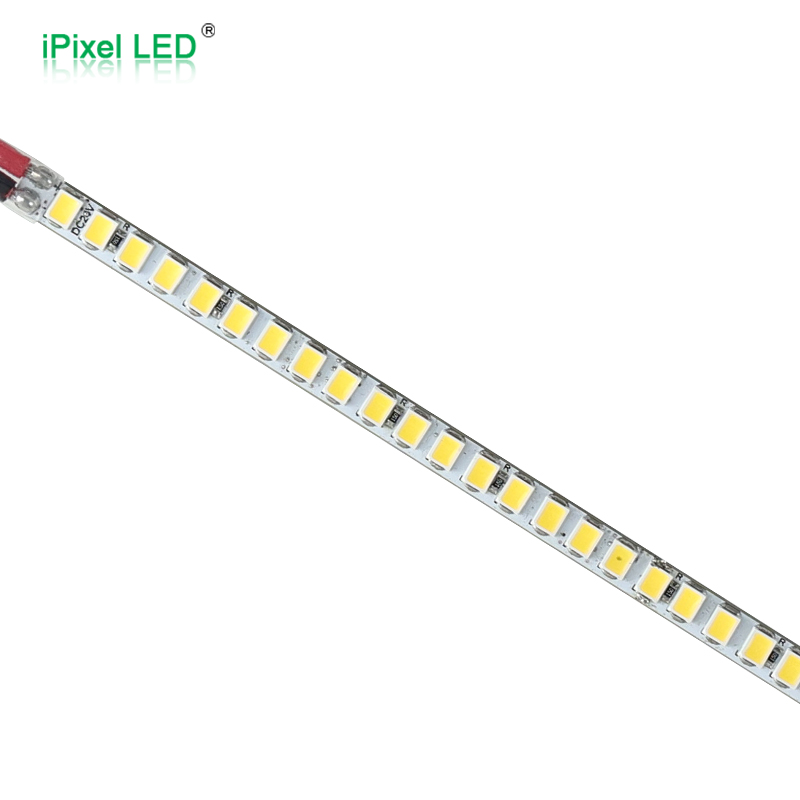

B005240BC1LZ: ultra-narrow 5mm width, DC24V, 240 LEDs/m, 8W/m, up to 130lm/W.
Both models support 3000K / 4000K / 6500K, Ra ≥90, SDCM <5, 120° beam angle, and IP20 / IP64 protection options.
DC12V/DC24V96/240LED Qty/m5/10mm WidthSingle ColorIP20/IP64
Overview & Key Features
Series Overview
This product series is developed for display lighting projects where high brightness, compact size, high CRI, and efficient energy use are required.
The 10mm 12V version is suitable for standard shelves and display fixtures that require high luminous efficiency and lower power consumption. The 5mm 24V ultra-narrow version is suitable for compact spaces where the light source must be hidden inside slim slots or narrow structures.
Both products are based on one-meter standard output data. The datasheets state that power and related parameters may have normal tolerance, and IP protection processing may affect size, CCT, and luminous flux.
Key Features
- High luminous efficiency
B010096BB1LZ reaches up to 180lm/W, while B005240BC1LZ reaches up to 130lm/W. - High CRI for display lighting
Both models support Ra ≥90, helping products appear more vivid and natural under display lighting. - SMD2835 high-brightness LEDs
Both models use SMD2835 LEDs with high brightness and stable performance. - Different width options
10mm version for standard display lighting; 5mm ultra-narrow version for compact installation spaces. - Low-voltage operation
B010096BB1LZ uses DC12V, while B005240BC1LZ uses DC24V. - IP20 / IP64 options
Suitable for dry indoor installation and optional glue-protected versions depending on the project. - Retail display applications
Suitable for shelves, cosmetic counters, jewelry displays, mobile phone showrooms, eyewear shops, bookcases, and retail display fixtures.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | SMD Type | CCT | Luminance | Spec Sheet |
|---|---|---|---|---|---|---|---|
| B010096BB1LZ | 96 LEDs/m | DC12V | 5W/m | SMD2835 | 3000K / 4000K / 6500K | 900lm/m | Download |
| B005240BC1LZ | 240 LEDs/m | DC24V | 8W/m | SMD2835 | 3000K / 4000K / 6500K | 1040lm/m | Download |
Additional shared parameters:
| Item | B010096BB1LZ | B005240BC1LZ |
|---|---|---|
| PCB Material | FR4 | FR4 |
| Size | 1000×10mm | 1000×5mm |
| Beam Angle | 120° | 120° |
| CRI | Ra ≥90 | Ra ≥90 |
| SDCM | <5 | <5 |
| IP Rating | IP20 / IP64 | IP20 / IP64 |
| Operating Temperature | -25~60°C | -25~60°C |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need maximum luminous efficiency with lower power consumption | B010096BB1LZ |
| Need a standard rigid bar for shelves, bookcases, and display fixtures | B010096BB1LZ |
| Need ultra-narrow installation inside a slim slot or compact structure | B005240BC1LZ |
| Need denser LED distribution and more seamless visual effect | B005240BC1LZ |
| Need 12V low-voltage display lighting system | B010096BB1LZ |
| Need 24V system for longer runs or lower voltage drop | B005240BC1LZ |
| Need lighting for jewelry, cosmetics, eyewear, or premium retail displays | Both options can be selected according to available installation width |
| Need better product color appearance | Choose either model with Ra ≥90 |
| Need extra protection against dust or light moisture | Choose IP64 version |
| Need simple indoor open installation | Choose IP20 version |

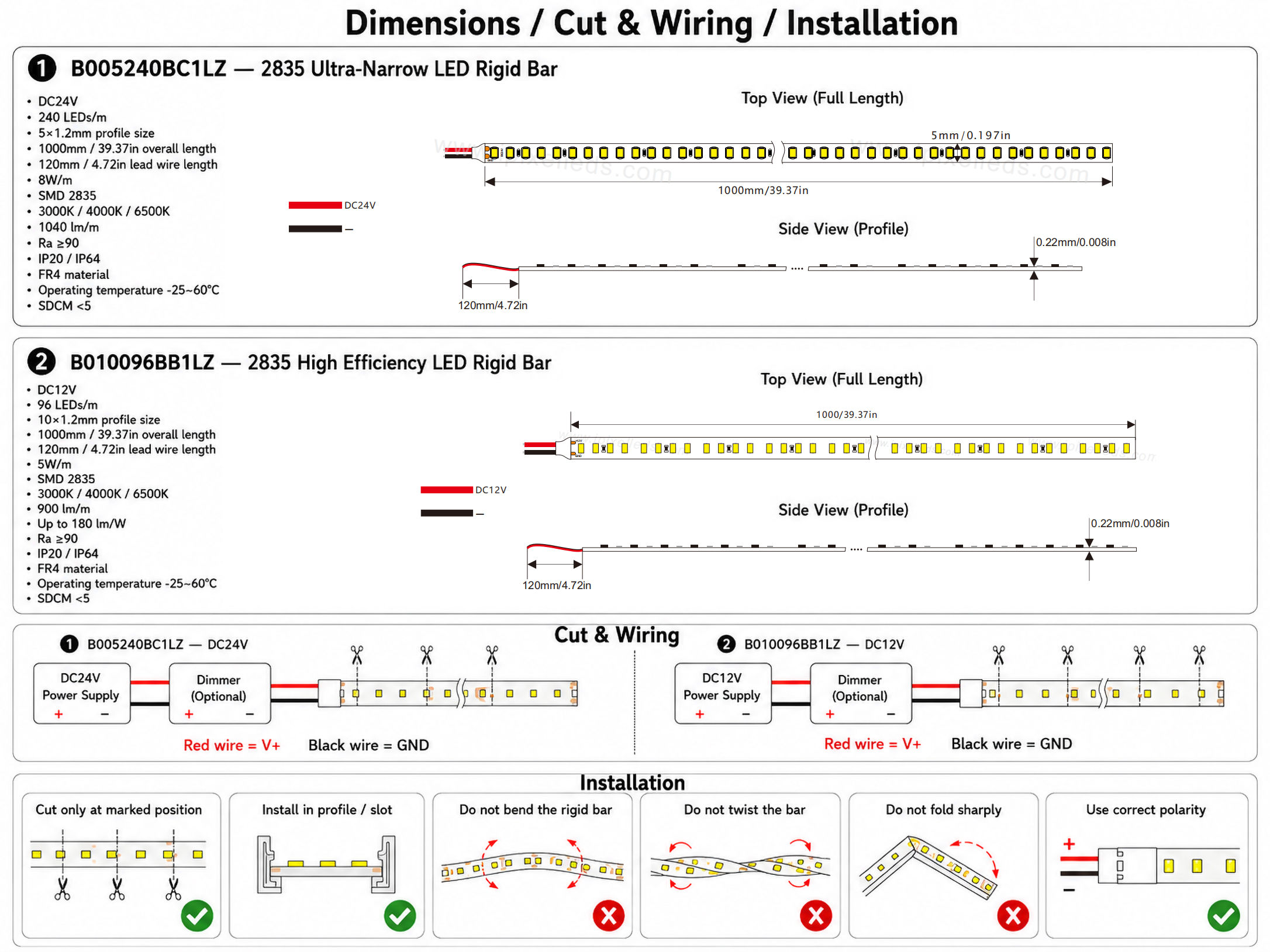

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | B010096BB1LZ is DC12V; B005240BC1LZ is DC24V |
| LED Type | SMD2835 | High-brightness LED for display lighting |
| Color Type | Single color white | Standard white display lighting |
| Color Range | 3000K / 4000K / 6500K | Other CCT may be discussed by project |
| Size (mm) | 1000×10mm / 1000×5mm | 10mm standard version and 5mm ultra-narrow version |
| Power | 5W/m / 8W/m | Depends on model |
| IP Rating | IP20 / IP64 | IP64 uses PU / silicone glue protection |
| Length | Standard 1000mm | Custom length can be discussed by project |
| Connector | Lead wire / customized connector | Connector depends on customer fixture design |
| Mounting | Adhesive, clips, slot mounting, aluminum channel, fixture integration | Final mounting depends on display structure |
| Packing | Individual packing / project bulk packing | Can be customized for OEM or project delivery |
Related Items
FAQ
Choose B005240BC1LZ. Its 5mm width is better for slim grooves, narrow shelves, and compact display structures.
B010096BB1LZ is recommended when high efficiency and lower power consumption are the priority, with efficiency up to 180lm/W.
Yes. Both models support Ra ≥90 and are suitable for retail display lighting where product color appearance is important.
