A compact lighting configuration for Closet Factory, with customized strip lengths and motion-sensor control.

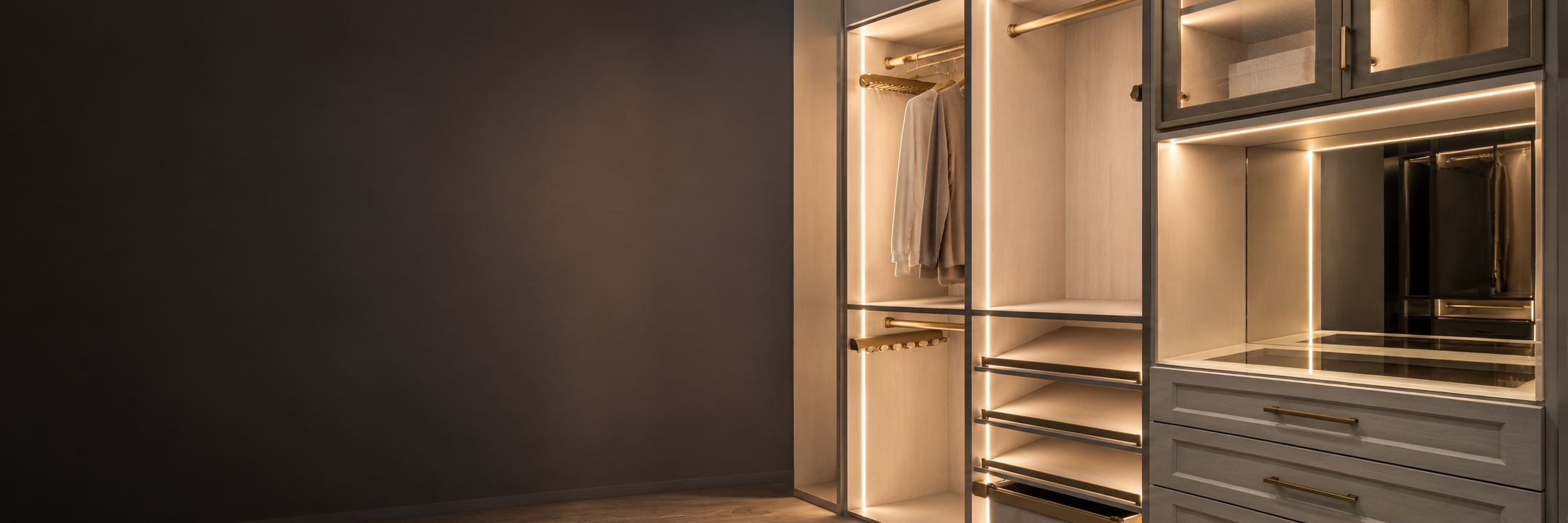

Wardrobe application photograph supplied with the project materials.
Project Overview
Closet Factory, a U.S. custom furniture brand, needed a revised lighting configuration for a residential wardrobe application used to store clothing and small items.
The project used 8×8mm LED neon strips installed along the sides of the shelf compartments. Custom strip lengths and different lead lengths accommodated the installation positions. The samples were approved and the project entered mass production.
Customer Challenge
The previous lighting assembly combined an LED strip, an aluminium profile and a polycarbonate cover. The cover contacted the shelf panel and interfered with the fit. Dark areas were also reported at the top or bottom of the illuminated sections.
The customer needed a configuration that addressed this fit issue while providing a more continuous lighting appearance.
What We Did
iPixel selected an 8×8mm LED neon strip configuration for the shelf-side installation. The specified lighting was 24V, 4500K and 6W per metre, with a motion-sensor switch for activation.
Each lighting set combined five specified strip sizes, with lead lengths adapted to their respective installation positions, plus one power supply and one sensor. Strip lengths were customized for the wardrobe layout.

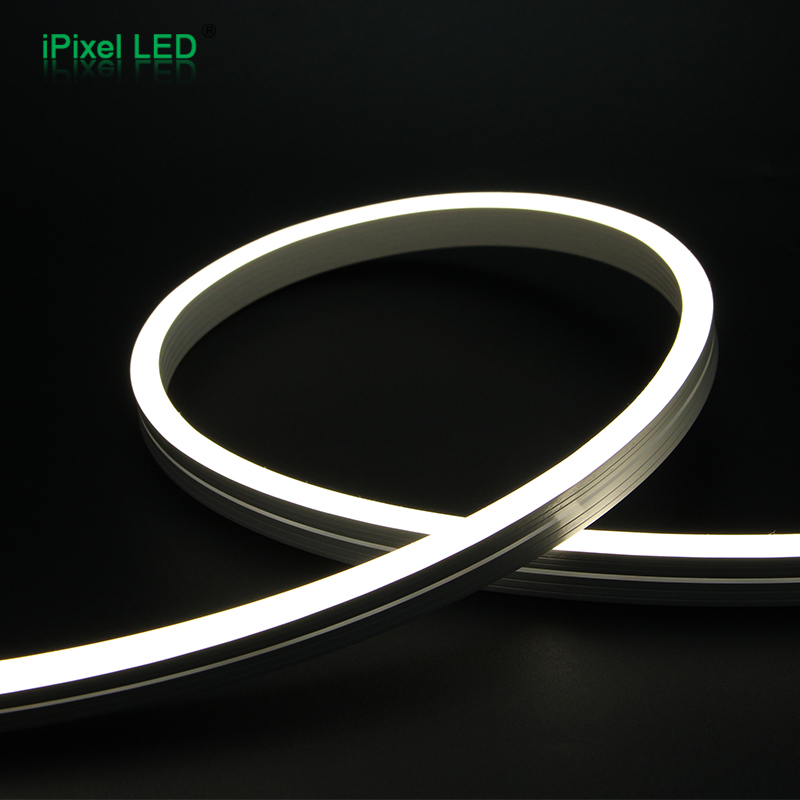

LED neon strip product photograph supplied for the project.
Installation reference, retouched with AI assistance to remove a foreground obstruction. This image is not a lighting-performance comparison.
Validation
The project notes record a satisfactory visual check, with uniform light colour and no dark areas observed in the evaluated configuration. The samples were approved.
Project Results
The project entered mass production, with a reported project quantity of approximately 1,000 lighting sets. Each set covered five strip sizes and included a power supply and a sensor.
The customer reported satisfaction with the result.

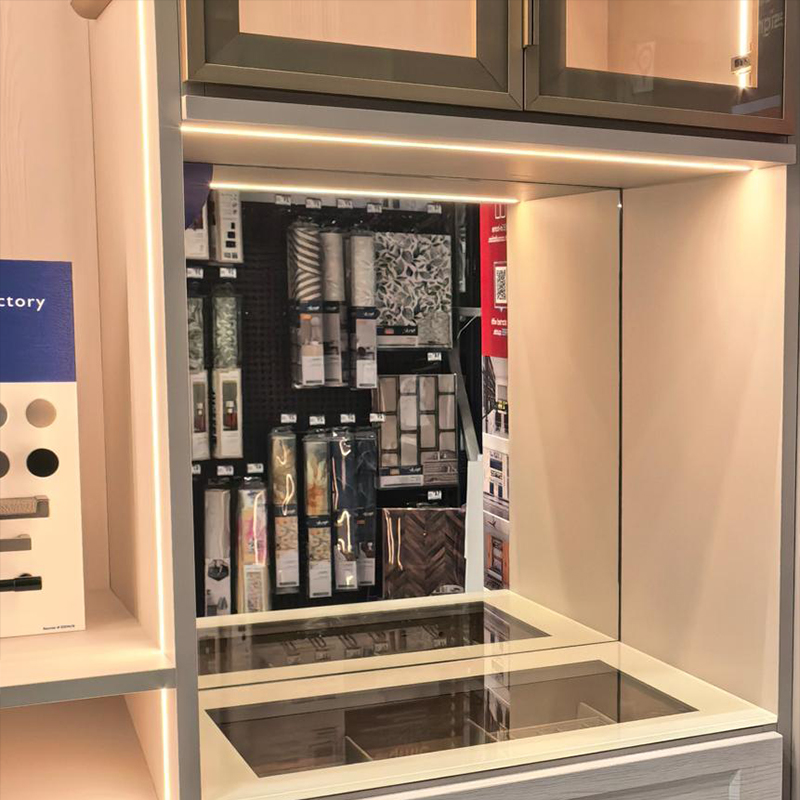

Application lighting view supplied with the project materials.
Related Solution & Products
Frequently Asked Questions
Why was the lighting configuration changed?
The previous profile-and-cover assembly interfered with the shelf panel, and dark areas were reported at the top or bottom of the illuminated sections. The project selected an 8×8mm LED neon configuration to address these issues.
What was customized?
The project used five specified strip sizes, with strip lengths and lead lengths matched to different installation positions.
How was the lighting controlled?
The lighting configuration included a motion-sensor switch. Each set also included a power supply.
