It is used for LED power connection, power extension, power distribution, cabinet lighting, LED strip lighting, and low-voltage plug-and-play systems.
DC Connector & Splitter Cable Series
DC Connector & Splitter Cable Series
The DC Connector & Splitter Cable Series is designed for low-voltage LED power connection, power extension, branch wiring, and plug-and-play LED lighting installation.
This series includes DC5512 male / female pigtail cables, DC5521 male / female plug cables, DC5512 extension cable, DC5512 Y-splitter cable, and DC5512 T-splitter cable.
The listed products mainly use PVC insulation, 20AWG wire, transparent cable versions, and DC power connector structures.

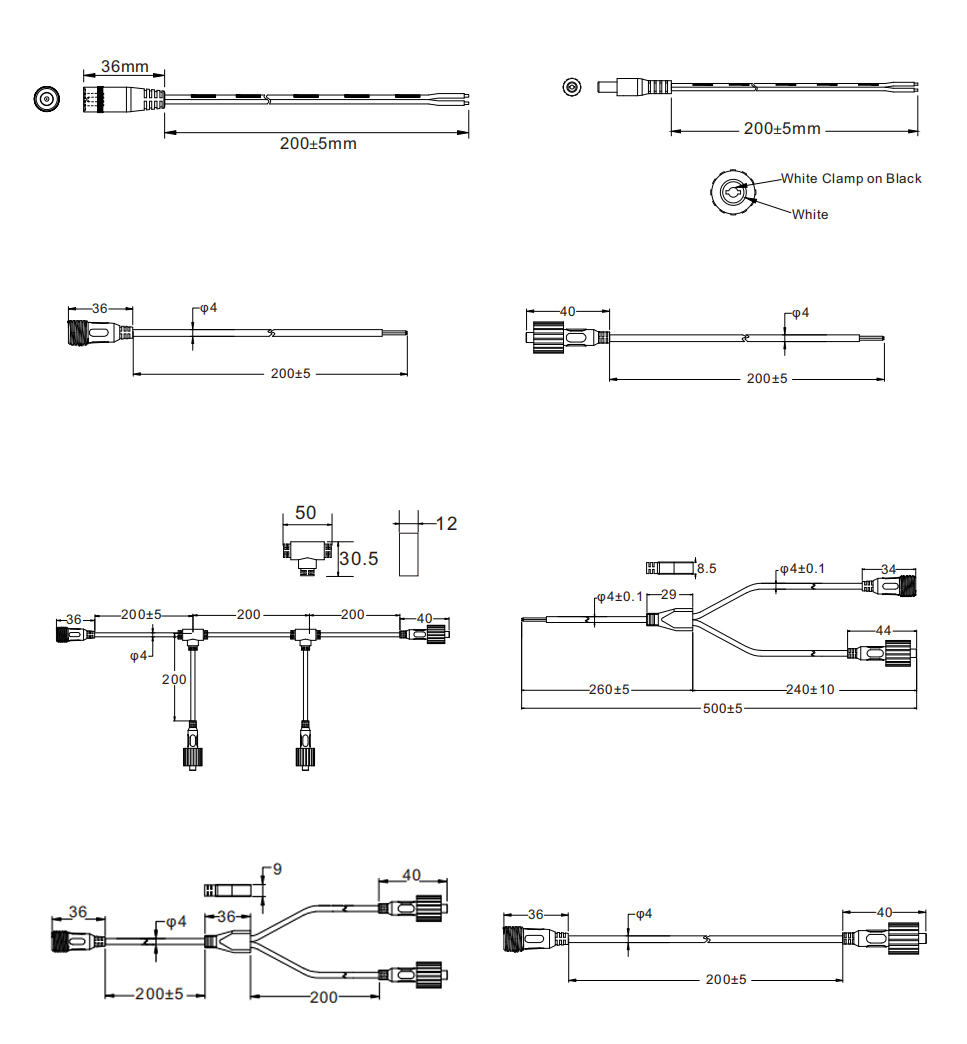

Product Series Specification Matrix
| Product Name | Connector Type | Type | Plug Model | P/N | Wire Gauge | Length / Size Reference | Wire / Color | Notes |
|---|---|---|---|---|---|---|---|---|
| DC5512 Male Pigtail Cable | DC5512 | Male Pigtail | 2Pin Crystal Line | DLGT-00200-V2 | 20AWG | 200±5mm | Transparent, Red | For DC power input / output |

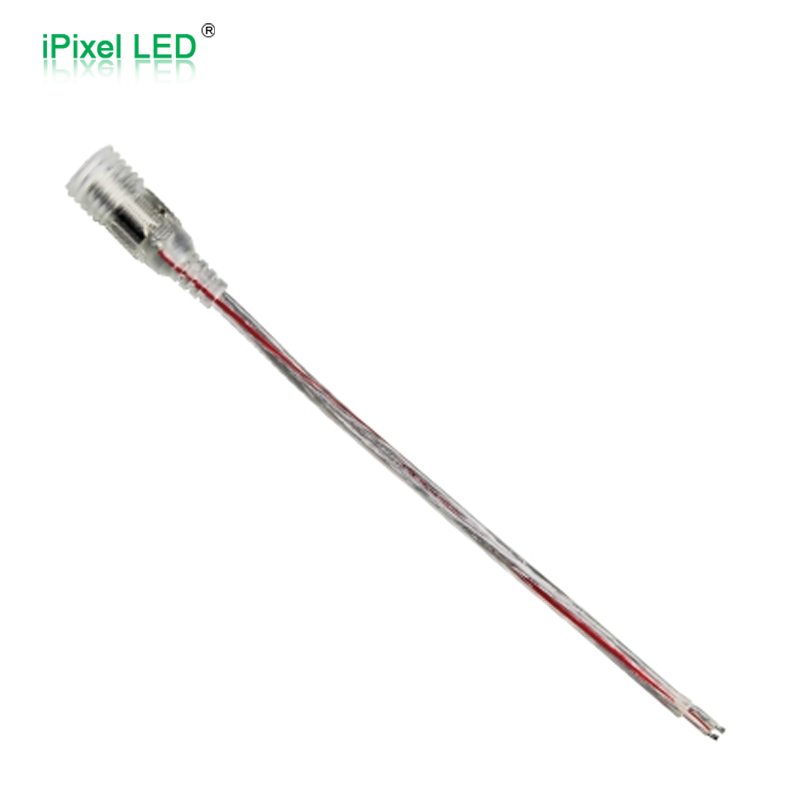

| DC5512 Female Pigtail Cable | DC5512 | Female Pigtail | 2Pin Crystal Line | DLMT-00200-V2 | 20AWG | 200±5mm | Transparent, Red | Matches DC5512 male side |

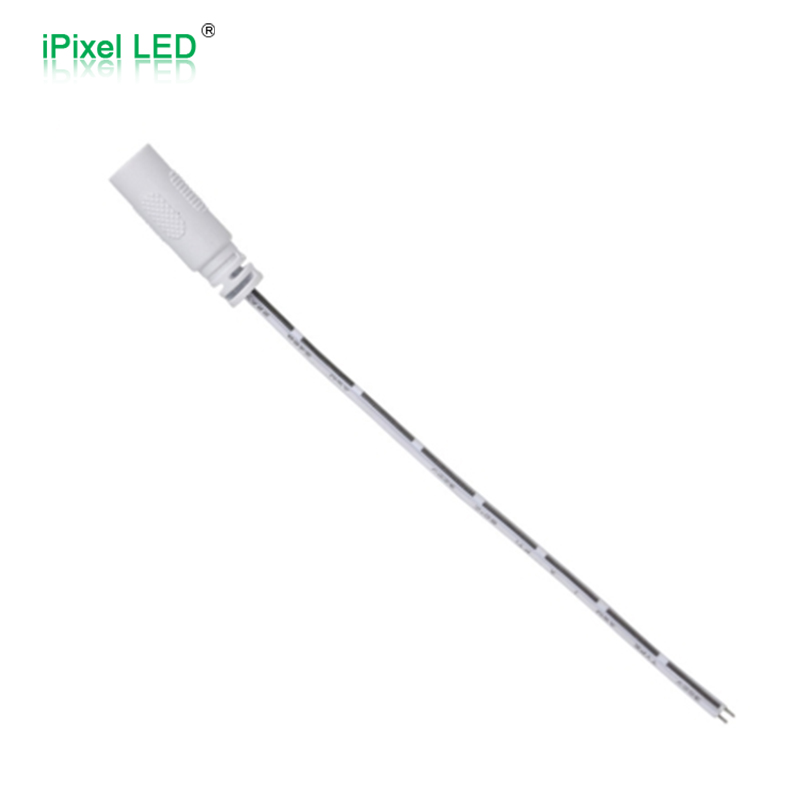

| DC5521 Female Plug Cable | DC5521 | Female Plug | DC5521 Female Plug | DZMT-00200-V2 | 20AWG | 200±5mm | White Clamp on Black, White | For DC5521 connection |
| DC5521 Male Pigtail Cable | DC5521 | Male Pigtail | DC5521 Male Plug | DZGT-00200-V3 | 20AWG | 200±5mm | White Clamp on Black, White | For DC5521 connection |

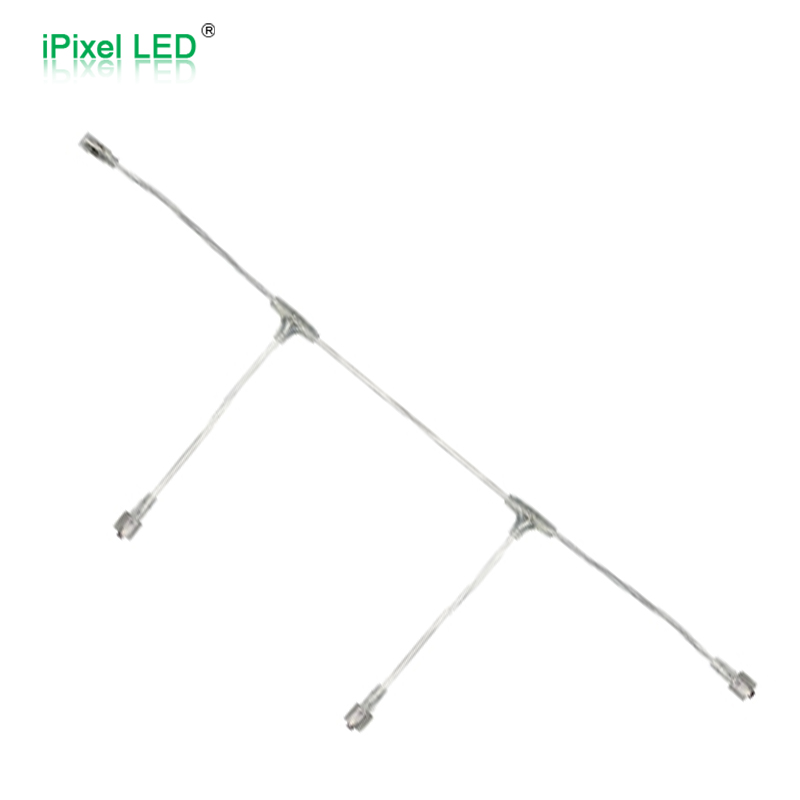

| DC5512 T-Splitter Cable | DC5512 | T-Splitter | 2Pin Crystal Line | DLFJ-00200-V2 | 20AWG | Drawing-based | Transparent, White | For branch power distribution |

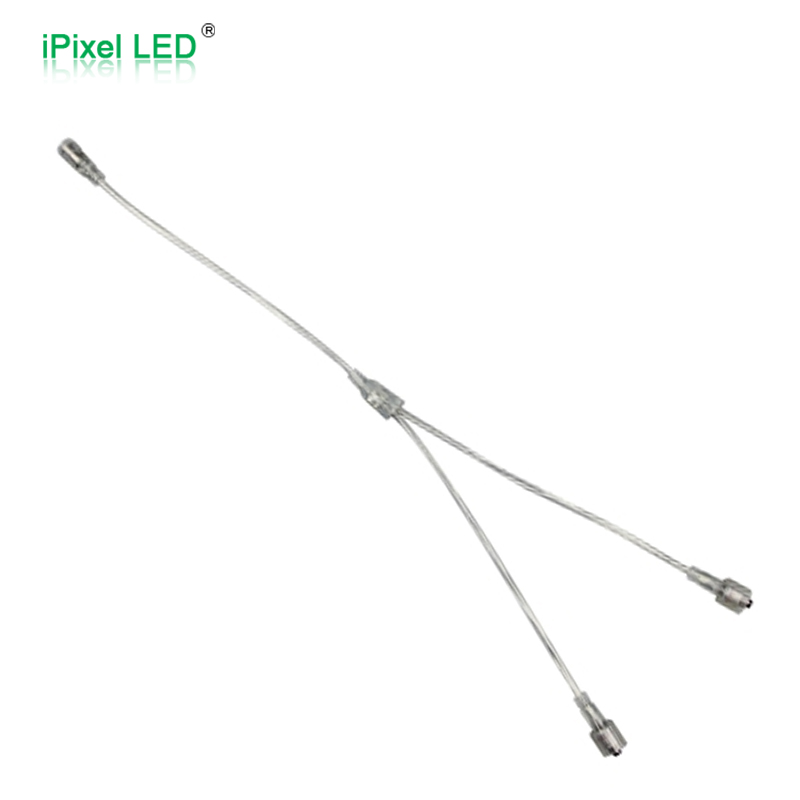

| DC5512 Y-Splitter Cable Type A | DC5512 | Y-Splitter | 2Pin Crystal Line | DLFJ-00200-V2 | 20AWG | Drawing-based | Transparent, White | One input to two outputs |
| DC5512 Y-Splitter Cable Type B | DC5512 | Y-Splitter | 2Pin Crystal Line | DLFJ-00200-V2 | 20AWG | Drawing-based | Transparent, White | Alternative splitter layout |

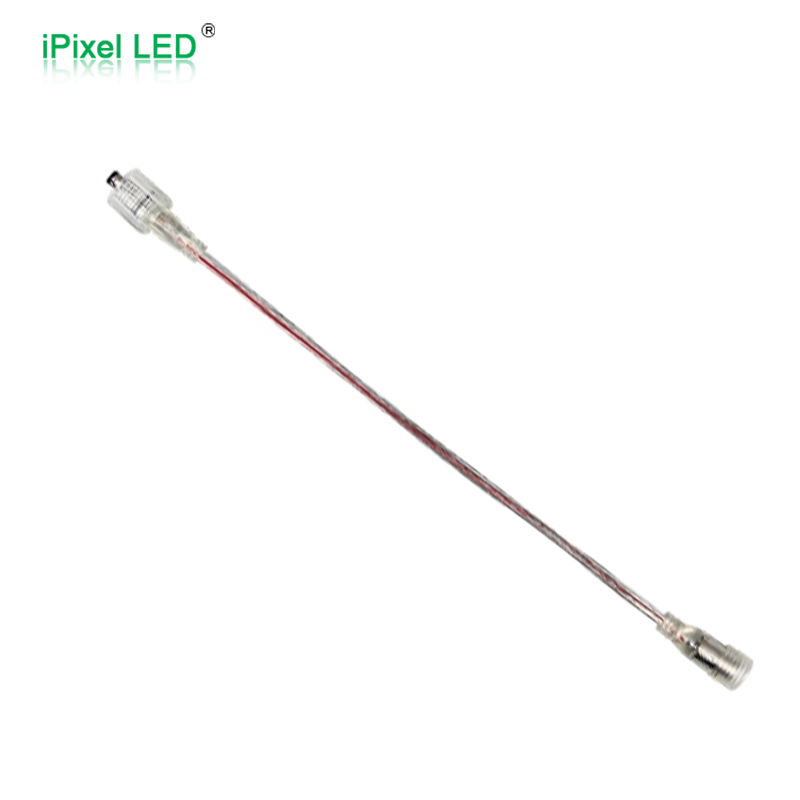

| DC5512 Extension Cable | DC5512 | Extension Cable | 2Pin Crystal Line | DLFJ-00200-V2 | 20AWG | 200±5mm | Transparent, Red | For DC power extension |
FAQ
They are different DC connector sizes. The correct option should match the power supply and LED product connector.
A Y-splitter divides one input into two branches, while a T-splitter is used for T-shaped branch power distribution.
Yes. Connector size, cable length, splitter structure, male/female direction, and wire gauge can be customized.
