They are used for LED modules, PCB wiring, control boards, and compact equipment internal wiring.
Molex Cable Connector Series
Molex Cable Connector Series
The Molex Cable Connector Series is designed for LED modules, control boards, PCB connection, equipment internal wiring, and compact board-to-wire assembly.
This series includes 2Pin Molex female pigtail cable, 3Pin Molex connection cable, and 4Pin Molex female pigtail cable. Compared with JST-SM cables, Molex connectors are more suitable for compact internal wiring and PCB-side connection.

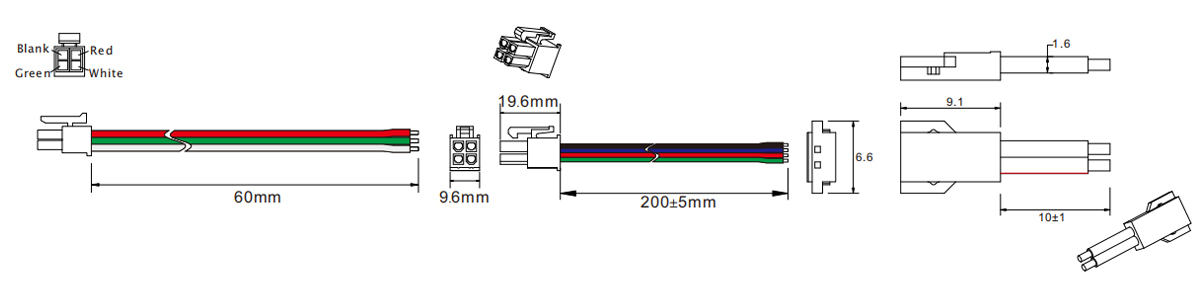

Product Series Specification Matrix
| Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Length | Wire / Line Order | Notes |
|---|---|---|---|---|---|---|---|---|

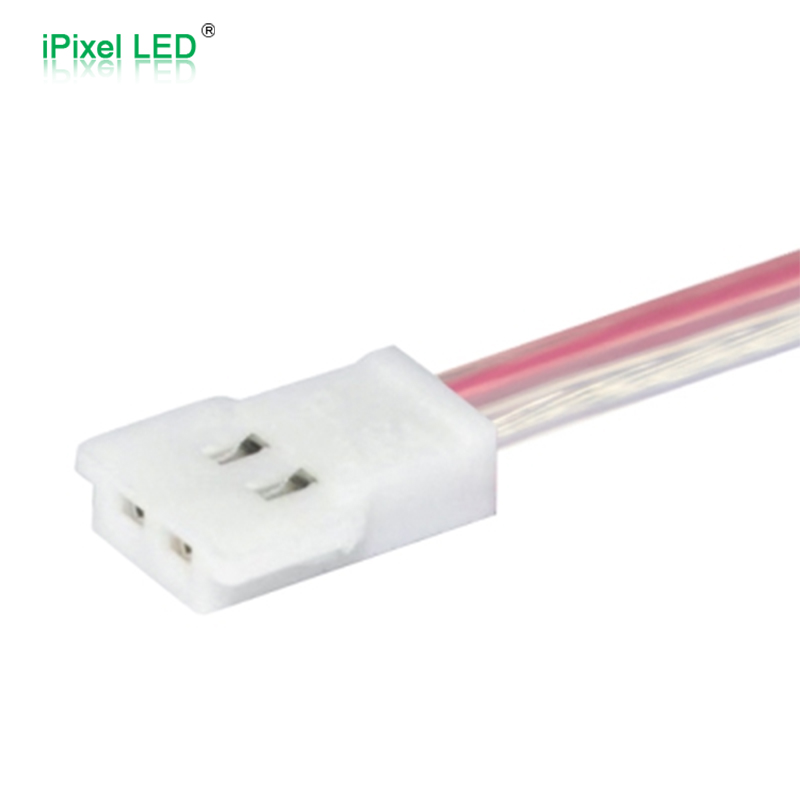

| 2Pin Molex Female Pigtail Cable | 2Pin | Female Pigtail | Molex 0510050200 | DLFJ-00200-V2 | 22AWG | Drawing-based | Transparent, Red | Compact board-to-wire connection |

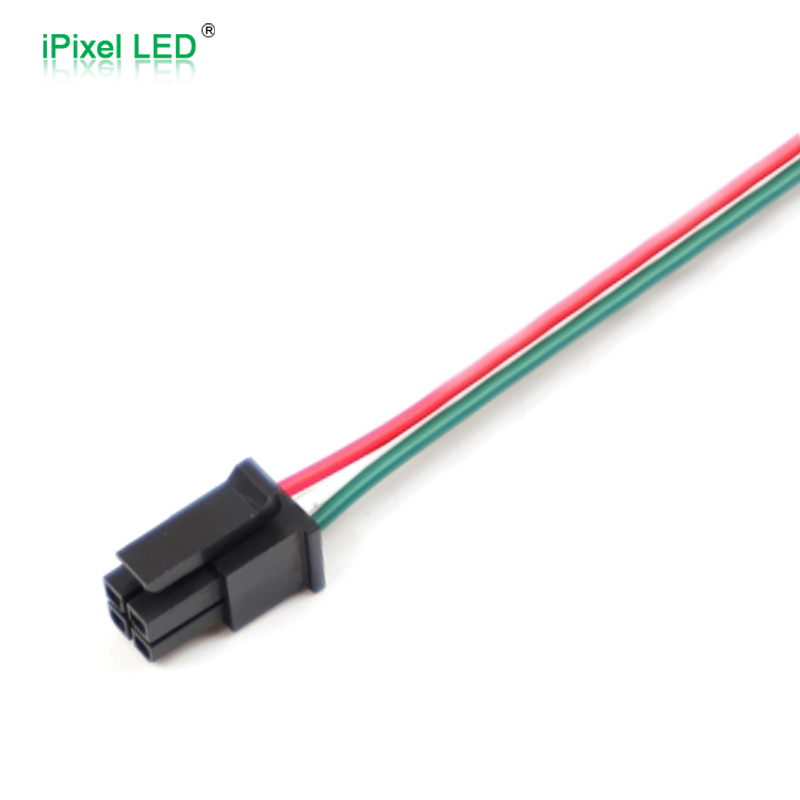

| 3Pin Molex Connection Cable | 3Pin | Connection Cable | Molex Female Terminal 430250400 | DZMT-00060-V3 | 20AWG | 60mm | Red, Green, White | For PCB / module connection |

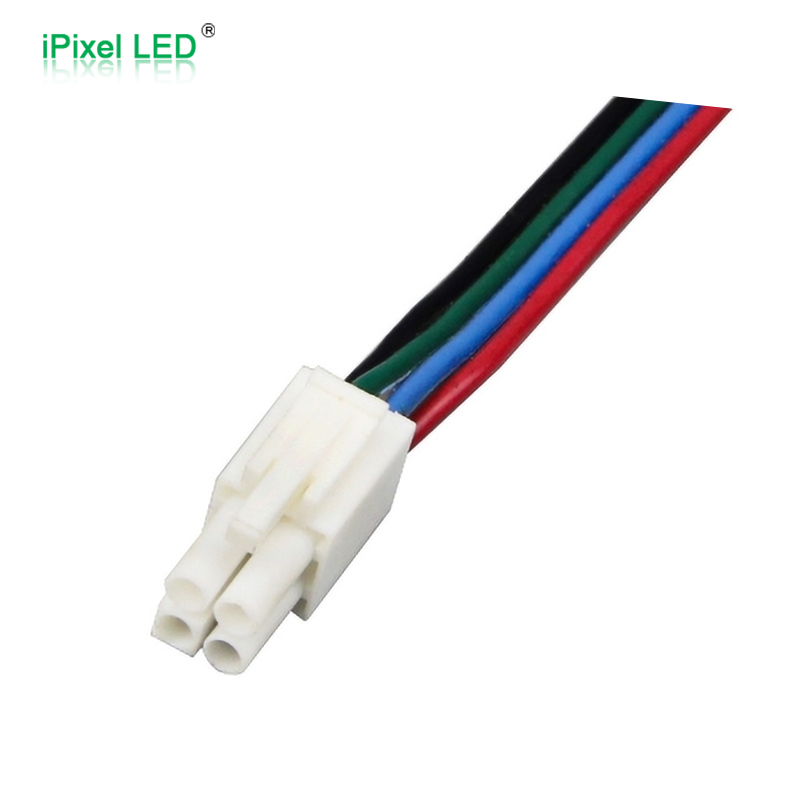

| 4Pin Molex Female Pigtail Cable | 4Pin | Female Pigtail | 4Pin Molex Connector | DZGT-00200-V4 | 20AWG | 200±5mm | Black, Blue, Red, Green | For internal equipment wiring |
FAQ
JST-SM is commonly used for LED strip connection, while Molex is more suitable for PCB-side and internal equipment connection.
Yes. Connector model, wire length, wire gauge, and line order can be customized.
No. These are mainly for internal or protected wiring.
