It is used for waterproof LED wiring, especially for LED strips, neon products, signage, cabinet lighting, and customized LED assemblies.
Round Waterproof Cable Connector Series
Round Waterproof Cable Connector Series
The Round Waterproof Cable Connector Series is designed for LED lighting projects that need a stronger and more convenient waterproof connector than standard indoor JST-SM cables.
This series includes 2Pin, 3Pin, 4Pin, and 5Pin round male and female pigtail cables. It is suitable for LED strip lighting, neon lighting, cabinet lighting, signage, equipment lighting, and customized waterproof LED assemblies.

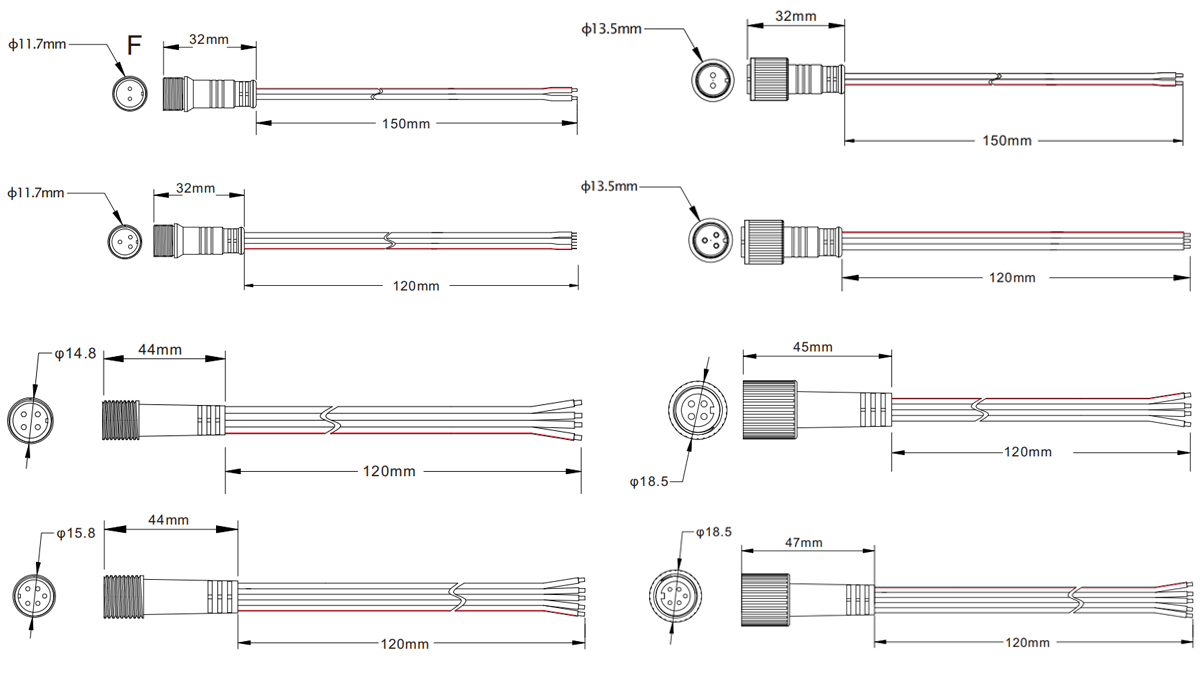

The current file lists round connector versions with PVC insulation, tinned copper conductor, 20AWG wire, transparent cable colors, and different connector sizes depending on the pin number.
Product Series Specification Matrix
| Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Length | Material / Color | Notes |
|---|---|---|---|---|---|---|---|---|
| 2Pin Round Male Pigtail Cable | 2Pin | Male Pigtail | 2Pin Round-type Needle | DZGT-00150-V2 | 20AWG | 150mm | PVC / Transparent Red | Round waterproof male side |
| 2Pin Round Female Pigtail Cable | 2Pin | Female Pigtail | 2Pin Rounded Belt Hole | DZMT-00150-V2 | 20AWG | 150mm | PVC / Transparent Red | Round waterproof female side |
| 3Pin Round Male Pigtail Cable | 3Pin | Male Pigtail | 3Pin Round-type Needle | DZGT-00120-V3 | 20AWG | 120mm | PVC / Transparent Red | For 3-core waterproof wiring |
| 3Pin Round Female Pigtail Cable | 3Pin | Female Pigtail | 3Pin Rounded Belt Hole | DZMT-00120-V3 | 20AWG | 120mm | PVC / Transparent Blue | Matched 3Pin female side |
| 4Pin Round Male Pigtail Cable | 4Pin | Male Pigtail | 4Pin Round-type Needle | DZGT-00120-V4 | 20AWG | 120mm | PVC / Transparent Red | Common for RGB wiring |
| 4Pin Round Female Pigtail Cable | 4Pin | Female Pigtail | 4Pin Rounded Belt Hole | DZMT-00120-V4 | 20AWG | 120mm | PVC / Transparent Blue | Common for RGB wiring |
| 5Pin Round Male Pigtail Cable | 5Pin | Male Pigtail | 5Pin Round-type Needle | DZGT-00120-V5 | 20AWG | 120mm | PVC / Transparent Red | For RGBW / multi-channel wiring |
| 5Pin Round Female Pigtail Cable | 5Pin | Female Pigtail | 5Pin Rounded Belt Hole | DZMT-00120-V5 | 20AWG | 120mm | PVC / Transparent Red | Matched 5Pin female side |
FAQ
The current series includes 2Pin, 3Pin, 4Pin, and 5Pin male and female pigtail cables.
2Pin is usually for single-color LED power wiring, 3Pin for signal or special wiring, 4Pin for RGB, and 5Pin for RGBW or multi-channel wiring.
Yes. Different pin numbers may use different round connector diameters and structures.
