Custom LED Neon Flex & Waterproof Linear Lighting Series
Custom LED Neon Flex & 360° Neon Tube Series
Custom silicone LED neon solutions available in static single-color, RGBW, DMX512 and SPI-addressable configurations, with front-emitting, side-emitting and 360-degree lighting structures.
The Custom LED Neon Flex Series covers project-specific silicone neon products developed for decorative lighting, signage, retail displays, entertainment equipment and architectural applications.
Available designs include static single-color neon, conventional RGBW neon, DMX512 pixel neon, compact SPI-addressable side-emitting neon and 360-degree digital neon tubes.
The models shown below are reference custom projects rather than one standardized stock series. Profile size, bending direction, LED color, pixel quantity, control protocol, voltage, cable outlet and protection structure can be developed according to the final application.
Series Overview
The Custom LED Neon Flex Series covers project-specific silicone neon products developed for decorative lighting, signage, retail displays, entertainment equipment and architectural applications.
Available designs include static single-color neon, conventional RGBW neon, DMX512 pixel neon, compact SPI-addressable side-emitting neon and 360-degree digital neon tubes.
The models shown below are reference custom projects rather than one standardized stock series. Profile size, bending direction, LED color, pixel quantity, control protocol, voltage, cable outlet and protection structure can be developed according to the final application.
Key Features
- Single-color, RGB and RGBW configurations
- Static, PWM, DMX512 and SPI control options
- Front-emitting, side-emitting and 360° structures
- Mini, standard, wide and round profiles
- Custom lengths, cutting units and pixel densities
- Top-bend, side-bend and project-specific bending directions
- Custom cable outlets, connectors and end treatments
- Indoor and outdoor protection structures
1. Static & PWM LED Neon Flex
Non-addressable neon products for continuous single-color or synchronized RGBW illumination.
| Reference Model | Profile / Structure | Light Color | Voltage | LED Quantity | Power | Length | Key Feature |
|---|---|---|---|---|---|---|---|
| 52500008 / 52500009 | 13 × 13mm Front-Emitting | 3000–3500K / 8000–9000K | DC24V | 120 LEDs/m | To Be Confirmed | 5m | Uniform single-color frontal illumination |
| N030096CC4PZ | 30 × 20mm Wide Neon | RGBW | DC24V | 96 LEDs/m | 28W/m | Custom | Wide RGBW neon for high-impact visual lighting |
Confirmed Structural Information
The 13 × 13mm version uses SMD2835 LEDs, has a 50mm cutting length, a minimum bending diameter of approximately 100mm and an IP65 silicone structure. The two internal codes represent warm-white and very cool-white versions.

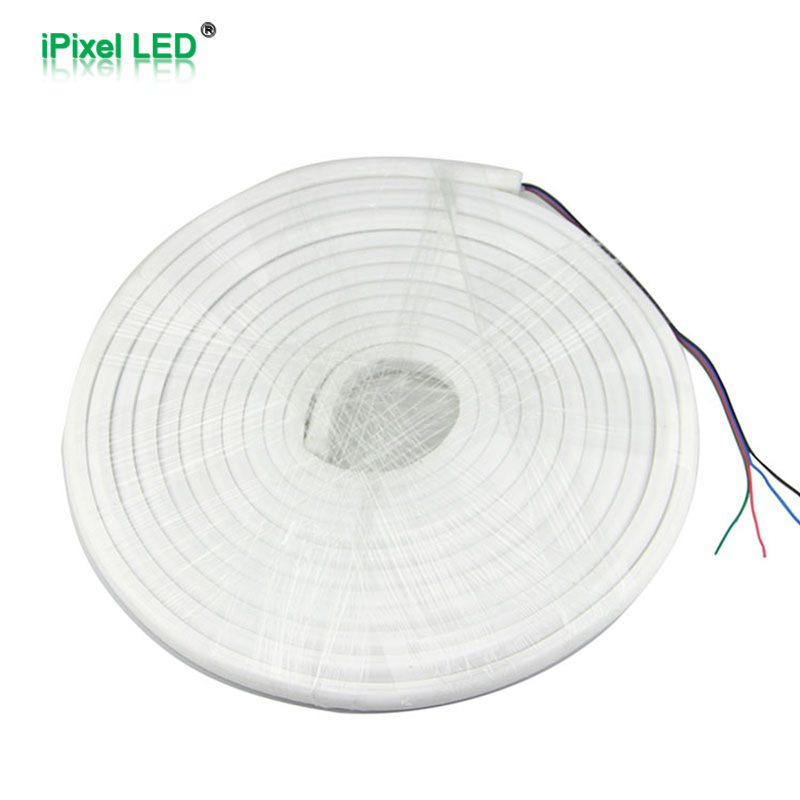

The 30 × 20mm version was developed as a wide RGBW neon structure. The indexed product description lists DC24V, 28W/m and 96 LEDs/m; its original project used glue-sealed ends without visible end caps.
Suitable For
- Architectural Accent Lighting
- Retail Display Fixtures
- Large Decorative Outlines
- Furniture & Equipment Accents
- Static White Neon Signs
- Synchronized RGBW Lighting
2. DMX512 Addressable LED Neon Flex
Pixel-controlled neon products for professional projects requiring individual zones, programmed effects and synchronized installations.
| Reference Model | Profile | LED / Color | Voltage | Pixel Quantity | LED Quantity | Power | Standard Length |
|---|---|---|---|---|---|---|---|
| N012120BC1DC0 | 12 × 12mm | SMD2835 Single Color, 3500K ±300K | DC24V | 10 pixels/m | 120 LEDs/m | 12W/m | 5m |
| N020060CC4DA0 | 20 × 18mm | DMX512 SMD5050 RGBW | DC24V | 10 pixels/m | 60 LEDs/m | To Be Confirmed | 1m |
N012120BC1DC0 divides a continuous single-color neon line into DMX-controlled segments. It is not RGB neon: each pixel controls the brightness or effect of the same white-light color.

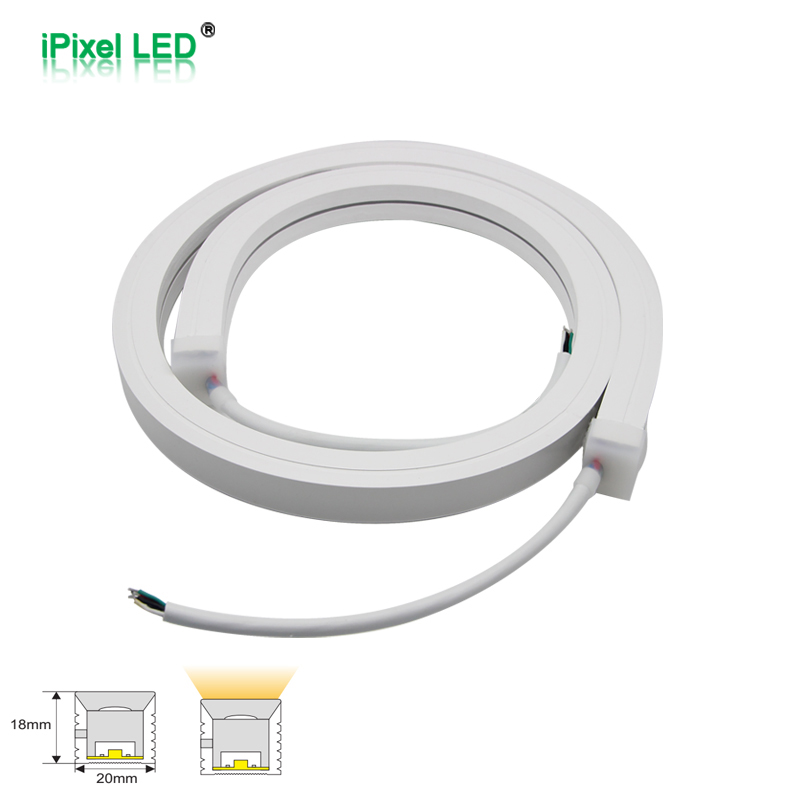

N020060CC4DA0 uses DMX512 RGBW LEDs and provides ten individually controlled pixels per metre within a 20 × 18mm profile.
Suitable For
- Architectural Façade Lighting
- Stage & Entertainment Projects
- Retail Visual Installations
- Gaming & Amusement Equipment
- Programmed Linear Effects
- Large Synchronized Projects
3. SPI Addressable & 360° Neon Tubes
Compact and 360-degree digital neon products for chasing, animation, signage and multi-directional lighting effects.
| Reference Model | Structure | LED / Color | Voltage | Pixel Quantity | Power | Size / Length | Key Feature |
|---|---|---|---|---|---|---|---|
| N022120DA3SA1 | Ø22mm 360° Tube | SK6812 SMD3535 RGB | DC5V | 120 pixels/m | To Be Confirmed | 1000mm × Ø22mm | 360-degree addressable illumination |
| 51800073 | 6 × 12mm Side-Emitting Mini Neon | Built-In IC RGB | DC5V | Must Be Confirmed | 18W/m | 3000mm | Compact side-emitting addressable structure |

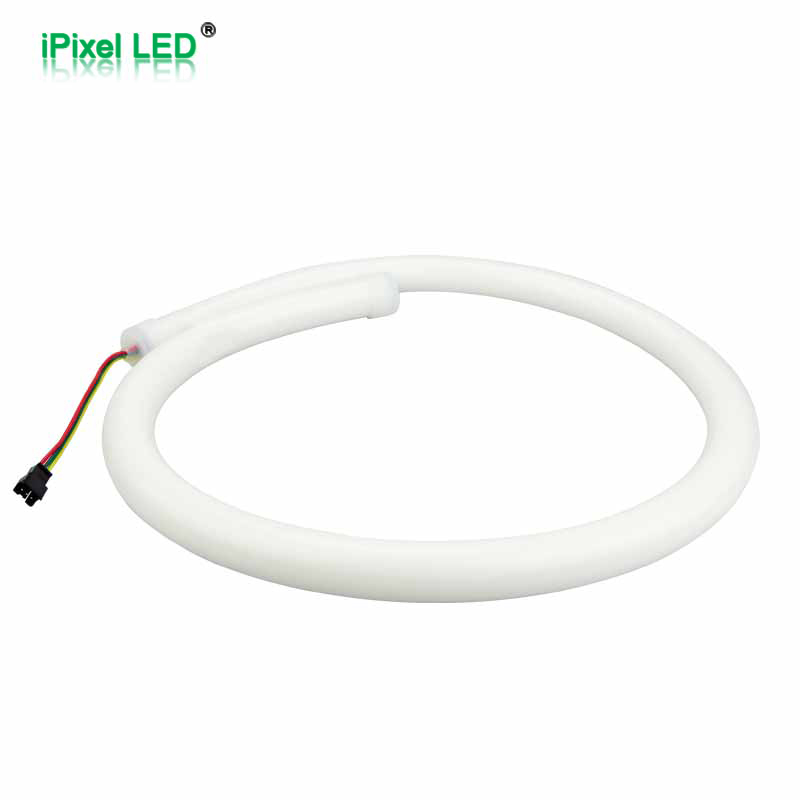

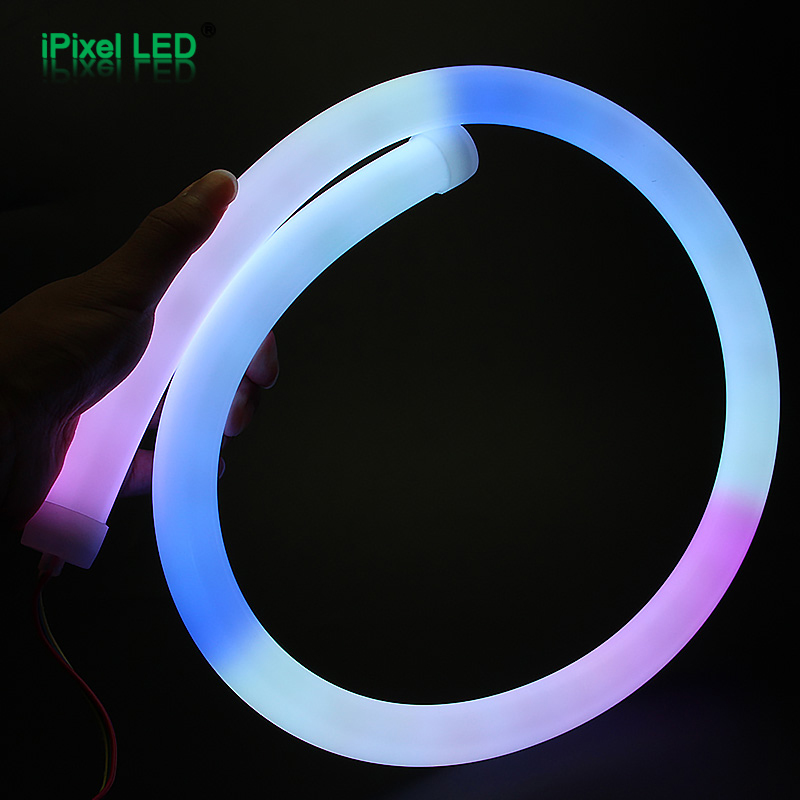

The Ø22mm model provides 360-degree illumination and uses individually addressable SK6812 RGB pixels at up to 120 pixels per metre.

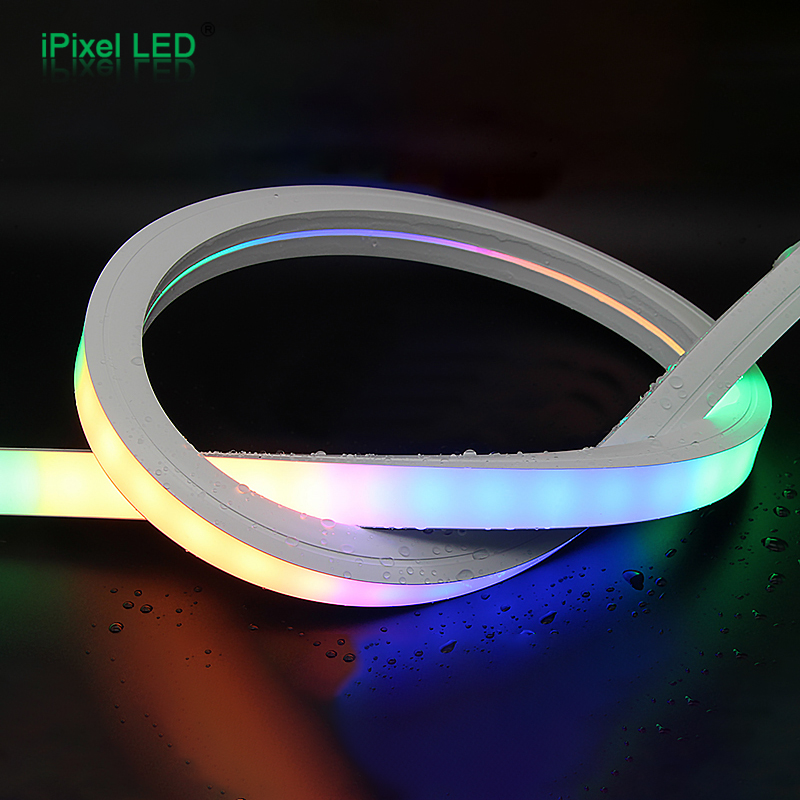

The 6 × 12mm mini version uses a side-emitting silicone structure, IP65 protection, a minimum bending diameter of approximately 60mm, JST-SM connectors and a 31.25mm cutting unit. The old page states “96 pixels” but does not clearly distinguish whether this means per metre or per 3m roll, so the pixel quantity must be verified before publication.
Suitable For
- Small Signs & Logos
- Automotive Decorative Lighting
- Equipment Edge Lighting
- Compact Advertising Displays
- 360° Suspended Lighting
- Interactive RGB Effects
Customization Capability Matrix
| Customization Item | Available Options | Notes |
|---|---|---|
| Emitting Direction | Front / Side / 360° | Select according to viewing direction |
| Profile Size | 6 × 12 / 12 × 12 / 13 × 13 / 20 × 18 / 30 × 20mm / Ø22mm / Custom | Tooling review may be required |
| Light Color | Single Color / RGB / RGBW | RGB+CCT can be evaluated |
| Control Method | Static / PWM / SPI / DMX512 | Controller must match the protocol |
| Voltage | DC5V / DC12V / DC24V | Depends on IC and project length |
| Pixel Density | Project-Specific | Affects refresh rate and controller capacity |
| LED Density | Project-Specific | Selected according to dot-free performance |
| Bending Direction | Top-Bend / Side-Bend / Multi-Directional | Determined by the silicone profile |
| Standard Length | 1m / 3m / 5m / Custom | Depends on voltage, power and circuit |
| Cutting Length | Model-Dependent | Digital products must follow pixel units |
| Silicone Color | Milky White / Project-Specific | Affects light transmission |
| End Treatment | End Cap / Glue-Sealed / Molded End | Final protection depends on assembly |
| Cable Outlet | Straight / Side / Bottom / Custom | Selected according to installation space |
| Connector | Bare Wire / JST / Waterproof Connector | Project-specific wiring available |
| Protection | IP65 / Higher Protection Subject to Design | Connector sealing must also be considered |
| Mounting | Clips / Aluminum Channel / Custom Bracket | Match the bending and installation structure |
Not every option can be combined freely. Profile size, bending direction, voltage, pixel density, cutting length and maximum run must be reviewed as one complete product design.
How to Choose
| Project Requirement | Recommended Product Direction |
|---|---|
| Static white continuous line | Single-Color Front-Emitting Neon |
| Wide and visually prominent RGBW line | 30 × 20mm RGBW Neon |
| Single-color chasing or segmented dimming | 12 × 12mm DMX Single-Color Neon |
| RGBW professional pixel effects | 20 × 18mm DMX RGBW Neon |
| Compact logo or signage outline | 6 × 12mm Mini Addressable Neon |
| Light visible from every direction | Ø22mm 360° Addressable Tube |
| Small and medium programmable project | SPI Addressable Neon |
| Large synchronized installation | DMX512 Neon |
| Left-right bending around a sign | Side-Bend Neon Profile |
| Up-down curved installation | Top-Bend Neon Profile |
Basic Control Comparison
| Control Type | Pixel Control | Typical Advantage | Controller Required |
|---|---|---|---|
| Static Single Color | No | Simple continuous illumination | On/Off or Dimmer |
| PWM RGBW | Whole line or zone | Smooth RGBW color mixing | RGBW PWM Controller |
| SPI Addressable | Individual pixels | Compact wiring and animation | SPI Controller |
| DMX512 Addressable | Individually addressed pixels/zones | Professional synchronization | DMX Controller / Decoder |
FAQ
Static neon provides one continuous color or synchronized channel output. SPI allows programmable pixel effects with a compact digital signal. DMX512 is generally selected for professional, synchronized and larger lighting projects.
Front-emitting neon directs light through the broad upper surface. Side-emitting neon directs light through the side surface and bends in a different direction.
A 360-degree neon tube is designed so that light can be viewed around the tube instead of from only one primary surface.
