P032001MA3SF is an RGB digital module with WS2811 control and 3W power. P032001MA4SD6 is an RGBW digital module with SM16714 control and 4W power.
SPI Digital RGB / RGBW LED Module Series
SPI Digital RGB / RGBW LED Module Series
The SPI Digital RGB / RGBW LED Module Series is designed for programmable point lighting, amusement machines, gaming equipment, signage, interactive lighting, decorative lighting, and custom RGB / RGBW lighting systems.
This series uses high-power RGB or RGBW LED packages mounted on compact PCB modules. Each module supports DC5V constant-voltage operation and can work with SPI controllers or DMX decoders, depending on the project control system.
The series includes two options:

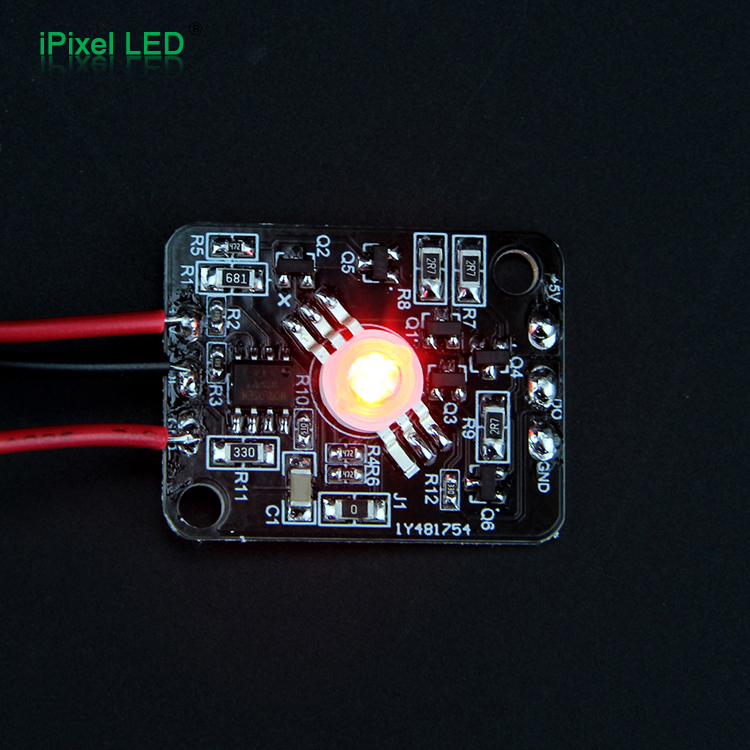

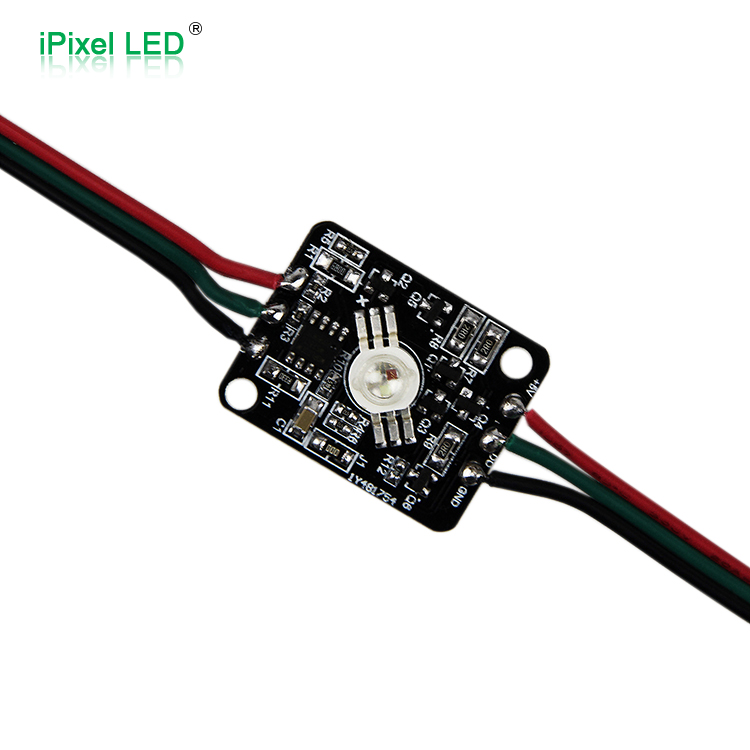

P032001MA3SF — RGB digital LED module with WS2811 control.

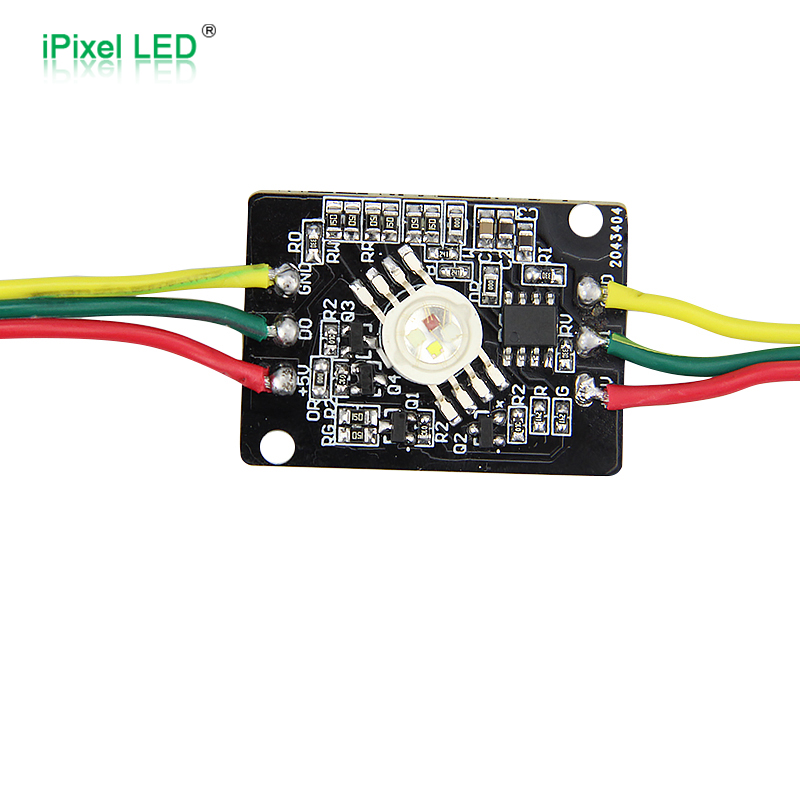

P032001MA4SD6 — RGBW digital LED module with SM16714 control.
DC5V35mm WidthRGB/RGBWIP20
Overview & Key Features
Series Overview

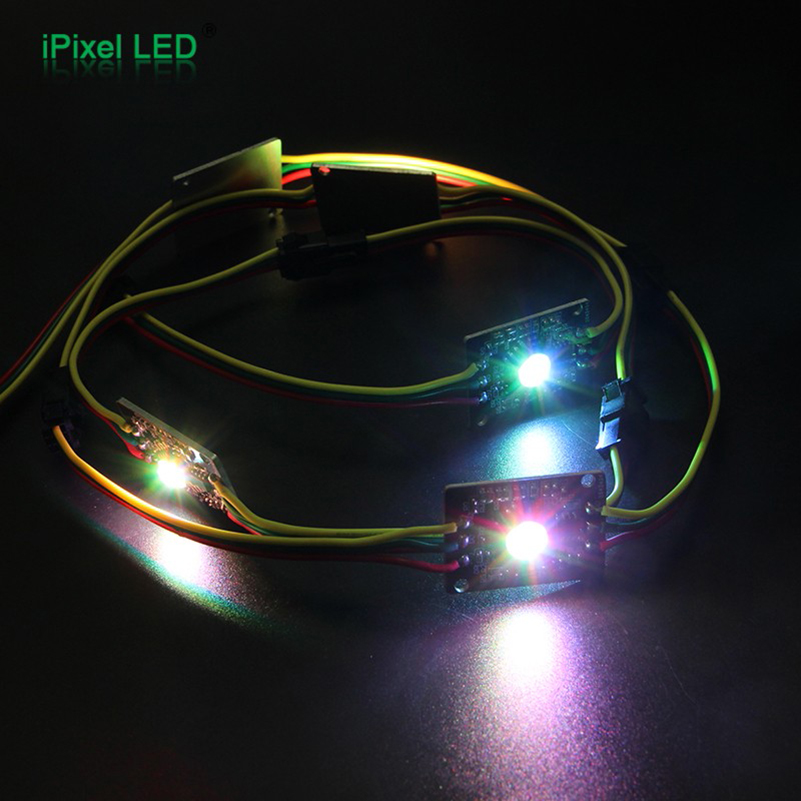

This series is suitable for customers who need addressable digital color control instead of simple analog RGB wiring. Each module has Data In / Data Out pads, so modules can be connected in sequence for programmable effects.
Both models are designed for high-brightness output in a small size. Because of the power density, the datasheets clearly require installation on a minimum 100cm² aluminum heat sink plate to keep the aluminum substrate temperature below 55°C at full brightness. Silicone sealants such as glass glue are not recommended for thermal fixing.
Key Features
- SPI digital control
Supports programmable RGB / RGBW lighting effects through SPI controller or DMX decoder. - Two color-control options
RGB version with WS2811 control, and RGBW version with SM16714 control. - Compact 35×25mm module size
Suitable for equipment lighting, signage, gaming machines, and custom point-light applications. - DC5V constant-voltage operation
Easy to integrate into low-voltage digital lighting systems. - Data In / Data Out design
Each module has input and output signal connection. Data direction must be confirmed during wiring. - JST connector included
Each module contains a pair of JST connectors for easier system connection. - M3 mounting holes
The module includes M3 mounting holes for mechanical fixing. - Heat sink required
A minimum 100cm² aluminum heat sink plate must be installed for reliable operation.
Product Series Specification Matrix
| Model No | LED Qty/pcs | Voltage | Power/pcs | SMD Type | CCT | Luminance | Spec Sheet |
|---|---|---|---|---|---|---|---|
| P032001MA3SF | 1 LED/pcs | DC5V | 3W/pcs | Imitation lumen lamp beads RGB | RGB: R 622nm / G 523nm / B 467nm | R: 10lm / G: 33lm / B: 5lm | Download |
| P032001MA4SD6 | 1 LED/pcs | DC5V | 4W/pcs | Imitation Lumen | RGBW: 3000K / 4000K / 6000K; R 620–625nm / G 520–525nm / B 460–465nm | R: 51lm / G: 76lm / B: 20lm / W: 102lm | Download |
Additional parameters
| Item | P032001MA3SF | P032001MA4SD6 |
|---|---|---|
| Control IC | SPI / WS2811 | SPI / SM16714 |
| Color Type | RGB | RGBW |
| Size | 35×25mm | 35×25mm |
| Beam Angle | 140° | 140° |
| IP Rate | IP20 | IP20 |
| Operating Temperature | -25~60°C | -25~60°C |
| Material | PVC plastic | Aluminum plate |
| Net Weight | Not specified | 0.01kg/pcs |
| Connector | JST connector | JST connector |
| Mounting | M3 mounting holes | M3 mounting holes |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need RGB digital effect only | P032001MA3SF |
| Need RGB plus white channel | P032001MA4SD6 |
| Need WS2811 control compatibility | P032001MA3SF |
| Need SM16714 control compatibility | P032001MA4SD6 |
| Need higher brightness and white output | P032001MA4SD6 |
| Need lower power RGB point module | P032001MA3SF |
| Need 3000K white channel | P032001MA4SD6/C1 |
| Need 4000K white channel | P032001MA4SD6/C2 |
| Need 6000K white channel | P032001MA4SD6/C3 |
| Need SPI controller or DMX decoder control | Both models |
| Need simple analog RGB wiring | Do not choose this series; use analog RGB module instead |
| Need outdoor / waterproof installation | Standard version is IP20; waterproof structure must be customized |

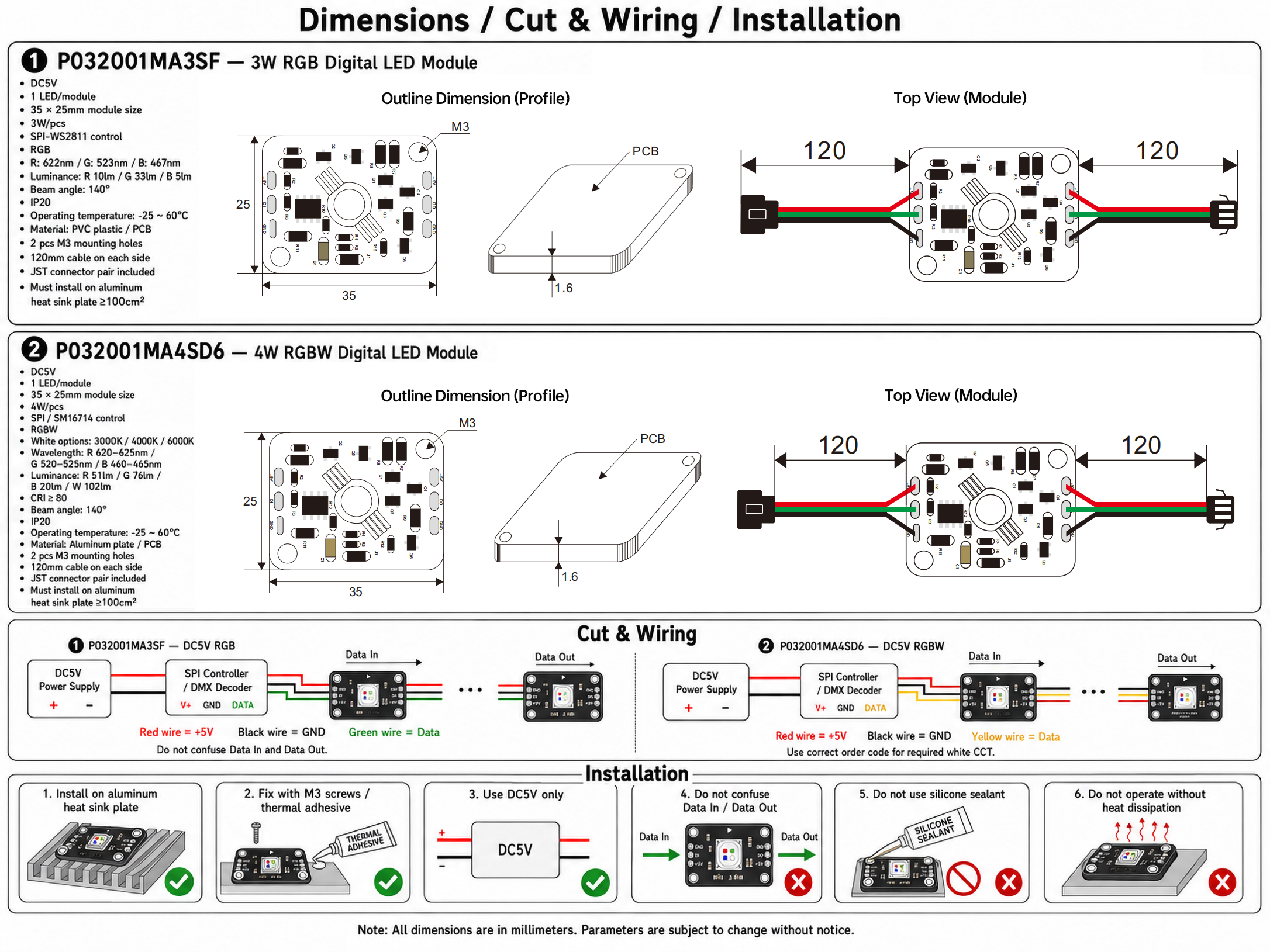

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V | Standard for both models |
| LED Type | Imitation lumen lamp beads RGB / RGBW | Depends on model |
| Color Type | RGB / RGBW | P032001MA3SF is RGB; P032001MA4SD6 is RGBW |
| Color Range | RGB wavelength; RGBW with 3000K / 4000K / 6000K white channel | RGBW white version selected by order number |
| Size (mm) | 35×25mm | Same module footprint |
| Power | 3W/pcs / 4W/pcs | P032001MA3SF is 3W; P032001MA4SD6 is 4W |
| IP Rating | IP20 | Indoor / protected installation |
| Length | 120mm cable on both sides shown in drawing | Can be customized by project |
| Connector | JST connector / customized connector | Each module contains a pair of JST connectors |
| Mounting | M3 mounting holes + aluminum heat sink plate | Minimum 100cm² heat sink required |
| Packing | Anti-static bag / project packing | Datasheets state anti-static bag packing |
Related Items
Sauna & Spa Lighting – High Heat/Humidity, Safe Low Voltage & Sealing
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Electric Fireplace Lighting – High-Temp Stability, Long Life & Safe Integration
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
No. Both models are SPI digital modules with Data In / Data Out connection.
Yes. The datasheets state that they can work with an SPI controller or a DMX decoder.
Use DC5V constant-voltage power supply.
