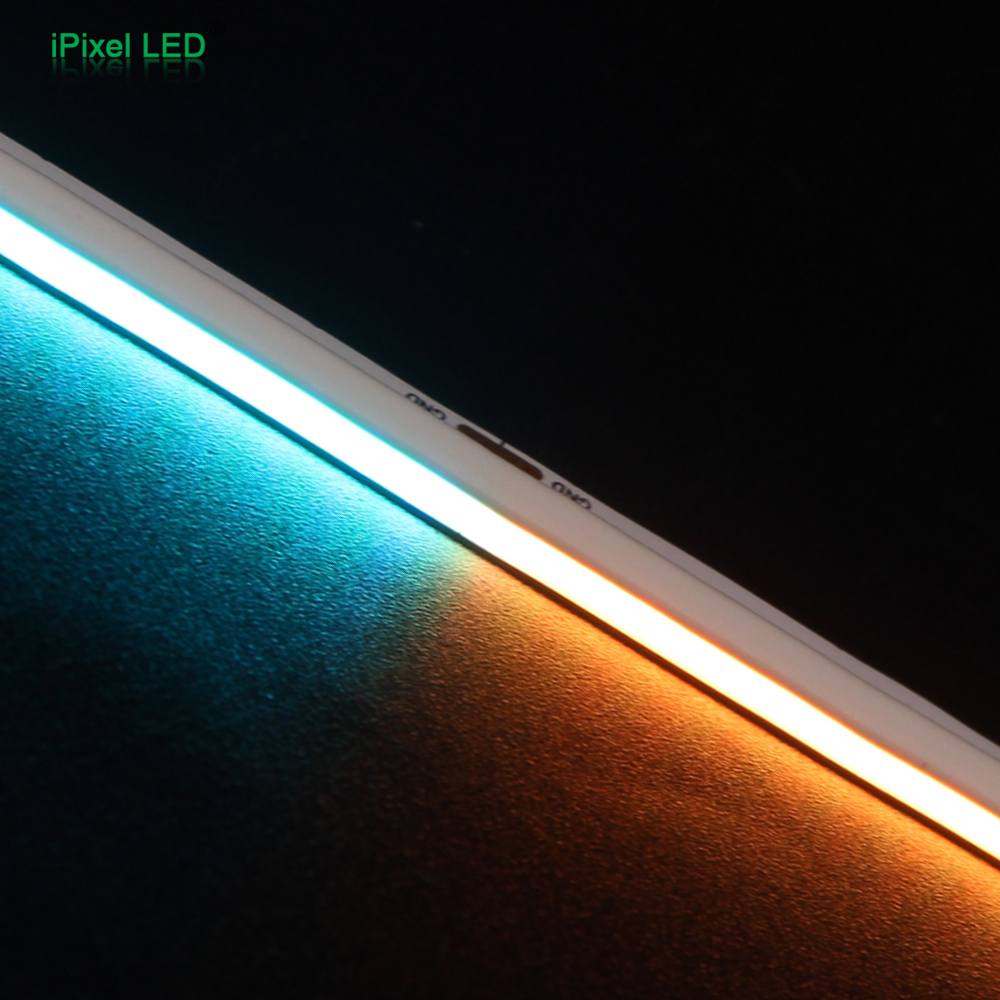

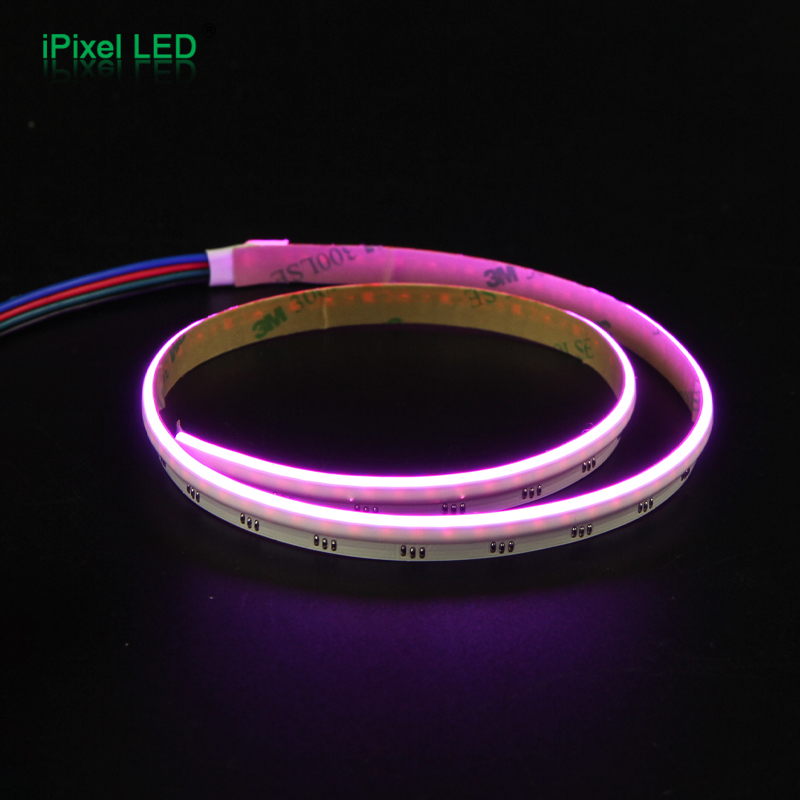

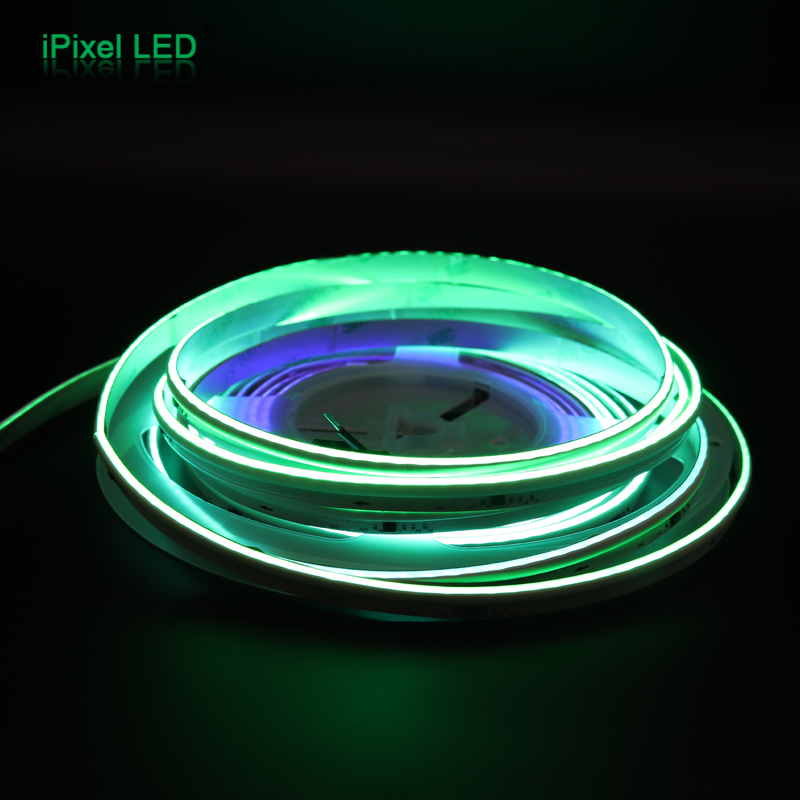

Normal RGB COB emits light from the top surface. Side-emitting RGB COB emits light from the side, making it more suitable for edge lighting, side slots and special profile structures.
Side-Emitting RGB COB LED Strip Series

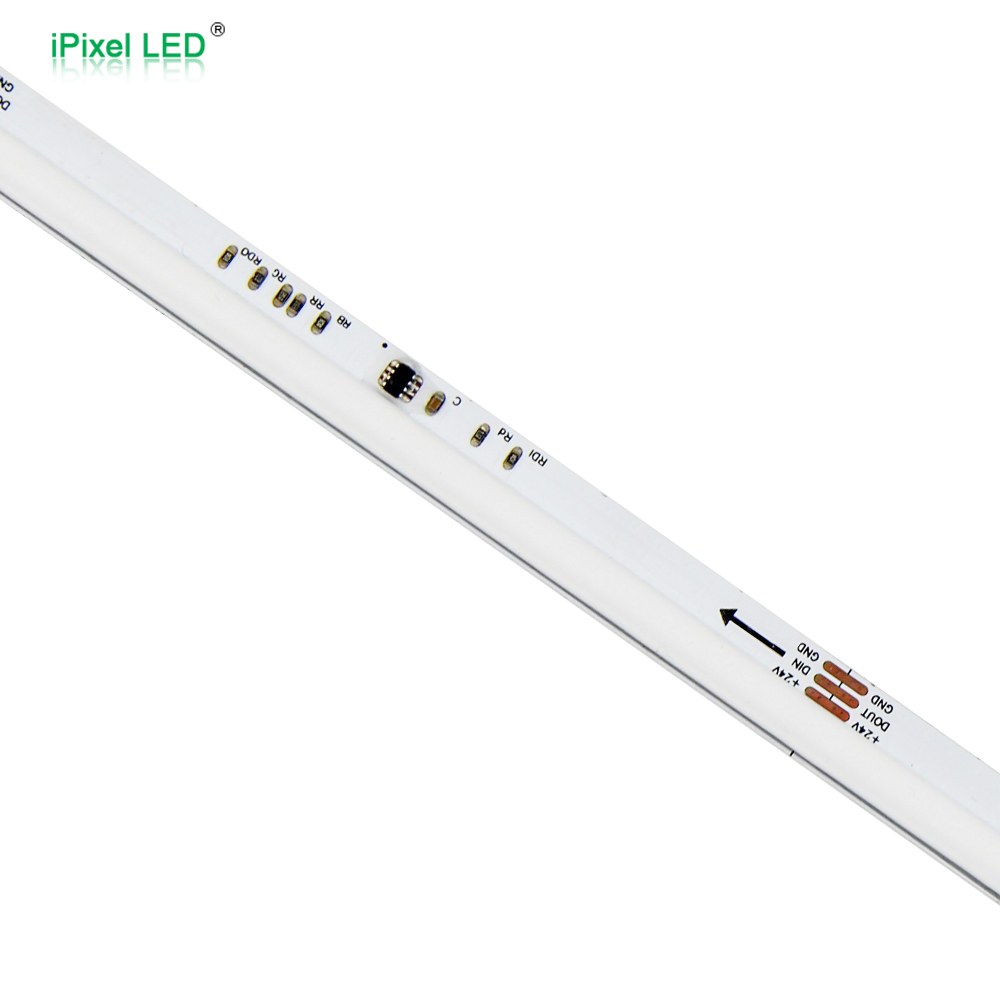

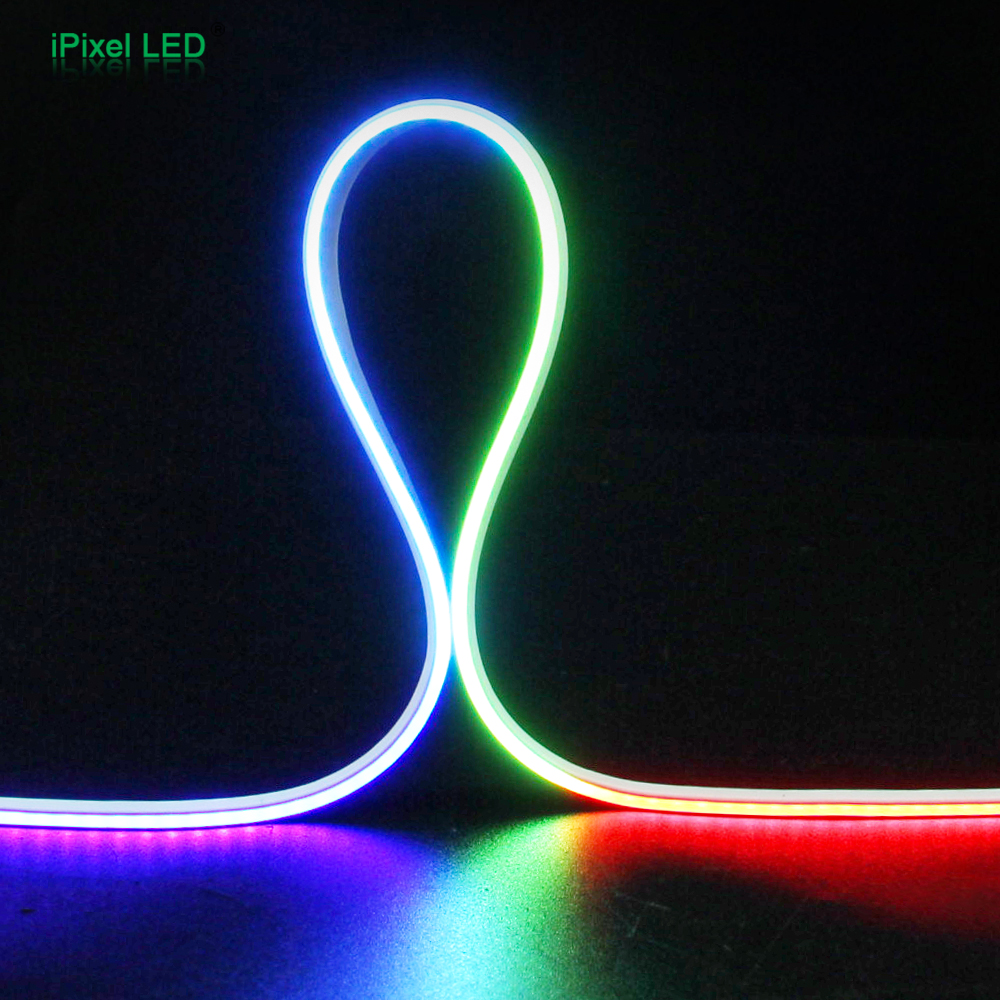

This Side-Emitting RGB COB LED Strip Series is designed for projects where light needs to emit from the side rather than directly upward. It is suitable for edge lighting, side slots, acrylic edge illumination, signage, display fixtures, decorative grooves and special aluminum profile structures.
The series includes 8mm 630 LEDs/m and 10mm 840 LEDs/m versions, with DC12V / DC24V options. Both versions use RGB COB, PWM control, 120° beam angle, IP20 / IP65 protection options, and standard 5m/roll length. The datasheets describe the products as high-density side-emitting COB strips with even and soft light, high efficiency, double-layer PCB, good heat dissipation and customizable length.
DC12V/DC24V630/840LEDs/m8/10mm WidchRGBIP20/IP65
Overview & Key Features
Series Overview
This series is positioned for side-view RGB lighting, especially where normal front-emitting RGB COB strips cannot achieve the required edge-lighting effect. The side-emitting structure allows the strip to be installed along the edge of a groove or profile while directing RGB light outward from the side.
The 8mm 630 LEDs/m version is suitable for narrower side-lighting profiles and shorter cutting requirements. The 10mm 840 LEDs/m version provides higher LED density and stronger RGB output for projects requiring a smoother and brighter side-emitting color effect.
Key Features
- Side-emitting RGB COB structure
- Smooth and soft RGB light output
- DC12V / DC24V options
- 8mm and 10mm PCB width options
- 630 LEDs/m and 840 LEDs/m options
- PWM RGB control
- 120° beam angle
- IP20 / IP65 protection options
- Standard 5000mm / 5m roll length
- Custom length available
- Designed for edge lighting, side slots and special profile lighting

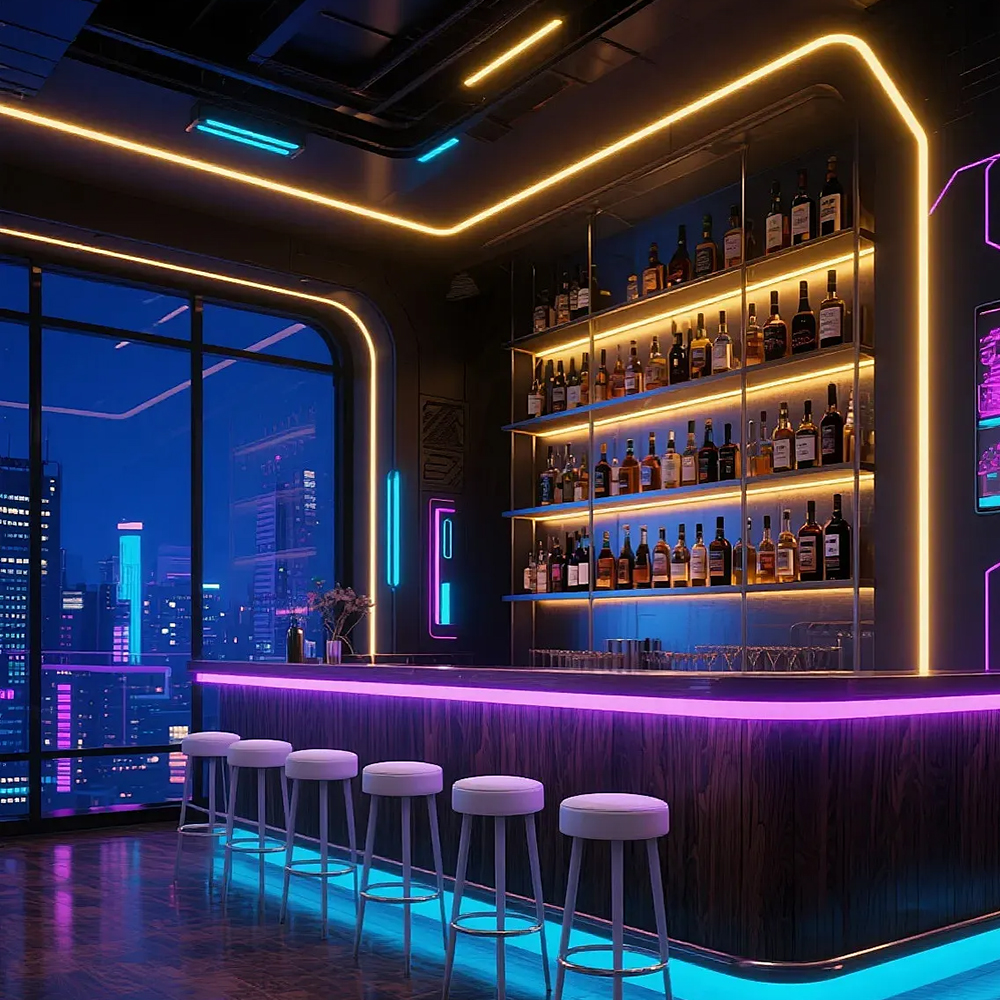

- Suitable for decorative, signage, display and architectural color lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S008630ZB3PZ(C) | 630 | DC12V | 9.6W | Side-Emitting RGB COB / PWM | 8mm | RGB | 14.5mm / 9LED | R:43 / G:143 / B:19.6lm |
| S008630ZC3PZ(C) | 630 | DC24V | 9.6W | Side-Emitting RGB COB / PWM | 8mm | RGB | 28.5mm / 18LED | R:43 / G:143 / B:19.6lm |
| S010840ZB3PZ(C) | 840 | DC12V | 12W | Side-Emitting RGB COB / PWM | 10mm | RGB | 16.66mm | R:126 / G:385 / B:58.5lm |
| S010840ZC3PZ(C) | 840 | DC24V | 12W | Side-Emitting RGB COB / PWM | 10mm | RGB | 33.33mm | R:126 / G:385 / B:58.5lm |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need narrower side-emitting RGB COB strip | S008630ZB3PZ(C) / S008630ZC3PZ(C) — 8mm PCB, suitable for narrower side slots and compact profiles. |
| Need higher LED density and stronger RGB output | S010840ZB3PZ(C) / S010840ZC3PZ(C) — 840 LEDs/m, 10mm PCB, higher listed RGB lumen output. |
| Project uses DC12V system | S008630ZB3PZ(C) or S010840ZB3PZ(C) — select by PCB width, brightness and cut length. |
| Project uses DC24V system | S008630ZC3PZ(C) or S010840ZC3PZ(C) — suitable for 24V control systems and lower current wiring. |
| Need shorter cutting length | S008630ZB3PZ(C) — 14.5mm / 9LED cut length. |
| Need higher brightness side-emitting RGB effect | S010840ZB3PZ(C) / S010840ZC3PZ(C) — R:126 / G:385 / B:58.5lm. |
| Need edge lighting or side-slot installation | Both series — both are side-emitting RGB COB strips designed for edge-lighting demand. |
| Indoor dry installation | IP20 version — suitable for dry indoor profile and decorative lighting. |
| Need additional surface protection | IP65 version — silicone tube option available; final size and optical output should be confirmed after IP process. |

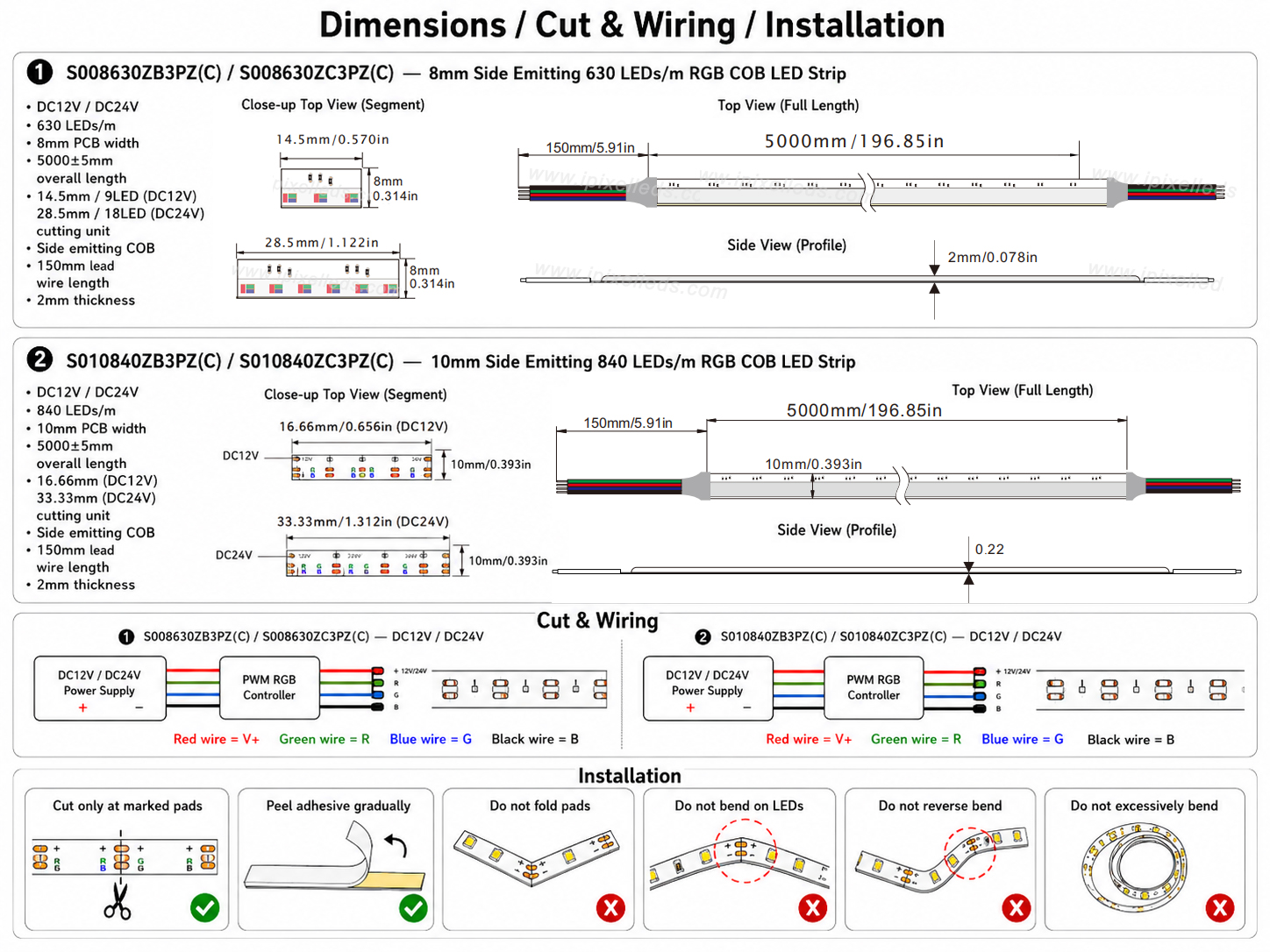

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | Both 8mm and 10mm versions have DC12V / DC24V options. |

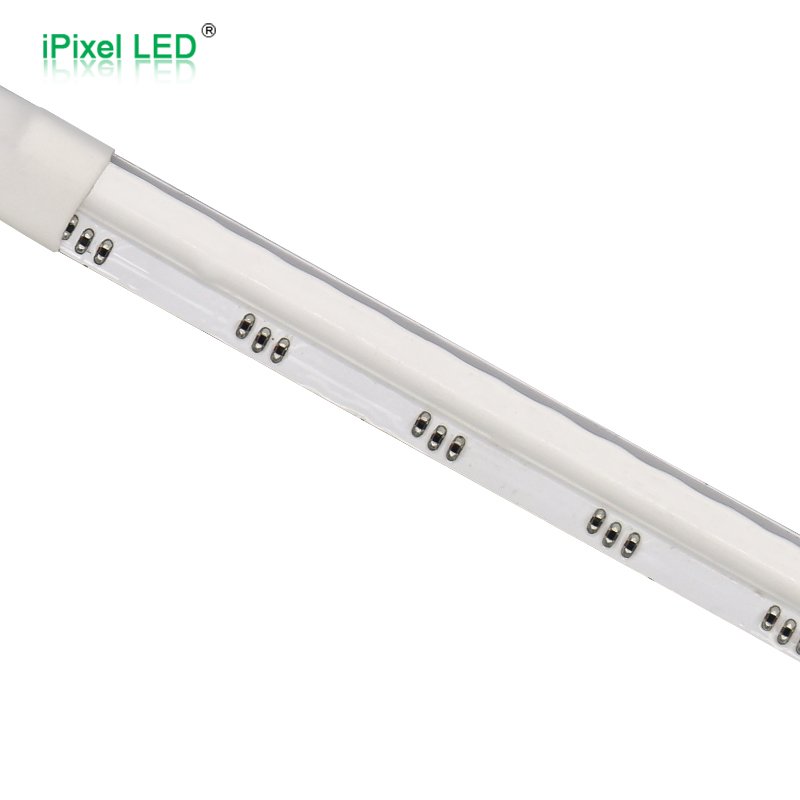

| LED Type | Side-emitting COB | COB structure with side-view light output for edge lighting. |
| ColorType | RGB | Red, green and blue color mixing. |
| Color Range | RGB | Wavelength: R 615–630nm, G 520–535nm, B 450–460nm. |
| PCB Width | 8mm / 10mm | 8mm for narrower side slots; 10mm for higher-density side-emitting RGB output. |
| Power | 9.6W/m / 12W/m | 8mm 630LED version is 9.6W/m; 10mm 840LED version is 12W/m. |
| Control | PWM RGB controller | Controller must match voltage, load and RGB channel wiring. |
| IPRating | IP20 / IP65 | IP20 for dry indoor use; IP65 silicone tube option available. |

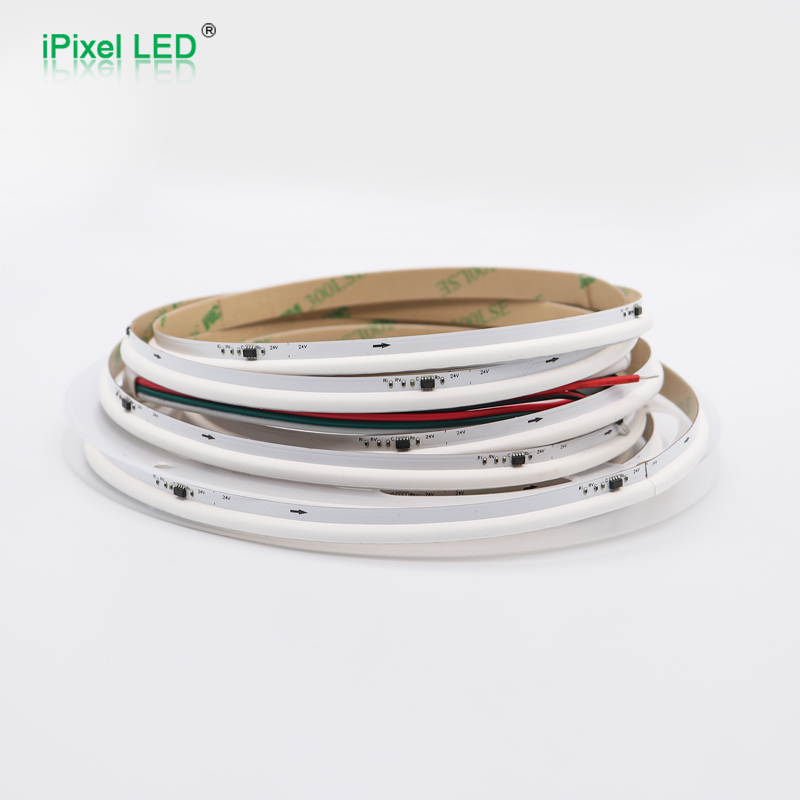

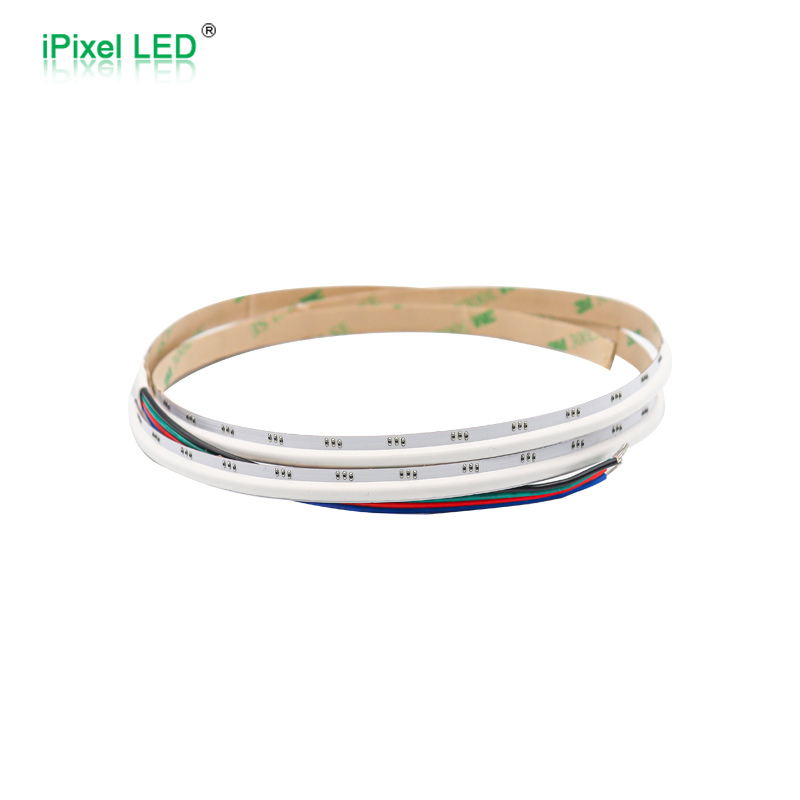

| Length | 5m standard / custom length | Both datasheets show 5m per roll; length can be customized. |
| Connector | Bare wire / RGB connector / custom connector | Connector should match V+ / R / G / B wiring sequence. |
| Mounting | Silicone clip / screw / end cap / aluminum profile | The datasheets show accessories such as screw, silicone clip and end cap. |
| Packing | Reel / antistatic bag / carton / OEM packing | Standard reel and carton packing; OEM packing can be discussed. |
Related Items
Coffee Machine Lighting – Heat/Steam/Chemical Resistance & Glare-Controlled Downlight
Medical Refrigeration Lighting – Traceability, Reliability Pack & Low-Temp Stability
Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
This series includes 8mm and 10mm PCB width options.
Choose S008630ZB3PZ(C) / S008630ZC3PZ(C) because it uses an 8mm PCB.
Choose S010840ZB3PZ(C) / S010840ZC3PZ(C) because it uses 840 LEDs/m.
