Yes. These models use SK6812 addressable control, with 1 LED per pixel.

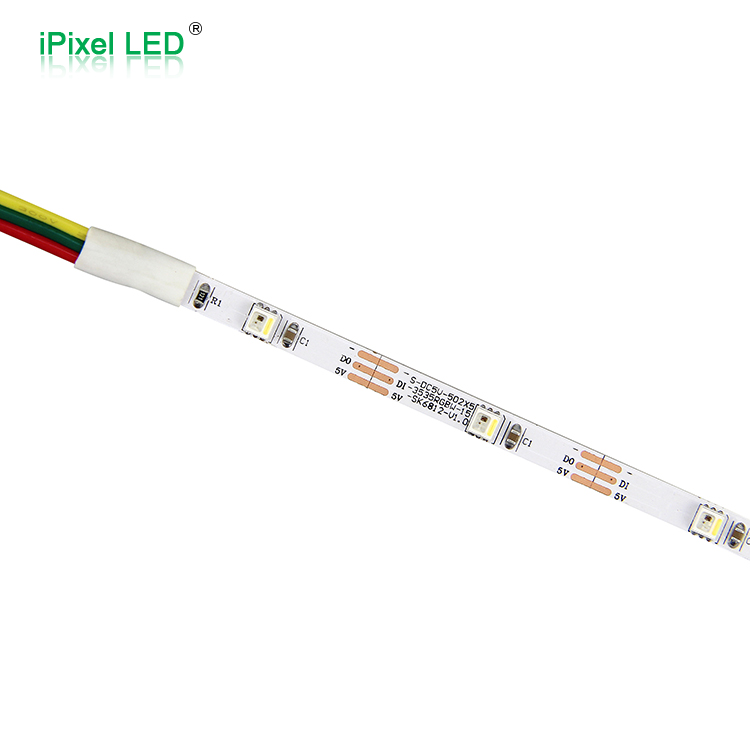

SMD3535 SK6812 RGBW Addressable LED Strip Series
- This SMD 3535 RGBW Addressable LED Strip with 30\60\144LEDs and 30\60\144Pixels per
meter(individually controlled every LEDs).
- Compare with RGB led strip , there are one more white color, more lighting effects for us,
- The color(CCT) of White can be warm white,nature white,pure white and cold white.

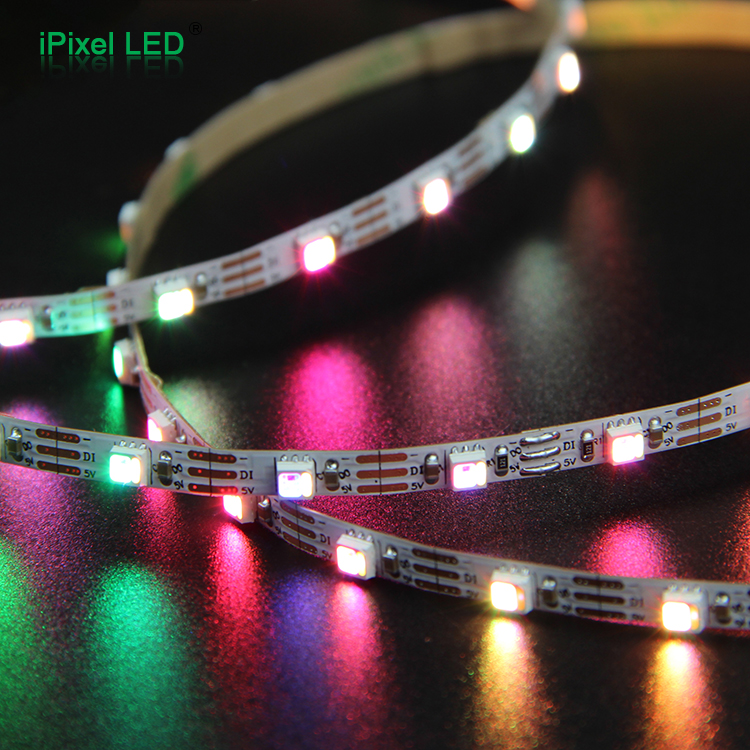

- Colors are rich and varied, It can realize different changing effects in the controller.
- 5/8mm width, Light and thin: suitable for installation in narrow space.
- Easy and free cutting and welding: You can cut and weld all kinds of length according
to the above cutting mark.
DC5V30/60/144LED/m5/8mm WidchAddressableSK6812
Overview & Key Features
Series Overview
This SMD3535 SK6812 RGBW addressable LED strip series is designed for digital lighting projects that require individually controllable RGBW pixels in a compact PCB structure. Compared with standard RGB addressable strips, this series adds an independent white channel, allowing richer color effects and more practical white light output.
The series includes 30 LEDs/m, 60 LEDs/m and 144 LEDs/m versions. The 30 and 60 LEDs/m versions use a 5mm PCB, suitable for narrow installation spaces. The 144 LEDs/m version uses an 8mm PCB and provides higher pixel density for more detailed lighting effects. All three versions use DC5V input and SPI-SK6812 control.
Key Features
- SMD3535 RGBW LED package for RGB color plus white channel.
- Built-in SK6812 addressable IC, each LED can be controlled individually.
- DC5V constant voltage input.
- 30 / 60 / 144 LEDs per meter options.
- 30 / 60 / 144 pixels per meter, 1 LED per pixel.

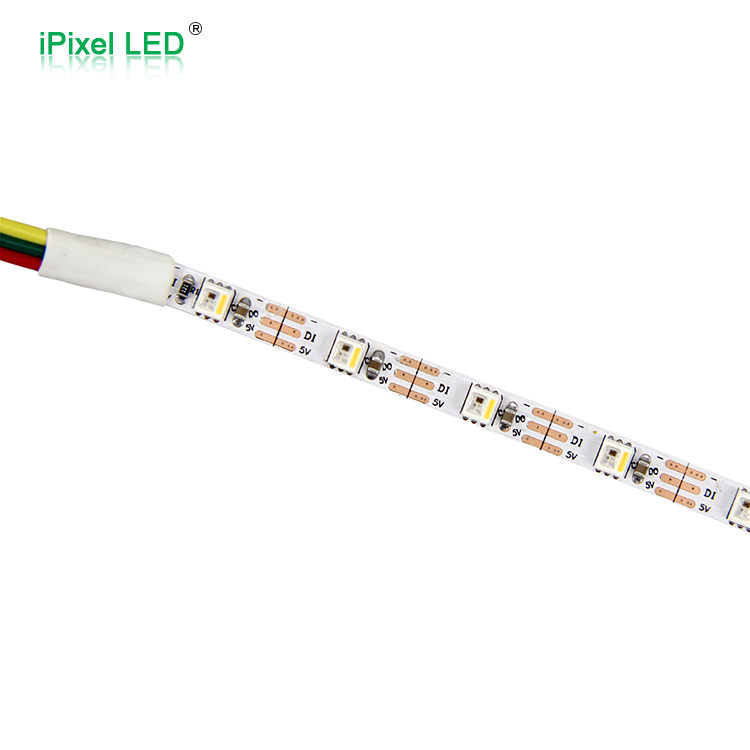

- 5mm PCB width for 30 and 60 LEDs/m versions.

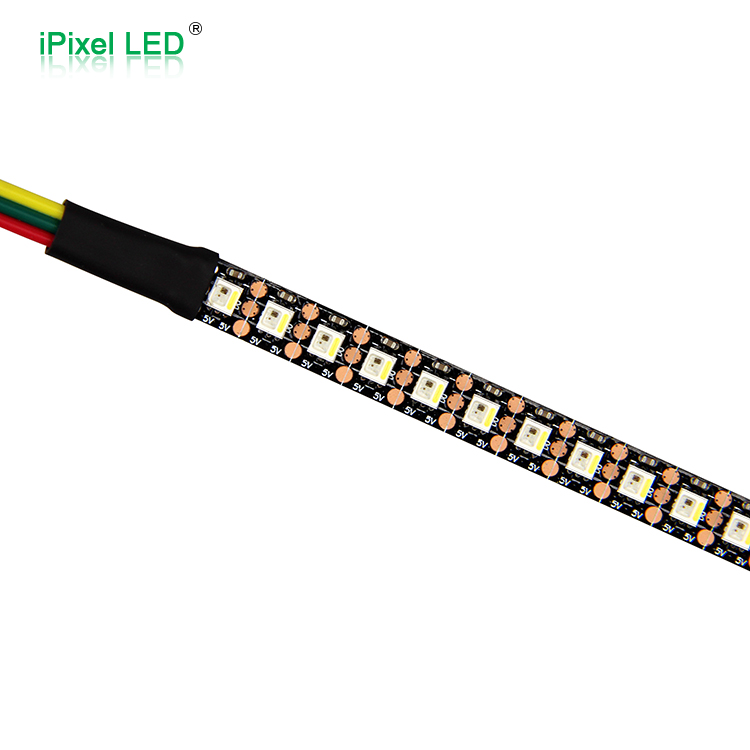

- 8mm PCB width for 144 LEDs/m high-density version.
- RGB+W white options: 3000K / 4000K / 6000K or 6500K depending on version.
- Cuttable every 1 LED for flexible installation.
- SPI / SK6812 control, compatible with digital LED controllers such as K-1000C.
- IP20 / IP65 options for selected versions.

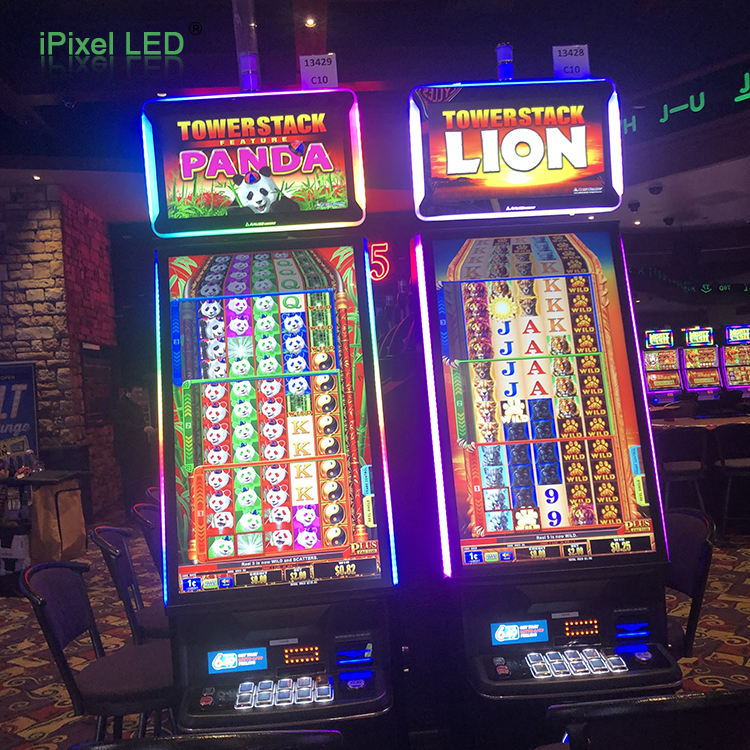

- Suitable for narrow spaces, display fixtures, gaming equipment, decorative lighting and OEM digital lighting assemblies.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Lumen/m | PCB Width | Cutting Length | Control | Pixel Density | Color |
|---|---|---|---|---|---|---|---|---|---|
| S005030DA4SA1 | SMD3535 30LEDs/m | DC5V | 7.2W/m | R:22 / G:73 / B:15 / W:181 lm/m | 5mm | 33.33mm / 1LED | SPI / SK6812 | 30 Pixels/m | RGB+W: 3000K / 4000K / 6000K |
| S005060DA4SA1 | SMD3535 60LEDs/m | DC5V | 13W/m | R:41 / G:128 / B:32 / W:323 lm/m | 5mm | 16.66mm / 1LED | SPI / SK6812 | 60 Pixels/m | RGB+W: 3000K / 4000K / 6000K |
| S008144DA4SA1 | SMD3535 144LEDs/m | DC5V | 32W/m | R:99 / G:304 / B:68 / W:748 lm/m | 8mm | 6.94mm / 1LED | SPI / SK6812 | 144 Pixels/m | RGB+W: 3000K / 4000K / 6000K |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need low power, basic pixel density | S005030DA4SA1, 30 LEDs/m |
| Need standard density and more balanced brightness | S005060DA4SA1, 60 LEDs/m |
| Need high density and finer animation effects | S008144DA4SA1, 144 LEDs/m |
| Installation space is very narrow | 5mm PCB versions: S005030DA4SA1 / S005060DA4SA1 |
| Need higher brightness and denser pixels | S008144DA4SA1 |
| Need each LED independently controllable | All three models are suitable |
| Need RGB + white channel | All three models are suitable |
| Need a waterproof version | Prefer the IP65 version of S005030DA4SA1 or S005060DA4SA1 |
| Need the shortest cutting pitch | S008144DA4SA1, 6.94mm / 1LED |
| Need 12V or 24V for long‑distance wiring | Not recommended for this series; consider the DC12V / DC24V Digital RGBW series instead |

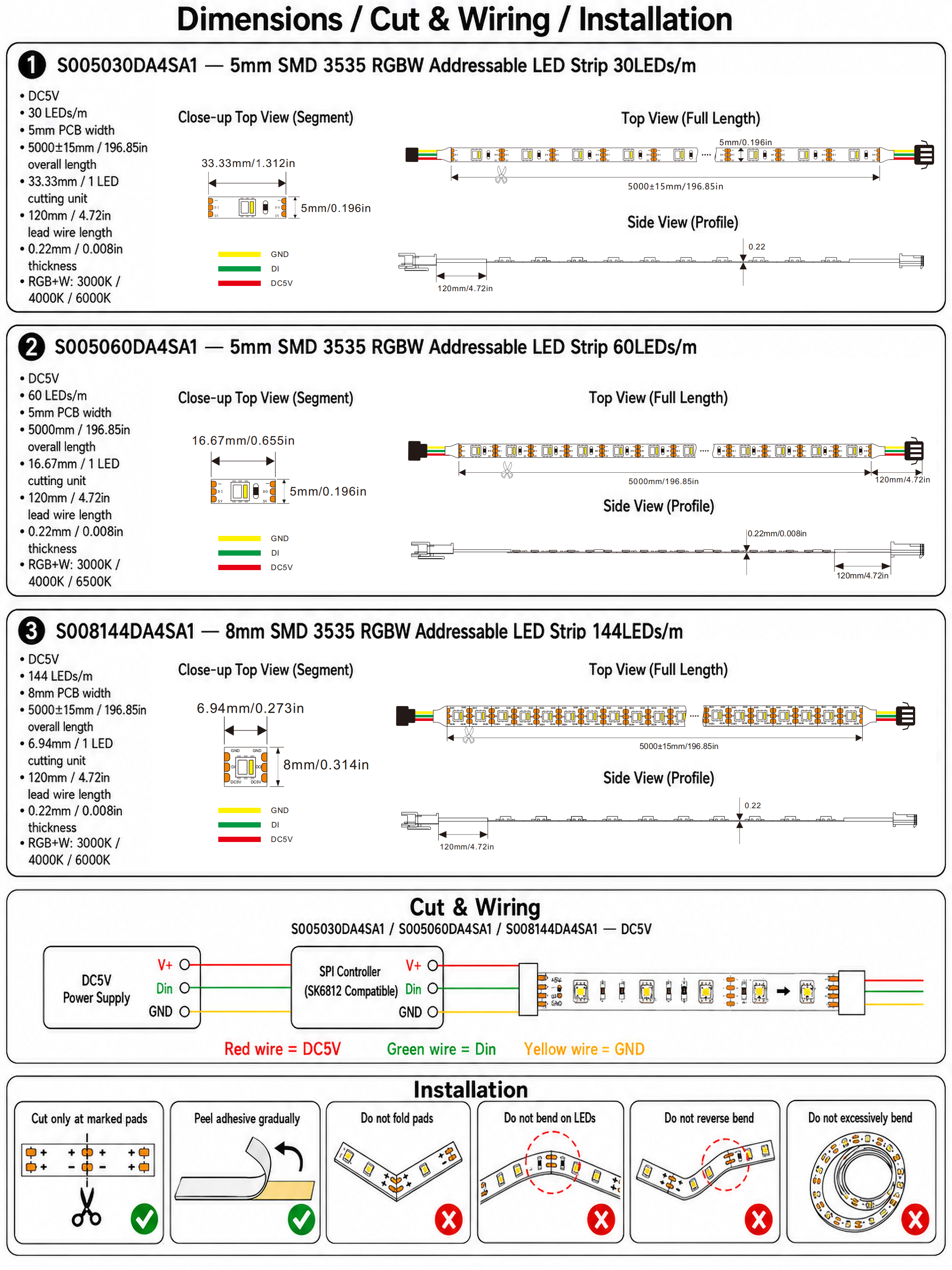

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V | Standard for this series |
| IC / Protocol | SK6812 | SPI digital control |
| LED Type | SMD3535 RGBW | RGB + white channel |
| LED Density | 30 / 60 / 144 LEDs/m | Select by pixel density and brightness |
| Pixel Density | 30 / 60 / 144 Pixels/m | 1 LED per pixel |
| PCB Width | 5mm / 8mm | 5mm for narrow space, 8mm for high density |
| White Channel | 3000K / 4000K / 6000K or 6500K | Confirm final CCT before order |
| Control | SPI / SK6812 | Compatible controller required |
| IP Rating | IP20 / IP65 | Depends on selected version |
| Length | 1m or 5m standard / custom length | Confirm by model before website release |
| Cable | 3-wire input/output | DC5V / DI / GND |
| Connector | JST-SM / custom connector | Based on project requirement |
| PCB Color | White PCB / black PCB can be evaluated | Based on order requirement |
| Mounting | 3M tape / profile / clips | Higher power version needs heat consideration |
| Accessories | DC5V power supply, SPI controller, connector | K-1000C shown in datasheet wiring diagram |
Related Items
Kart Track Pixel Lighting Project with WS2811 30LEDs/m SPI RGB LED Strip
Moscow Sheremetyevo International Airport | Ø80mm Milky White No-Shadow DMX512 3D Pixel LED Tube (B080072CB3DS)
Symbol of Rat Installation | 6×12mm Single-Sided Side-View Silicone Neon Flex (N006120BC1LZ / N0612)
Madrid UEFA Champions League Final | 15×15 3D Digital Neon Flex (N015120BC3SC / N1515)
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
30 LEDs/m is lower density and lower power. 60 LEDs/m is the standard option. 144 LEDs/m provides higher pixel density and smoother animation effects.
The 5mm PCB versions are better for narrow spaces. The 8mm version supports higher LED density and higher output.
Use an SPI controller compatible with SK6812 protocol. The datasheet shows K-1000C as a reference controller.
