AP-01 Tuya Smart Wi-Fi PWM LED Controller Series

AP-01 Tuya Smart Wi-Fi PWM LED Controller Series Mini Controller detail image

AP-01 Tuya Smart Wi-Fi PWM LED Controller Series

Compact Wi-Fi PWM controllers for DC 5–24V constant-voltage LED strips, available in 1-channel to 5-channel versions for single-color, tunable-white, RGB, RGBW and RGB+CCT lighting systems.
Request Quote Download Datasheet

Product Series Specification

Model NoChannelsCompatible LED TypeInput VoltageMax. Output CurrentControl MethodWiring Type
AP-01-1CH1 ChannelSingle-Color LED StripDC5–24V6A/ChannelWi-Fi App / Voice ControlCommon Positive
AP-01-2CH2 ChannelsTunable-White CCT LED StripDC5–24V6A/ChannelWi-Fi App / Voice ControlCommon Positive

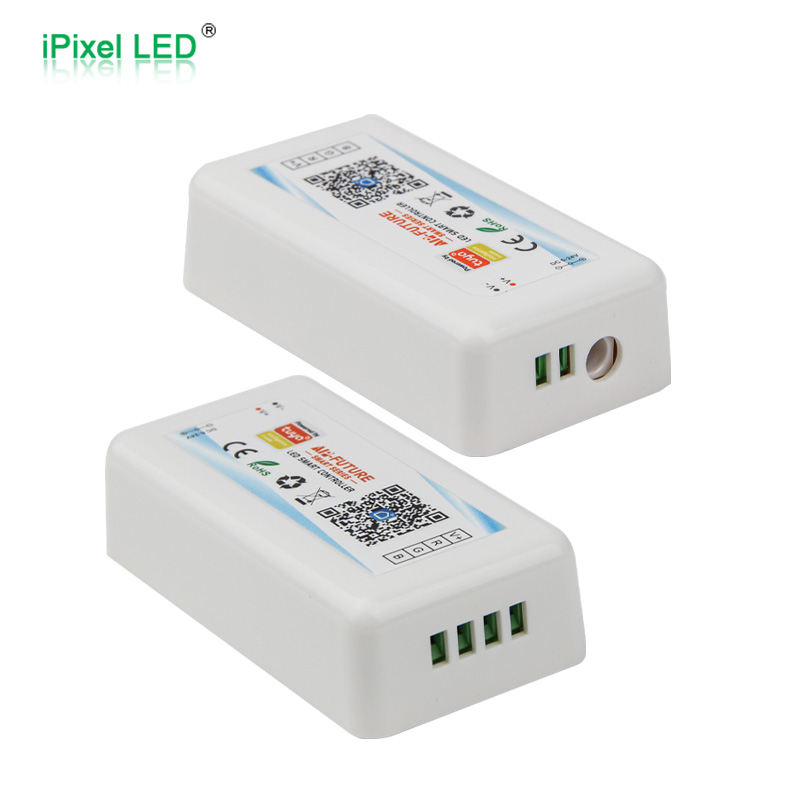

AP-01-3CH3 ChannelsRGB LED StripDC5–24V6A/ChannelWi-Fi App / Voice ControlCommon Positive

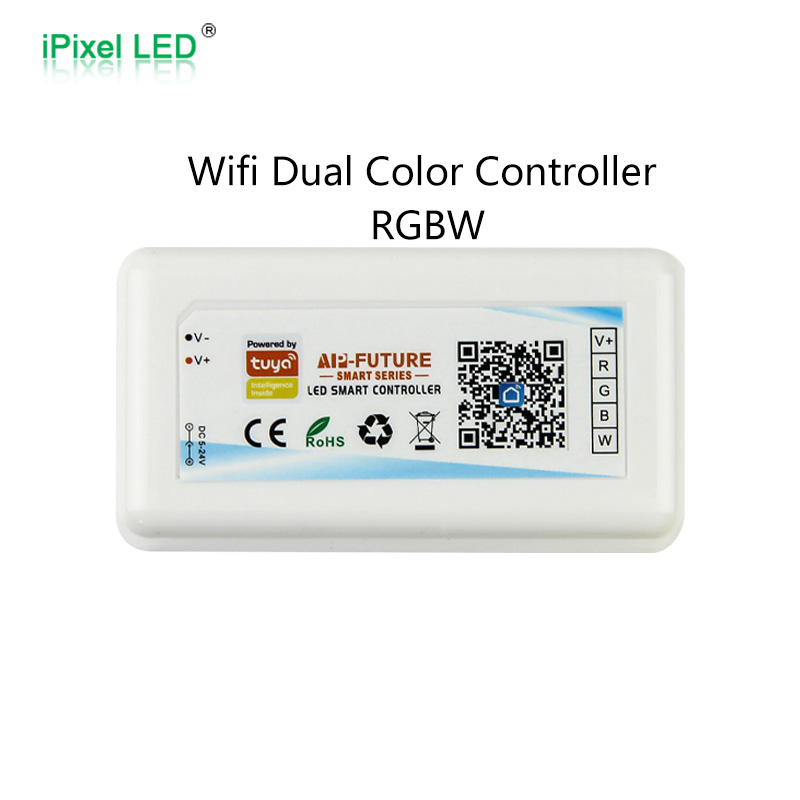

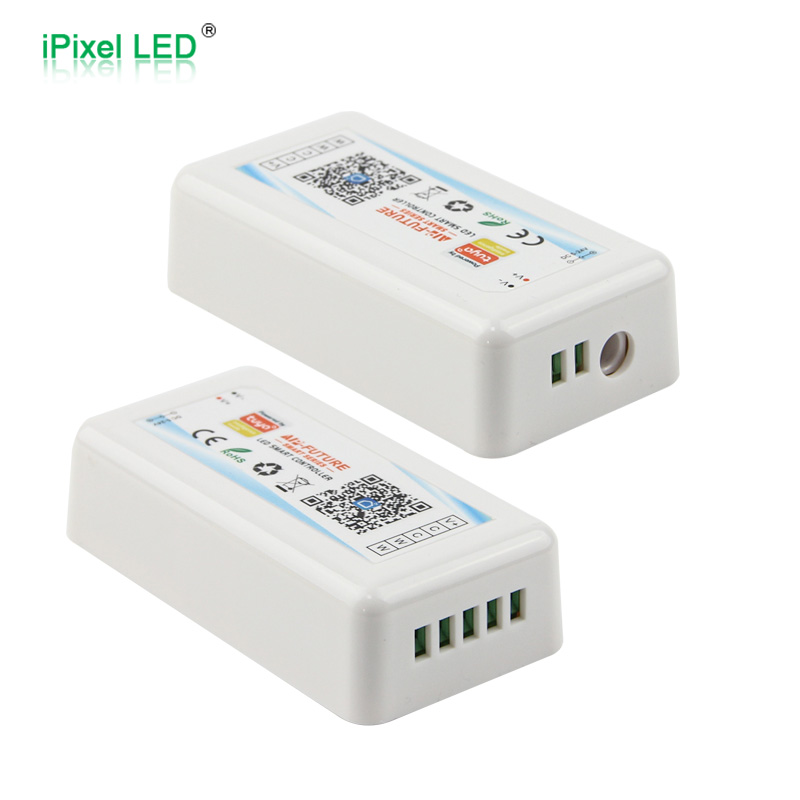

AP-01-4CH4 ChannelsRGBW LED StripDC5–24V6A/ChannelWi-Fi App / Voice ControlCommon Positive

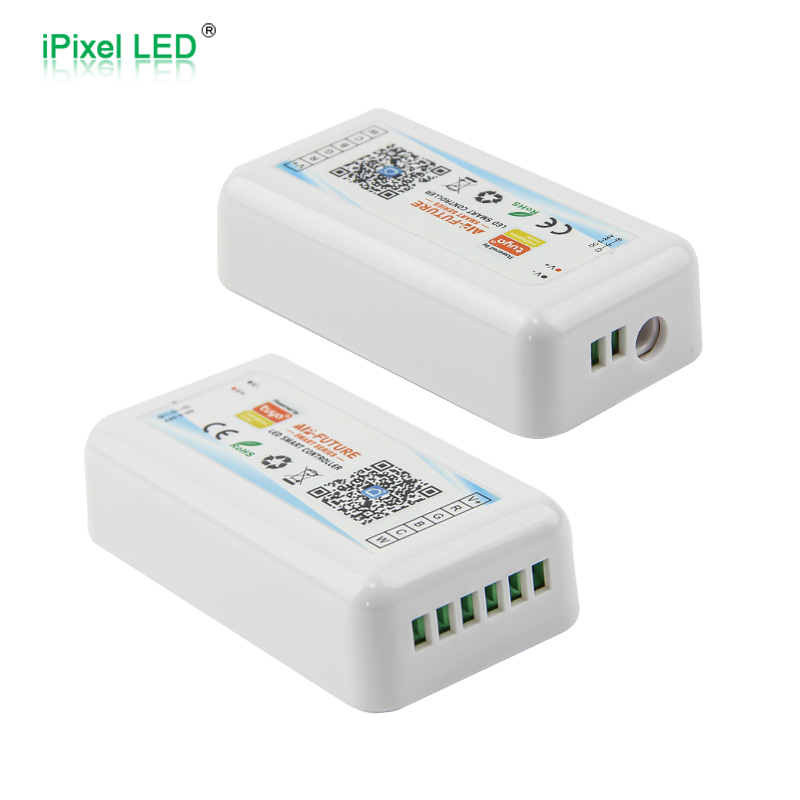

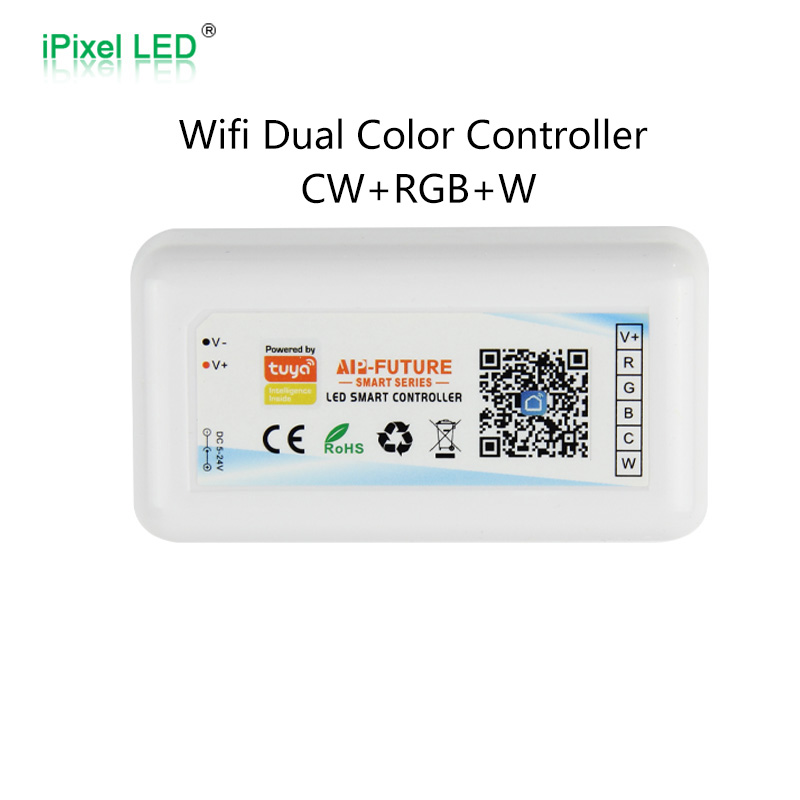

AP-01-5CH5 ChannelsRGB+CCT LED StripDC5–24V6A/ChannelWi-Fi App / Voice ControlCommon Positive

Common Specifications

ParameterSpecification
Controller TypeConstant-Voltage PWM LED Controller
Wireless Connection2.4GHz Wi-Fi
Mobile AppiOS and Android Compatible
Voice ControlSelected Third-Party Voice Platforms
Product Size85 × 45 × 23mm
Product Weight40g
Package Size92 × 52 × 30mm
Gross Weight50g
Installation EnvironmentDry Indoor Location
Waterproof RatingNon-Waterproof


FAQ

Choose the model according to the LED strip type: AP-01-1CH for single-color strips AP-01-2CH for tunable-white strips AP-01-3CH for RGB strips AP-01-4CH for RGBW strips AP-01-5CH for RGB+CCT strips
Yes. The controller requires a DC 5–24V constant-voltage power supply. The power supply voltage must match the voltage of the connected LED strip.
No. Direct connection to AC mains power will damage the controller. It must be installed after a compatible low-voltage DC power supply.
No. The controller uses a 2.4GHz Wi-Fi network for pairing and app control.
