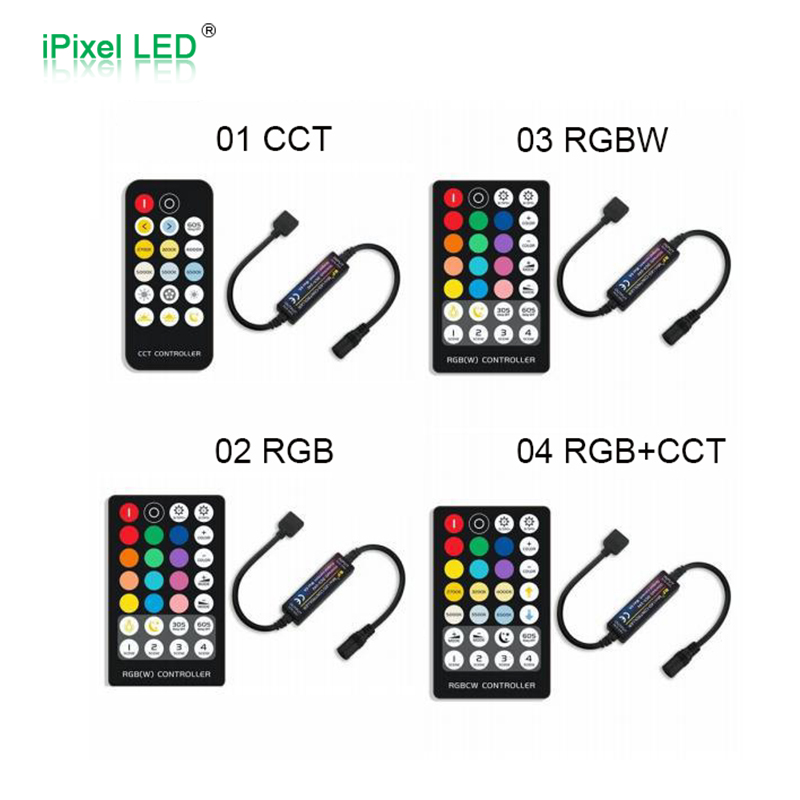

Choose the controller according to the LED strip type:
CCT version for tunable-white LED strips
RGB version for RGB LED strips
RGBW version for RGBW LED strips
RGB+CCT version for RGB plus tunable-white LED strips

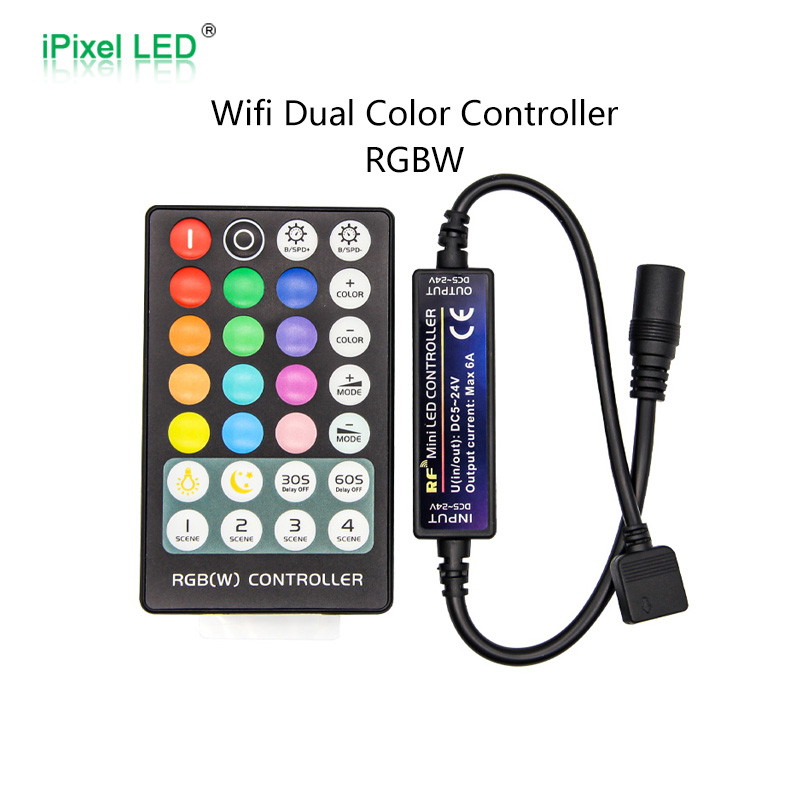

XS-56 Wireless RF Mini LED Controller Series
XS-56 Wireless RF Mini LED Controller Series

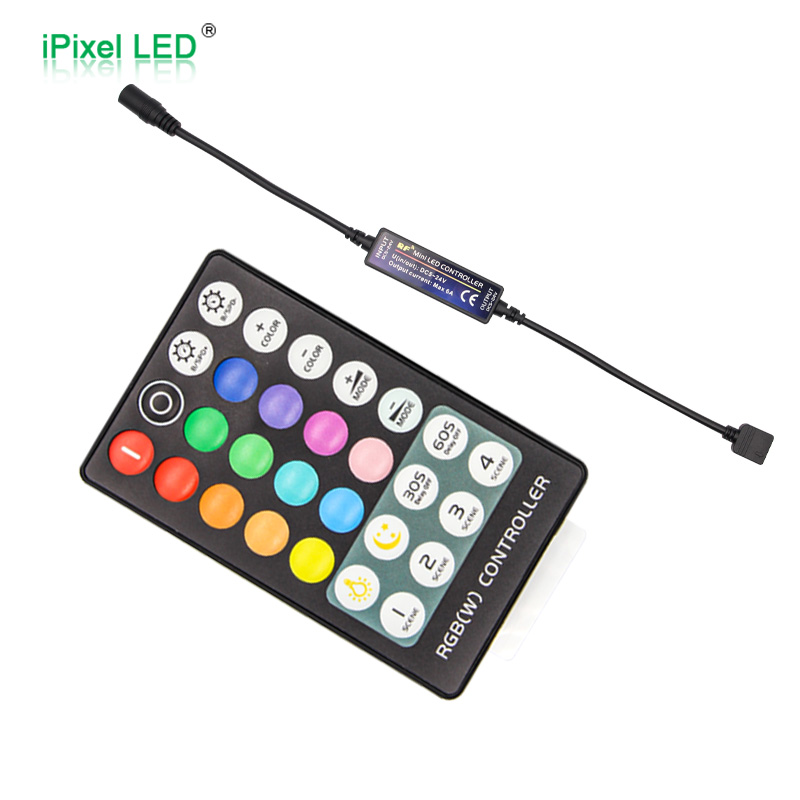

The XS-56 series is a compact RF wireless controller designed for low-voltage LED strips. Its pre-wired input and output connectors allow the controller to be installed directly between the power supply and LED strip without soldering.

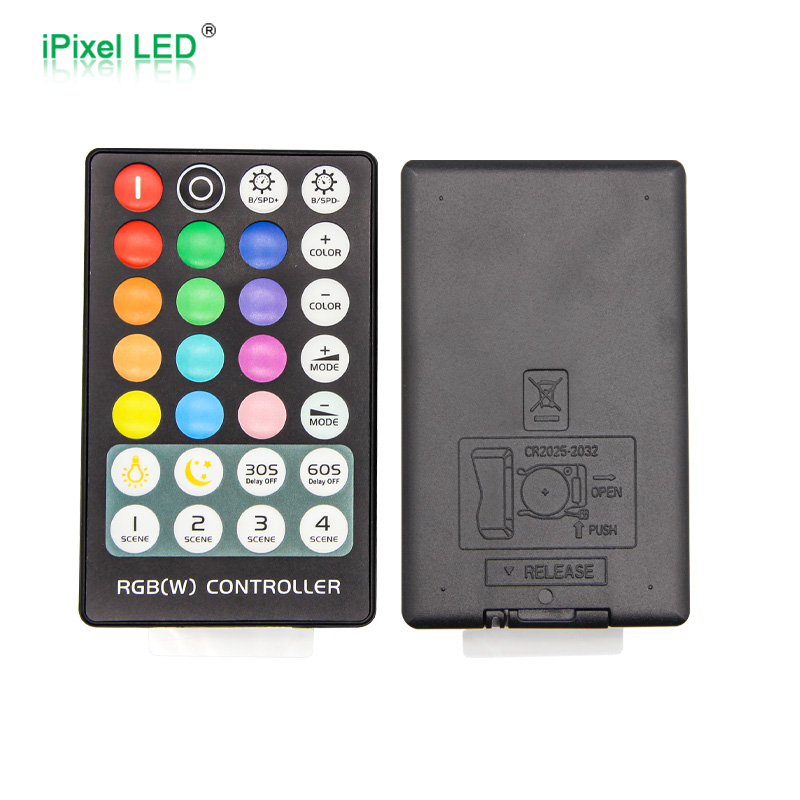

Different versions are available for tunable-white, RGB, RGBW and RGB+CCT lighting. Depending on the selected version, users can adjust brightness, color, color temperature, dynamic effects and operating speed through the supplied RF remote control.
Product Series Specification
| Model No | Channels | Compatible LED Type | Input Voltage | Maximum Output | Output Connector | Control Method |
|---|---|---|---|---|---|---|
| XS-56-02 | 2 CH | Tunable-White CCT LED Strip | DC5–24V | ≤2A/Channel, ≤6A Total | 4-Pin Plug | RF Remote |
| XS-56-03 | 3 CH | RGB LED Strip | DC5–24V | ≤2A/Channel, ≤6A Total | 4-Pin Plug | RF Remote |
| XS-56-04 | 4 CH | RGBW LED Strip | DC5–24V | ≤2A/Channel, ≤6A Total | 5-Pin Plug | RF Remote |
| XS-56-05 | 5 CH | RGB+CCT LED Strip | DC5–24V | ≤2A/Channel, ≤6A Total | 6-Pin Plug | RF Remote |
Common Specifications
| Parameter | Specification |
|---|---|
| Controller Type | Constant-Voltage PWM LED Controller |
| Control Method | RF Wireless Remote |
| Connection Type | Plug-and-Play, Solder-Free |
| Input Connector | 5.5 × 2.1mm DC Connector |
| Maximum Total Current | 6A |
| Maximum Output Power | 5V: <30W; 12V: <72W; 24V: <144W |
| Standby Power Consumption | <0.5W |
| Operating Temperature | -20°C to +60°C |
| Controller Size | 55.7 × 16.6 × 10.7mm |
| Net Weight | Approx. 30–40g, depending on remote |
| Gross Weight | Approx. 32–45g, depending on remote |
| Installation Environment | Dry Indoor Location |
| Output Wiring | Common Positive |
FAQ
No. The XS-56 uses pre-installed DC and multi-pin connectors, allowing direct plug-and-play connection when the LED strip connector and pin order are compatible.
Yes. A DC 5–24V constant-voltage power supply is required. The power supply voltage must match the voltage of the LED strip.
The maximum total output current is 6A. The recommended maximum loads are:
5V: below 30W
12V: below 72W
24V: below 144W
The actual load should also consider connector rating, wire size and heat dissipation.
