Select the controller according to the LED strip type:

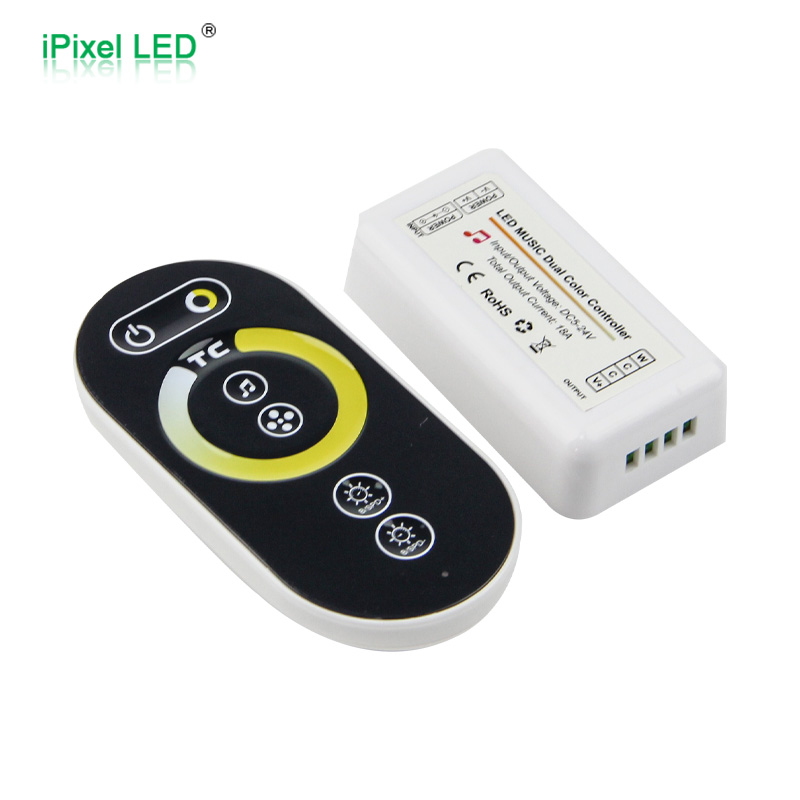

YS-SK85-02 for tunable-white strips

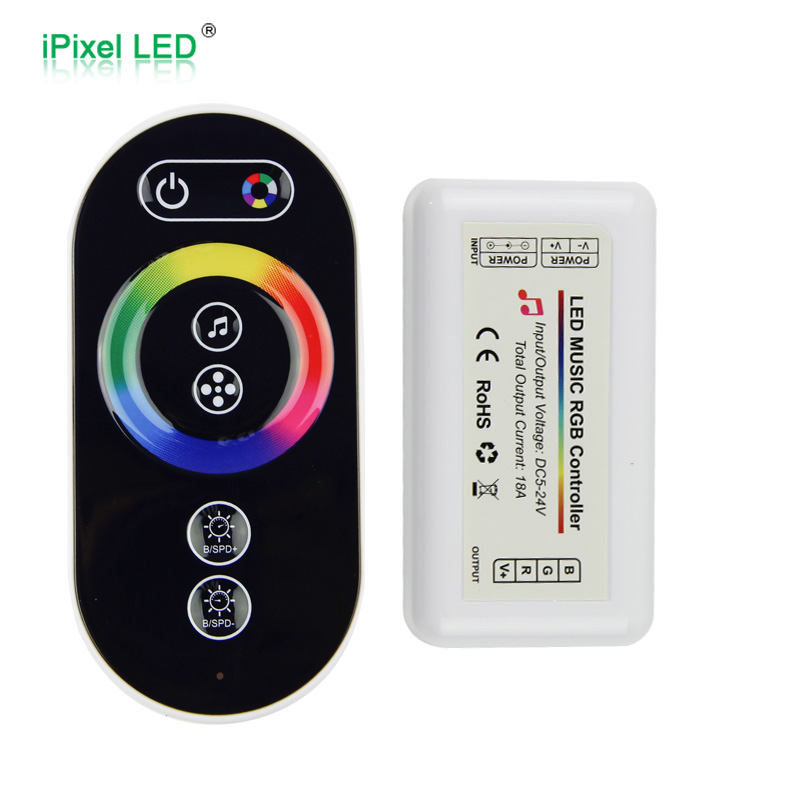

YS-SK85-03 for RGB strips

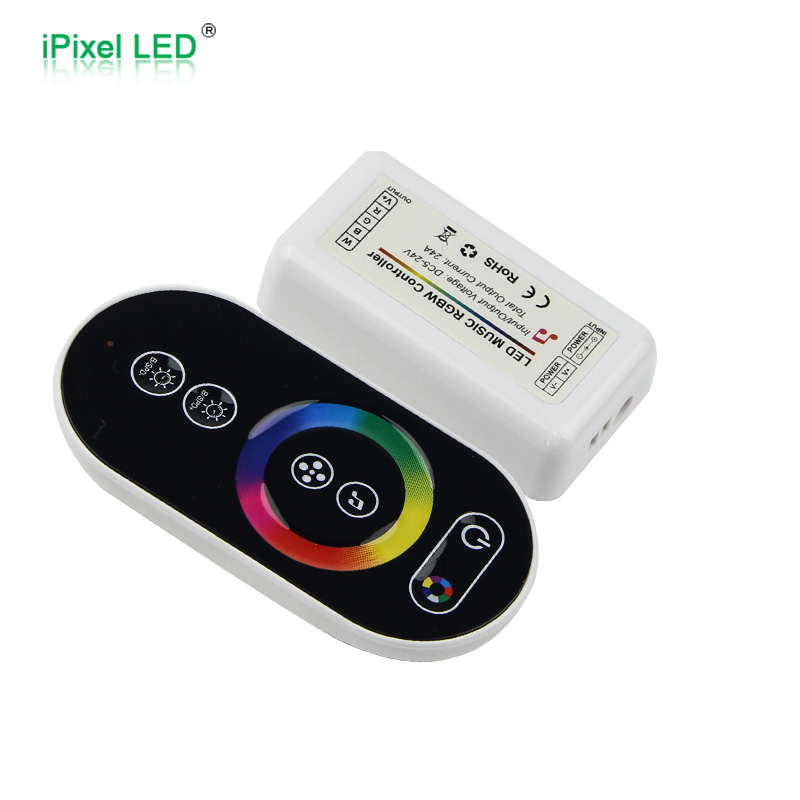

YS-SK85-04 for RGBW strips

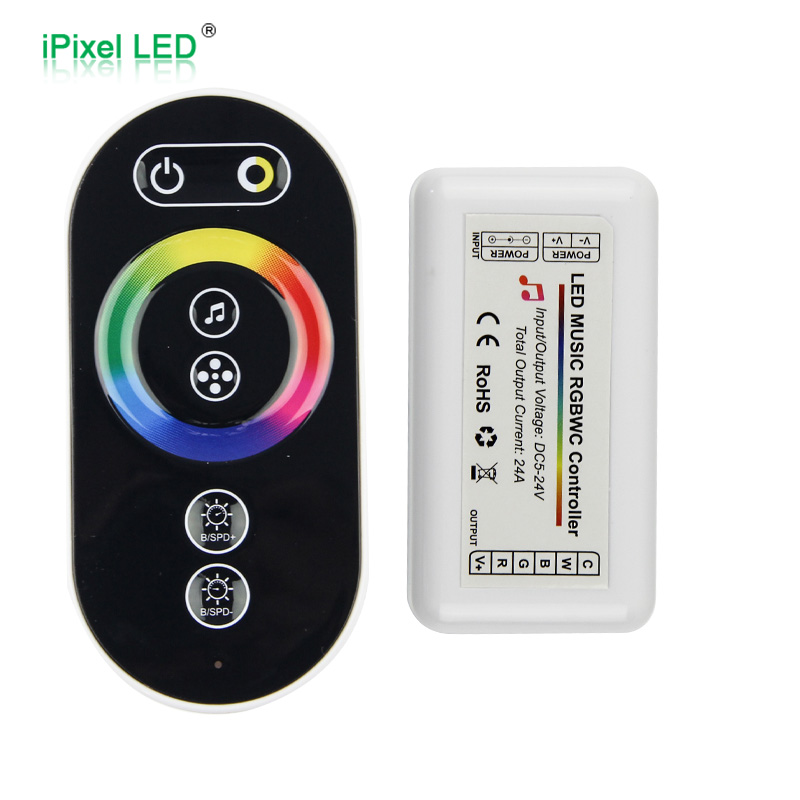

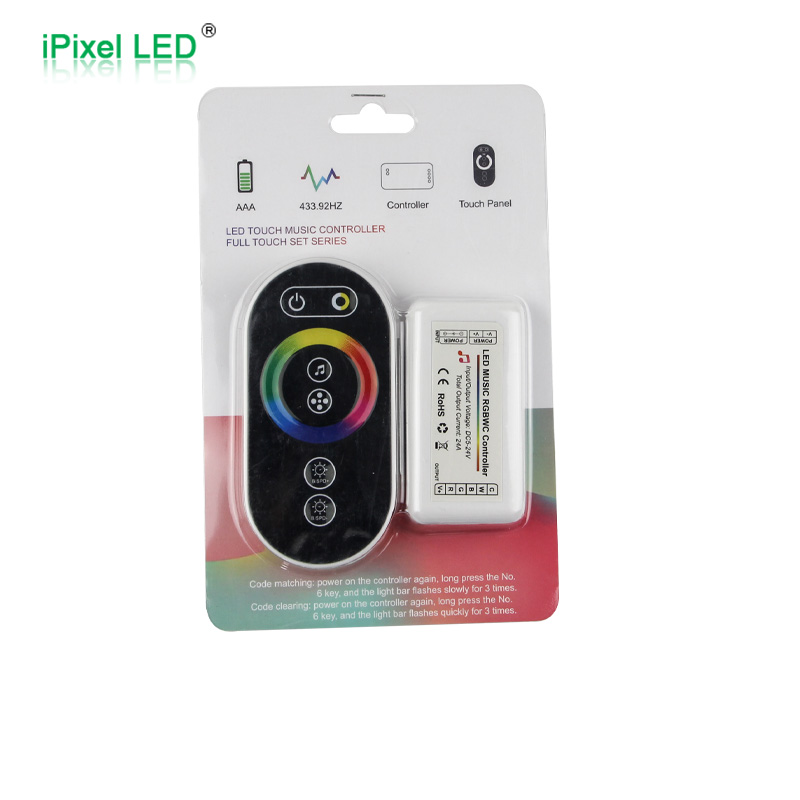

YS-SK85-05 for RGB+CCT strips
YS-SK85 RF Touch Music LED Controller Series
YS-SK85 RF Touch Music LED Controller Series
The YS-SK85 series combines a full-touch RF remote with a compact constant-voltage LED receiver.
Different channel versions are available for tunable-white, RGB, RGBW and RGB+CCT LED strips.
The controller supports static colors, brightness adjustment, dynamic effects and music-synchronized lighting.
Product Series Specification
| Model No | Channels | Compatible LED Type | Input Voltage | Max. Output Current | Control Method | Wiring Type |
|---|---|---|---|---|---|---|
| YS-SK85-02 | 2 Channels | Tunable-White CCT LED Strip | DC5–24V | 6A/Channel | RF Touch Remote / Music Sync | Common Positive |
| YS-SK85-03 | 3 Channels | RGB LED Strip | DC5–24V | 6A/Channel, 18A Total | RF Touch Remote / Music Sync | Common Positive |
| YS-SK85-04 | 4 Channels | RGBW LED Strip | DC5–24V | 6A/Channel, 24A Total | RF Touch Remote / Music Sync | Common Positive |
| YS-SK85-05 | 5 Channels | RGB+CCT LED Strip | DC5–24V | 4.8A/Channel, 24A Total | RF Touch Remote / Music Sync | Common Positive |
Common Specifications
| Parameter | Specification |
|---|---|
| Controller Type | Constant-Voltage PWM LED Controller |
| Control Method | RF Wireless Full-Touch Remote |
| Functions | Static Color, Brightness, Dynamic Modes, Speed and Music Synchronization |
| Operating Voltage | DC 5–24V |
| Operating Temperature | -20°C to +60°C |
| Standby Power Consumption | <1W |
| Controller Size | 85 × 45 × 23mm |
| Remote Size | 113 × 56 × 22.5mm |
| Controller + Remote Net Weight | 117–120g |
| Gross Weight | Non-Waterproof |
| Installation Environment | Dry Indoor Location |
| Waterproof Rating | Non-Waterproof |
FAQ
Yes. A DC 5–24V constant-voltage power supply is required. The power supply voltage must match the LED strip voltage.
No. The YS-SK85 series uses PWM constant-voltage output. SPI and DMX512 pixel strips require a digital controller.
The remote or controller detects music or surrounding sound and changes the lighting effect according to the selected music mode.
