Choose the controller according to the LED strip type:

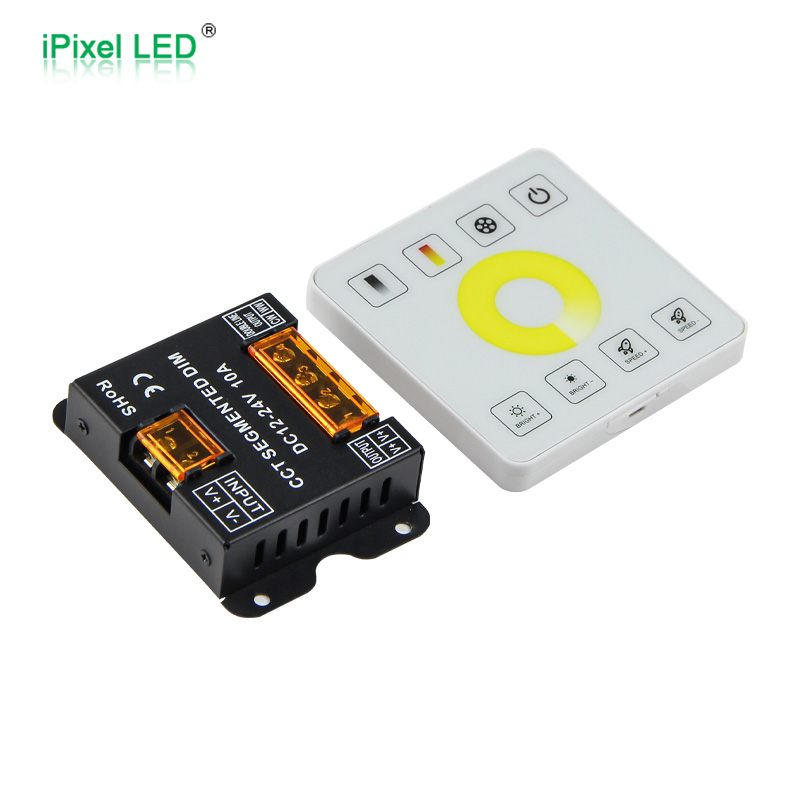

CCT version for tunable-white LED strips

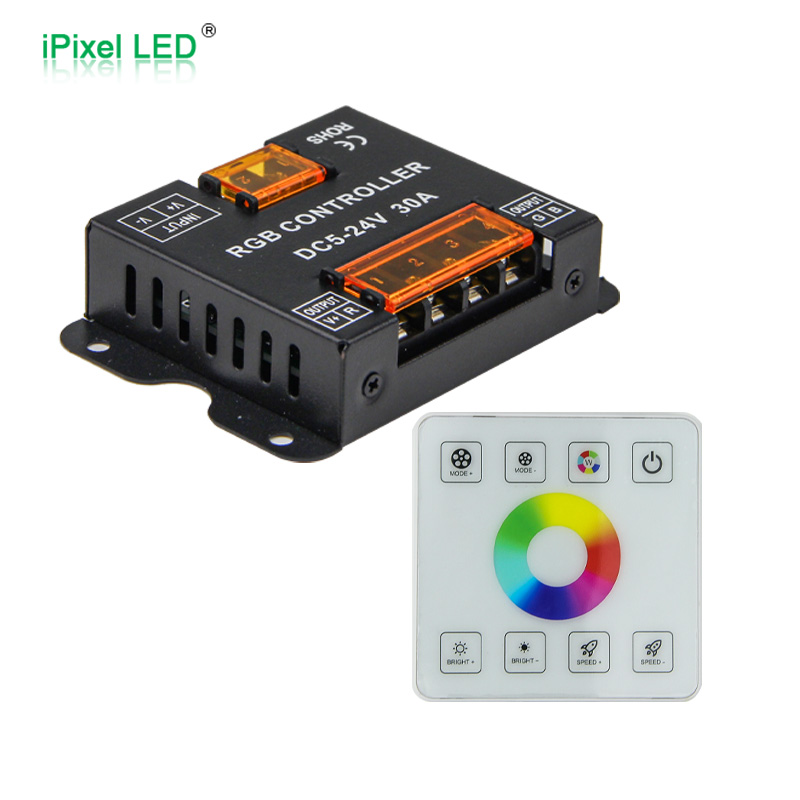

RGB version for RGB LED strips

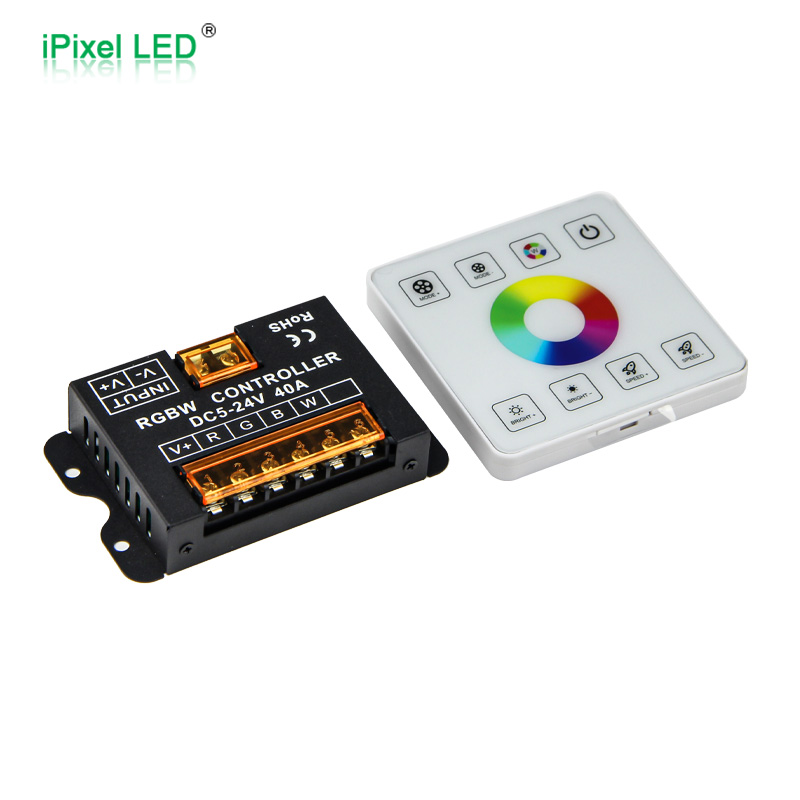

RGBW version for RGBW LED strips

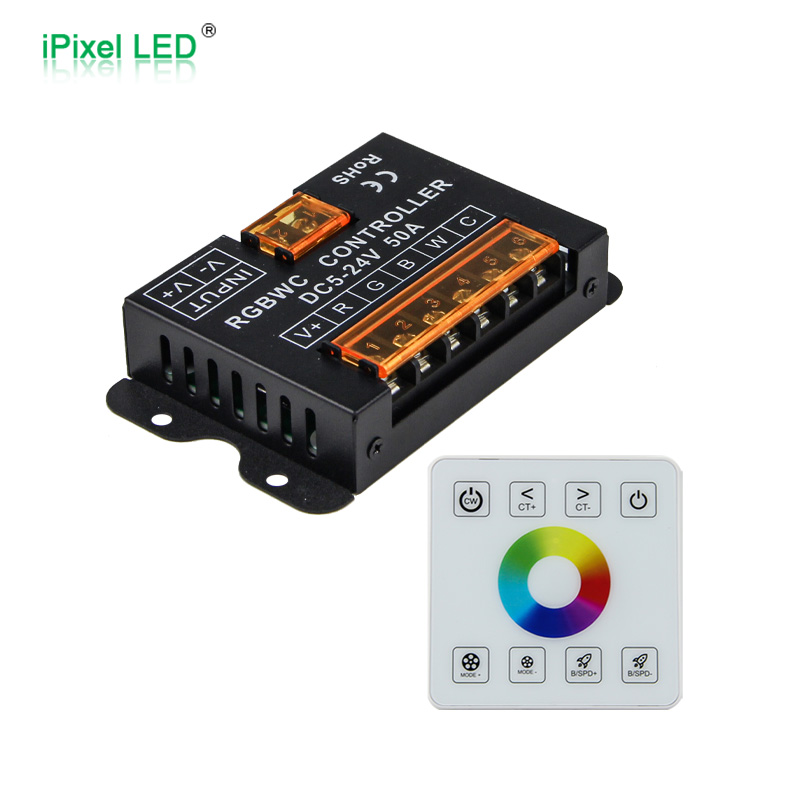

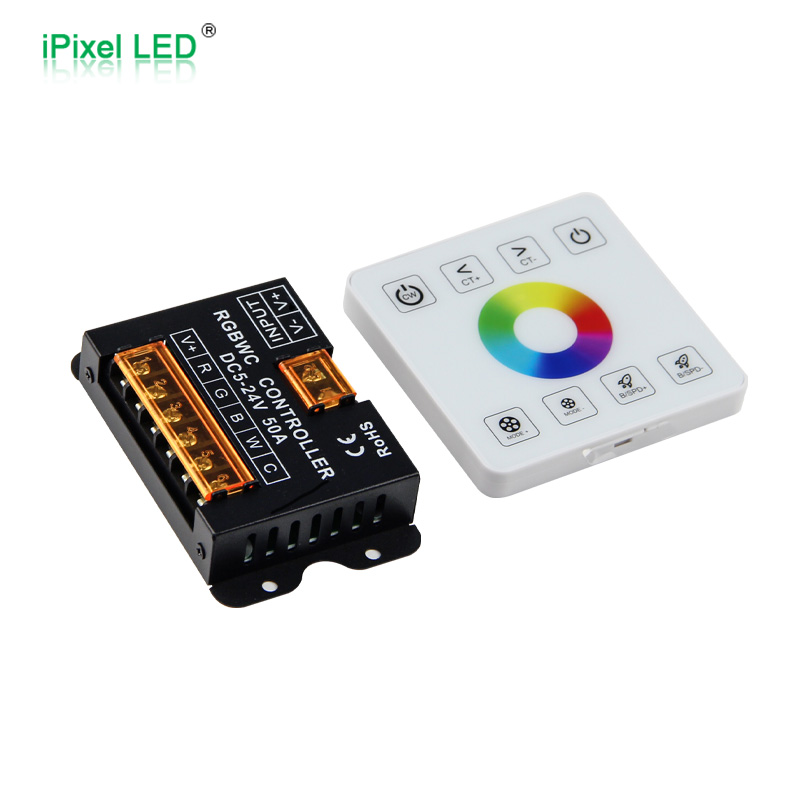

RGB+CCT version for RGB plus tunable-white LED strips
86型全触摸墙壁面板＋RF无线接收器
XS-86 RF Full-Touch Wall Panel LED Controller Series
The XS-86 series combines a full-touch wall panel with a wireless RF receiver, providing
convenient control of color, brightness, color temperature, dynamic effects and operating speed.
Four receiver versions are available to match different constant-voltage LED strip configurations.
Product Series Specification
| Model No | Version | Compatible LED Type | Input Voltage | Rated Output | Maximum Output Power | Receiver Size | Weight |
|---|---|---|---|---|---|---|---|
| XS-86-02 | CCT Version | Tunable-White CCT LED Strip | DC12–24V | 5A × 2CH | 12V: <120W; 24V: <240W | 85 × 62 × 22mm | 170g |
| XS-86-03 | RGB Version | RGB LED Strip | DC5–24V | 10A × 3CH | 5V: <150W; 12V: <360W; 24V: <720W | 85 × 62 × 22mm | 170g |
| XS-86-04 | RGBW Version | RGBW LED Strip | DC5–24V | 10A × 4CH | 5V: <200W; 12V: <480W; 24V: <960W | 103 × 62 × 22mm | 180g |
| XS-86-05 | RGB+CCT Version | RGB+CCT LED Strip | DC5–24V | 10A × 5CH | 5V: <250W; 12V: <600W; 24V: <1200W | 103 × 62 × 22mm | 180g |
Common Specifications
| Parameter | Specification |
|---|---|
| Controller Type | Constant-Voltage PWM LED Controller |
| Control Method | RF Wireless Full-Touch Wall Panel |
| Output Connection | Common Positive |
| Functions | Static Colors, Brightness, Color Temperature, Dynamic Modes and Speed Adjustment |
| Dynamic Effects | Gradient, Jump and Flash Modes |
| Brightness Levels | 10 Levels |
| Speed Levels | 10 Levels |
| Operating Temperature | -20°C to +60°C |
| Package Size | 110 × 94 × 42mm |
| Installation Environment | Dry Indoor Location |
FAQ
Yes. A compatible constant-voltage power supply is required. The power supply voltage must match both the controller and the connected LED strip.
No. The receiver is a low-voltage DC controller and must be installed after a compatible LED power supply.
No. The XS-86 series uses conventional PWM channel control. SPI, addressable and DMX512 LED strips require a digital controller.
