N006432UC2PZ is a 6×6mm 2-wire dual-color neon flex with 2700K + 5700K. N008232XC1LZ is an 8×8mm single-color white neon flex with 3000K / 4000K / 6500K options.

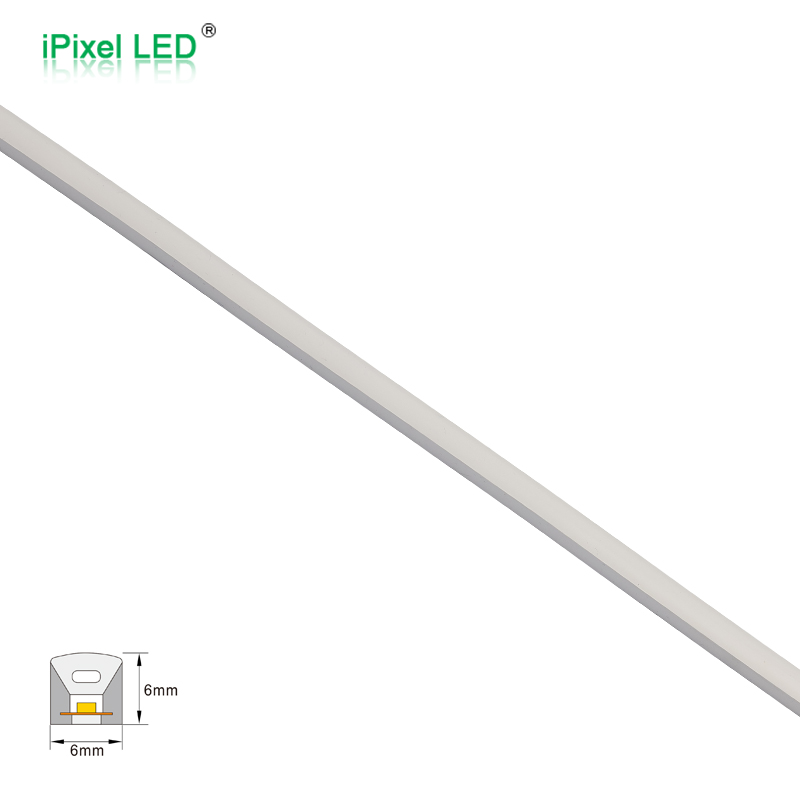

Mini Single-Sided Neon Flex Series

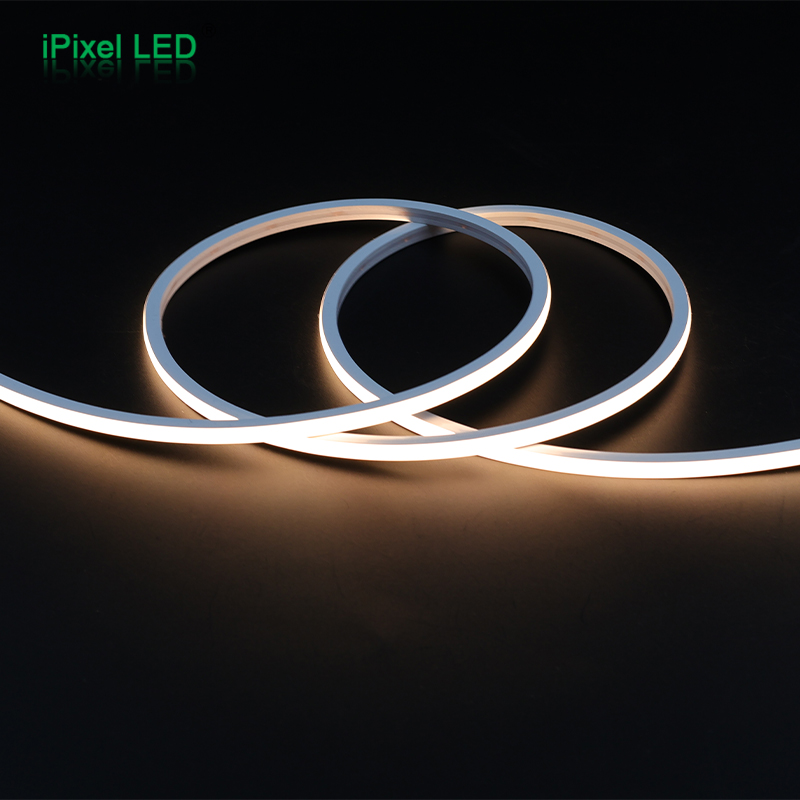

This Mini Single-Sided Neon Flex Series is designed for compact linear lighting applications where a smaller neon profile is required. The series includes 6×6mm 2-wire dual-color neon flex and 8×8mm single-color free-cut neon flex, both using DC24V input, high-transmittance silicone material, soft dotless light output, and flexible up-and-down bending structure.

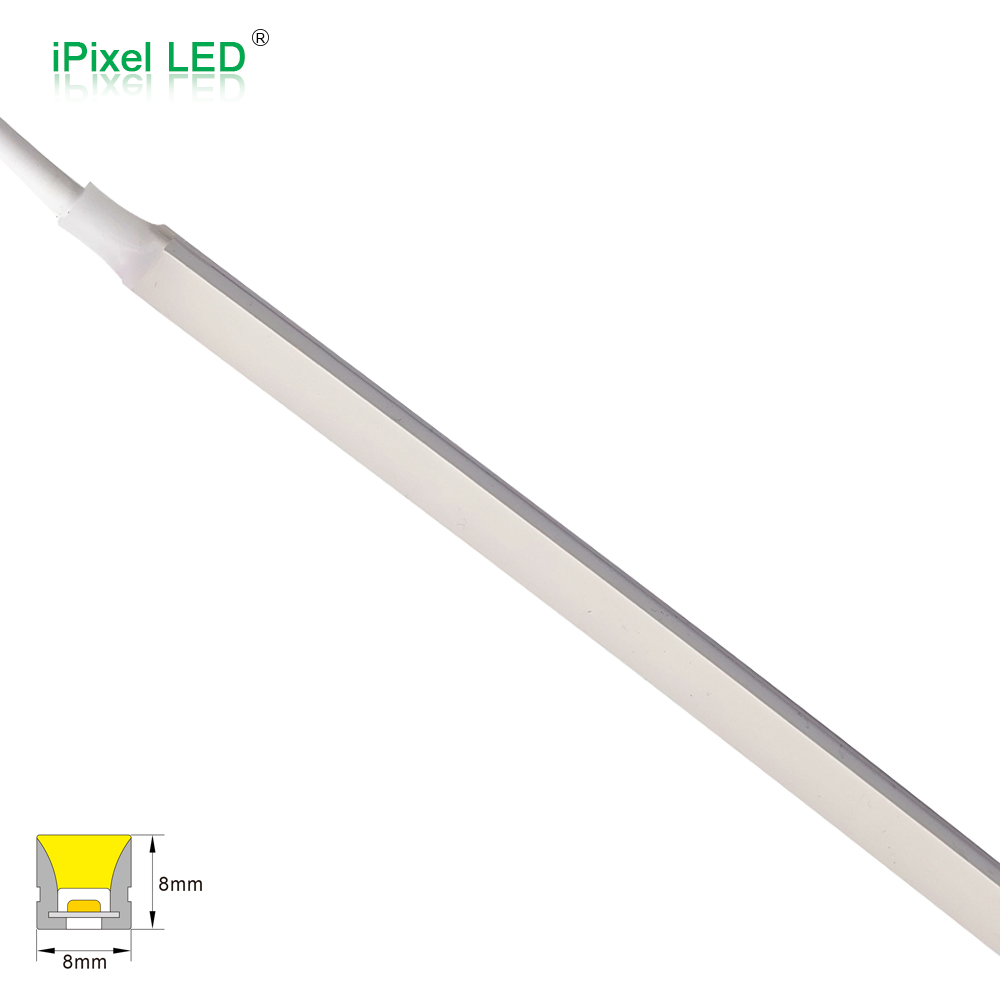

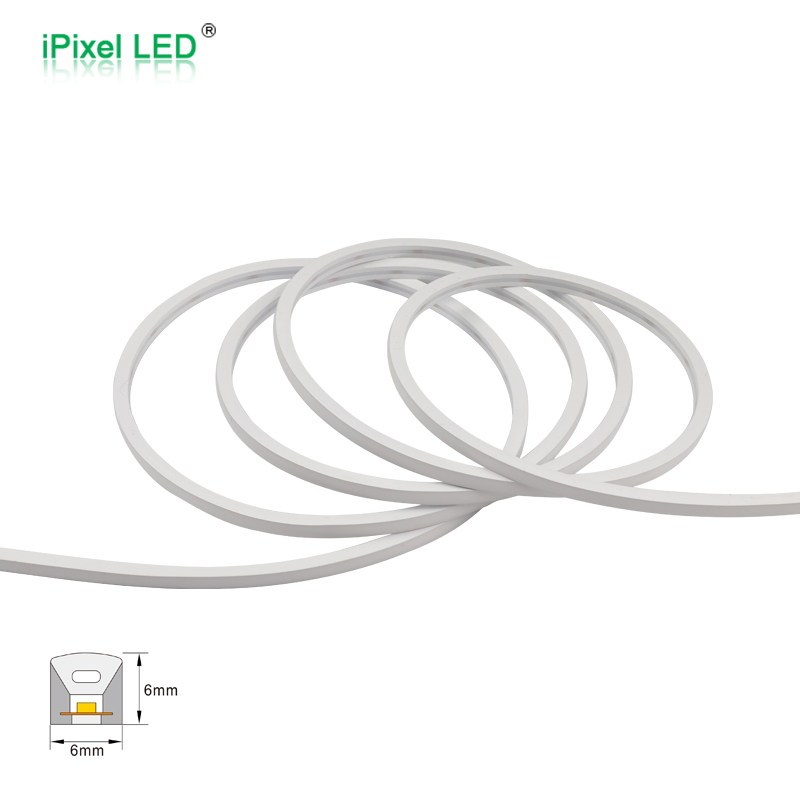

The N006432UC2PZ(N0606) version is a 6×6mm dual-color neon strip with 2700K + 5700K CCT options, while the N008232XC1LZ(N0808) version is an 8×8mm single-color white neon strip with 3000K / 4000K / 6500K CCT options and free-cut structure. Both are suitable for signage lighting, indoor/outdoor decoration, architectural contour lighting and compact installation spaces.
DC24V232/432LEDs/m2.7/5/8mm WidthSingle Color/CCTIP65/IP67
Overview & Key Features
Series Overview
This series is positioned for projects that need a smaller neon size than standard 10×10mm, 12×12mm, 16×16mm or 20×20mm neon flex. It is especially suitable for narrow grooves, small signage, fine contour lines, cabinet lighting, home lighting and decorative edge lighting.
The 6×6mm version focuses on very small size and dual-color output. The 8×8mm version focuses on free-cut flexibility, higher lumen output and IP67 outdoor protection.
Key Features
- Mini single-sided positive glowing neon flex series
- 6×6mm and 8×8mm profile options
- DC24V low-voltage input
- Up-and-down bending structure
- Soft dotless light output
- High-transmittance silicone material
- CRI ≥90
- 10m maximum run length
- 5m standard roll length, custom length available
- IP65 / IP67 protection options
- UV resistance, flame retardant, corrosion resistance and salt-liquid resistance
- Suitable for signage, cabinet lighting, home lighting, architectural contour and indoor/outdoor decorative lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N006432UC2PZ | 432 pcs/m | DC24V | 9W/m | 2-wire dual color | 6mm | 2700±250K / 5700±450K | 9.26mm | 2700K: 370lm / 5700K: 400lm | N0606 6×6mm dual-color mini neon, IP65 |
| N008232XC1LZ | 232 pcs/m | DC24V | 8W/m | Constant voltage single color | 8mm | 3000±300K / 4000±350K / 6500±500K | Free cut | W: 470lm | N0808 8×8mm single-color free-cut mini neon, IP67 |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need the smallest neon profile | N006432UC2PZ — 6×6mm mini neon flex. |
| Need dual-color warm/cool white effect | N006432UC2PZ — 2700K + 5700K 2-wire dual color. |
| Need single-color white neon with CCT options | N008232XC1LZ — 3000K / 4000K / 6500K. |
| Need free-cut flexibility | N008232XC1LZ — free cut structure. |
| Need higher white lumen output | N008232XC1LZ — W: 470lm/m. |
| Need smaller bending diameter | N006432UC2PZ — R > 40mm shown in the datasheet. |
| Need stronger outdoor protection | N008232XC1LZ — IP67 listed. |

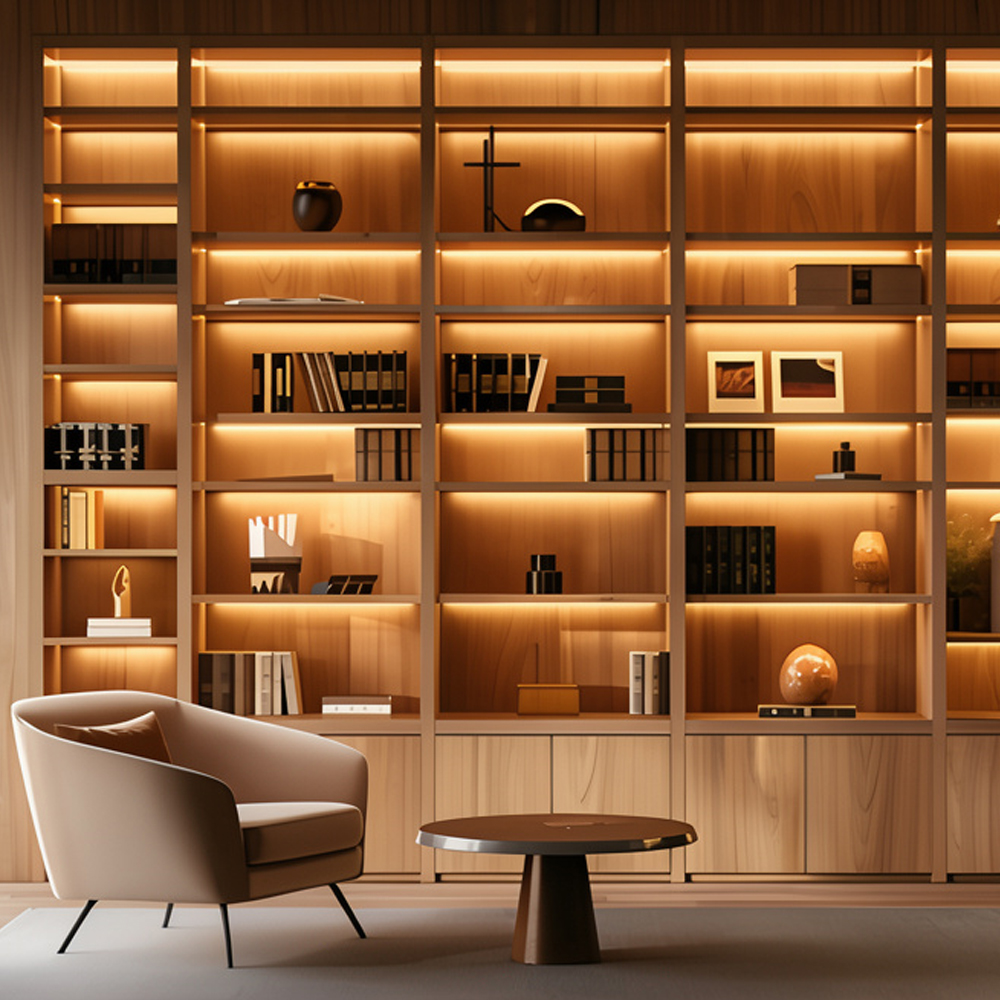

| Need cabinet or home lighting application | N008232XC1LZ — datasheet specifically lists cabinet lighting and home lighting. |
| Need compact signboard or fine contour lighting | Both models are suitable; choose by size and color requirement. |

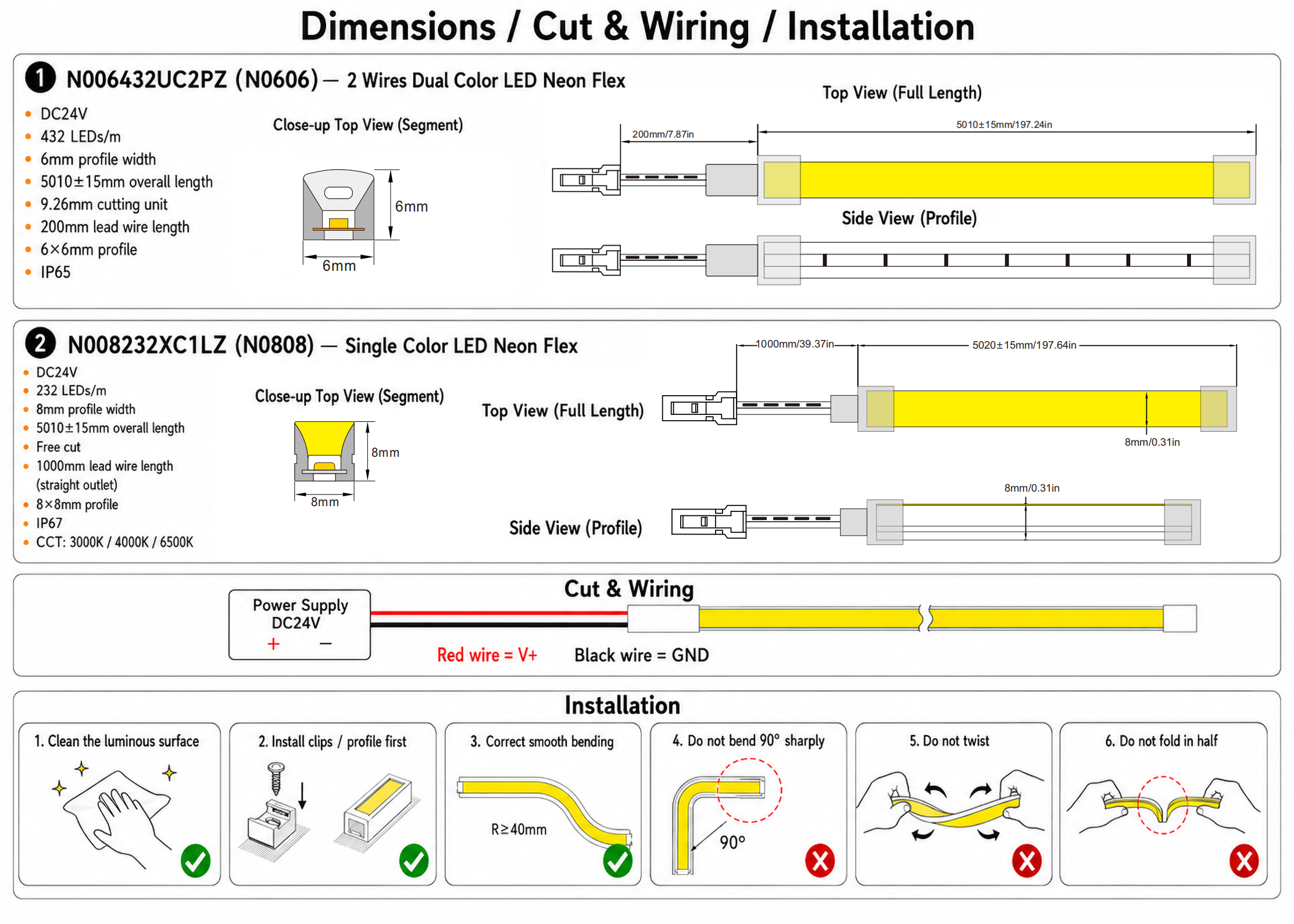

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Both models use DC24V input. |
| LED Type | SMD1515 / SMD | N006432UC2PZ uses SMD1515; N008232XC1LZ datasheet lists SMD 232pcs/m. |
| ColorType | 2-wire dual color / single color white | Select by lighting effect requirement. |
| Color Range | 2700±250K / 5700±450K; 3000±300K / 4000±350K / 6500±500K | N006432UC2PZ is dual color; N008232XC1LZ is single-color white CCT selectable. |
| PCB Width | 6mm / 8mm | Corresponds to N0606 and N0808 profile size. |
| Power | 9W/m / 8W/m | N006432UC2PZ: 9W/m; N008232XC1LZ: 8W/m. |
| Control | 2-wire dual color / constant voltage | N006432UC2PZ uses 2-wire dual-color control; N008232XC1LZ is single-color constant-voltage type. |
| IPRating | IP65 / IP67 | N006432UC2PZ is IP65; N008232XC1LZ is IP67. |
| Length | 5010±15mm standard / custom length | Both datasheets show around 5m standard length and 10m max length. |
| Connector | Silicone end cap / molded end cap / solderless connector / custom wire outlet | N008232XC1LZ includes straight outlet, side outlet, bottom outlet and solderless connector drawings. |
| Mounting | Clip / aluminum profile / embedded mounting | Installation diagrams show clip and aluminum profile mounting methods. |
| Packing | Reel / carton / project packing | Packing can be confirmed according to order length and connector configuration. |
Related Items

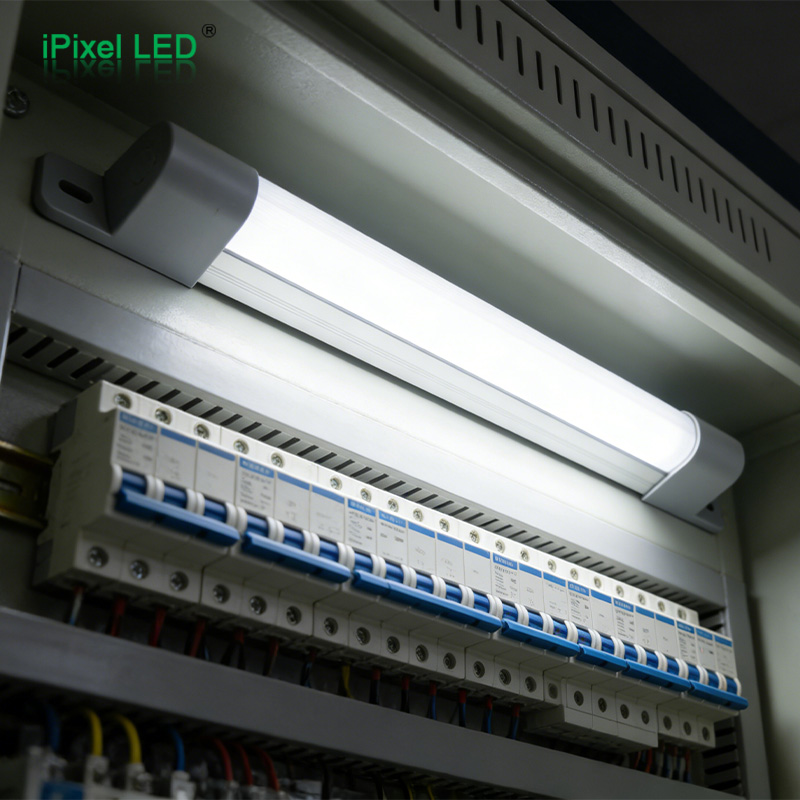

Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation

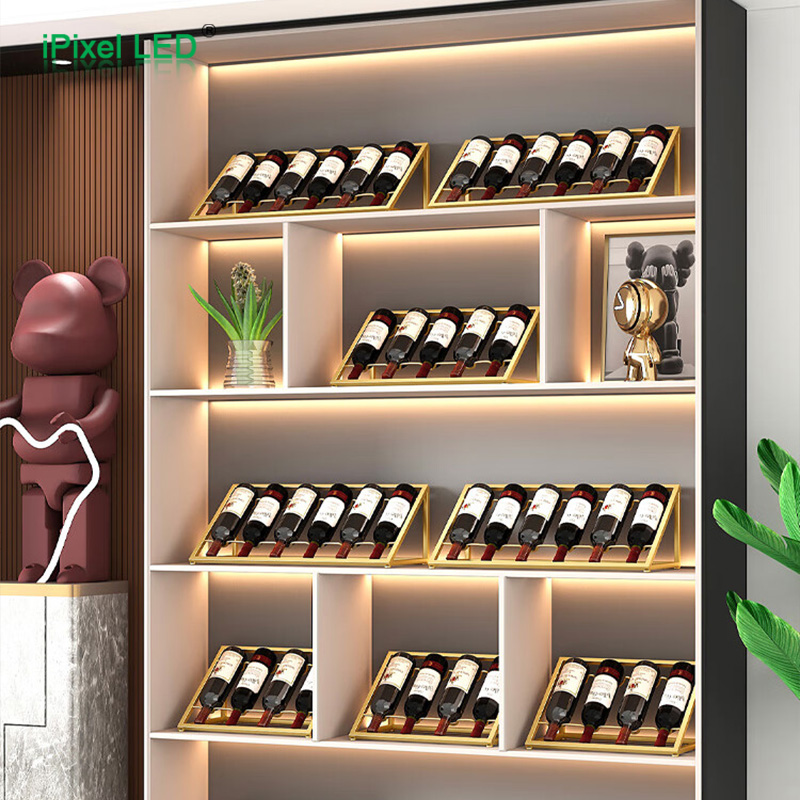

Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination

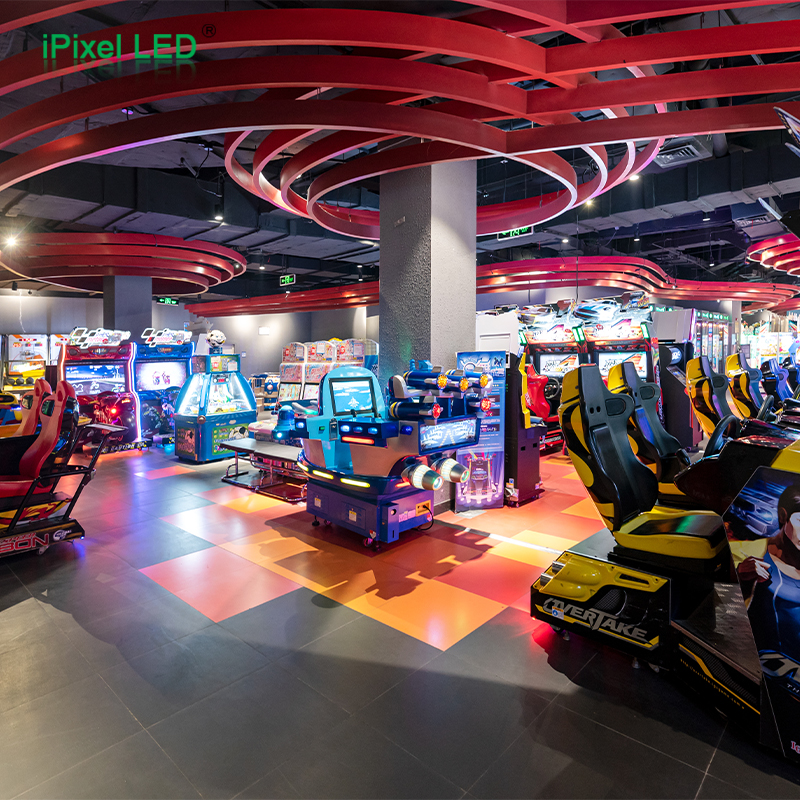

Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
N006432UC2PZ, with a 6×6mm profile.
N006432UC2PZ supports 2-wire dual color.
N008232XC1LZ supports free cutting according to the datasheet.
