Series Overview

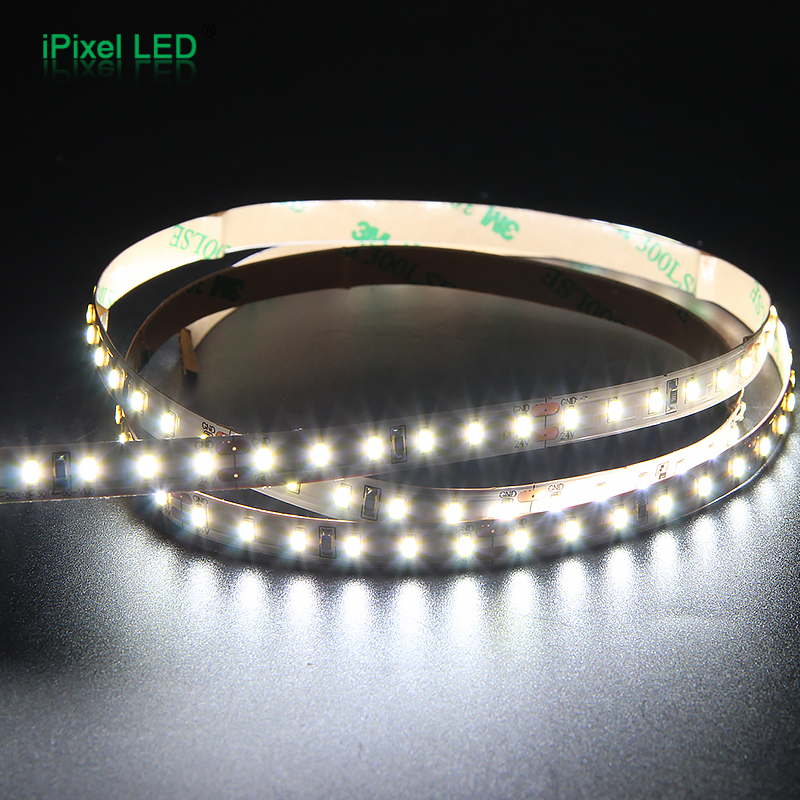

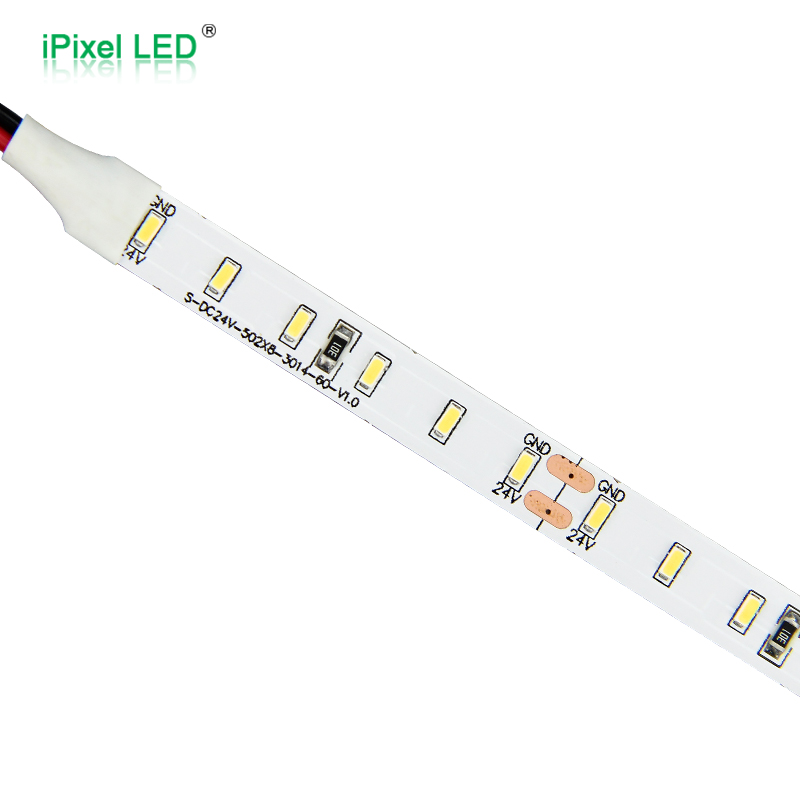

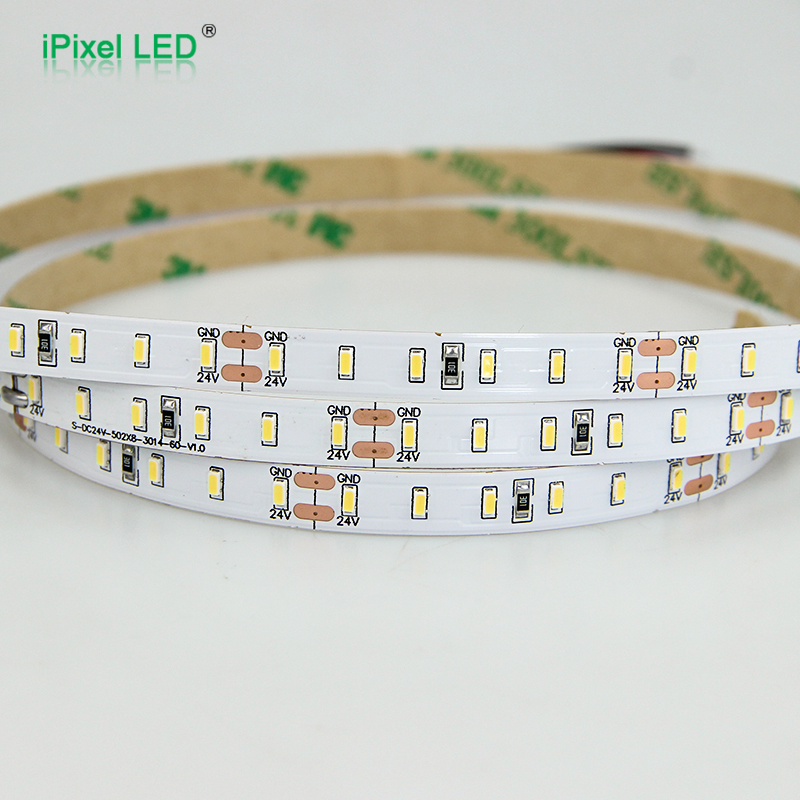

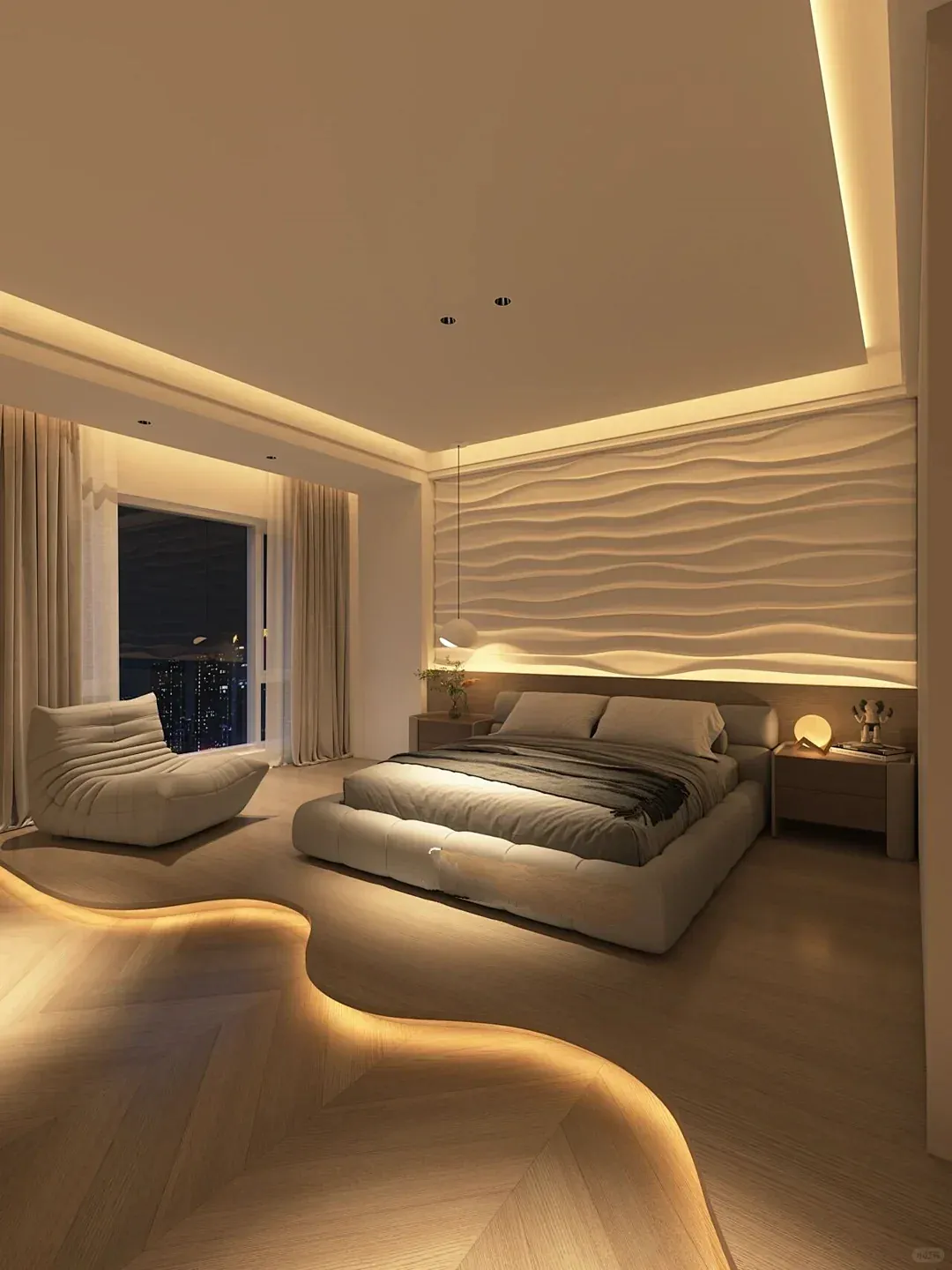

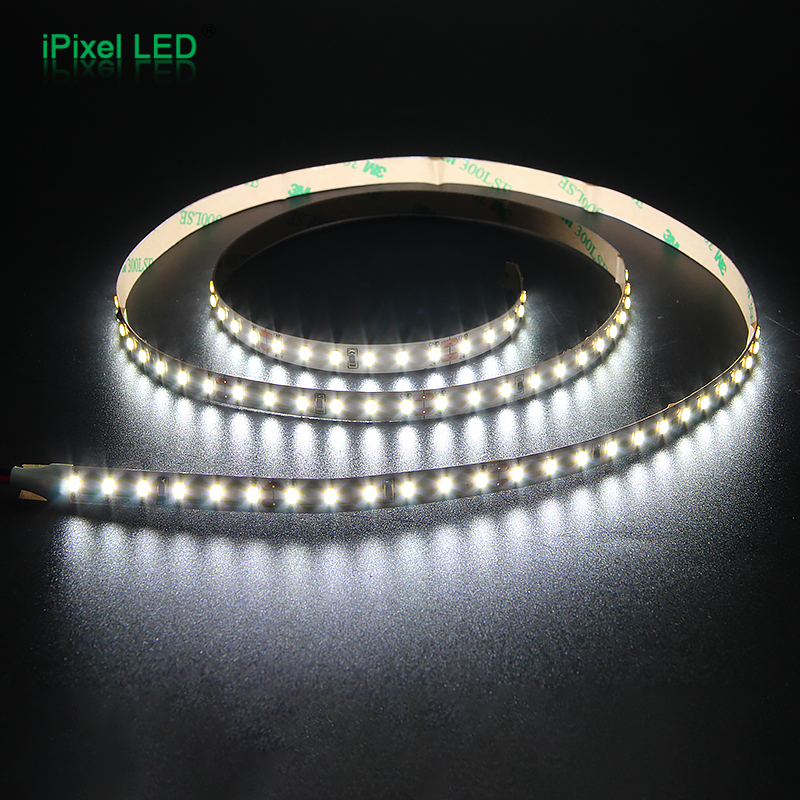

This SMD3014 single color flexible LED strip is designed for low-voltage linear lighting applications where a slim 8mm PCB, stable DC24V input and smooth white light output are required. With 120 LEDs per meter and a 50mm cutting unit, it is suitable for cabinet lighting, display fixtures, furniture lighting and aluminum profile installation.
Key Features
DC24V constant voltage input
SMD3014 LED package with 120 LEDs/m
8mm flexible PCB for slim installation spaces
10W/m power consumption
50mm / 6 LEDs cutting unit
Standard 5m roll length, custom length available
Optional IP20 / IP64 / IP65 / IP67 protection structures
CCT options: 3000K / 4000K / 6500K
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CRI | PCB Width | Cutting Length | IP Rating | Lumen/m | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|
| S008120GC1LZ | 120LEDs/m | 24V | 10W | Ra80 | 8mm | 50mm / 6 LEDs | IP20/IP65 | 920 lm | Download |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a 24V low‑voltage white light strip | This model is suitable |
| Narrow installation space | 8mm PCB is suitable for slim profiles or cabinet grooves |
| Need more uniform light output than 60 LEDs/m | 120 LEDs/m is recommended |
| Need short cutting pitch | 50mm cutting unit supports flexible installation |
| Need for damp environments | Choose IP65 / IP67 version and confirm end sealing |
| Need higher color rendering index | CRI90 can be customized if required |
Structure & Installation
![]()
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| CCT | 3000K / 4000K / 6500K | Other CCT can be customized |
| CRI | Ra80 standard / Ra90 optional | Confirm before order |
| IP Rating | IP20 / IP64 / IP65 / IP67 | IP versions may affect size, CCT and luminous flux |
| Length | 5m standard roll / custom length | Based on project requirement |
| Cable | Bare wire / custom wire length | Based on assembly method |
| Connector | Custom connector optional | Suitable for OEM projects |
| Mounting | 3M tape / aluminum profile | Aluminum profile helps heat dissipation and diffusion |
