S010126BC1SF is a single white digital LED strip with 3000K / 4000K / 6500K options. S012120BC2SF is a dual-color CCT digital LED strip with 2700K + 6500K.

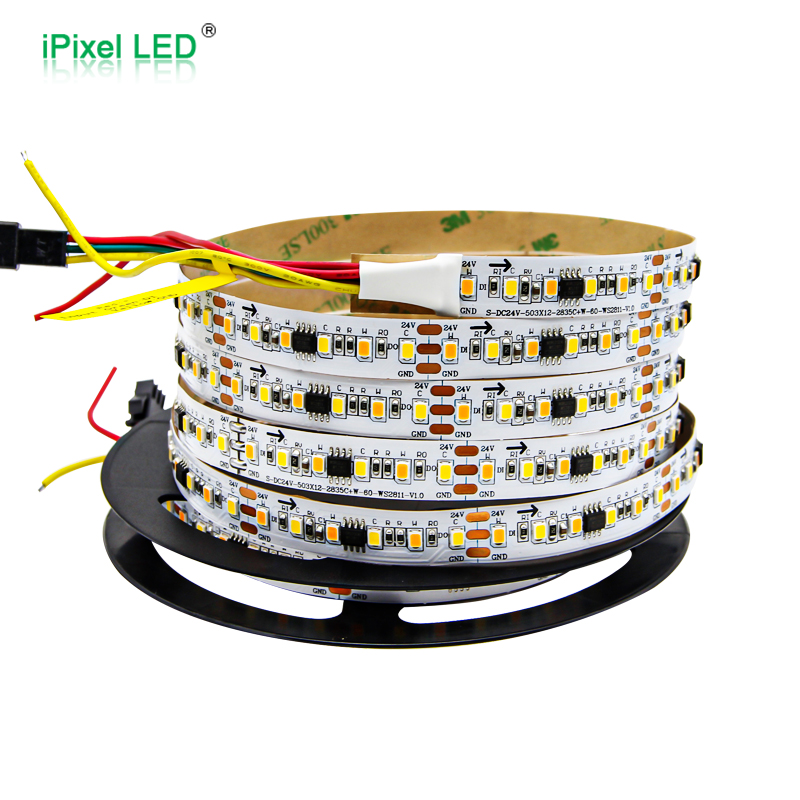

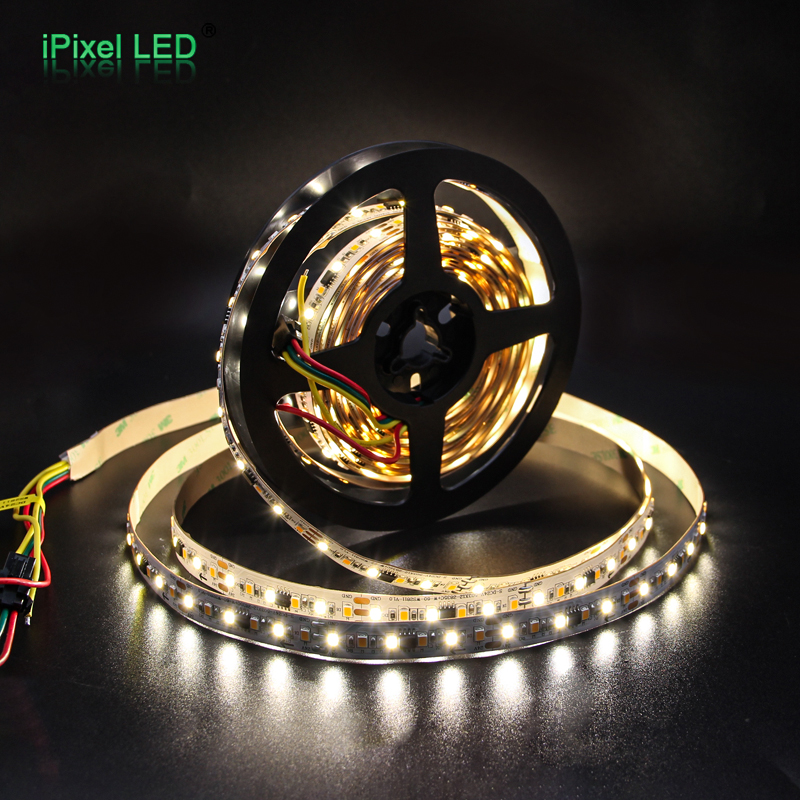

WS2811 Digital White & CCT LED Strip Series
This WS2811 Digital White & CCT LED Strip Series is designed for programmable white and dual-color CCT lighting applications using DC24V SPI / WS2811 control. The series includes a single white digital version and a dual-color CCT digital version, both using SMD2835 LEDs, flexible white FPC, and digital pixel control for segmented white-light effects.

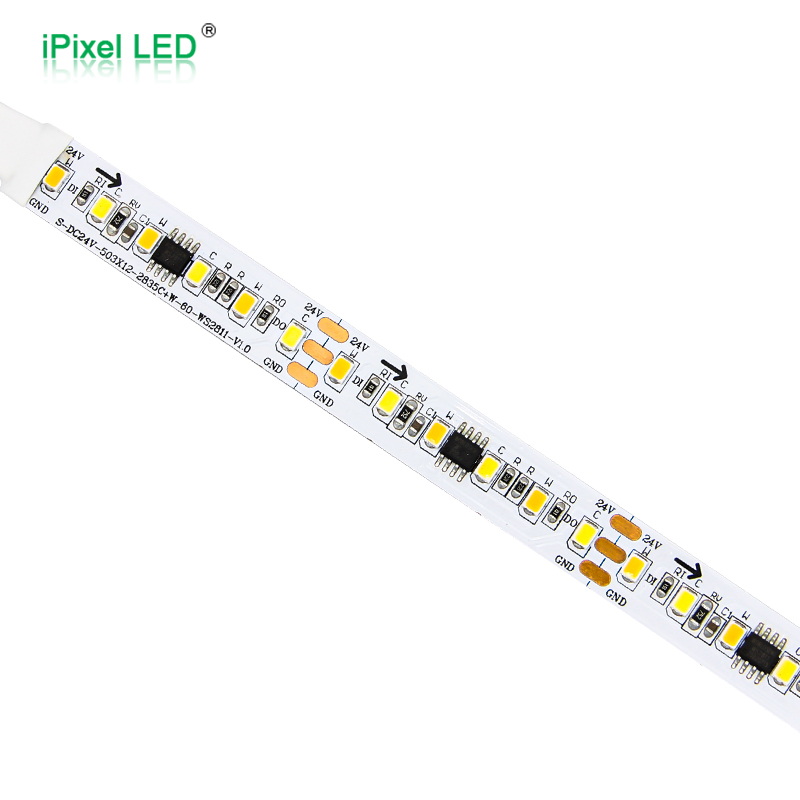

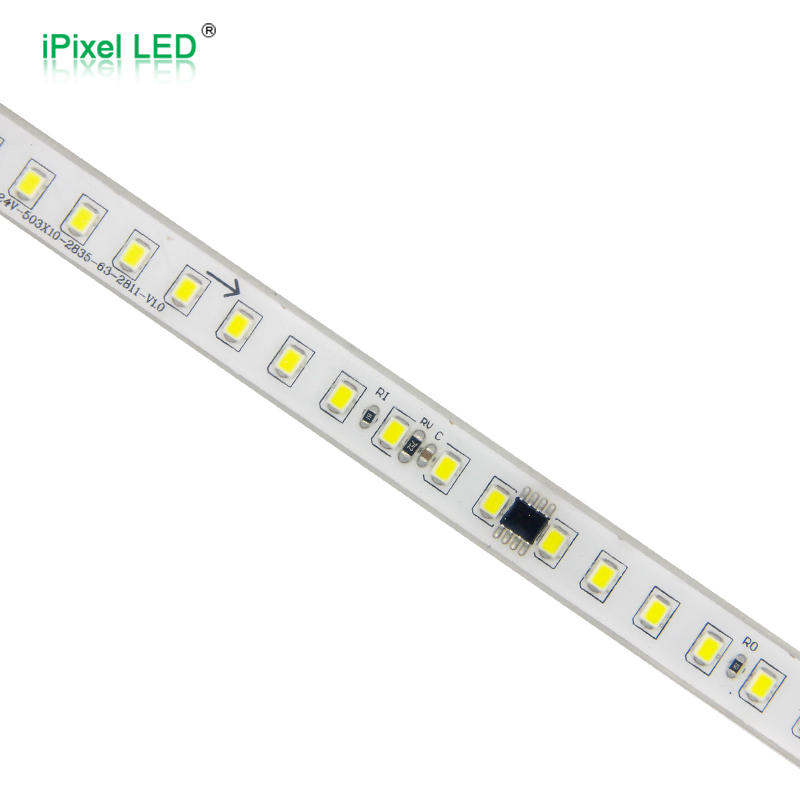

The S010126BC1SF version provides selectable single white CCT options of 3000K / 4000K / 6500K, while the S012120BC2SF version provides 2700K + 6500K dual-color CCT output for warm-to-cool white applications. Both datasheets describe DC24V input, SPI controller use, 5m standard roll length, and customizable length options.
DC24V120/126LEDs/m10/12mmWidchSingle Color/CCTIP20/IP65
Overview & Key Features
Series Overview
This series is suitable for projects that need digital white lighting effects, not standard analog white or CCT dimming. With WS2811 control, the strip can support segmented control, chasing effects, programmable white zones, or customized lighting sequences.
The single white version is better for projects requiring one fixed CCT with lower power consumption. The dual-color CCT version is better for projects requiring warm and cool white mixing, shorter cutting length, and more control zones per meter.
Key Features
- DC24V digital white / CCT LED strip series
- SPI / WS2811 control
- SMD2835 high-brightness LEDs
- Single white and dual-color CCT options
- 126LEDs/m and 120LEDs/m versions
- 6 pixels/m and 20 pixels/m options
- 10mm and 12mm PCB width options
- 1+2 oz copper thickness FPC
- White FPC color
- Standard 5m per roll, customizable length available
- 3-pin JST SM connector option
- IP20 / IP64 / IP65 / IP67 options depending on model

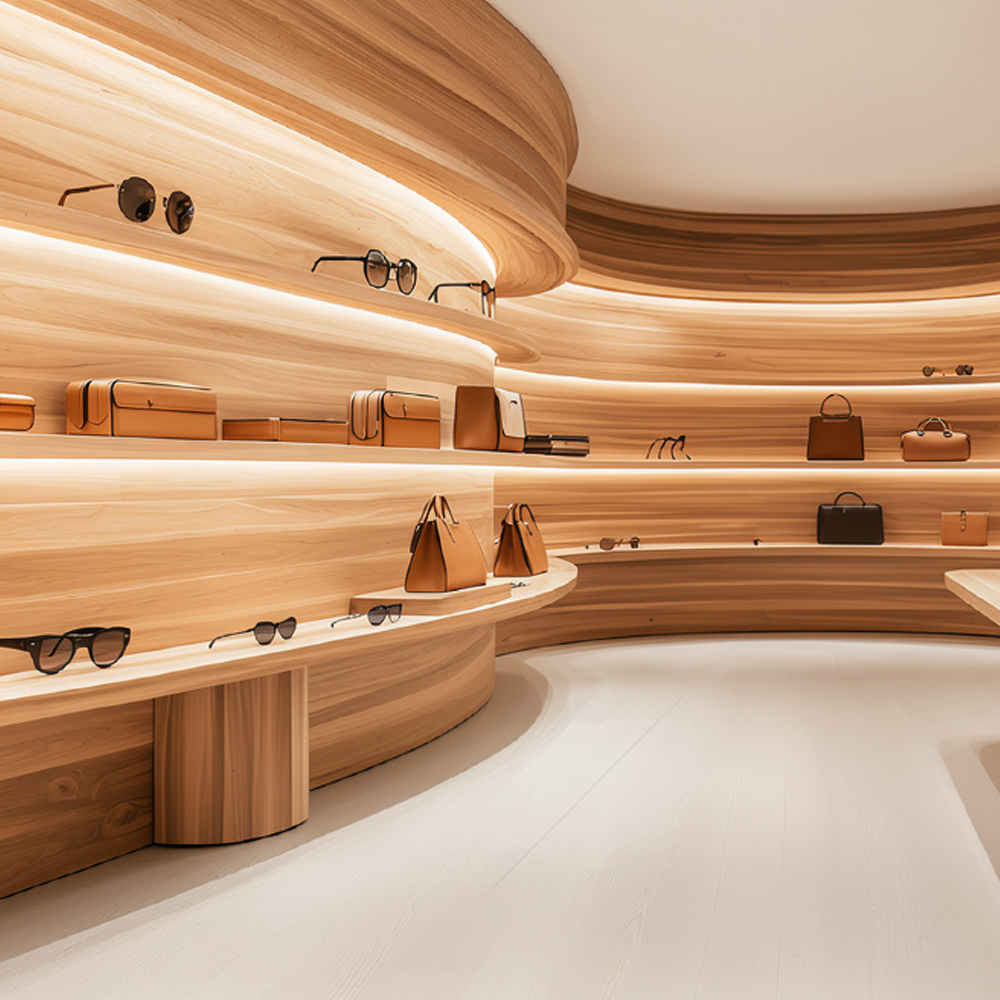

- Suitable for programmable white lighting, decorative linear lighting, commercial display lighting and OEM lighting systems
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| S010126BC1SF | 126 | DC24V | 8W | SPI / WS2811 | 10mm | W: 3000K / 4000K / 6500K | 166.66mm / 21LED | W: 766lm | Single White Digital, 6 pixels/m |
| S012120BC2SF | 120 | DC24V | 16.5W | SPI / WS2811 | 12mm | 2700K + 6500K | 50mm | C: 689lm / W: 587lm | Dual Color CCT Digital, 20 pixels/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need digital single white output | S010126BC1SF — selectable 3000K / 4000K / 6500K white version. |
| Need warm white + cool white CCT effect | S012120BC2SF — 2700K + 6500K dual-color version. |
| Need lower power consumption | S010126BC1SF — 8W/m. |
| Need shorter cutting length | S012120BC2SF — 50mm cutting length. |
| Need more digital control zones per meter | S012120BC2SF — 20 pixels/m. |
| Need narrower PCB | S010126BC1SF — 10mm PCB width. |
| Need dual-color lighting with aluminum profile option | S012120BC2SF — datasheet related items include aluminum profile LL2215. |
| Need higher single-white lumen output | S010126BC1SF — W: 766lm/m. |
| Need IP67 option | S012120BC2SF — datasheet lists IP20 / IP64 / IP65 / IP67. |
| Need simple programmable white segments | S010126BC1SF — 6 pixels/m, 166.66mm segment. |

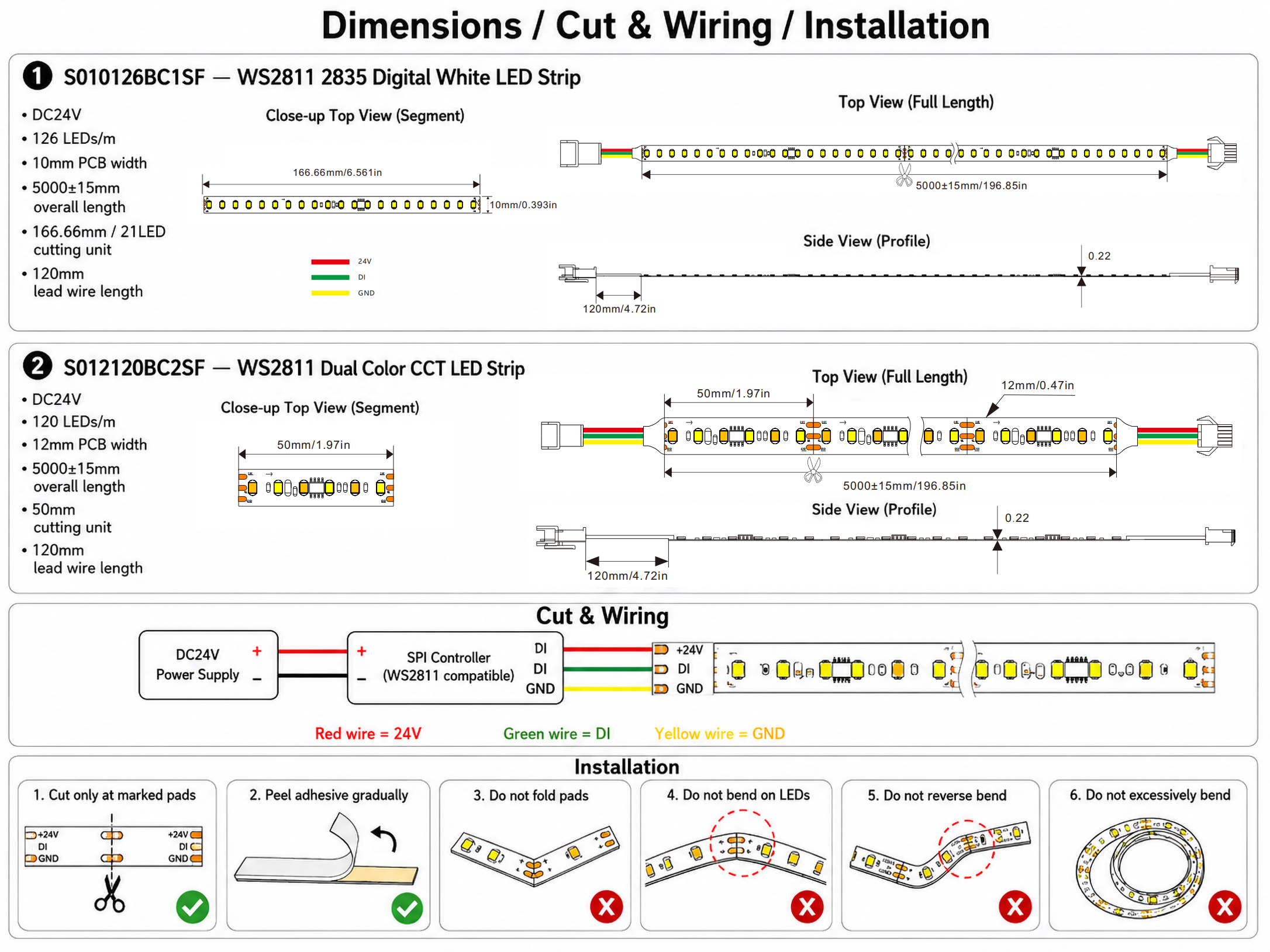

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Both models use DC24V input. |
| LED Type | SMD2835 | High-brightness 2835 LED, single-row LED layout. |
| ColorType | Single White / Dual Color CCT | S010126BC1SF is single white; S012120BC2SF is dual-color CCT. |
| Color Range | 3000K / 4000K / 6500K; 2700K + 6500K | Select by required white-light effect. |
| PCB Width | 10mm / 12mm | 10mm for S010126BC1SF; 12mm for S012120BC2SF. |
| Power | 8W/m / 16.5W/m | Select by brightness, thermal design and control-zone requirement. |
| Control | SPI / WS2811 | Controller must match WS2811 protocol, DC24V system and pixel quantity. |
| IPRating | IP20 / IP64 / IP65 / IP67 | S010126BC1SF mainly shows IP20 / IP65 in the table; description mentions IP20 / IP64 / IP65. S012120BC2SF lists IP20 / IP64 / IP65 / IP67. |
| Length | 5m standard / custom length | Product descriptions and outline drawings show 5m standard length; custom length available. |
| Connector | 3-pin JST SM connector / bare wire / custom connector | S010126BC1SF description mentions 3-pin JST SM connector. |
| Mounting | 3M adhesive tape / aluminum profile / clips | Aluminum profile LL2215 appears in S012120BC2SF related products. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing. |
Related Items
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. Both models use SPI / WS2811 control and support digital segmented control.
Both models use DC24V.
S010126BC1SF, rated at 8W/m.
