SPI versions are suitable for SPI controller systems and use IC2904 control. DMX versions are suitable for professional DMX512 project control and use Hi512 or TM512AC depending on model.

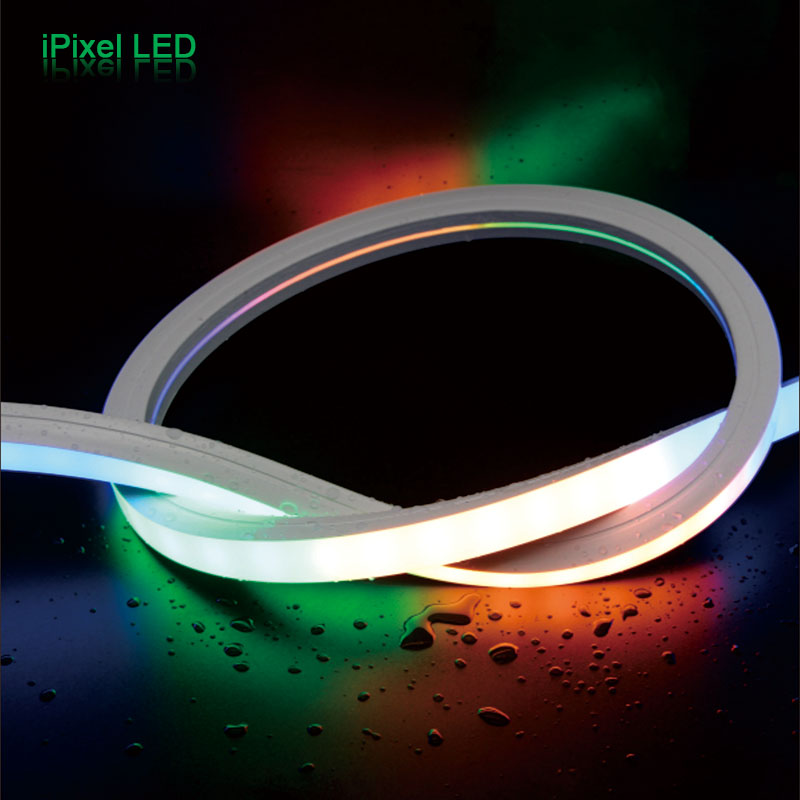

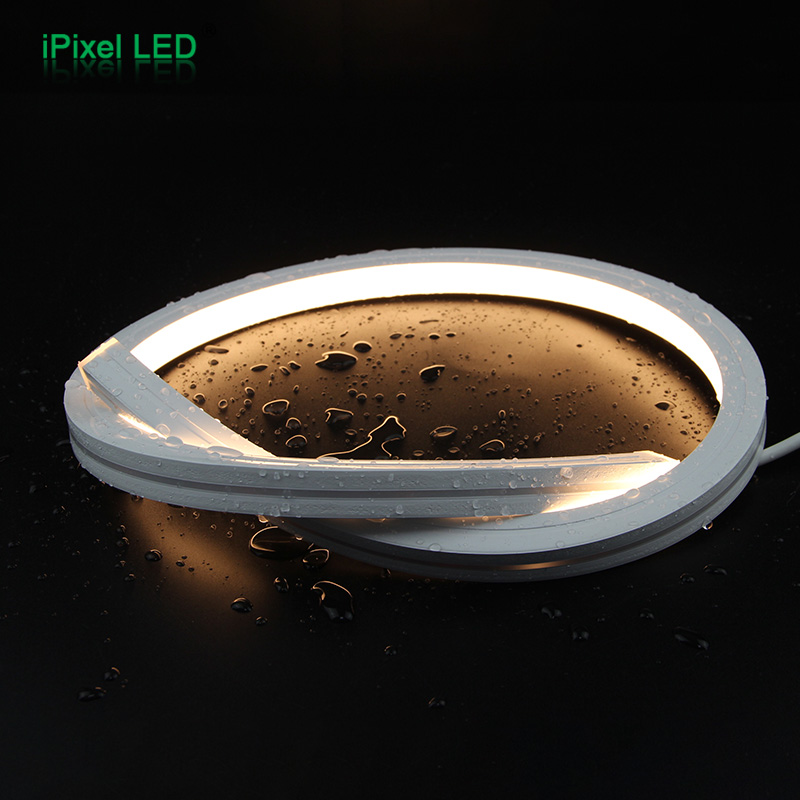

N1616 Digital RGB / RGBW / DMX Neon Flex Series

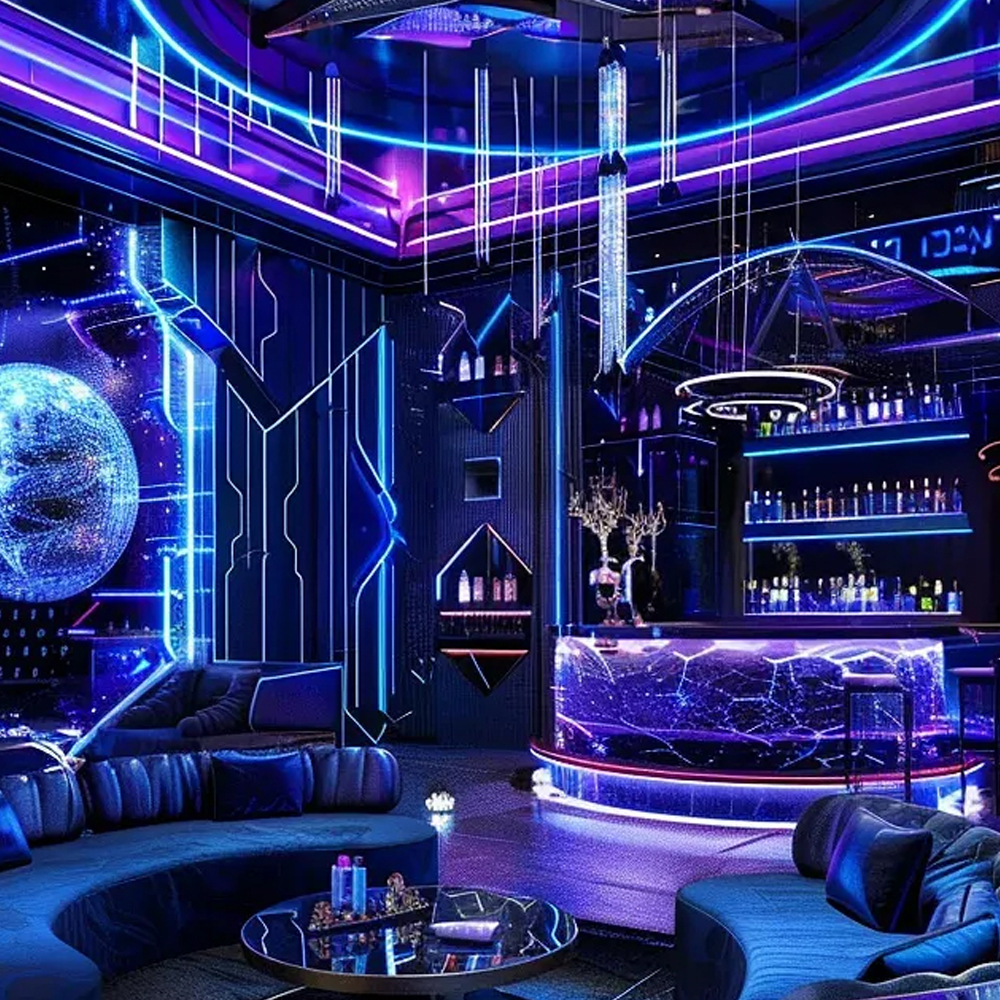

This N1616 Digital Neon Flex Series is a 16×16mm single-sided LED neon flex designed for dynamic architectural contour lighting, signboard lighting, façade outlines, entertainment spaces, commercial decoration, and outdoor linear lighting projects.
The series includes SPI RGBW, DMX RGB, DMX RGBW, and DMX White versions. All models use a 16×16mm silicone neon structure, soft dotless light output, IP67 protection, and up/down bending design. The main selection logic is based on control system, color type, pixel density, voltage, power, and brightness requirement.
DC12V/DC24V84/120LEDs/m16mm Width Single Color/RGB/RGBWIP67
Overview & Key Features
Series Overview
The SPI RGBW versions use IC2904 control and are suitable for projects that need RGBW animation effects with SPI controllers, such as flowing, chasing, jumping and gradient effects. The series includes both DC12V and DC24V versions.
The DMX RGB / RGBW / White versions are designed for professional DMX512 control systems. They are more suitable for façade lighting, commercial building outlines, stage-style installations, amusement projects, and projects where addressable lighting needs to be managed through a DMX protocol.
Key Features
- 16×16mm single-sided digital neon flex series
- SPI / DMX512 control options
- RGB / RGBW / White versions available
- DC12V and DC24V options depending on model
- SMD5050 RGB / RGBW versions, SMD2835 white DMX version
- Dotless silicone neon light output
- Up/down bending structure
- IP67 protection for indoor/outdoor use
- 5m standard length
- Max length up to 10m / 15m depending on model
- Suitable for animation effects: chasing, flowing, jumping, gradient and dynamic color control
- Environmental resistance: UV resistance, flame resistance, saltwater resistance and solvent resistance shown in the datasheets
- Typical applications: signboard lighting, outdoor/interior decoration, architectural contour lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N016084CB4ST(N1616) | 84 LEDs/m | DC12V | 27W/m | SPI / IC2904 | 16×16mm profile | RGBW, W: 3000K / 4000K / 6000K | 35.7mm | R:60lm / G:138lm / B:40lm / W:197lm | SPI RGBW, 28 pixels/m, max 10m |
| N016084CC4ST(N1616) | 84 LEDs/m | DC24V | 23W/m | SPI / IC2904 | 16×16mm profile | RGBW, W: 3000K / 4000K / 6000K | 83.33mm | R:60lm / G:138lm / B:40lm / W:197lm | SPI RGBW, 12 pixels/m, max 15m |
| N016084CC3DE1(N1616) | 84 LEDs/m | DC24V | 18W/m | DMX / Hi512 | 16×16mm profile | RGB wavelength: R 620–630nm / G 520–530nm / B 460–470nm | 83.33mm | R:78lm / G:175lm / B:38lm | DMX RGB, 12 pixels/m, max 15m |
| N016084CC4DC0(N1616) | 84 LEDs/m | DC24V | 23W/m | DMX512 / TM512AC | 16×16mm profile | RGBW, W: 3000K / 4000K / 6500K | 83.33mm | R:78lm / G:175lm / B:38lm / W:245lm | DMX RGBW, 12 pixels/m, max 15m |
| N016120BC1DE1(N1616) | 120 LEDs/m | DC24V | 15W/m | DMX / Hi512 | 16×16mm profile | White: 3000K / 4000K / 6500K | 100mm | W:432lm | DMX White, 10 pixels/m, max 15m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need SPI RGBW control | N016084CB4ST or N016084CC4ST |
| Need DC12V SPI RGBW with higher pixel density | N016084CB4ST — 28 pixels/m, 35.7mm cut |
| Need DC24V SPI RGBW for longer runs | N016084CC4ST — 12 pixels/m, max 15m |
| Need DMX RGB only | N016084CC3DE1 |
| Need DMX RGBW with white channel | N016084CC4DC0 |
| Need DMX white-only neon | N016120BC1DE1 |
| Need professional façade or project control | Prefer DMX versions |
| Need simple SPI controller animation | Prefer SPI RGBW versions |
| Need higher white brightness | N016120BC1DE1 — W:432lm/m |
| Need RGBW with stronger white channel | N016084CC4DC0 — W:245lm/m |
| Need shorter cutting length | N016084CB4ST — 35.7mm cut |
| Need lower power RGB dynamic neon | N016084CC3DE1 — 18W/m |

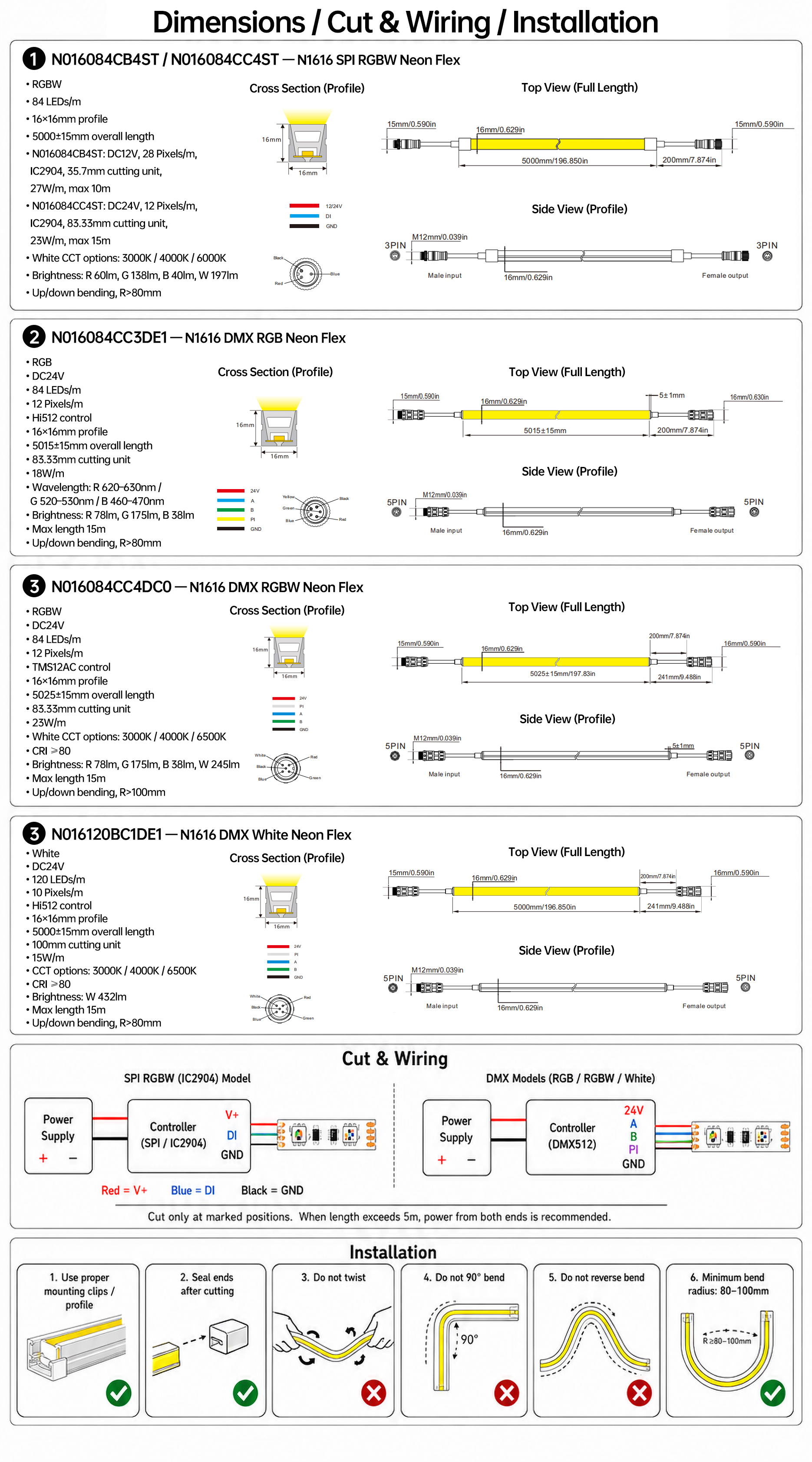

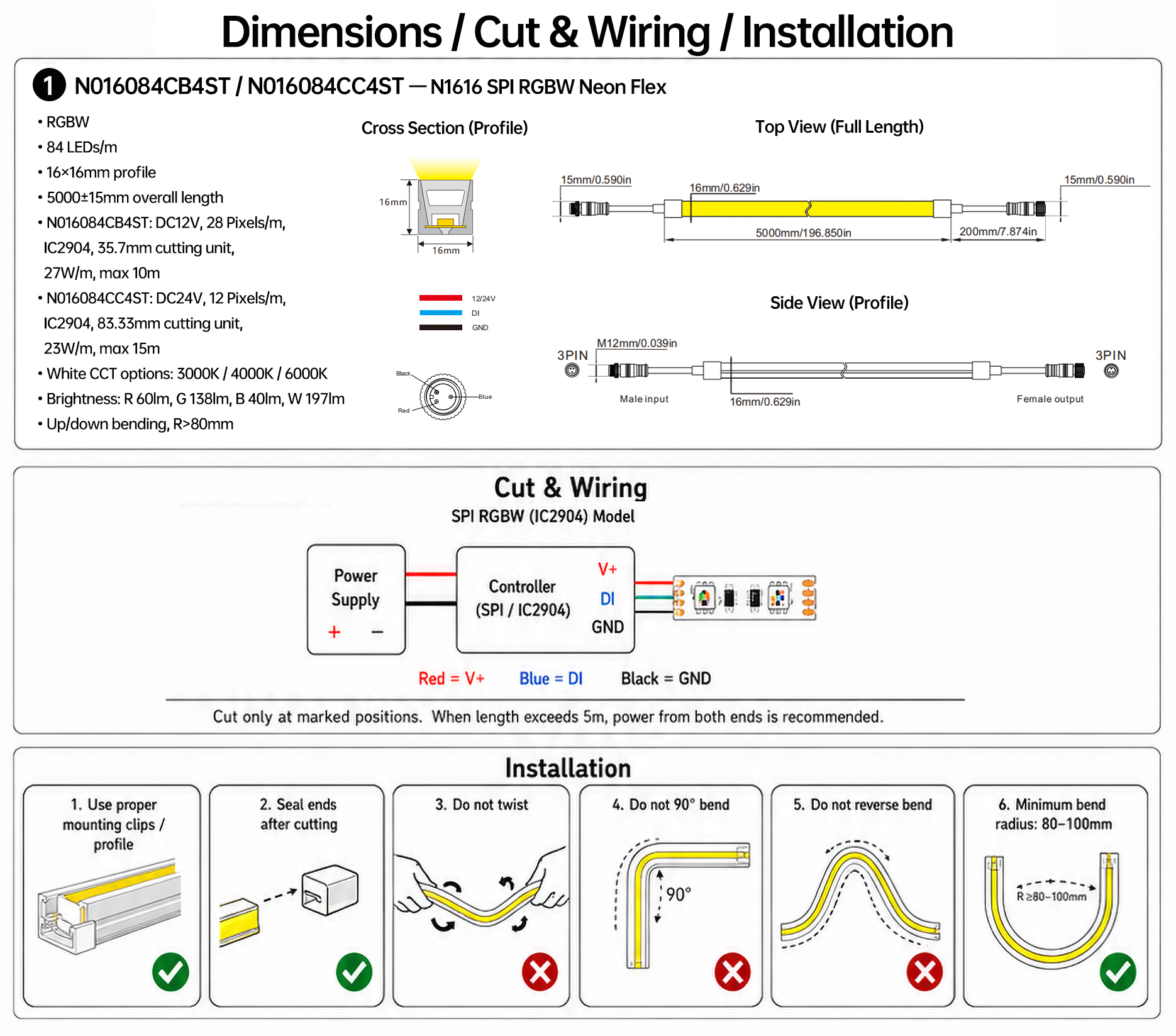

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V only for N016084CB4ST; most other models are DC24V |
| LED Type | SMD5050 / SMD2835 | RGB/RGBW versions use SMD5050; DMX white uses SMD2835 |
| ColorType | RGB / RGBW / White | Select by control system and lighting effect |
| Color Range | RGB wavelength / 3000K / 4000K / 6000K / 6500K | Depends on model and white channel requirement |

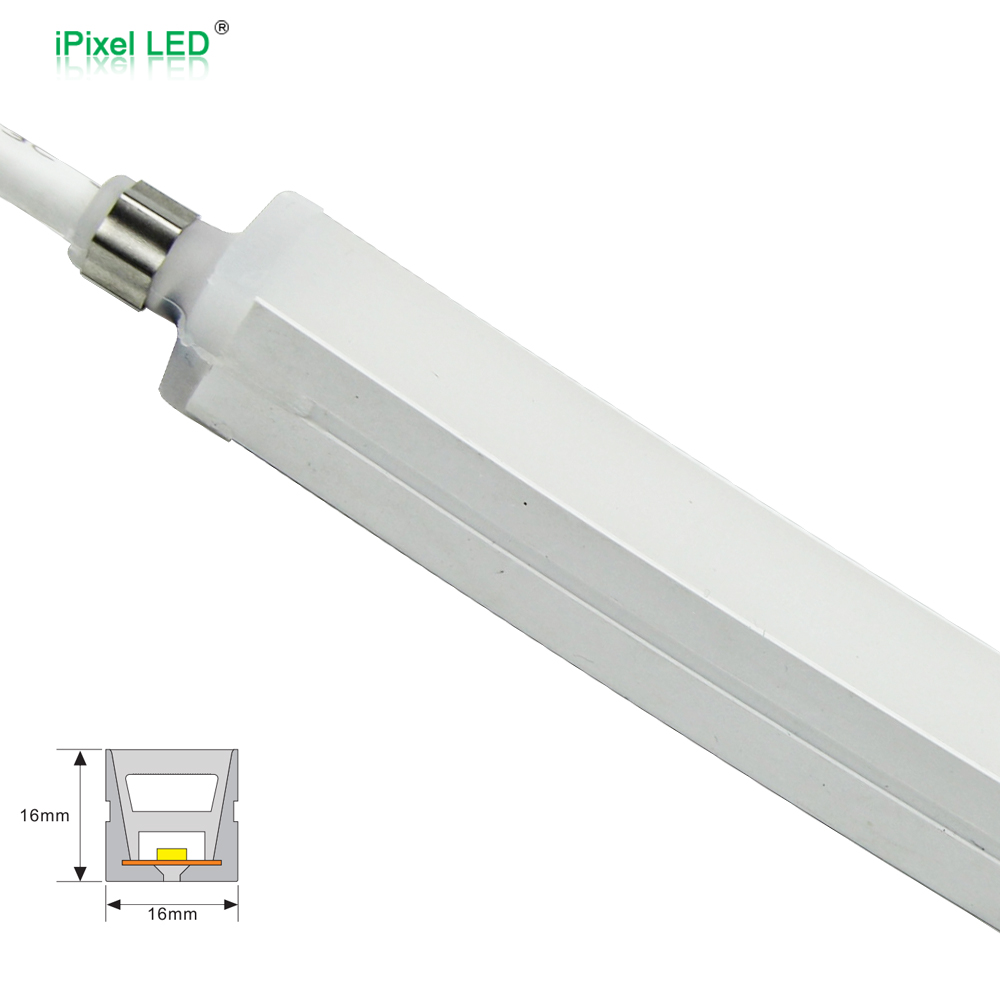

| PCB Width | 16×16mm profile | For neon products, this refers to silicone profile size |
| Power | 15W/m / 18W/m / 23W/m / 27W/m | Select by brightness, thermal and power supply capacity |
| Control | SPI IC2904 / DMX Hi512 / DMX TM512AC | Controller must match IC and signal protocol |
| IPRating | IP67 | Suitable for indoor/outdoor use; not for immersion |
| Length | 5m standard / max 10m or 15m | Depends on model and voltage |
| Connector | 3PIN / 5PIN / custom connector | Depends on SPI or DMX wiring method |
| Mounting | Buckle / aluminum profile / embedded mounting | Datasheets show buckle and aluminum profile installation |
| Packing | Carton / wooden case / project packing | Confirm by order length, connector and quantity |
Related Items
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination
Sauna & Spa Lighting – High Heat/Humidity, Safe Low Voltage & Sealing
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Choose N016084CB4ST for DC12V or N016084CC4ST for DC24V.
Choose N016084CC3DE1.
Choose N016084CC4DC0.
