Calculate the total LED load and reserve approximately 20% capacity. For example, a 48W LED load normally requires a power supply rated at 60W or above.

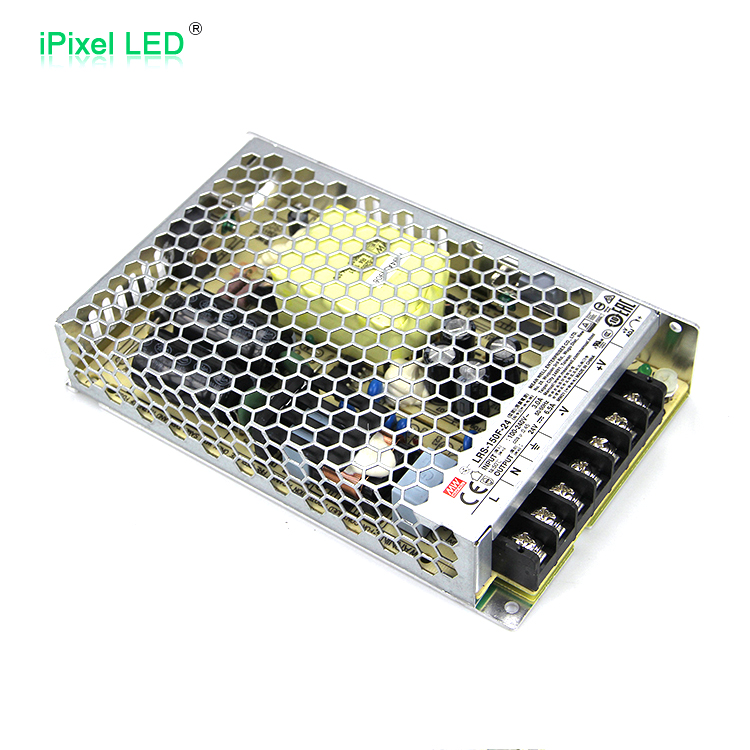

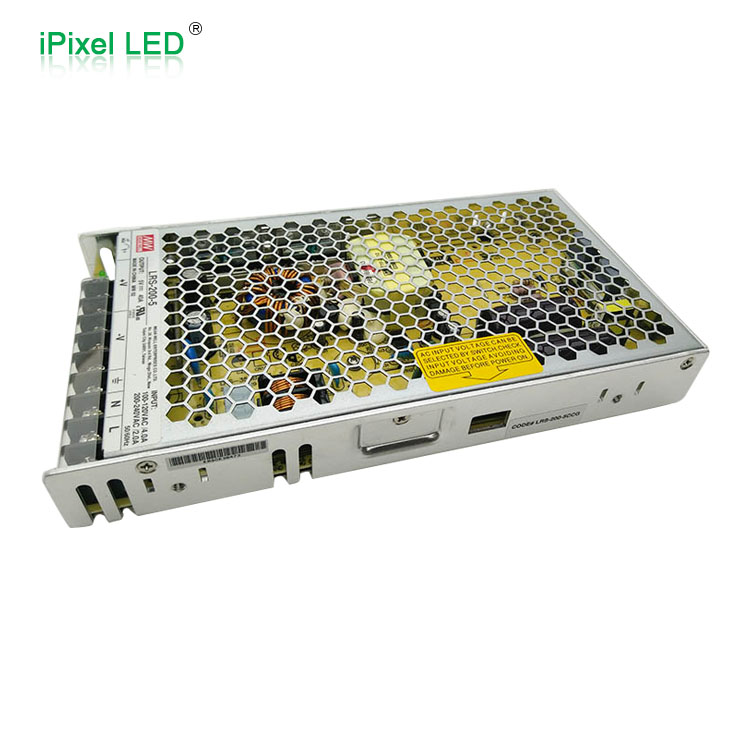

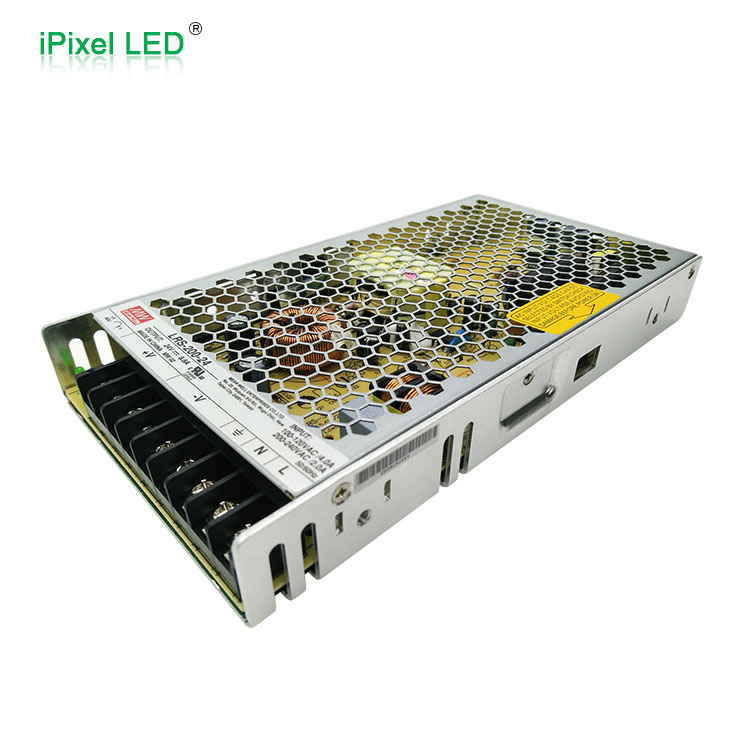

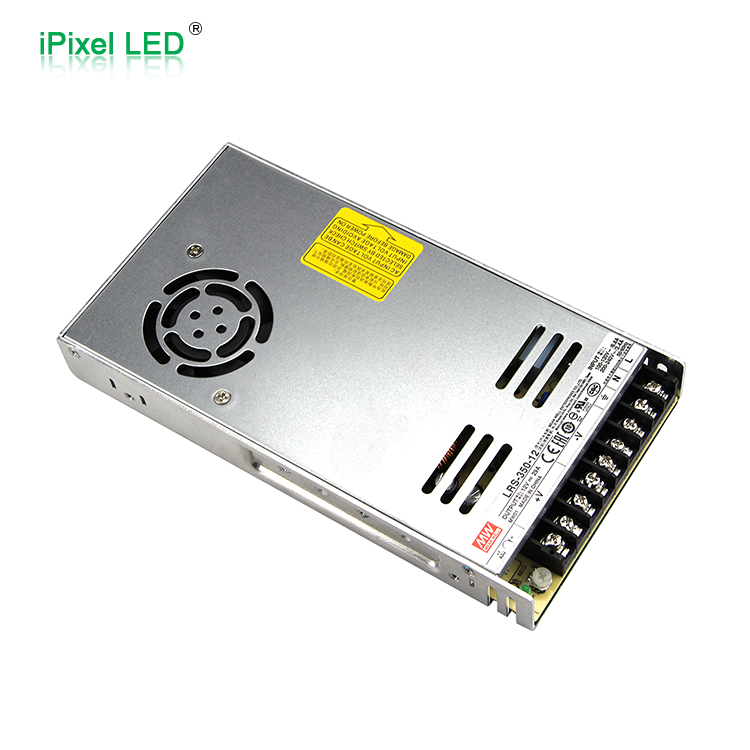

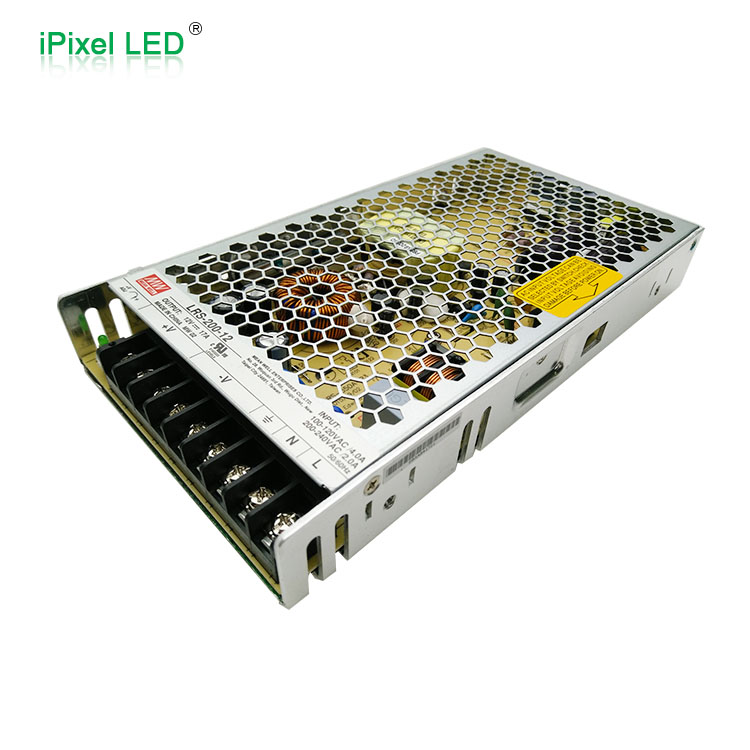

LRS Series 35~350W
Non-PFC, most economical models
Ultra compact and 1U low profile
30oVAC input surge
No load power consumption:
0.2W~0.75W
5G vibration, 70°C operation
Operating altitude up to 5000 meters
Complete safety certificates:
IEC/EN60335-1(PD3), IEC/EN61558-1,
-2-16; IEC/EN/UL62368-1 and GB4943
5/12/24/48V85~264VAC
Product Series Specification Matrix
| Model No | Input Voltage | Output Voltage | Rated Power | Spec Sheet |
|---|---|---|---|---|
| LRS-35 | 85 ~ 264VAC | DC5/12/24/48V | 35W | Download |
| LRS-50 | 85 ~ 264VAC | DC5/12/24/48V | 50W | Download |
| LRS-75 | 85 ~ 264VAC | DC5/12/24/48V | 75W | Download |
| LRS-100 | 85 ~ 264VAC | DC5/12/24/48V | 100W | Download |
| LRS-150 | 85 ~ 132VAC / 170 ~ 264VAC by switch | DC5/12/24/48V | 150W | Download |
| LRS-150F | 85 ~ 264VAC | DC5/12/24/48V | 150W | Download |
| LRS-200 | 90 ~ 132VAC / 180 ~ 264VAC by switch | DC5/12/24/48V | 200W | Download |
| LRS-350 | 90 ~ 132VAC / 180 ~ 264VAC by switch | DC5/12/24/48V | 350W | Download |
FAQ
Yes. Multiple LED products can share one constant-voltage power supply if their voltage is the same and the combined load does not exceed the recommended capacity. A distribution box or customized wiring harness may be used.
Yes. We can provide regional input plugs, bare-wire input, DC connectors, locking connectors and customized cable assemblies according to the equipment design.
Not necessarily. Certification, input cable, plug, housing and rated output may differ by model. The required market and certification should be confirmed before selection.
