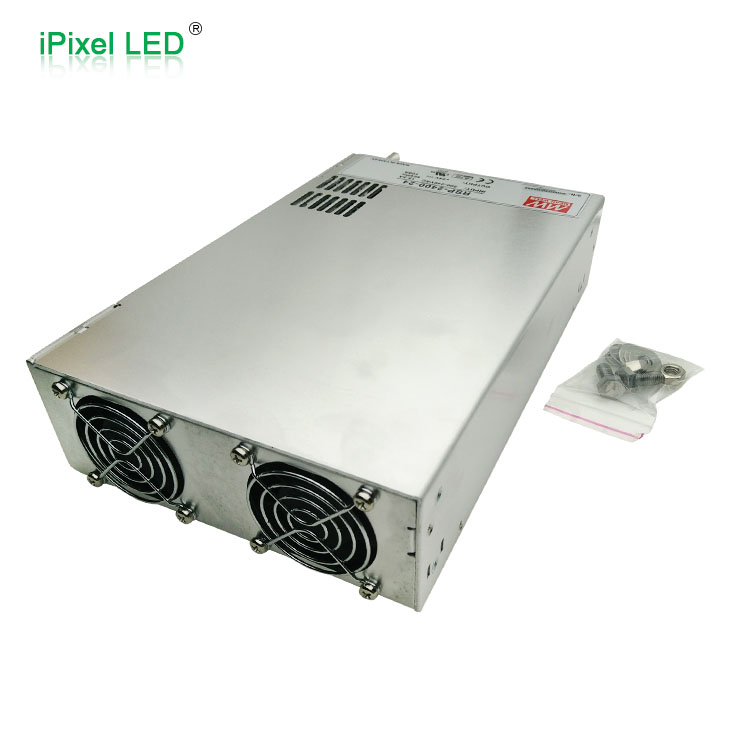

RSP-Series 75~3000W

RSP-Series 75~3000W

· Universal AC input / Full range · Built-in active PFC function · High efficiency up to 89% · Cooling by free air convection · Built-in remote ON-OFF control · Protections: Short circuit / Overload / Over voltage /Over temperature ·LED indicator for power on · 3 years warranty
DC5/12/24/48V85 ~ 264VAC
Request Quote Download Datasheet

Product Series Specification Matrix

Model NoInput VoltageOutput VoltageRated PowerSpec Sheet
RSP-7585 ~ 264VACDC5/12/24/48V75WDownload
RSP-10085 ~ 264VAC DC5/12/24/48V100WDownload
RSP-15085 ~ 264VAC DC5/12/24/48V150WDownload
RSP-20088 ~ 264VAC DC5/12/24/48V200WDownload

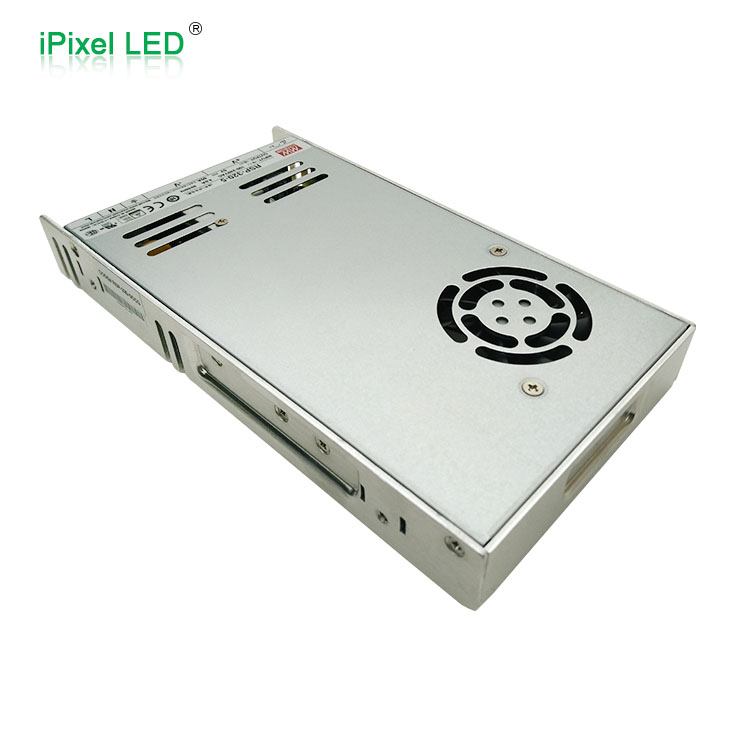

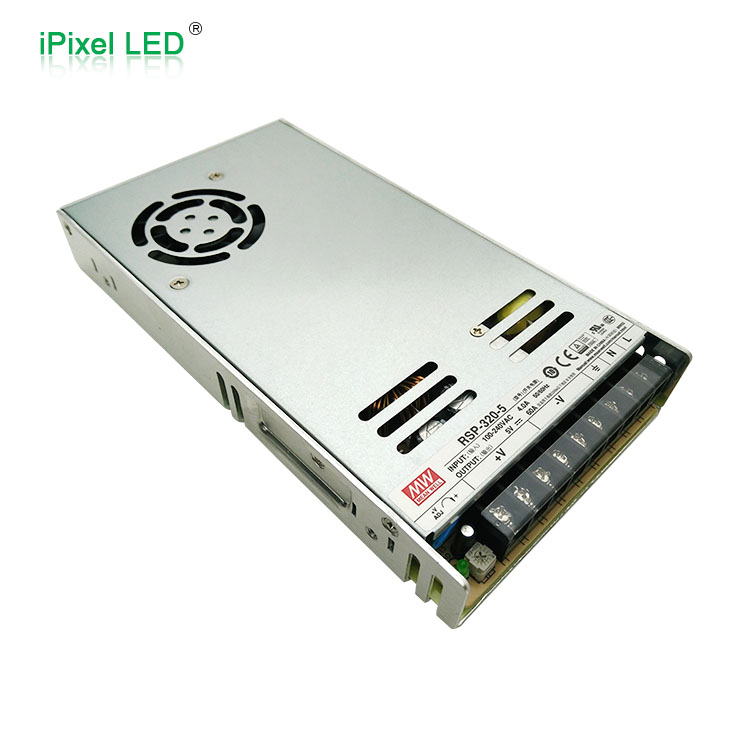

RSP-32088 ~ 264VAC DC5/12/24/48V320WDownload
RSP-50085 ~ 264VAC DC5/12/24/48V500WDownload
RSP-75090 ~ 264VAC DC5/12/24/48V750WDownload
RSP-100090 ~ 264VAC DC12/24/48V1000WDownload
RSP-150090 ~ 264VAC DC5/12/24/48V1500WDownload
RSP-160090 ~ 264VAC DC12/24/48V1600WDownload
RSP-200090 ~ 264VAC DC12/24/48V2000WDownload

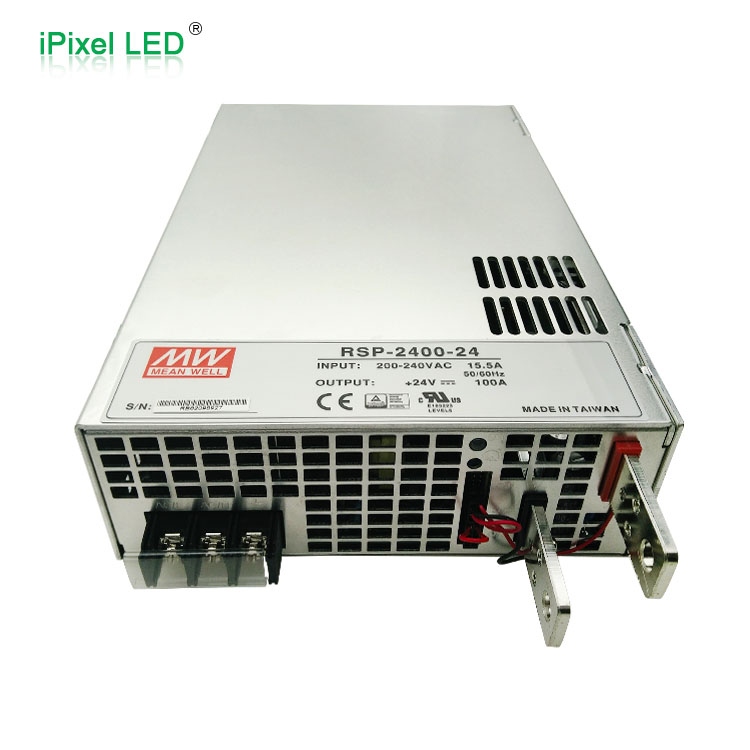

RSP-2400180 ~ 264VAC DC12/24/48V2400WDownload

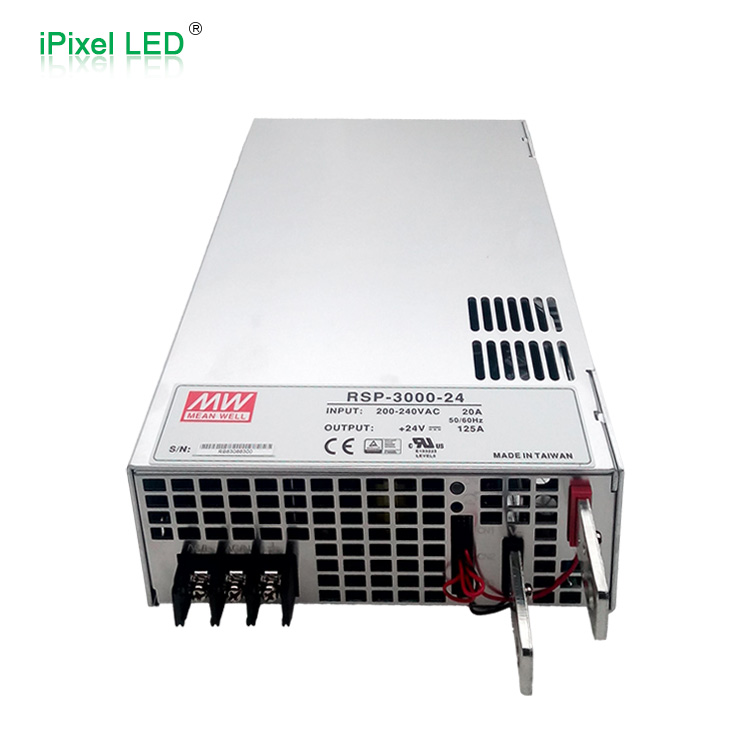

RSP-3000180 ~ 264VAC DC12/24/48V3000WDownload

FAQ

Calculate the total LED load and reserve approximately 20% capacity. For example, a 48W LED load normally requires a power supply rated at 60W or above.
Yes. Multiple LED products can share one constant-voltage power supply if their voltage is the same and the combined load does not exceed the recommended capacity. A distribution box or customized wiring harness may be used.
Yes. We can provide regional input plugs, bare-wire input, DC connectors, locking connectors and customized cable assemblies according to the equipment design.
Not necessarily. Certification, input cable, plug, housing and rated output may differ by model. The required market and certification should be confirmed before selection.
