Under-shelf lighting with magnetic mounting and repositionable contact connectors for a U.S. retail fixture manufacturer.

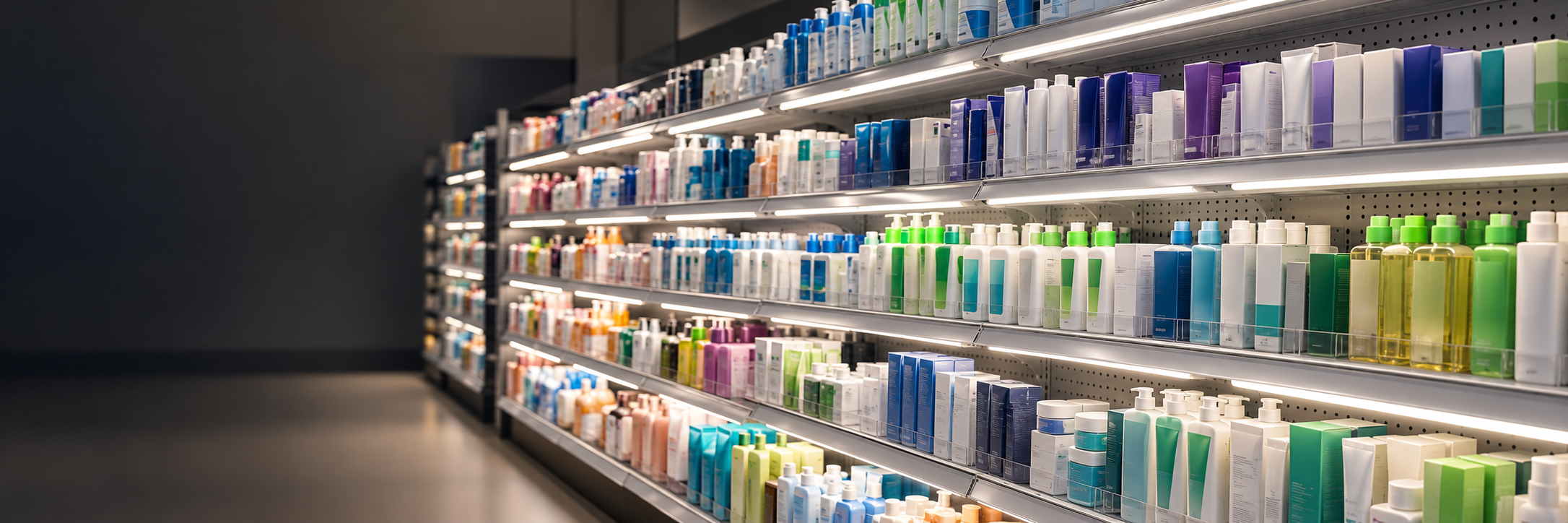

Retail shelving application photograph supplied with the project materials.
Project Overview
A U.S. retail fixture manufacturer needed lighting for removable metal display shelving used to merchandise everyday products. The project concerned wall-side retail shelving, with rigid LED light bars mounted beneath the shelves.
The main requirement was to make both light-bar mounting and power connection more convenient. iPixel used magnetic mounting for the light bars and a magnetic contact connection arrangement for the power connections.
Customer Challenge
The previous installation was inconvenient to assemble. The customer wanted to address the fixing method and the wiring arrangement, particularly the positioning of connections within the shelving layout.
What We Did
iPixel supplied magnetic rigid LED light bars for mounting beneath the metal shelves. The magnetic fixing held the bars against the compatible shelf surface.
The project replaced the conventional wired plug connection with magnetic contact terminals. The connection points could be repositioned within the compatible power-contact arrangement, making it more convenient to place the connections for the shelf layout.
Magnetic mounting and electrical connection were separate functions: the magnets fixed the light bars in place, while the matched contact components provided the power connection.

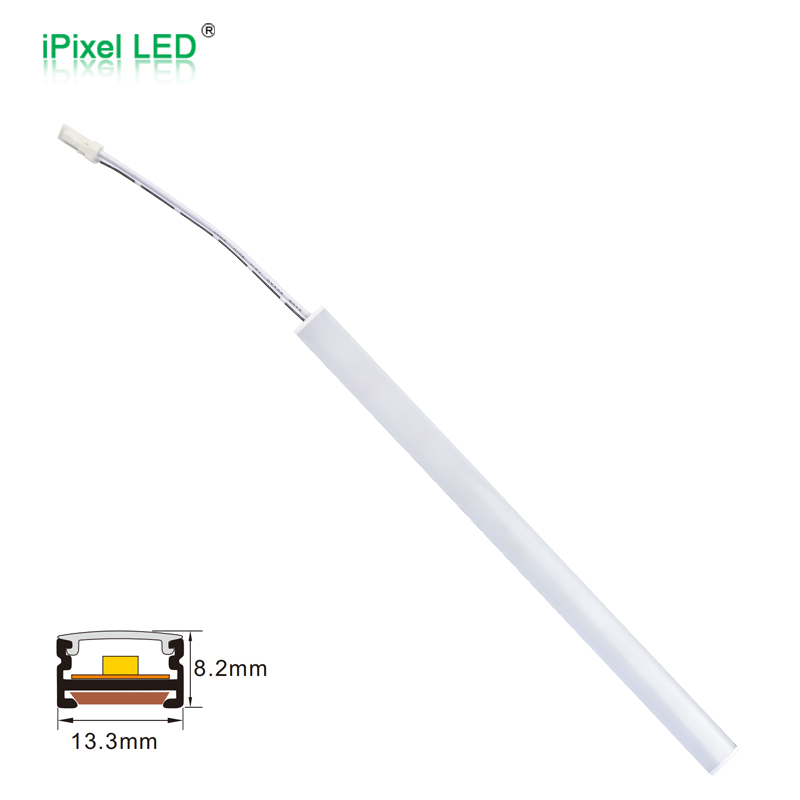

Light-bar product reference supplied with the project materials; it does not show the customized magnetic contact connection in detail.
Validation
The configuration was checked on iPixel's in-house shelving. The project notes record secure attachment and convenient power connection during this installation check.
The samples were approved, and the project progressed to mass production.
Project Results
The reported project quantity was 1,800 lighting sets. The customer reported satisfaction with the result.

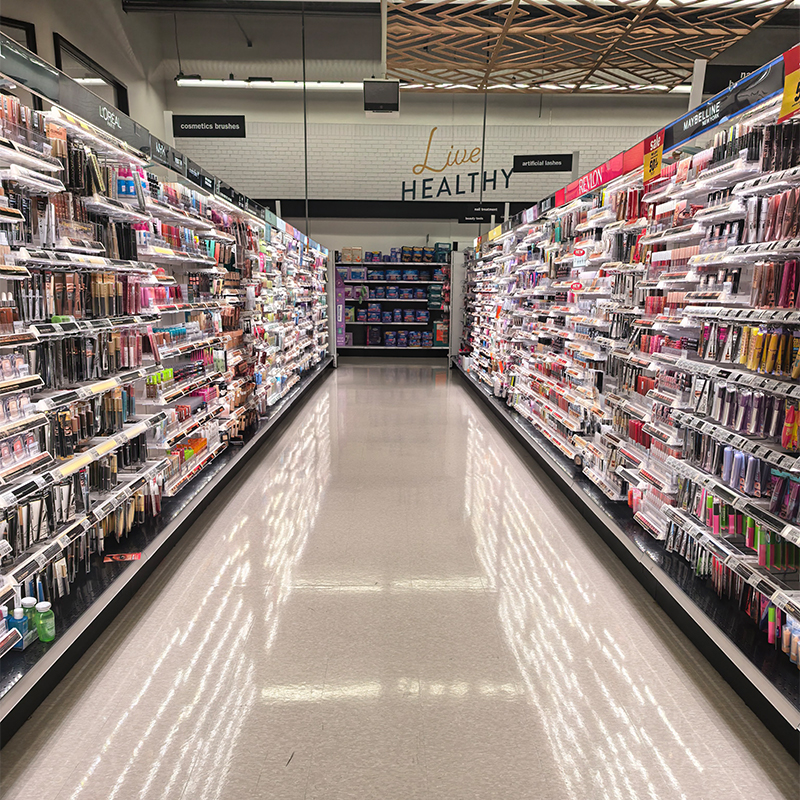

Retail application view supplied with the project materials. The image illustrates the setting rather than the contact-connector construction.
Related Solution & Products
Frequently Asked Questions
Where were the LED bars mounted?
They were mounted beneath the removable metal shelves using magnetic fixing.
What changed in the power connections?
The project adopted magnetic contact terminals in place of the conventional wired plug connection. The contact positions could be adjusted within the compatible connection arrangement.
What was checked before production?
The setup was checked on in-house shelving for attachment and ease of power connection. The project notes record secure attachment and convenient connection, followed by sample approval.
Discuss Your Shelf Lighting Project
Send your shelf layout, mounting surfaces and connection requirements to inquiry@ipixelleds.com for a project review.
