It is used for LED lighting systems, equipment wiring, outdoor or protected installations, and customized cable harnesses.
Jacketed Cable Series
Jacketed Cable Series
The Jacketed Cable Series is designed for LED lighting systems, equipment wiring, outdoor or semi-protected installations, and custom cable harness production.
This series includes 2-core, 3-core, 4-core, and 5-core jacketed wires with PVC or silicone insulation. Compared with parallel wire, jacketed cable provides better overall cable protection and cleaner installation appearance.
The listed versions include different core structures, such as 2×0.75mm², 3×0.5mm², 4×0.5mm², 4×20AWG, 2×22AWG + 3×26AWG, and 2×0.75 + 3×0.3mm².

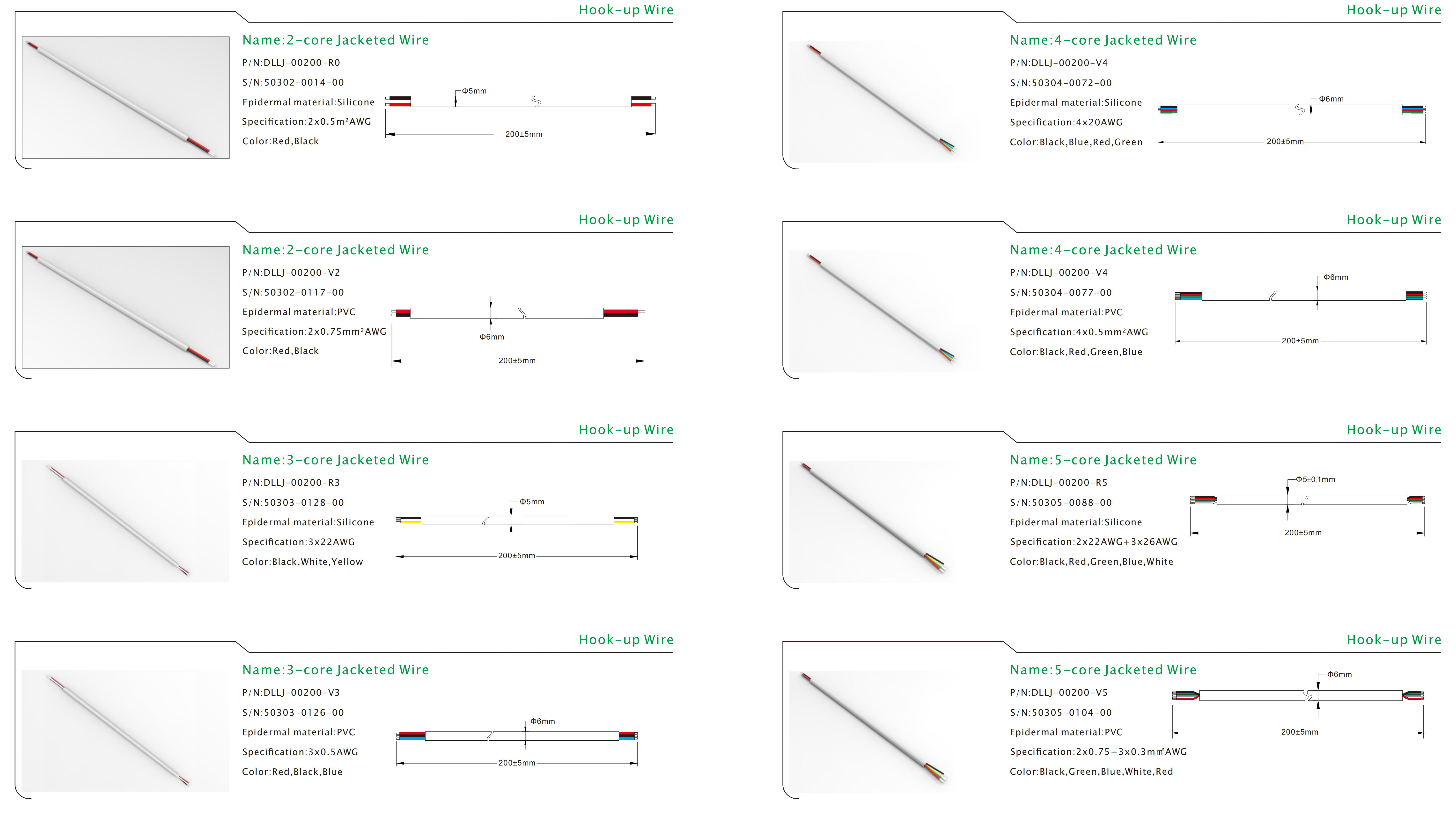

Product Series Specification Matrix
| Product Name | Core | Material | P/N | Specification | Length | Outer Diameter | Wire Color | Notes |
|---|---|---|---|---|---|---|---|---|

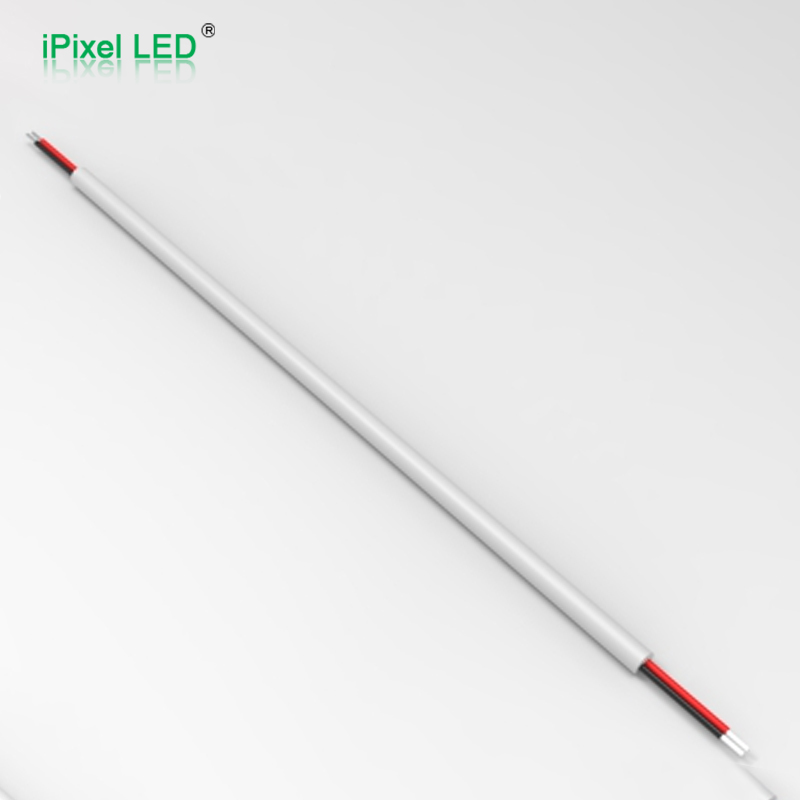

| 2-core Silicone Jacketed Wire | 2-core | Silicone | DLLJ-00200-R0 | 2×0.5mm² | 200±5mm | φ5mm | Red, Black | Flexible jacketed cable |
| 2-core PVC Jacketed Wire | 2-core | PVC | DLLJ-00200-V2 | 2×0.75mm² | 200±5mm | φ6mm | Red, Black | General jacketed cable |

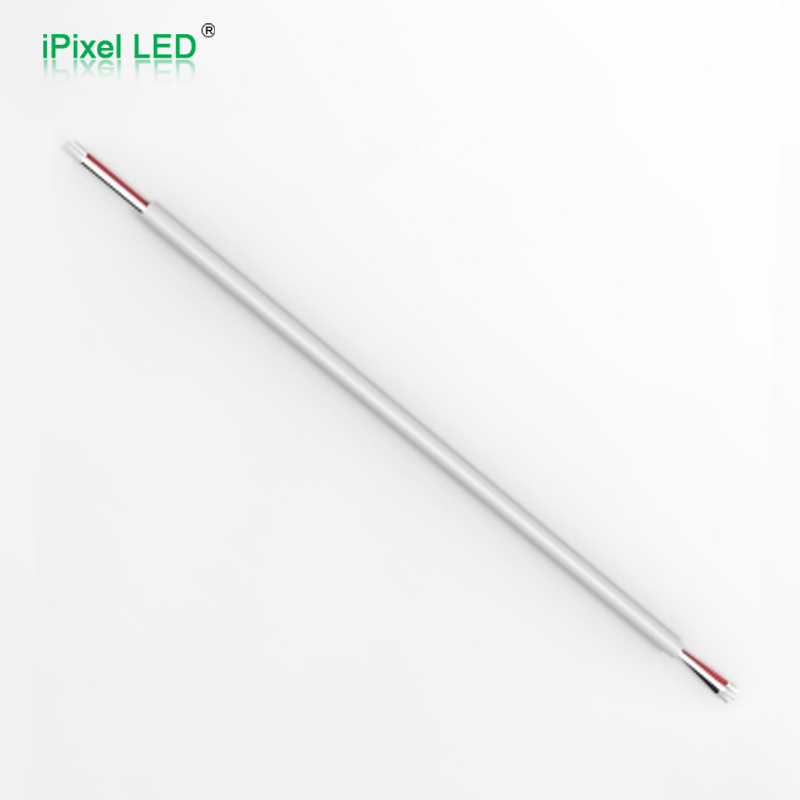

| 3-core Silicone Jacketed Wire | 3-core | Silicone | DLLJ-00200-R3 | 3×22AWG | 200±5mm | φ5mm | Black, White, Yellow | Flexible 3-core cable |
| 3-core PVC Jacketed Wire | 3-core | PVC | DLLJ-00200-V3 | 3×0.5mm² | 200±5mm | φ6mm | Red, Black, Blue | General 3-core cable |

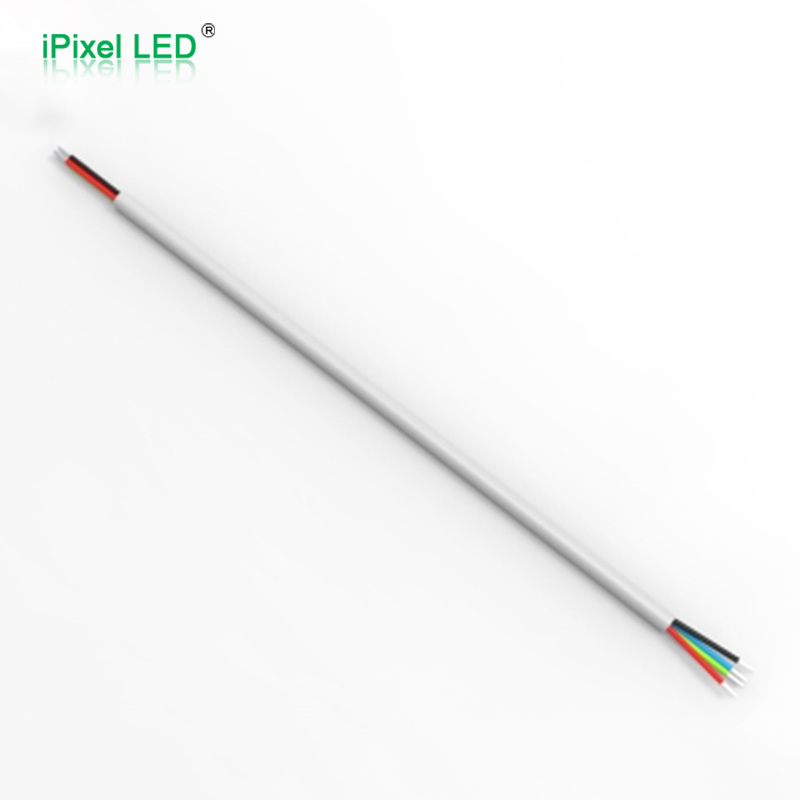

| 4-core Silicone Jacketed Wire | 4-core | Silicone | DLLJ-00200-V4* | 4×20AWG | 200±5mm | φ6mm | Black, Blue, Red, Green | For RGB / multi-core wiring |
| 4-core PVC Jacketed Wire | 4-core | PVC | DLLJ-00200-V4 | 4×0.5mm² | 200±5mm | φ6mm | Black, Red, Green, Blue | For RGB / multi-core wiring |

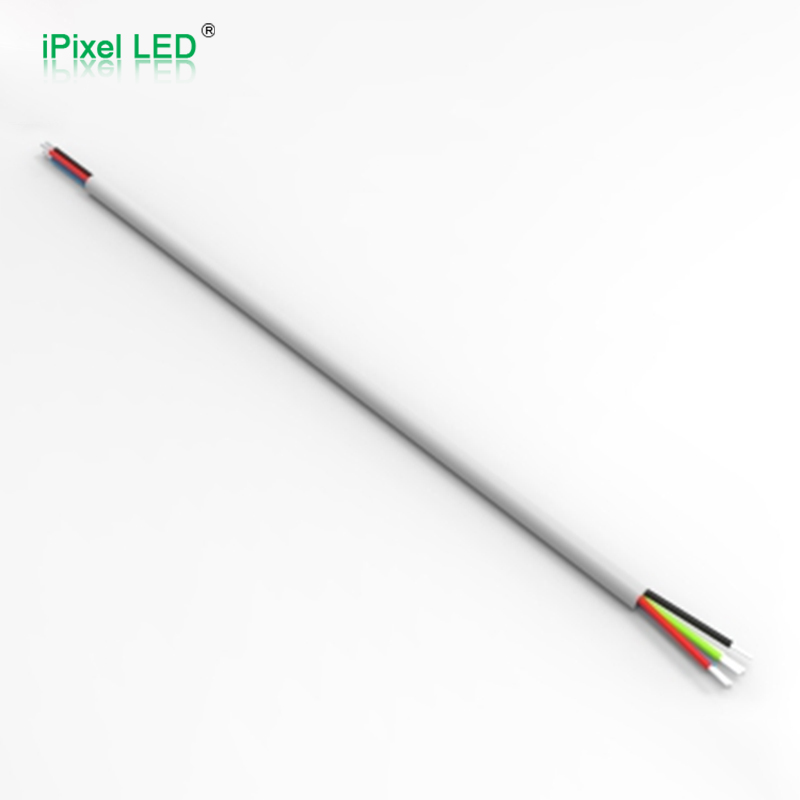

| 5-core Silicone Jacketed Wire | 5-core | Silicone | DLLJ-00200-R5 | 2×22AWG + 3×26AWG | 200±5mm | φ5±0.1mm | Black, Red, Green, Blue, White | For RGBW / multi-channel wiring |
| 5-core PVC Jacketed Wire | 5-core | PVC | DLLJ-00200-V5 | 2×0.75 + 3×0.3mm² | 200±5mm | φ6mm | Black, Green, Blue, White, Red | For RGBW / multi-channel wiring |
FAQ
PVC is suitable for general wiring, while silicone offers better flexibility and is often used for more demanding or flexible applications.
2-core for single-color power, 3-core for signal or special wiring, 4-core for RGB, and 5-core for RGBW or multi-channel wiring.
Yes. PVC, silicone, wire gauge, cable diameter, color order, and cable length can be customized.
No. Jacketed cable is raw or semi-finished cable material. Connector cable includes assembled plugs or terminals.
