DMX512 RGBW LED Strip Series – DC24V

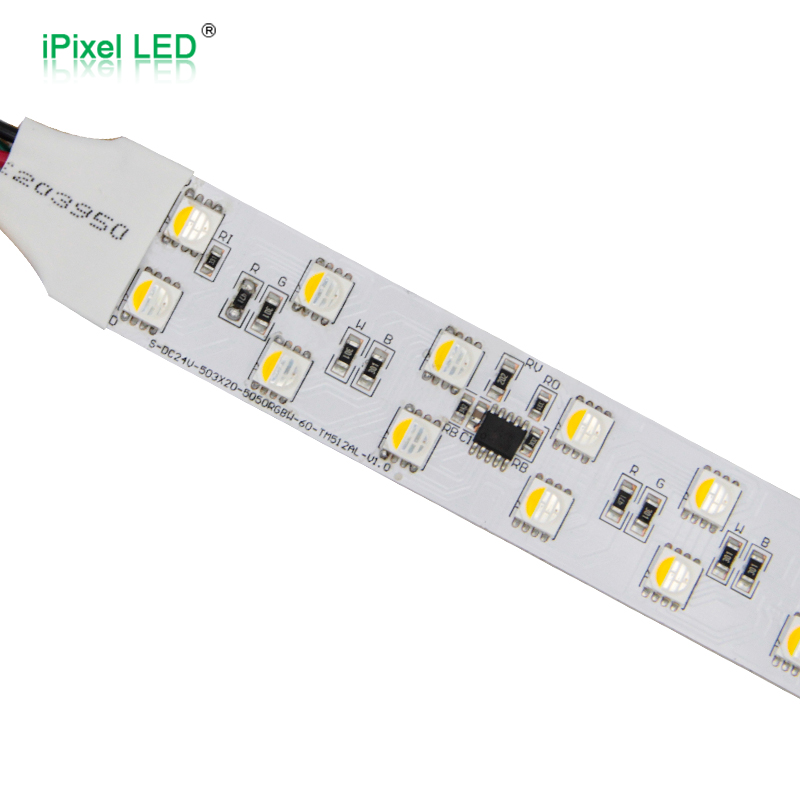

DMX512 RGBW LED Strip Series – DC24V

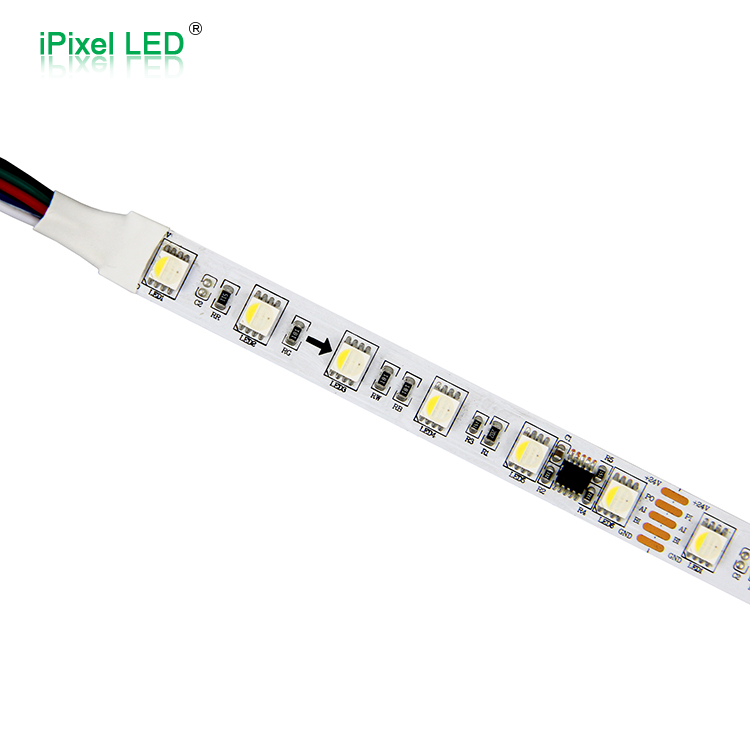

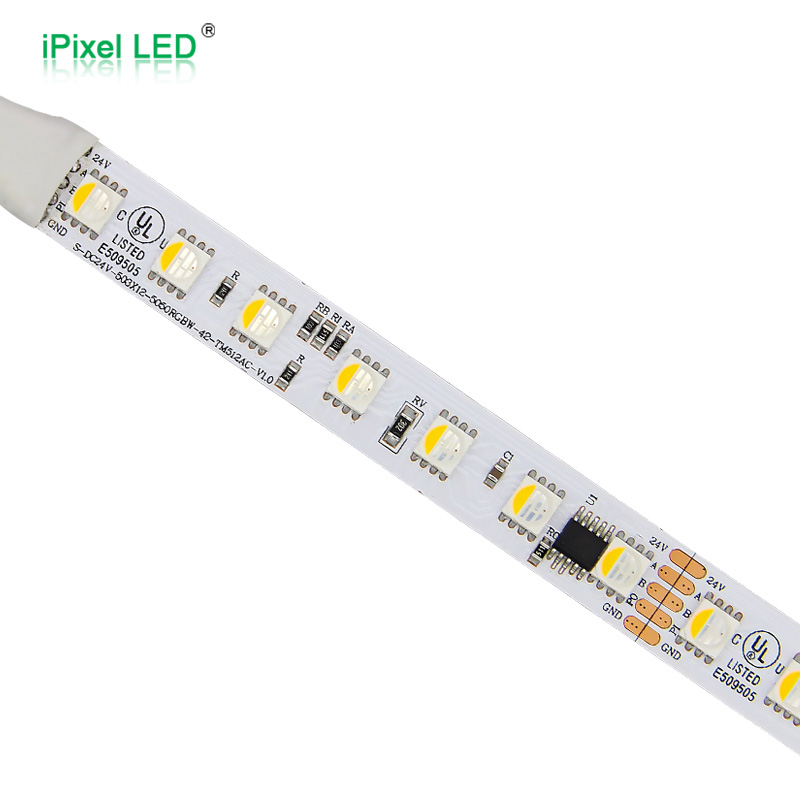

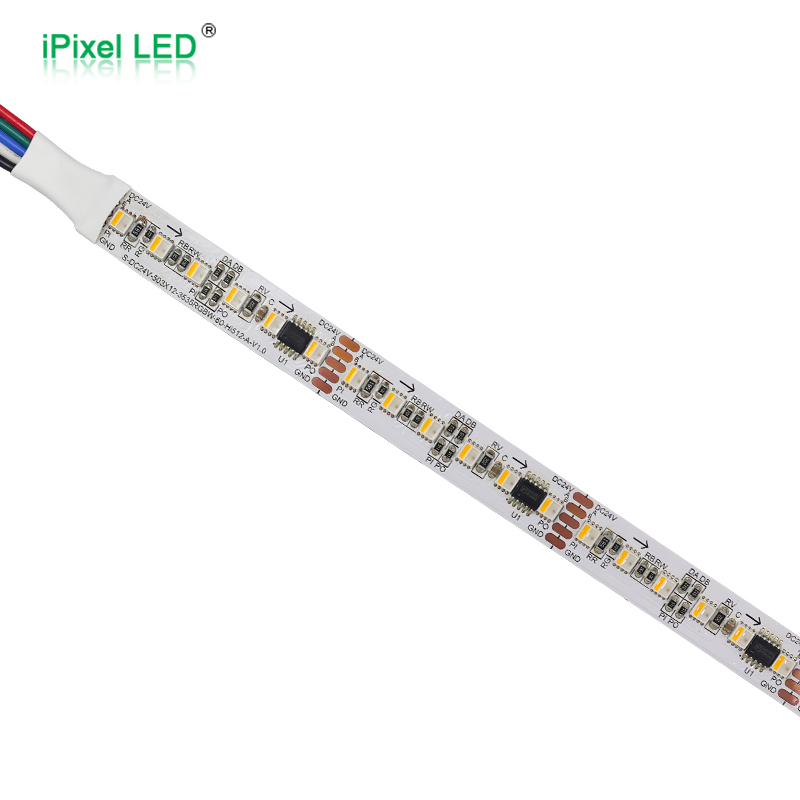

This DMX512 RGBW LED Strip Series is designed for professional lighting projects that require RGB color effects plus an independent white channel. All versions operate at DC24V and use DMX / TM512AC / HI512E control. The series includes standard 60LEDs/m RGBW, higher-density 84LEDs/m RGBW, high-pixel 120LEDs/m SMD3535 RGBW, and 20mm double-row 120LEDs/m RGBW versions.
DC24V60/84/120LEDs/m12/20mm WidchRGBWDMX / HI512E / TM512AC
Request Quote Download Datasheet

Overview & Key Features

Series Overview

This DMX512 RGBW LED Strip Series is designed for professional lighting projects that require RGB color effects plus an independent white channel. All versions operate at DC24V and use DMX / TM512AC / HI512E control. The series includes standard 60LEDs/m RGBW, higher-density 84LEDs/m RGBW, high-pixel 120LEDs/m SMD3535 RGBW, and 20mm double-row 120LEDs/m RGBW versions.

The standard 60LEDs/m version uses 10 pixels per meter and 100mm cutting length. The 84LEDs/m version offers 12 pixels per meter and 83.33mm cutting length. The SMD3535 120LEDs/m version provides 20 pixels per meter and 50mm cutting length for more detailed effects. The 20mm double-row 120LEDs/m version is suitable when a wider PCB and stronger visual output are required.

Key Features

  • DMX512 RGBW LED strip series for professional control systems.
  • DC24V constant voltage operation.
  • RGB + independent white channel.
  • DMX / TM512AC / HI512E control.
  • 4-channel RGBW control per pixel section.
  • SMD5050 and SMD3535 options.
  • 60 / 84 / 120 LEDs/m versions.
  • 10 / 12 / 20 Pixels/m options.
  • 12mm PCB standard versions and 20mm double-row version.
  • 50mm / 83.33mm / 100mm cutting options.
  • 5m per roll, custom length available.
  • 3M adhesive backing shown for selected versions.
  • Suitable for architectural lighting, entertainment lighting, stage-related projects, display lighting, signage and OEM RGBW lighting assemblies.

Product Series Specification Matrix

Model NoLED Qty/mVoltagePower/mLumen/mPCB WidthCutting LengthControlPixel DensityColor
S012060CC4DC0 / S012060CC4DE1SMD5050 60LEDs/mDC24V19.2W/mR:90 / G:170 / B:54 / W:344 lm/m12mm100mmDMX / TM512AC / HI512E10 Pixels/mRGB+W: 3000K / 4000K / 6500K
S012084CC4DC0 / S012084CC4DE1SMD5050 84LEDs/mDC24V23W/mR:720 / G:1635 / B:470 / W:2790 lm/m12mm83.33mmDMX / TM512AC / HI512E12 Pixels/mRGB+W: 3000K / 4000K / 6500K
S012120DC4DE1 / S012120DC4DC0SMD3535 120LEDs/mDC24V24W/mR:148 / G:356 / B:64 / W:383 lm/m12mm50mmDMX / TM512AC / HI512E20 Pixels/mRGB+W: 3000K / 4000K / 6500K
S020120CC4DC0 / S020120CC4DE1SMD5050 120LEDs/mDC24V19.2W/mR:90 / G:291 / B:76 / W:413 lm/m20mm100mmDMX / TM512AC / HI512E10 Pixels/mRGB+W: 3000K / 4000K / 6500K

How to Choose

Project RequirementRecommended Option
Standard DMX512 RGBW projectS012060CC4DC0 / DE1
Need standard 12mm PCB, 100mm cutting pitchS012060CC4DC0 / DE1
Need higher LED density and stronger brightnessS012084CC4DC0 / DE1
Need a shorter cutting pitchS012120DC4DE1 / DC0, 50mm cut
Need finer pixel controlS012120DC4DE1 / DC0, 20 Pixels/m
Need SMD3535 RGBW packageS012120DC4DE1 / DC0
Need dual‑row high‑brightness structureS020120CC4DC0 / DE1
Installation space allows 20mm PCBS020120CC4DC0 / DE1
Need RGB + independent white channelAll four models are suitable
Need standard RGB three‑channel onlyDo not choose this series; select the Auto Address DMX512 RGB LED Strip instead
Need single‑color white DMX dimmingDo not choose this series; select the DMX 2835 Single Color LED Strip instead

Structure & Installation


Protection, Customization & Options

Option TypeAvailable OptionsNotes
VoltageDC24VStandard input
ControlDMX / TM512AC / HI512ECompatible DMX controller required
ColorRGBWRGB + independent white channel
LED TypeSMD5050 / SMD3535Select by brightness, size and visual effect
LED Density60 / 84 / 120 LEDs/mSelect by brightness and pixel density
Pixel Density10 / 12 / 20 Pixels/mHigher pixels = finer control
PCB Width12mm / 20mm20mm version is double row
Cutting Length50mm / 83.33mm / 100mmDepends on version
White CCT3000K / 4000K / 6000K / 6500KConfirm final CCT before order
IP RatingIP20 / IP65; IP64 / IP67 to confirmDepends on version and waterproof process
Length5m standard / custom lengthCustom length available
Cable5-wire DMX input/output24V / A / B / PI / GND
Mounting3M tape / aluminum profile / clipsProfile recommended for better protection
AccessoriesDC24V power supply, DMX controller, aluminum profileSelect according to project


Documents & Compliance

Document NameTypeLanguageVerslonDownload/Remark
DatasheetPDFENV1.2 Download
User ManualPDFENV1.0Download
IES FileIESENV1.0Download
RoHSCertificateENV1.0Download
CECertificateENV1.0Download
LM-80 Test ReportPDFENV1.0Download


FAQ

They belong to the same DMX512 RGBW LED strip series, but the LED type, LED density, pixel density, PCB width and cutting length are different.
60 LEDs/m is the standard version. 84 LEDs/m provides higher density. 120 LEDs/m offers either higher pixel density with SMD3535 or a wider double-row SMD5050 structure.
S012120DC4DE1 / DC0 has 20 Pixels/m and 50mm cutting length, so it is the best choice for finer RGBW effects.
S020120CC4DC0 / DE1 uses a 20mm double-row PCB and is suitable for wider lighting surfaces.
