RGBW has RGB plus one white channel. RGB+W+WW has RGB plus warm white and cool white channels, giving more flexible white-light adjustment.

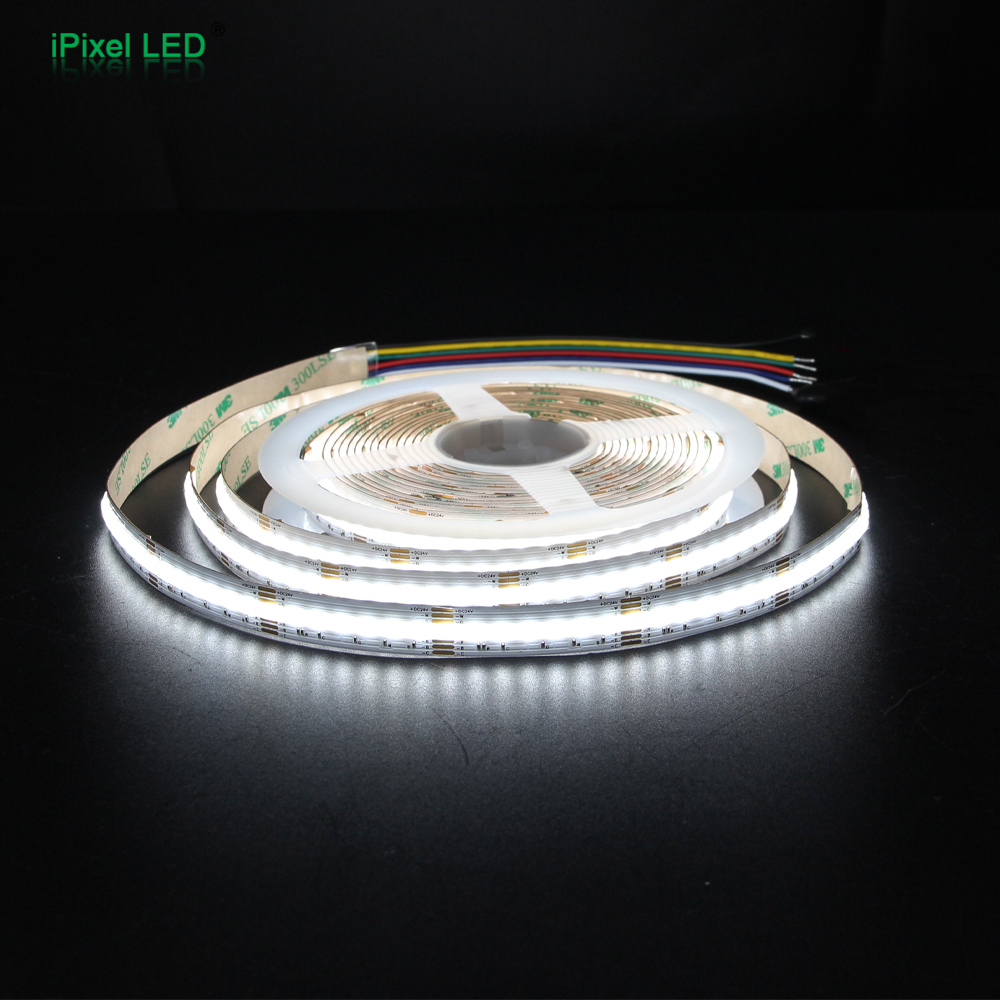

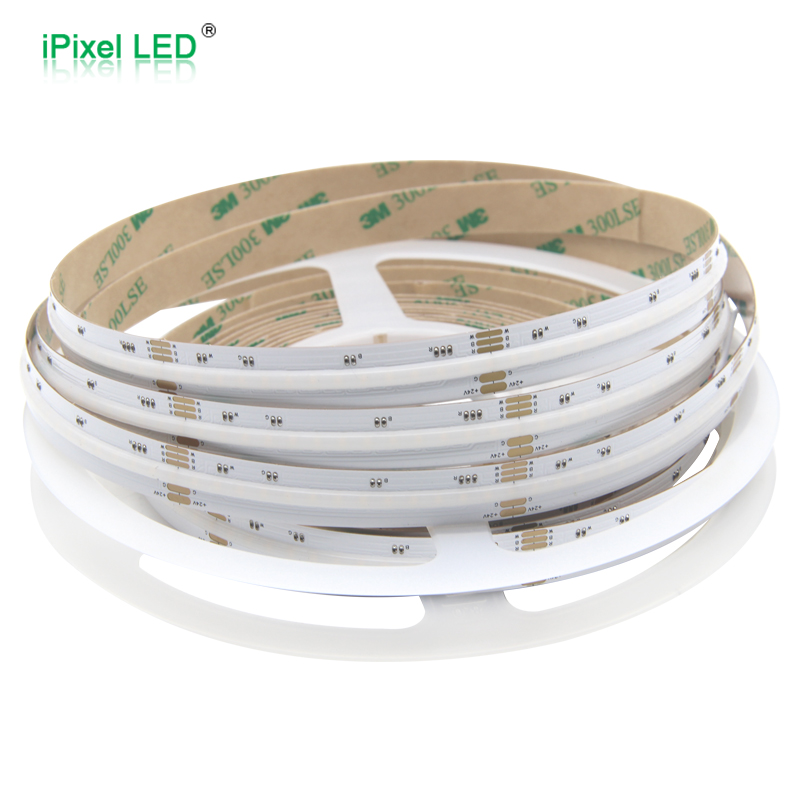

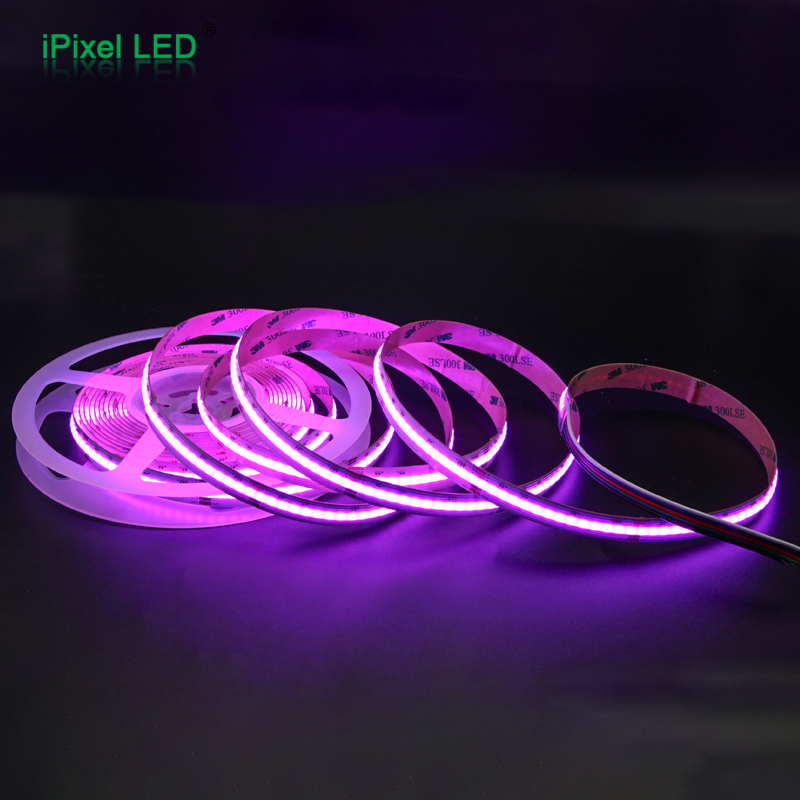

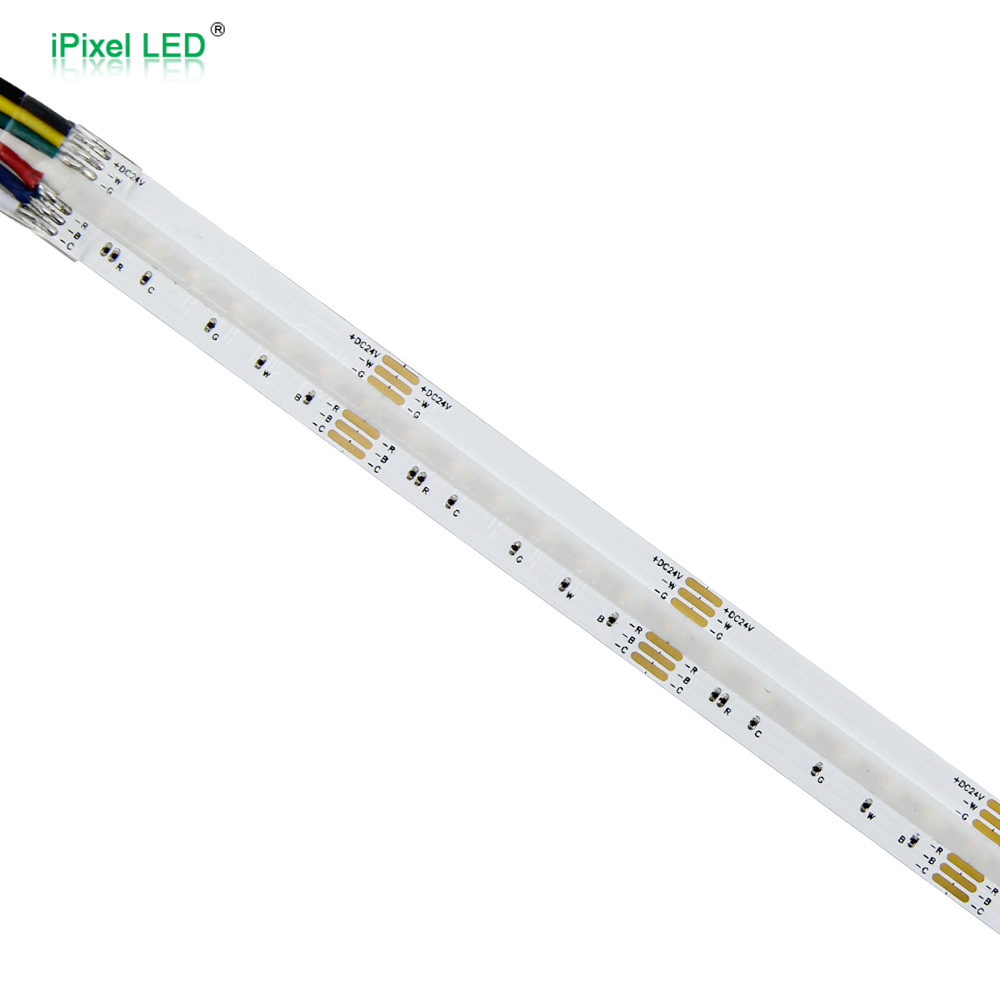

RGBW & RGBWW COB LED Strip Series
This RGBW & RGBWW COB LED Strip Series is designed for projects that require both smooth color-changing effects and practical white-light output. The series includes RGBW COB LED Strip and RGB+W+WW COB LED Strip options, both using DC24V, 12mm PCB width, PWM control, COB high-density structure, and standard 5m/roll design.
The RGBW version provides RGB plus one white channel with 3000K / 4000K / 6500K options. The RGB+W+WW version provides RGB plus warm white and cool white channels, allowing richer color mixing and more flexible white-light performance. Both datasheets describe the products as high-density COB strips with even and soft light, high efficiency, double-layer PCB, good heat dissipation and customizable length.
DC24V840/896LEDs/m12mm WidthRGBW+RGBWW IP20/IP65
Overview & Key Features
Series Overview
This series combines two multi-channel COB color strips into one selection platform. Compared with normal RGB COB strips, these products add independent white channels, making them more suitable for projects that need both decorative RGB effects and usable white lighting.

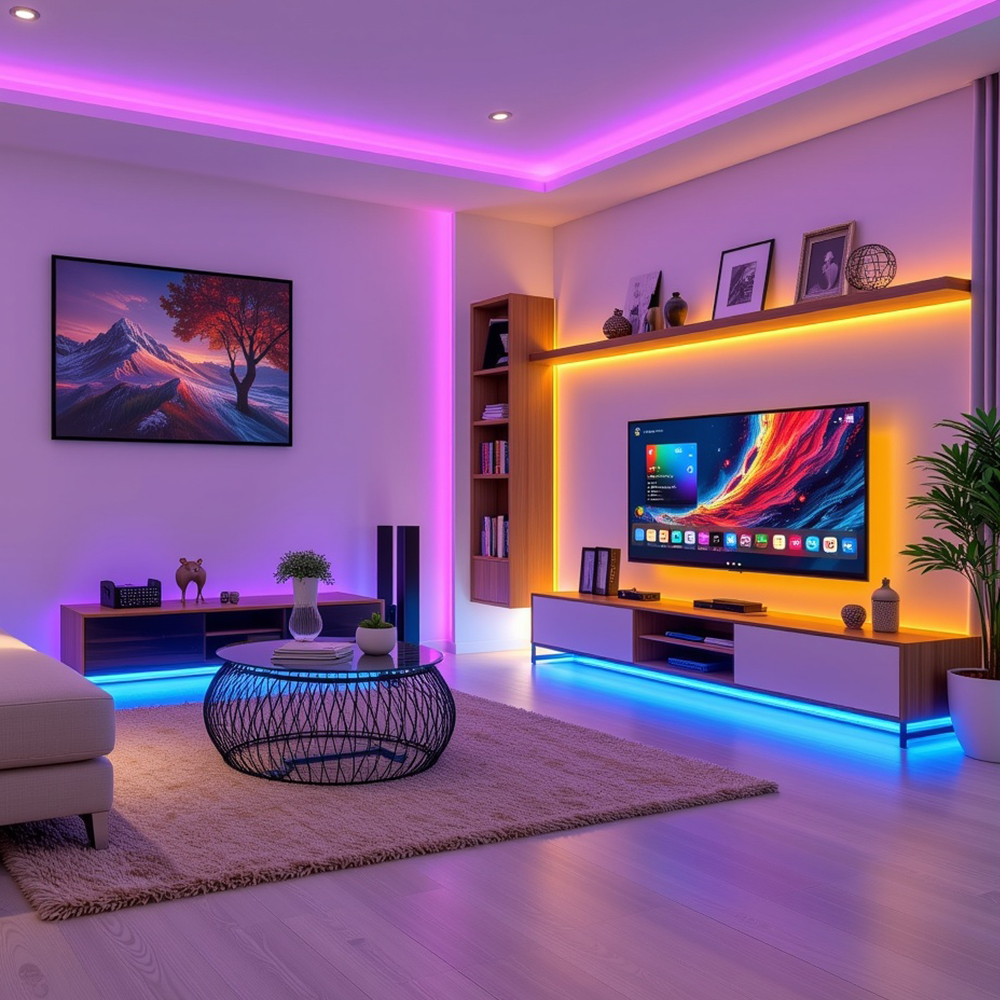

The RGBW model is suitable when the project needs one dedicated white channel. The RGB+W+WW model is more suitable when the project needs both warm white and cool white output, such as premium ambient lighting, furniture lighting, display fixtures, hospitality lighting and smart linear lighting systems.
Key Features
- Dotless COB RGBW / RGBWW lighting effect
- DC24V low-voltage input
- 12mm PCB width
- PWM multi-channel control
- RGBW and RGB+W+WW options
- 840 LEDs/m and 896 LEDs/m options
- 5-channel RGB+W+WW option available
- 3000K / 4000K / 6500K white option for RGBW model
- 2700K + 6500K dual-white option for RGBWW model
- IP20 / IP65 protection options
- Standard 5000mm / 5m roll length
- Custom length available
- Double-layer PCB for voltage drop, heat dissipation and flexibility
- Suitable for color-changing, ambient, display and functional white lighting projects
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S012840ZC5PZ | 840 | DC24V | 16W | RGB+W+WW COB / PWM | 12mm | RGBWW: 2700K + 6500K | 41.6mm | R:102.4 / G:301 / B:47.7 / WW:248.3 / CW:262.5lm |
| S012896ZC4PZ | 896 | DC24V | 16W | RGBW COB / PWM | 12mm | RGB + W: 3000K / 4000K / 6500K | 62.5mm | R:100 / G:190 / B:30 / W:280lm |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need RGB plus one independent white channel | S012896ZC4PZ — RGBW COB, suitable for projects requiring color effect and one dedicated white-light channel. |
| Need RGB plus warm white and cool white channels | S012840ZC5PZ — RGB+W+WW COB, suitable for richer white-light adjustment and premium ambient lighting. |
| Need shorter cutting length | S012840ZC5PZ — 41.6mm cut length, more flexible than 62.5mm. |
| Need RGBW with selectable white CCT | S012896ZC4PZ — white channel can be 3000K / 4000K / 6500K. |
| Need warm white + cool white in one strip | S012840ZC5PZ — includes WW 2700K and CW 6500K. |
| Need higher LED density | S012896ZC4PZ — 896 LEDs/m. |
| Need more complete color + white channel control | S012840ZC5PZ — 5-channel RGB+W+WW structure. |
| Project uses DC24V PWM controller | Both models — both are DC24V and PWM controlled. |
| Need indoor dry installation | IP20 version — suitable for dry indoor profile or cabinet installation. |
| Need additional surface protection | IP65 version — silicone tube protection option; final size and optical data should be confirmed after IP process. |

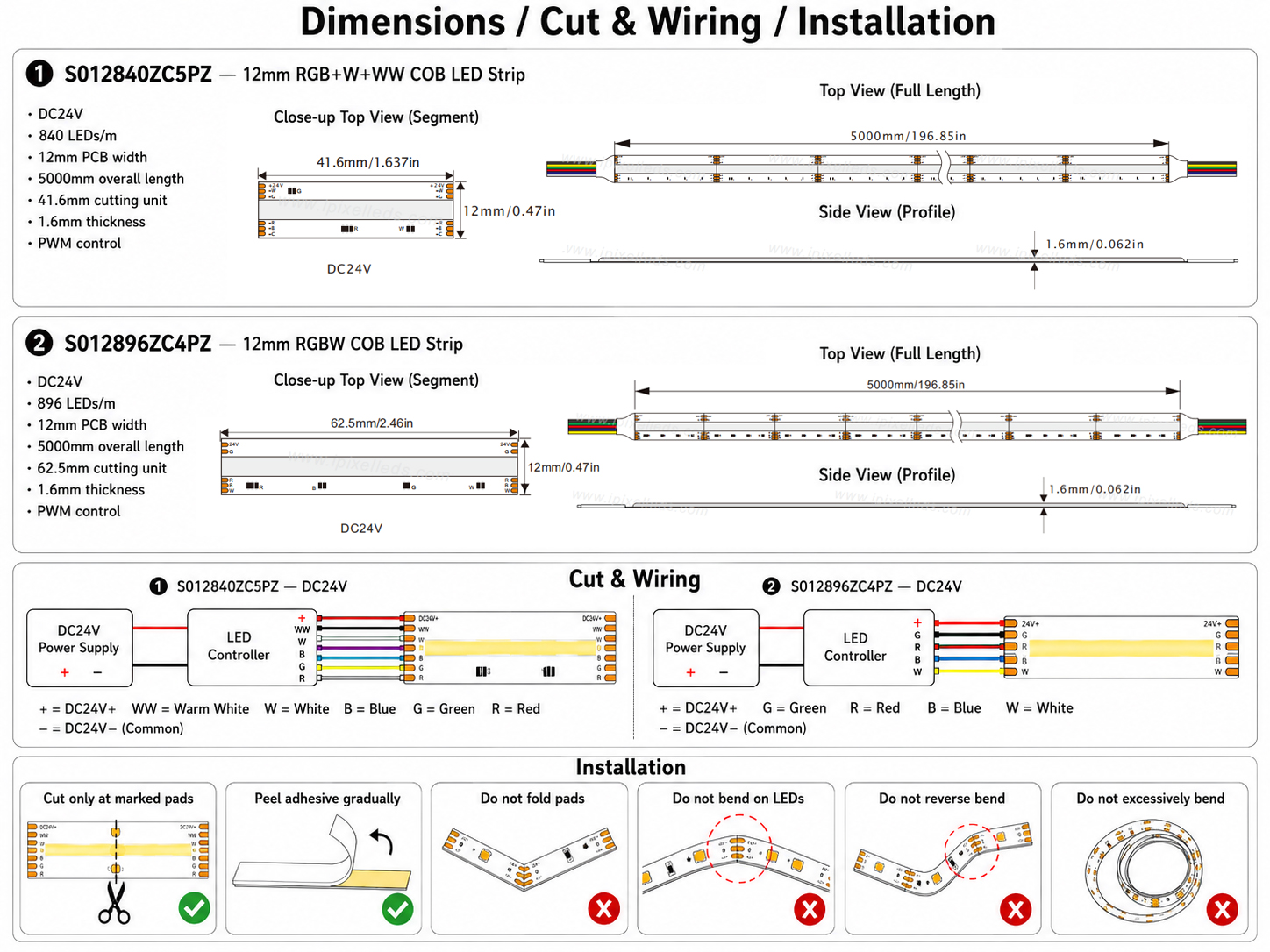

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Both models use DC24V low-voltage input. |
| LED Type | COB | High-density COB structure for smooth, dotless color and white lighting. |
| ColorType | RGBW / RGB+W+WW | RGBW provides RGB + one white channel. RGB+W+WW provides RGB + warm white + cool white. |
| Color Range | RGB + W: 3000K / 4000K / 6500K; RGBWW: 2700K + 6500K | Select according to project white-light requirement. |
| PCB Width | 12mm | Both models use 12mm PCB width. |
| Power | 16W/m | Both formal Product Datasheet tables list 16W/m. |
| Control | PWM controller | Controller must match RGBW or RGB+W+WW channel wiring. |
| IPRating | IP20 / IP65 | IP20 for dry indoor use; IP65 silicone tube option available. IP process may affect final size, CCT and luminous flux. |
| Length | 5m standard / custom length | Standard 5000mm / 5m roll. Custom length can be discussed for OEM projects. |
| Connector | Bare wire / RGBW connector / RGBWW connector / custom connector | Connector type should match channel count and wiring order. |
| Mounting | Adhesive tape / aluminum profile / clips | Aluminum profile is recommended for cleaner installation, mechanical protection and heat dissipation. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing. OEM packaging can be discussed. |
Related Items
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Electric Fireplace Lighting – High-Temp Stability, Long Life & Safe Integration
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Choose S012840ZC5PZ, because it includes WW 2700K and CW 6500K.
Choose S012896ZC4PZ, because it is an RGBW model with one dedicated white channel.
S012840ZC5PZ has a 41.6mm cut length, shorter than S012896ZC4PZ.
