It is used for LED strip, LED module, controller, and low-voltage lighting wiring.
Parallel Wire Series
Parallel Wire Series
The Parallel Wire Series is designed for low-voltage LED power and signal wiring. It includes 2-core, 3-core, 4-core, 5-core, and 6-core parallel wires for single-color, CCT, RGB, RGBW, RGB+CCT, and multi-channel LED systems.
This series includes both short wire versions and roll cable versions. The listed versions mainly use PVC insulation and 20AWG wire, with one 6-core roll version listed as 18AWG.

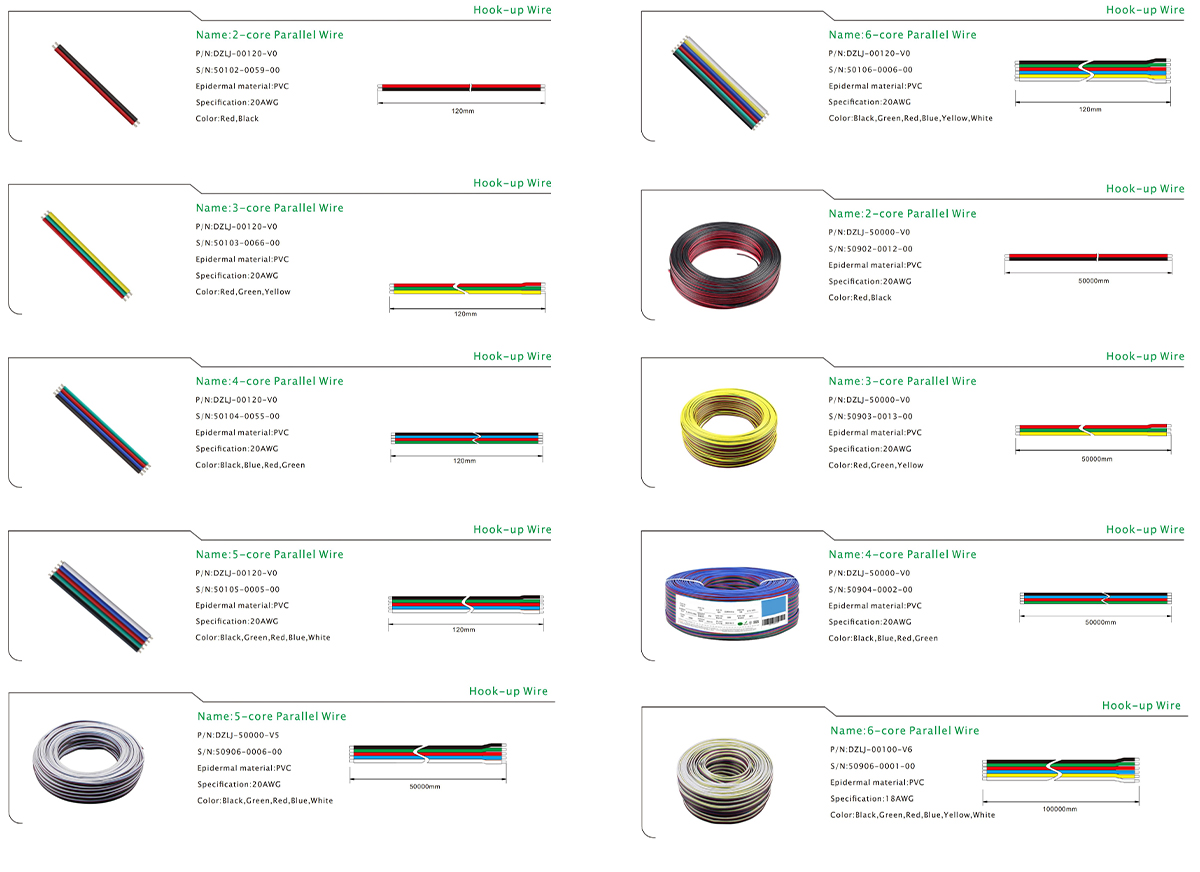

Product Series Specification Matrix
| Product Name | Core | Type | P/N | Wire Gauge | Length | Material | Wire Color | Notes |
|---|---|---|---|---|---|---|---|---|

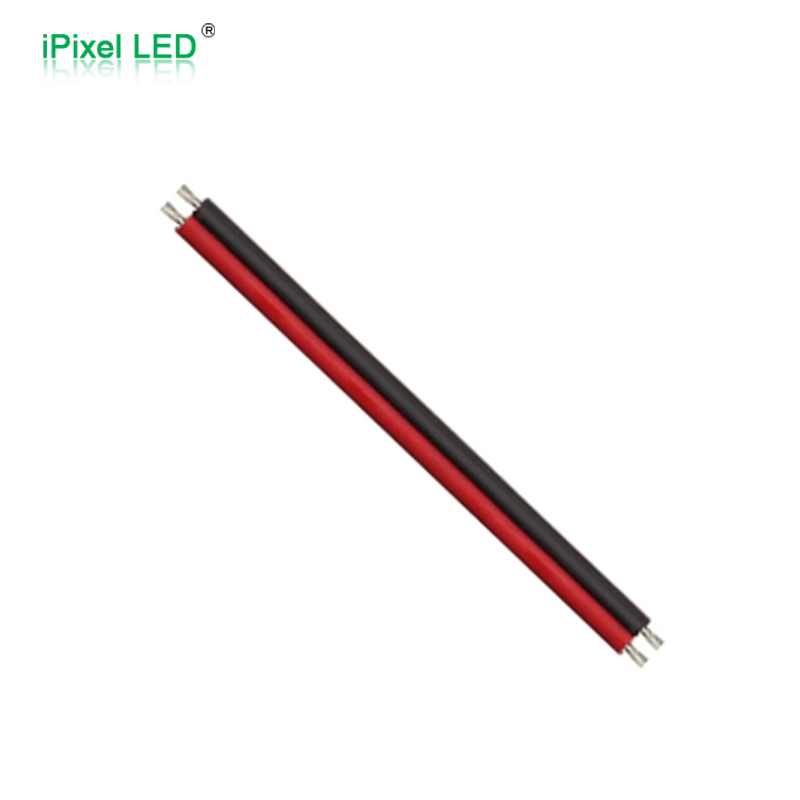

| 2-core Parallel Wire - 120mm | 2-core | Short Wire | DZLJ-00120-V0 | 20AWG | 120mm | PVC | Red, Black | For single-color wiring |
| 3-core Parallel Wire - 120mm | 3-core | Short Wire | DZLJ-00120-V0 | 20AWG | 120mm | PVC | Red, Green, Yellow | For 3-wire systems |

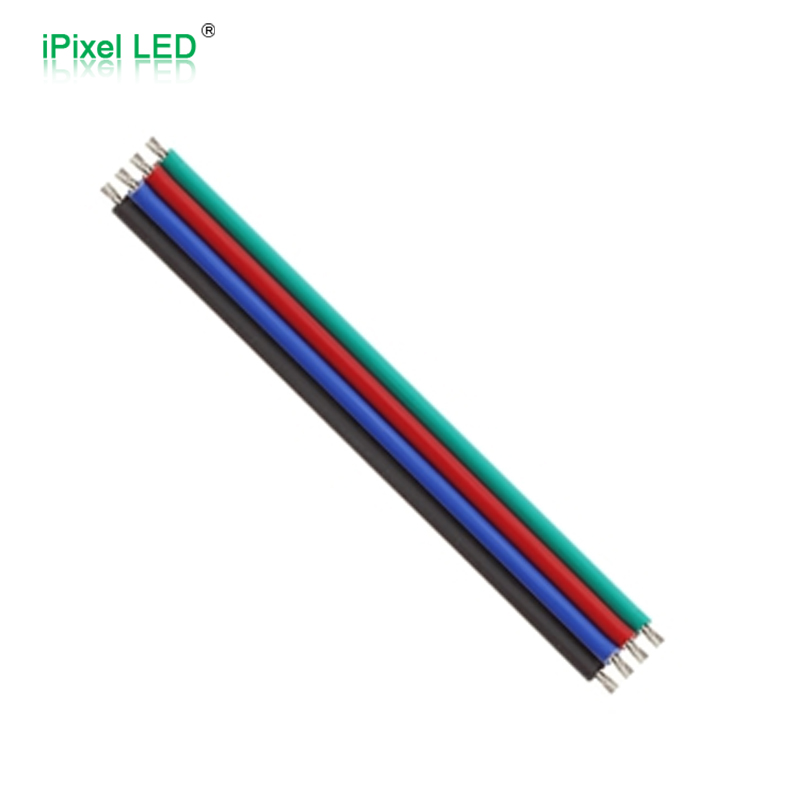

| 4-core Parallel Wire - 120mm | 4-core | Short Wire | DZLJ-00120-V0 | 20AWG | 120mm | PVC | Black, Blue, Red, Green | Common for RGB wiring |
| 5-core Parallel Wire - 120mm | 5-core | Short Wire | DZLJ-00120-V0 | 20AWG | 120mm | PVC | Black, Green, Red, Blue, White | For RGBW / multi-channel wiring |

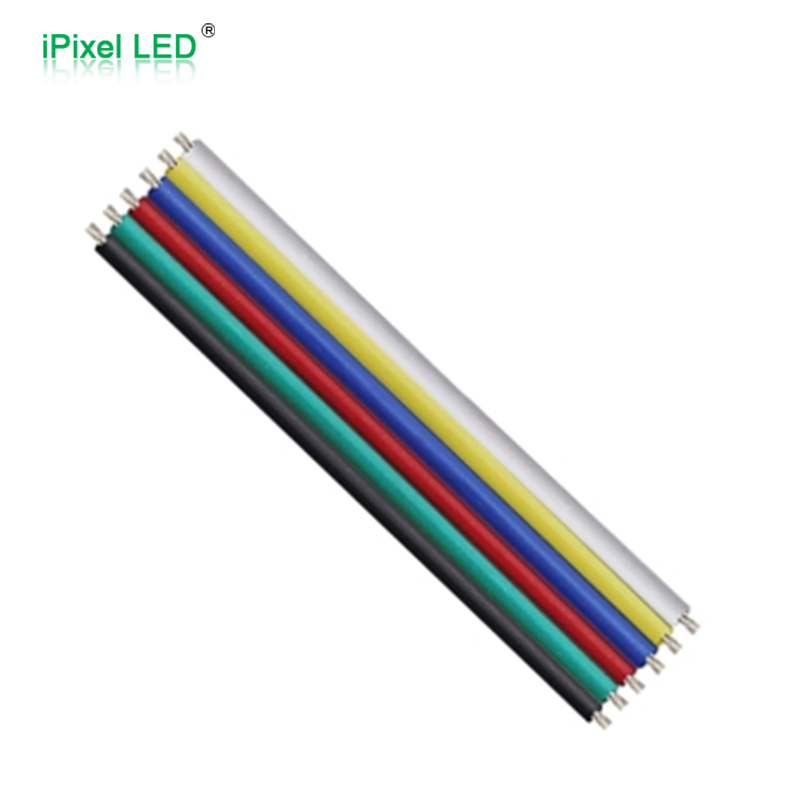

| 6-core Parallel Wire - 120mm | 6-core | Short Wire | DZLJ-00120-V0 | 20AWG | 120mm | PVC | Black, Green, Red, Blue, Yellow, White | For RGB+CCT / multi-channel wiring |

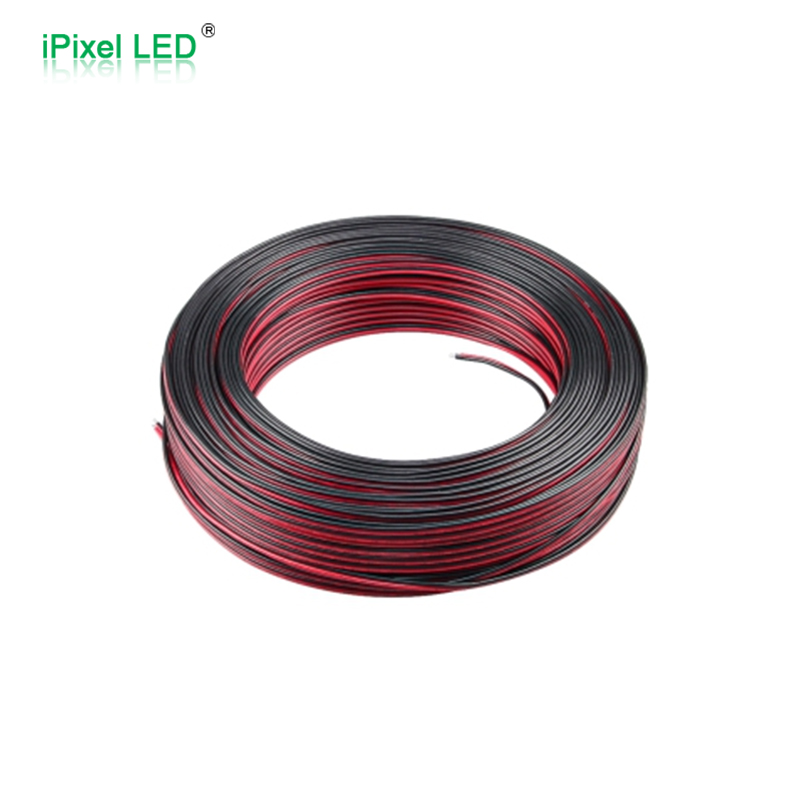

| 2-core Parallel Wire - 50000mm | 2-core | Roll Wire | DZLJ-50000-V0 | 20AWG | 50000mm | PVC | Red, Black | Bulk production roll |

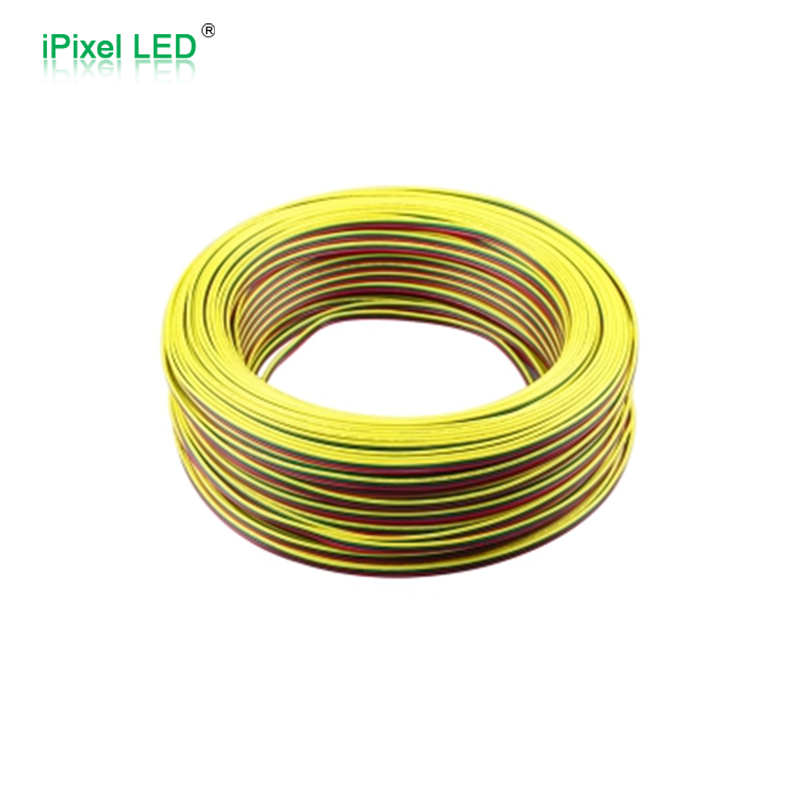

| 3-core Parallel Wire - 50000mm | 3-core | Roll Wire | DZLJ-50000-V0 | 20AWG | 50000mm | PVC | Red, Green, Yellow | Bulk production roll |
| 4-core Parallel Wire - 50000mm | 4-core | Roll Wire | DZLJ-50000-V0 | 20AWG | 50000mm | PVC | Black, Blue, Red, Green | Bulk production roll |
| 5-core Parallel Wire - 50000mm | 5-core | Roll Wire | DZLJ-50000-V5 | 20AWG | 50000mm | PVC | Black, Green, Red, Blue, White | Bulk production roll |
| 6-core Parallel Wire - 100000mm | 6-core | Roll Wire | DZLJ-00100-V6 | 18AWG | 100000mm | PVC | Black, Green, Red, Blue, Yellow, White | Higher-gauge roll wire |
FAQ
2-core for single color, 3-core for simple signal wiring, 4-core for RGB, 5-core for RGBW, and 6-core for RGB+CCT or multi-channel wiring.
Short wires are for small assemblies or sample wiring; roll wires are for production, cutting, and customized cable harness manufacturing.
Yes. Wire color, length, gauge, and packing can be customized.
