It is used for compact waterproof LED wiring, especially where a small 2Pin connector is needed for LED modules, low-voltage LED bars, or equipment wiring.
JST-JWPF Waterproof Cable Series
JST-JWPF Waterproof Cable Series
The JST-JWPF Waterproof Cable Series is designed for compact low-voltage LED connection projects that require a small waterproof connector solution.

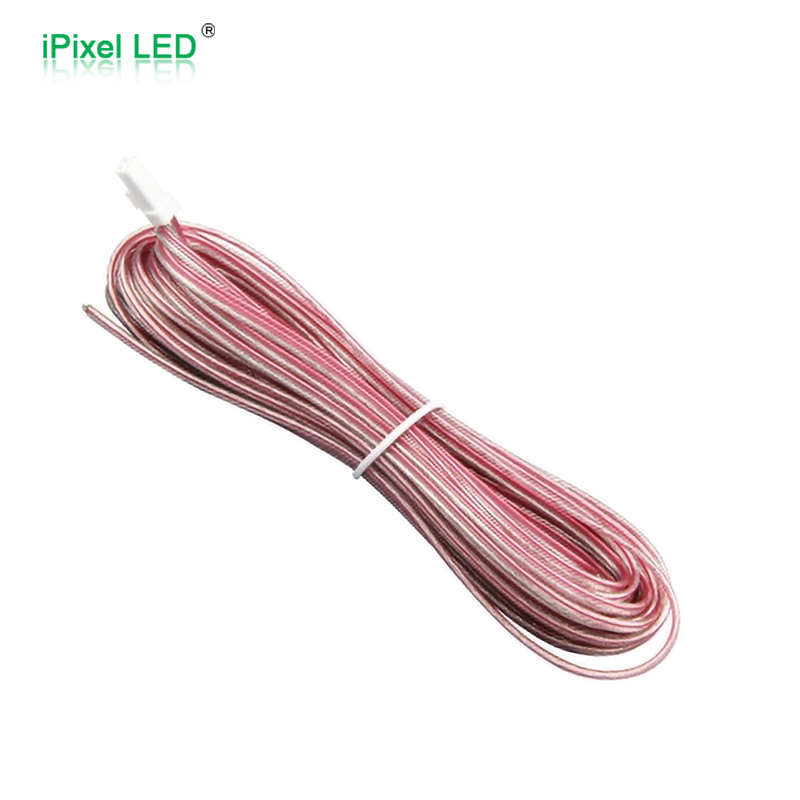

This series includes 2Pin JST-JWPF male and female pigtail cables. It is suitable for LED modules, small LED rigid bars, cabinet lighting, refrigeration lighting, and other low-voltage LED systems where a compact waterproof connection is required.

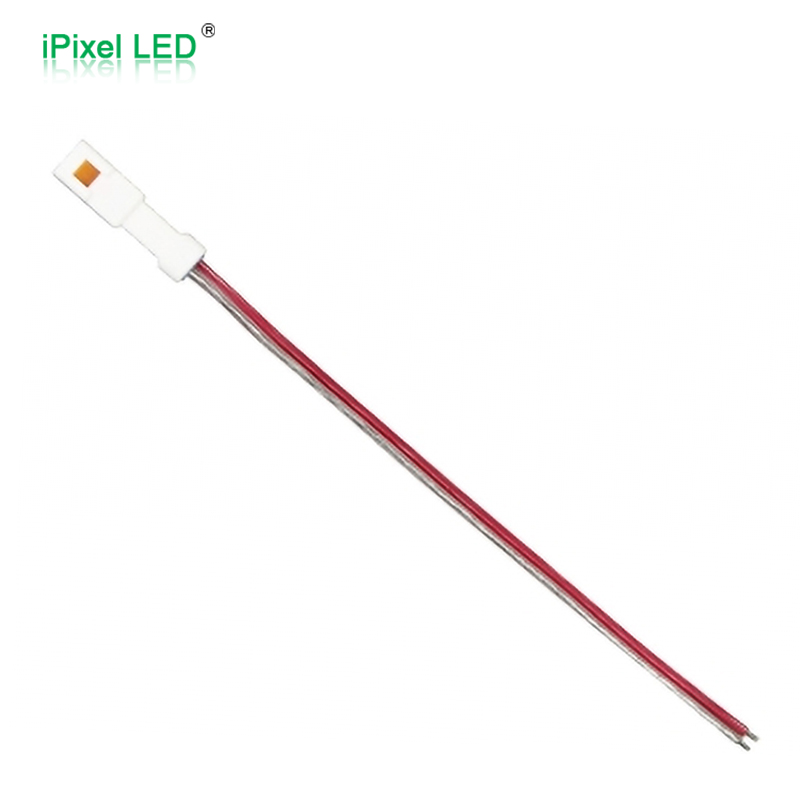

The current file includes PVC insulation, tinned copper conductor, 22AWG wire, transparent/red cable color, and JST-JWPF 2Pin connector structure.
Product Series Specification Matrix
| Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Length | Material / Color | Notes |
|---|---|---|---|---|---|---|---|---|

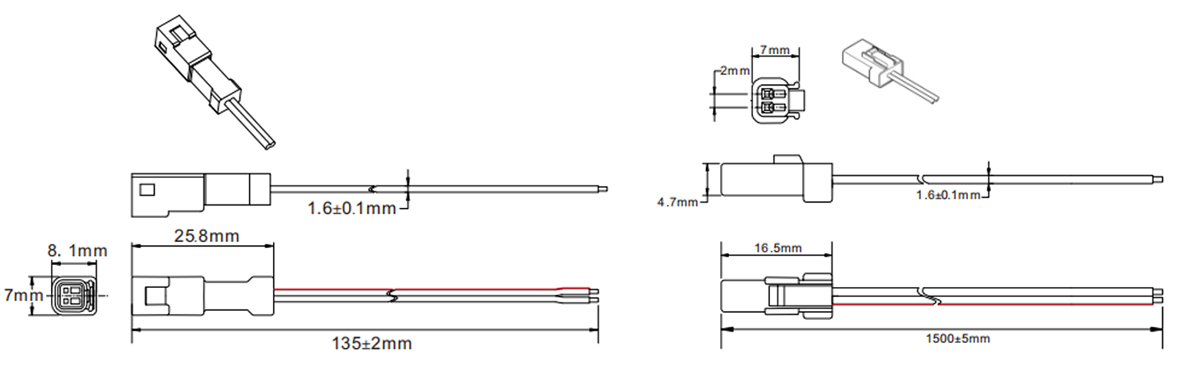

| 2Pin JST-JWPF Female Pigtail Cable | 2Pin | Female Pigtail | JST-JWPF-2V / JST-02R-JWPF-VSLE-S | DZMT-01500-V0162 | 22AWG | 1500±5mm | PVC / Transparent Red | Compact waterproof connector |
| 2Pin JST-JWPF Male Pigtail Cable | 2Pin | Male Pigtail | JST-JWPF-2V / JST-02T-JWPF-VSLE-S | DZMT-00135-V0163* | 22AWG | 135±2mm | PVC / Transparent Red | Matched with female side |
FAQ
No. JST-SM is usually used for standard IP20 indoor wiring, while JST-JWPF is a more compact waterproof connector structure.
Yes. The listed lengths are reference lengths. Cable length, wire color, wire gauge, and connector direction can be customized by project.
It can be used in protected waterproof connection projects, but the final waterproof performance depends on connector assembly, cable sealing, installation method, and the final product structure.
