It is used to connect LED strips, LED rigid bars, controllers, power supplies, and LED modules when one side needs a JST-SM connector and the other side needs open wires for soldering or assembly.
JST-SM Pigtail Cable Connector Series
JST-SM Pigtail Cable Connector Series
The JST-SM Pigtail Cable Connector Series is designed for low-voltage LED strip, LED rigid bar, LED module, controller, and power connection projects.

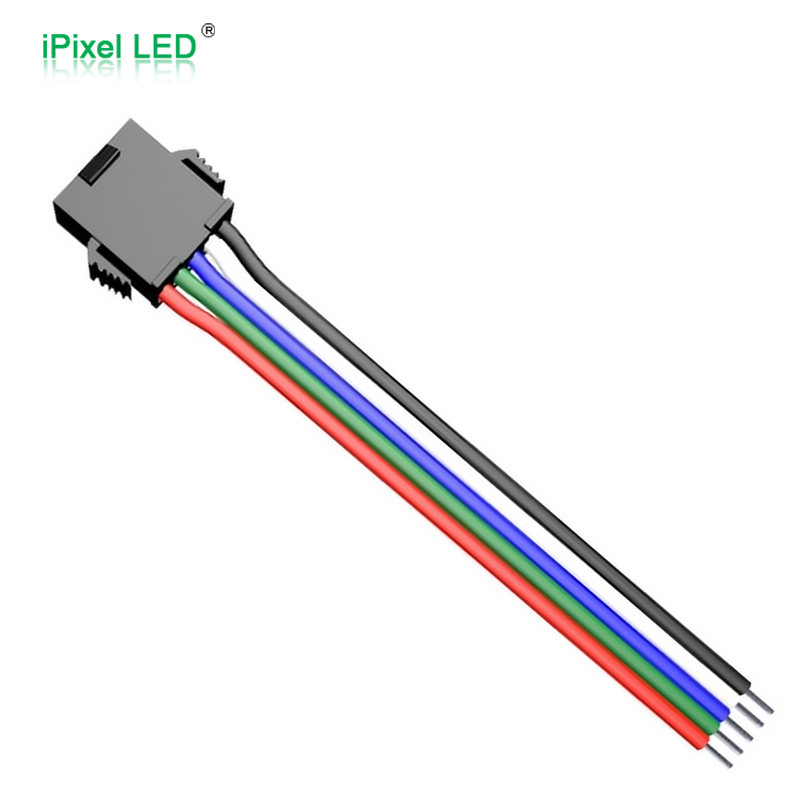

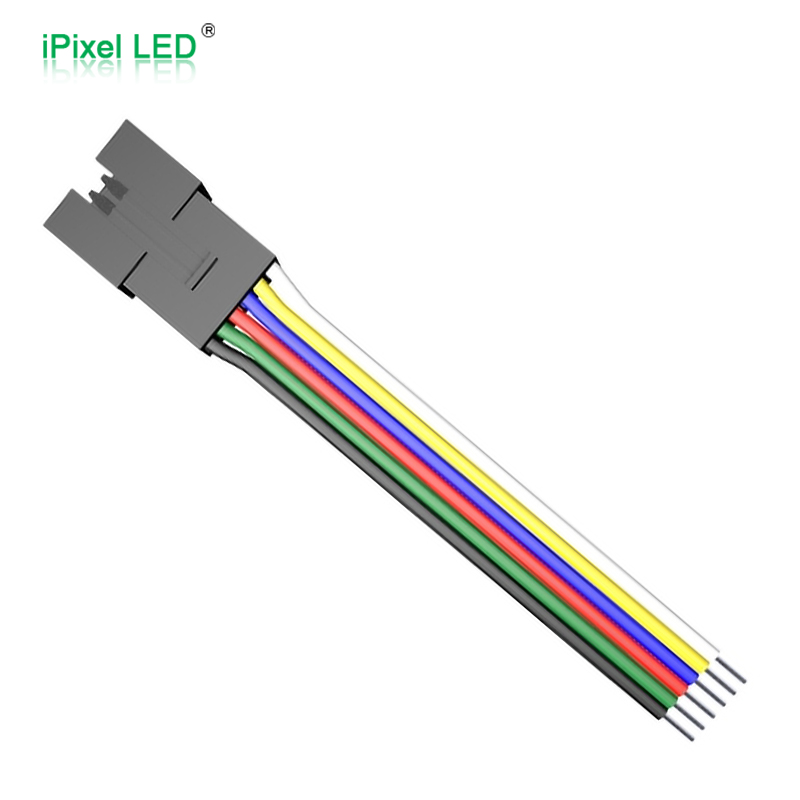

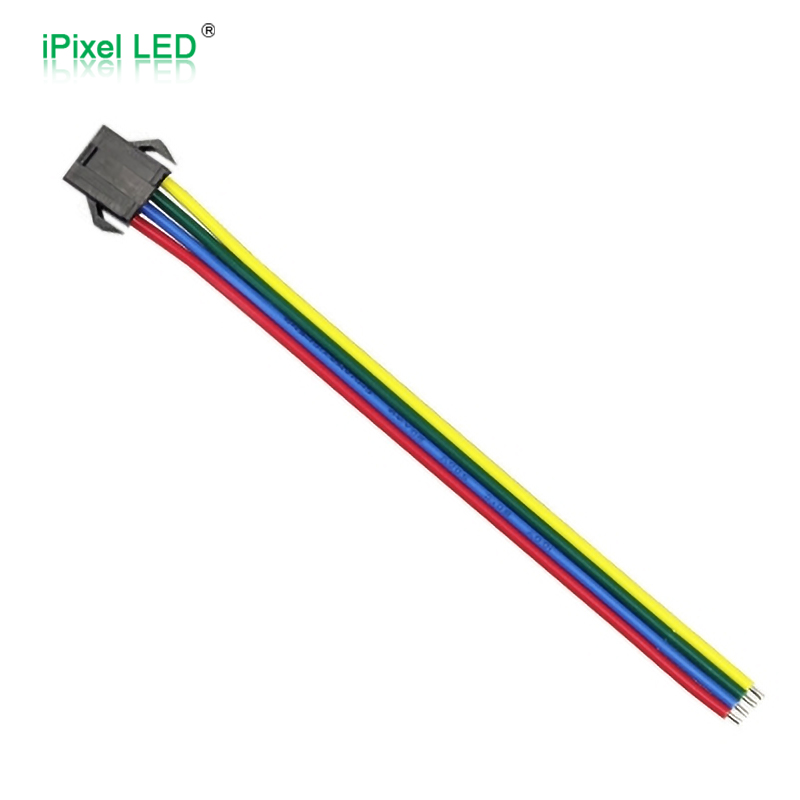

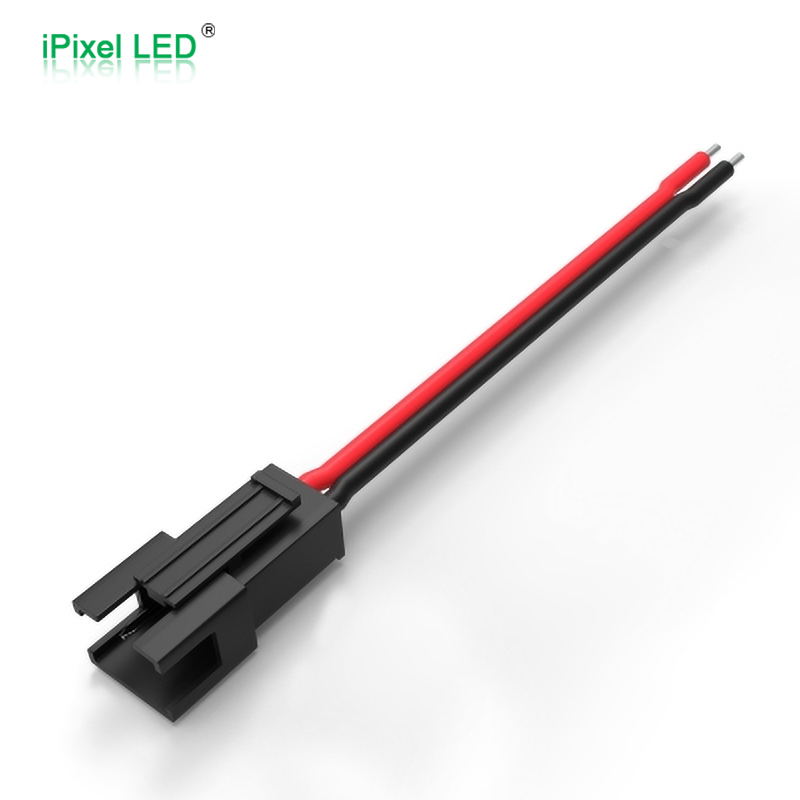

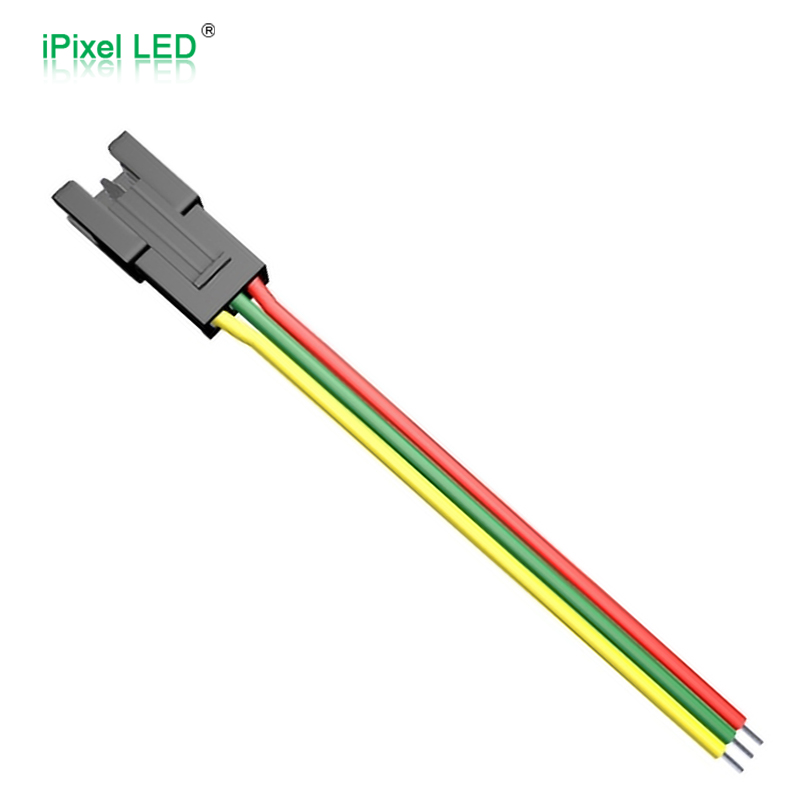

This series includes 2Pin, 3Pin, 4Pin, 5Pin, and 6Pin JST-SM male and female pigtail cables. Each cable has a JST-SM connector on one end and open wires on the other end, making it suitable for soldering, PCB connection, controller wiring, and customized LED assemblies.
Standard options include PVC insulation, tinned copper conductor, 20AWG wire, and common lengths such as 120mm and 100mm, depending on the pin number. The 2–5Pin pigtail cables are listed as 120mm versions, while the 6Pin versions are listed as 100mm versions in the current file.
Product Series Specification Matrix

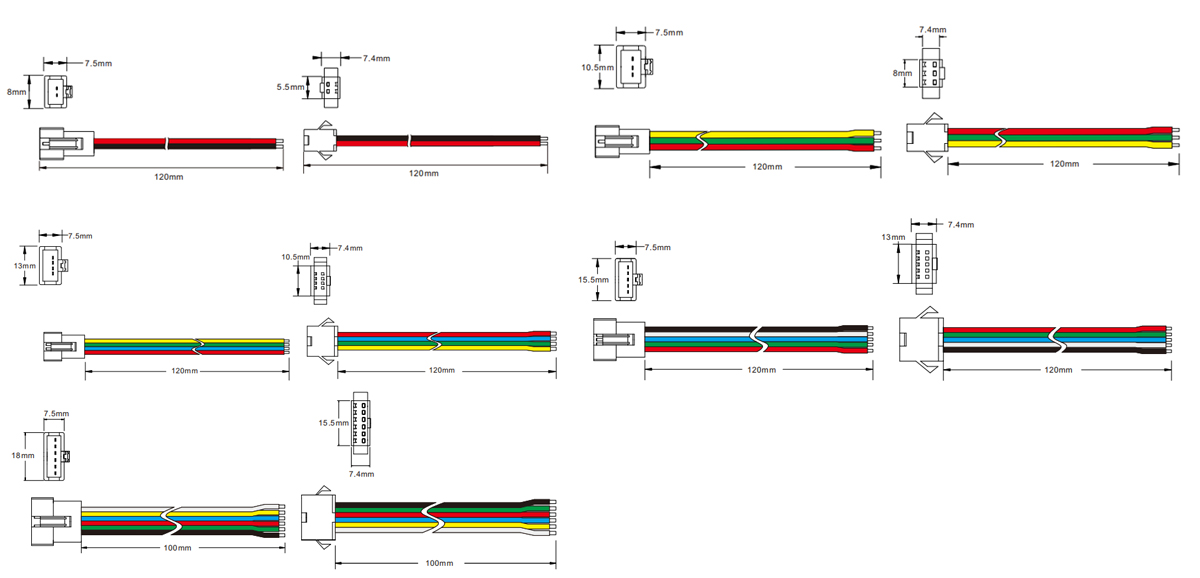

| Original Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Length | Wire Color |
|---|---|---|---|---|---|---|---|
| 2-pin Male Pigtail Cable | 2Pin | Male | JST-SMR-02V | DZGT-00120-V2 | 20AWG | 120mm | Red, Black |
| 2-pin Female Pigtail Cable | 2Pin | Female | JST-SMP-02V | DZMT-00120-V2 | 20AWG | 120mm | Black, Red |
| 3-pin Female Pigtail Cable | 3Pin | Female | JST-SMP-03V | DZMT-00120-V3 | 20AWG | 120mm | Red, Green, Yellow |
| 3-pin Male Pigtail Cable | 3Pin | Male | JST-SMR-03V | DZGT-00120-V3 | 20AWG | 120mm | Yellow, Green, Red |
| 4-pin Male Pigtail Cable | 4Pin | Male | JST-SMR-04V | DZGT-00120-V4 | 20AWG | 120mm | Yellow, Green, Blue, Red |
| 4-pin Female Pigtail Cable | 4Pin | Female | JST-SMP-04V | DZMT-00120-V4 | 20AWG | 120mm | Red, Blue, Green, Yellow |
| 5-pin Male Pigtail Cable | 5Pin | Male | JST-SMR-05V | DZGT-00120-V5 | 20AWG | 120mm | Black, White, Blue, Green, Red |
| 5-pin Female Pigtail Cable | 5Pin | Female | JST-SMP-05V | DZGT-00120-V5* | 20AWG | 120mm | Red, Green, Blue, White, Black |
| 6-pin Male Pigtail Cable | 6Pin | Male | JST-SMR-06V | DZGT-00100-V6 | 20AWG | 100mm | White, Yellow, Blue, Red, Green, Black |
| 6-pin Female Pigtail Cable | 6Pin | Female | JST-SMP-06V | DZMT-00100-V6 | 20AWG | 100mm | Black, Green, Red, Blue, Yellow, White |
FAQ
Male and female refer to the connector housing type. For complete connection, a male connector is normally matched with a female connector of the same pin number.
2Pin is usually used for single-color LED power wiring, 3Pin for signal or simple control wiring, 4Pin for RGB, 5Pin for RGBW or RGB+CCT, and 6Pin for multi-channel wiring.
Yes. The listed lengths are standard references. Wire length, color order, connector direction, and gauge can be customized by project.
