M12 IP68 Cable Connector Series
M12 IP68 Cable Connector Series
The M12 IP68 Cable Connector Series is designed for more demanding waterproof and equipment-level LED wiring applications.
This series includes 2Pin, 3Pin, 4Pin, and 5Pin M12 male and female pigtail cables. Compared with small waterproof connectors, M12 connectors are more suitable for outdoor lighting, equipment lighting, industrial wiring, display systems, and LED projects that need a more robust waterproof connector.
The current file lists M12-IP68 versions with silicone insulation, naked copper conductor, 200mm cable length, and different wire gauges depending on the pin number.

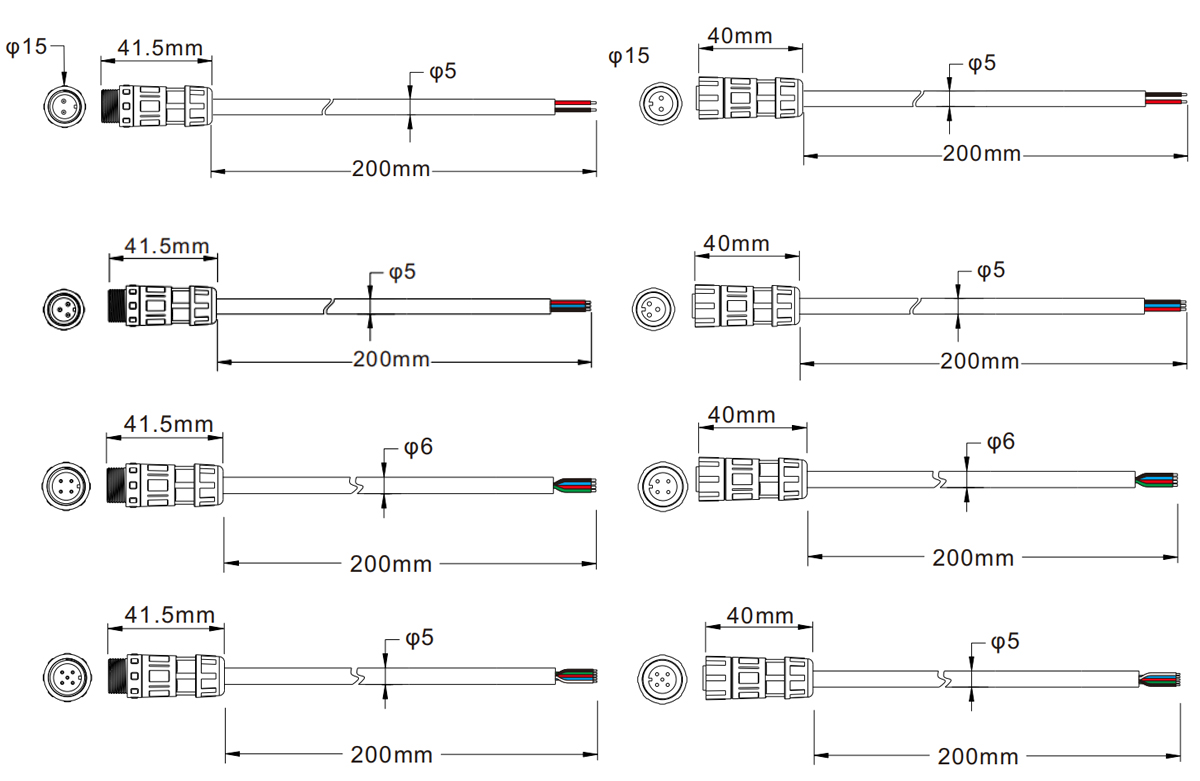

Product Series Specification Matrix
| Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Length | Outer Diameter | Line Order |
|---|---|---|---|---|---|---|---|---|

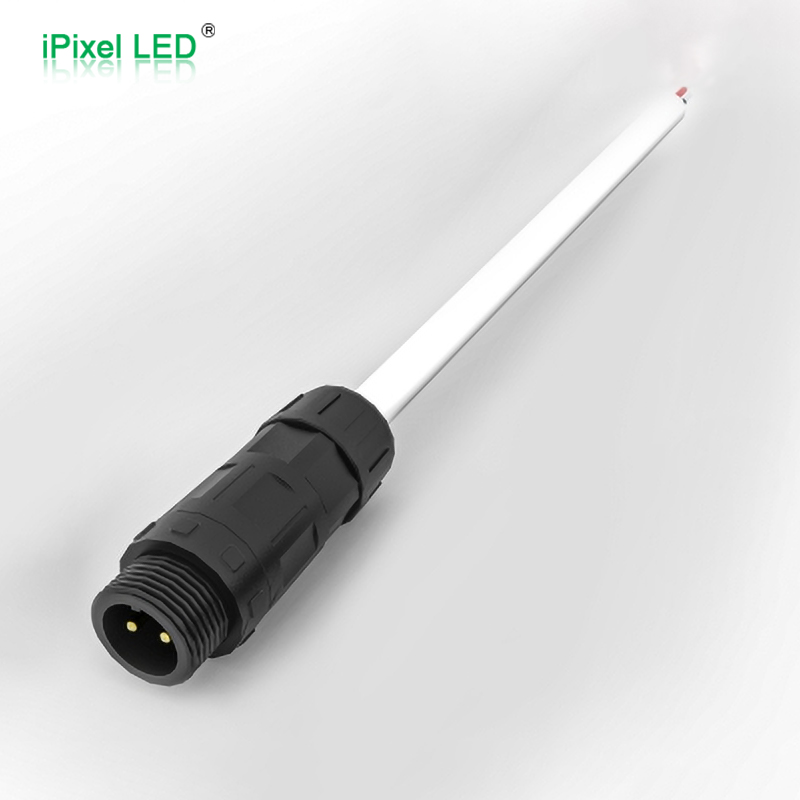

| 2Pin M12 Male Pigtail Cable | 2Pin | Male Pigtail | M12 Assembly Type Male Head with Needle | DLGT-00200-R2 | 20AWG | 200mm | φ5mm | Red, Black |
| 2Pin M12 Female Pigtail Cable | 2Pin | Female Pigtail | M12 Assembly Type Header with Hole | DLMT-00200-R2 | 20AWG | 200mm | φ5mm | Red, Black |

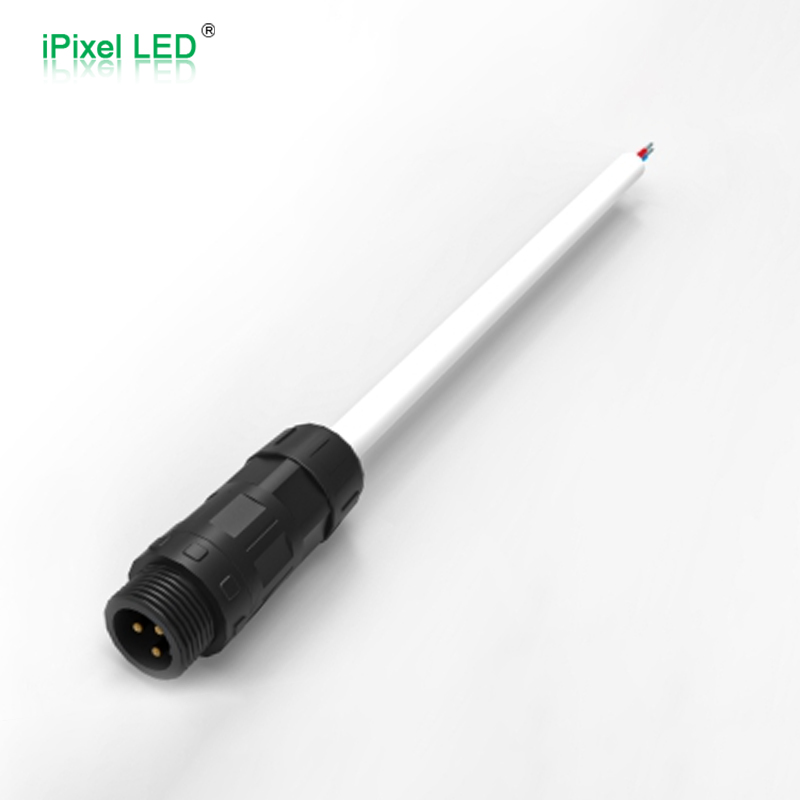

| 3Pin M12 Male Pigtail Cable | 3Pin | Male Pigtail | M12 Assembly Type Male Head with Needle | DLGT-00200-R3 | 22AWG | 200mm | φ5mm | Red, Blue, Black |
| 3Pin M12 Female Pigtail Cable | 3Pin | Female Pigtail | M12 Assembly Type Header with Hole | DLMT-00200-R3 | 22AWG | 200mm | φ5mm | Red, Blue, Black |
| 4Pin M12 Male Pigtail Cable | 4Pin | Male Pigtail | M12 Assembly Type Male Head with Needle | DLGT-00200-R4 | 20AWG | 200mm | φ6mm | Black, Blue, Red, Green |
| 4Pin M12 Female Pigtail Cable | 4Pin | Female Pigtail | M12 Assembly Type Header with Hole | DLMT-00200-R4 | 20AWG | 200mm | φ6mm | Black, Blue, Red, Green |
| 5Pin M12 Male Pigtail Cable | 5Pin | Male Pigtail | M12 Assembly Type Male Head with Needle | DLGT-00200-R5 | 22AWG + 26AWG | 200mm | φ5mm | Black, Green, Red, Blue, White |

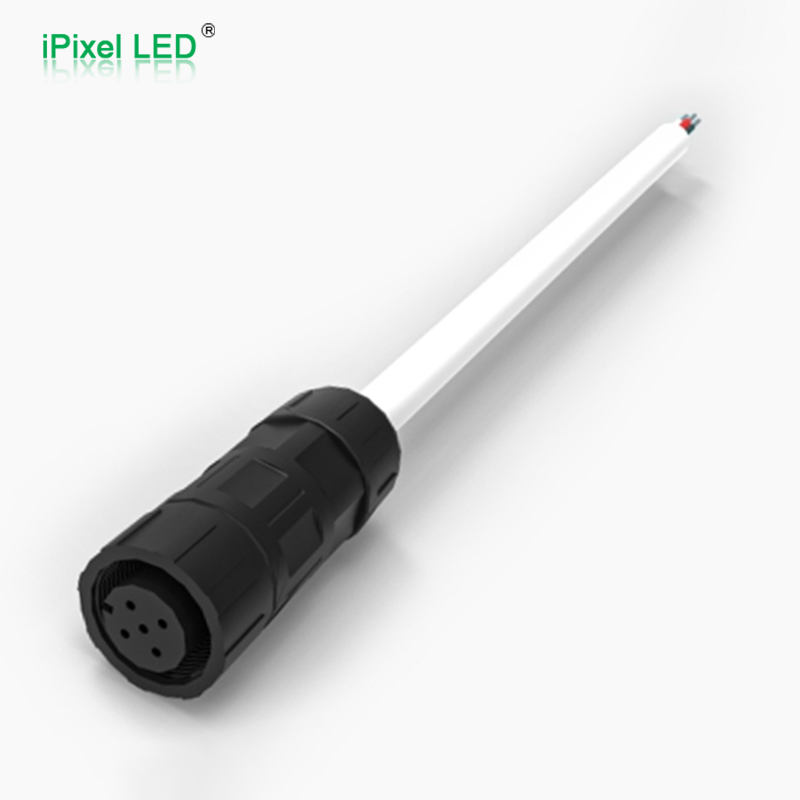

| 5Pin M12 Female Pigtail Cable | 5Pin | Female Pigtail | M12 Assembly Type Header with Hole | DLMT-00200-R5 | 22AWG + 26AWG | 200mm | φ5mm | Black, Green, Red, Blue, White |
FAQ
The current series includes 2Pin, 3Pin, 4Pin, and 5Pin male and female pigtail cables.
Outdoor LED lighting, equipment lighting, industrial LED systems, signage, cabinet lighting, gaming equipment, and customized waterproof LED wiring projects.
Yes. 4Pin is commonly suitable for RGB wiring, while 5Pin can be used for RGBW or multi-channel wiring depending on the project definition.
