2 Wires Dual color 1515 LED strip 423LEDs/M DC24V

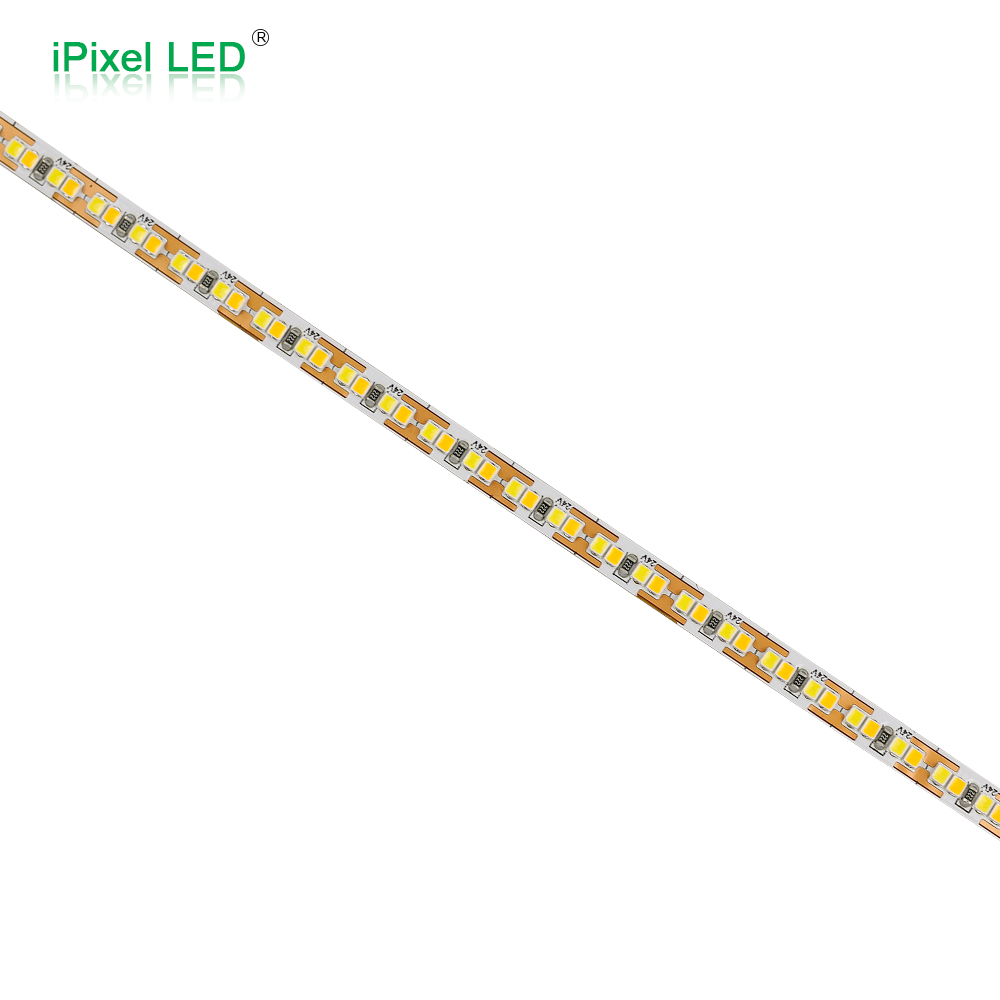

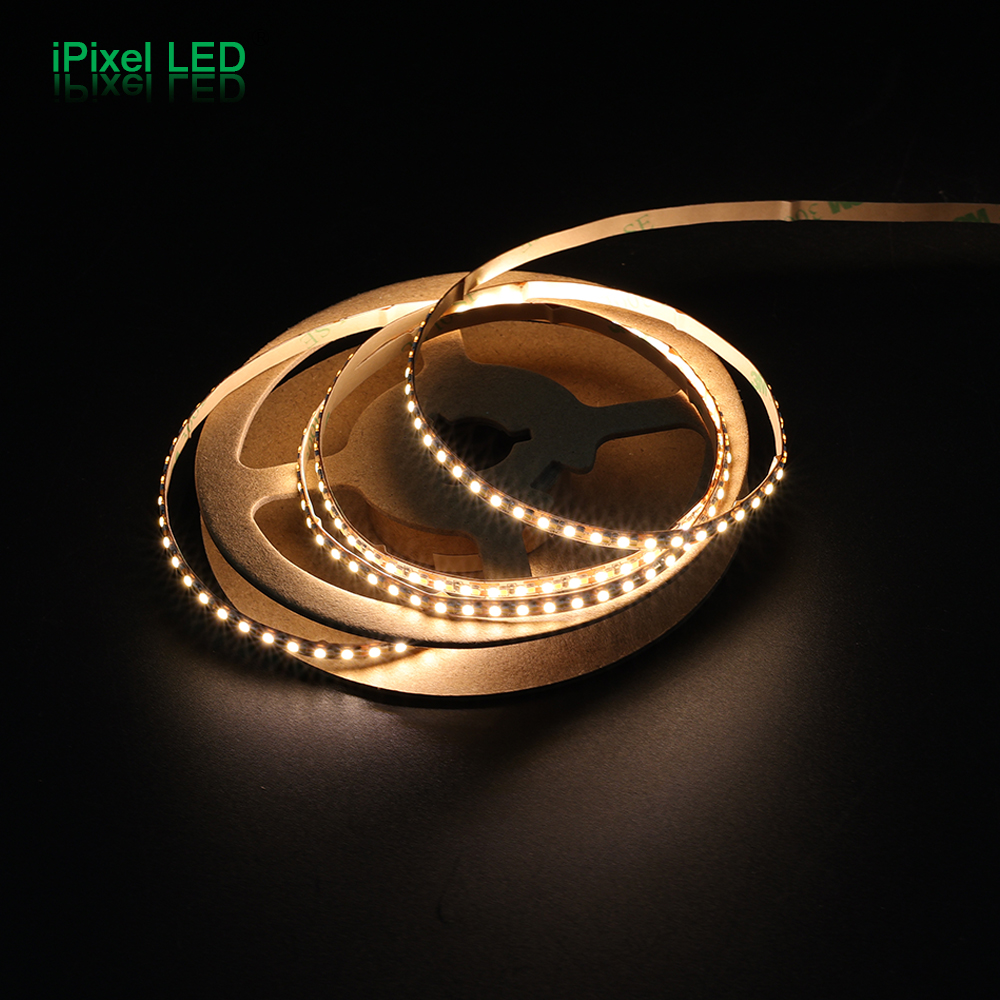

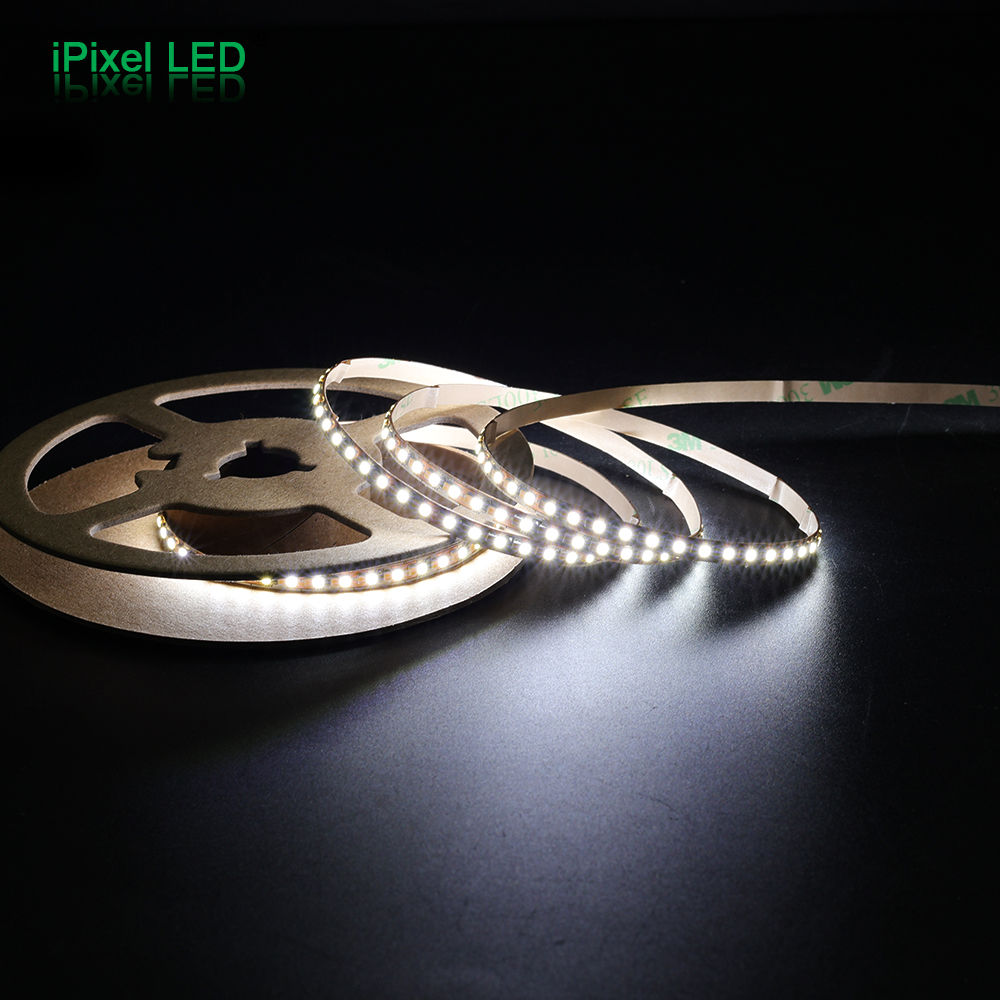

2 Wires Dual color 1515 LED strip 423LEDs/M DC24V CCT Series detail image

2 Wires Dual color 1515 LED strip 423LEDs/M DC24V

-High density CCT color Adjustable LED strip has 423pcs 1515 LEDs -With 4mm Width -Cut-able every 4LEDs & 9.26mm -All soldering Pads are very large, allowing you to easily cut and reconnect -DC24V constant voltage operation -Both ends have 2pin bare wires for powering -3M tape attached on backside of FPC
DC24V432LEDs4mm WidchDual colorIP20/IP65PWM

Series Overview & Key Features

-High density CCT color Adjustable LED strip has 423pcs 1515 LEDs

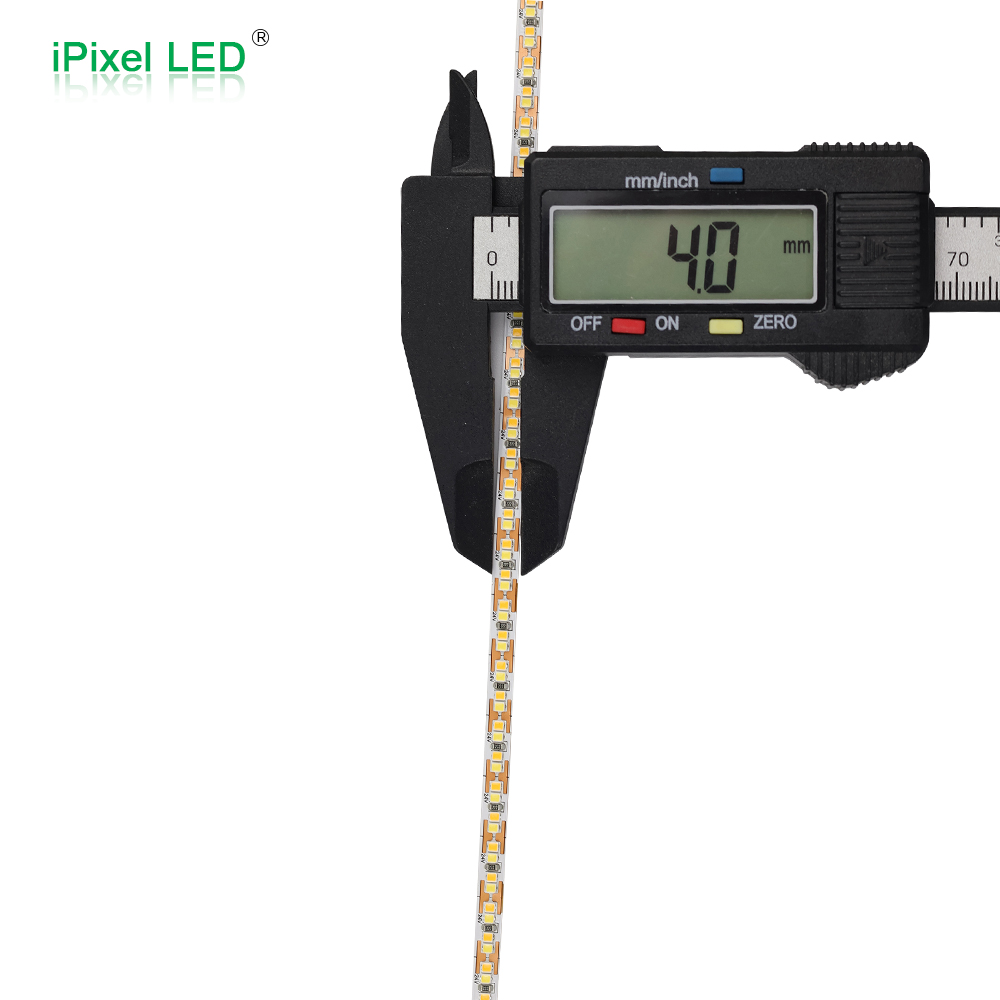

-With 4mm Width

-Cut-able every 4LEDs & 9.26mm

-All soldering Pads are very large, allowing you to easily cut and reconnect

-DC24V constant voltage operation

-Both ends have 2pin bare wires for powering

-3M tape attached on backside of FPC

Product Parameter

   PN
    S004432UC2PZ(2W)
   Voltage
    DC24V
   Power
    9W/m
   SMD Type
    SMD1515
   LED Quantity    432LEDs/m
   Dimension
    5000*14mm
   Cutting length
     9.26mm
   Lumens/m
     W:720lm/WW:765lm
  CCT
    WW: 3000K + W:6500K
   IP Rate    IP20/IP65
   O.T    -25℃ ~ 60℃

Product Series

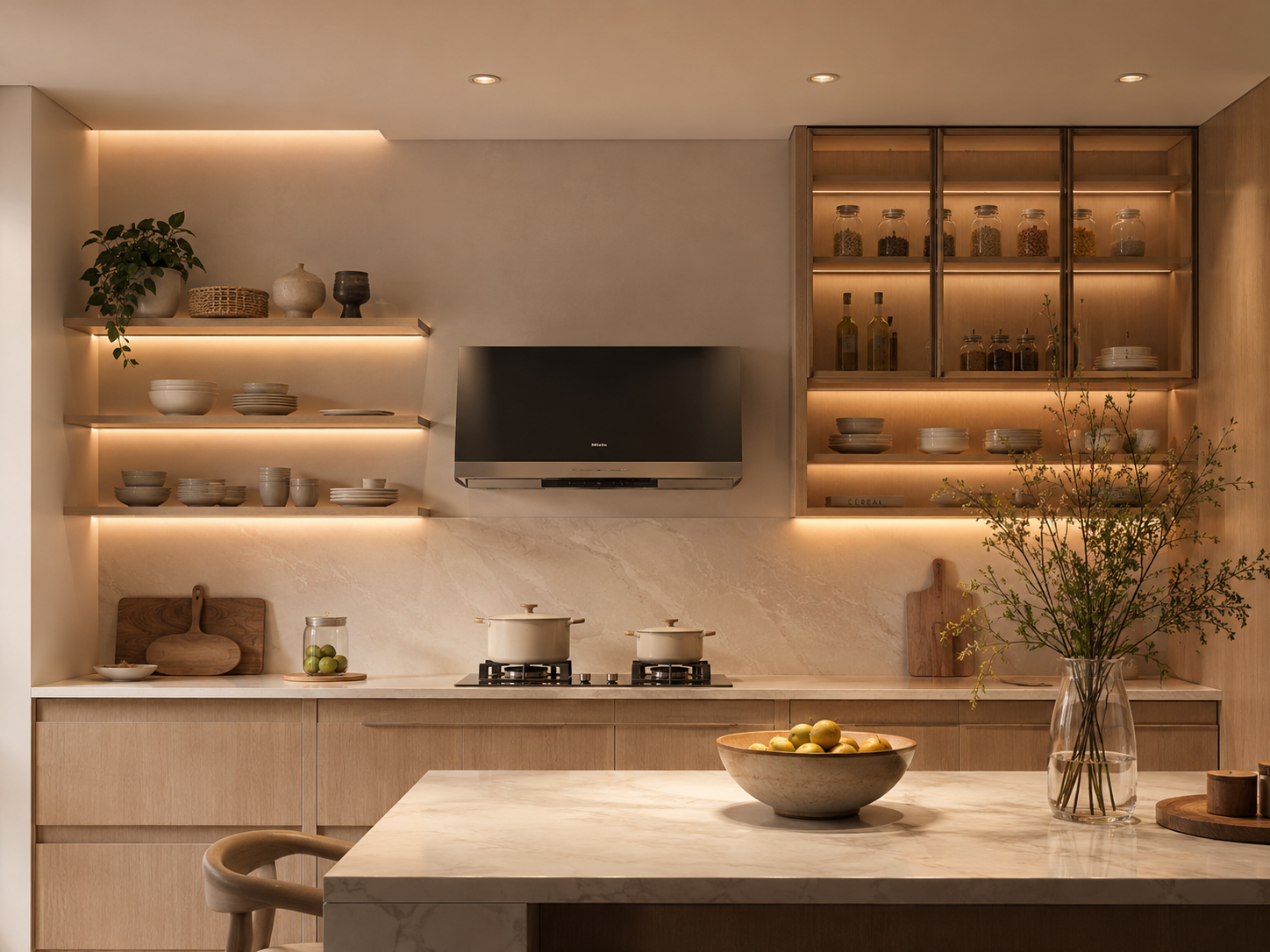

Application NeedRecommended VoltageRecommended IPNotes
Indoor Dry EnvironmentDC24VIP20Cost-effective for indoor use.
Indoor Damp EnvironmentDC24VIP65Silicone coating for moisture resistance.
Outdoor / Harsh EnvironmentDC24VIP65/IP68Higher IP level for harsh condittion.
Commercial/ DisplayDC24VIP20/IP65High density for better visual effect.


Documents & Compliance

Document NameTypeLanguageVerslonDownload/Remark
DatasheetPDFENV1.2Download
User ManualPDFENV1.0Download
IES FileIESENV1.0Download
RoHSCertificateENV1.0Download
CECertificateENV1.0Download
LM-80 Test ReportPDFENV1.0Download


FAQ

5M
3-7 Days
