RGB provides red, green and blue channels. RGBW adds one independent white channel. RGB+CCT adds separate warm-white and cool-white channels, allowing both RGB effects and adjustable white color temperature.
PWM RGB & RGBW Flexible LED Strip Series
PWM RGB, RGBW & RGB+CCT LED Strip Series
Non-addressable multi-channel LED strips for synchronized RGB color mixing, functional white lighting, tunable-white control and customized color combinations.
This PWM multi-color LED strip series covers conventional RGB, RGBW, RGB+CCT and project-specific multi-channel lighting products.
Unlike addressable LED strips, all LEDs connected to the same channel or control zone change together. Different configurations are available for ultra-narrow installation, curved structures, high-density color mixing, independent white-light output and special-wavelength applications.
The models shown below include both standard and previously customized products. Voltage, PCB width, LED density, color channels, cutting length, cable and protection structure can be selected according to the final application.
Series Overview
This PWM multi-color LED strip series covers conventional RGB, RGBW, RGB+CCT and project-specific multi-channel lighting products.
Unlike addressable LED strips, all LEDs connected to the same channel or control zone change together. Different configurations are available for ultra-narrow installation, curved structures, high-density color mixing, independent white-light output and special-wavelength applications.
The models shown below include both standard and previously customized products. Voltage, PCB width, LED density, color channels, cutting length, cable and protection structure can be selected according to the final application.
Key Features
- RGB, RGBW and RGB+CCT configurations
- Conventional non-addressable PWM control
- 4mm, 10mm and 12mm PCB options
- DC12V, DC24V and DC48V platforms
- Straight, S-shape, ultra-narrow and high-density designs
- Independent functional white-light channels
- Warm-white and cool-white adjustable CCT options
- Project-specific colors and wavelengths
- Custom cable, connector and protection options
1. PWM RGB LED Strips
Conventional four-wire RGB strips for synchronized red, green and blue color mixing.
| Model No. | LED Type | Voltage | LED Quantity | Power | PCB Size | Cut / Length | Key Feature |
|---|---|---|---|---|---|---|---|
| S004024TB3PZ | SMD2835 RGB | DC12V | 24 LEDs/pc | To Be Confirmed | 410 × 4mm | Custom Piece | Ultra-narrow common-anode RGB strip |

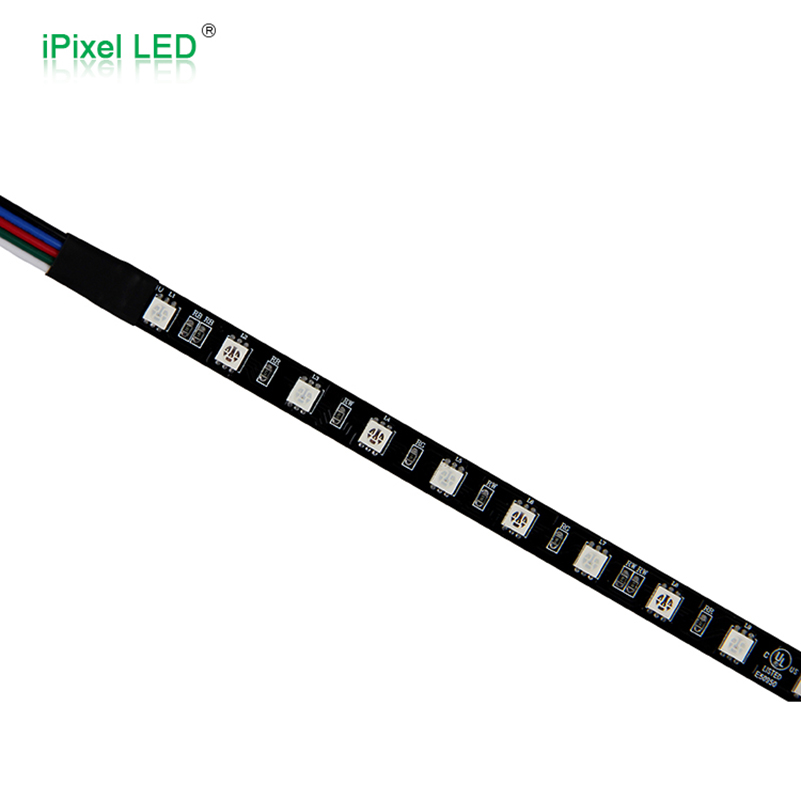

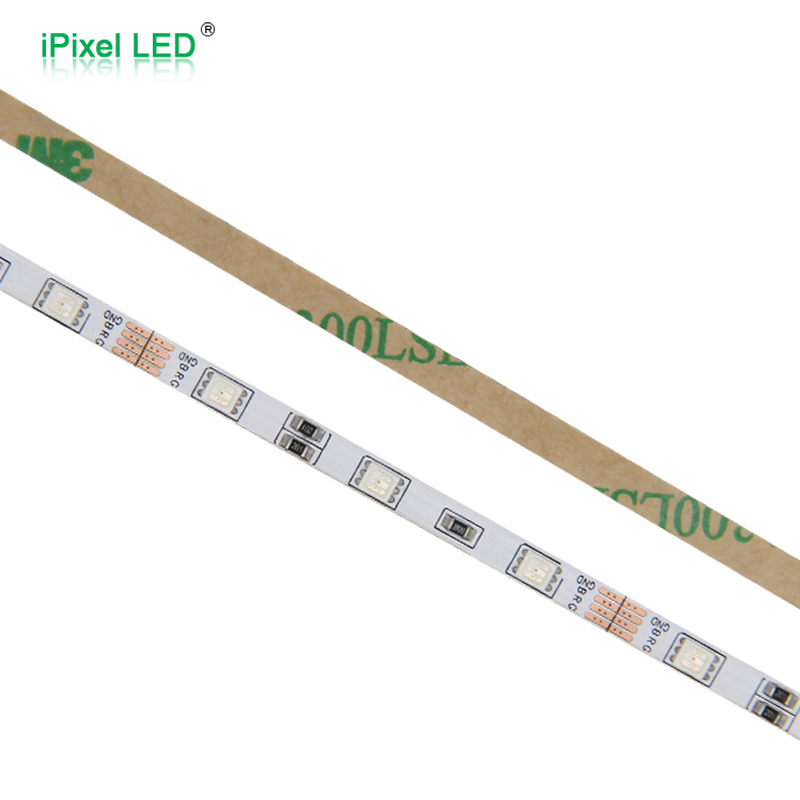

| S004060DB3PZ | SMD3535 RGB | DC12V | 60 LEDs/m | 7.2W/m | 1000 × 4mm | Custom Length | 4mm PCB; white or black PCB |
| S012240DC3PZ | SMD3535 RGB | DC24V | 240 LEDs/m | 28.8W/m | 3000 × 12mm | 25mm | High-density RGB color mixing |
S004024TB3PZ uses a 410 × 4mm white PCB, 24 SMD2835 RGB LEDs, a 26AWG four-core cable and a common-anode circuit. S004060DB3PZ is also a 4mm ultra-narrow RGB design, using 60 SMD3535 RGB LEDs per metre at 7.2W/m.

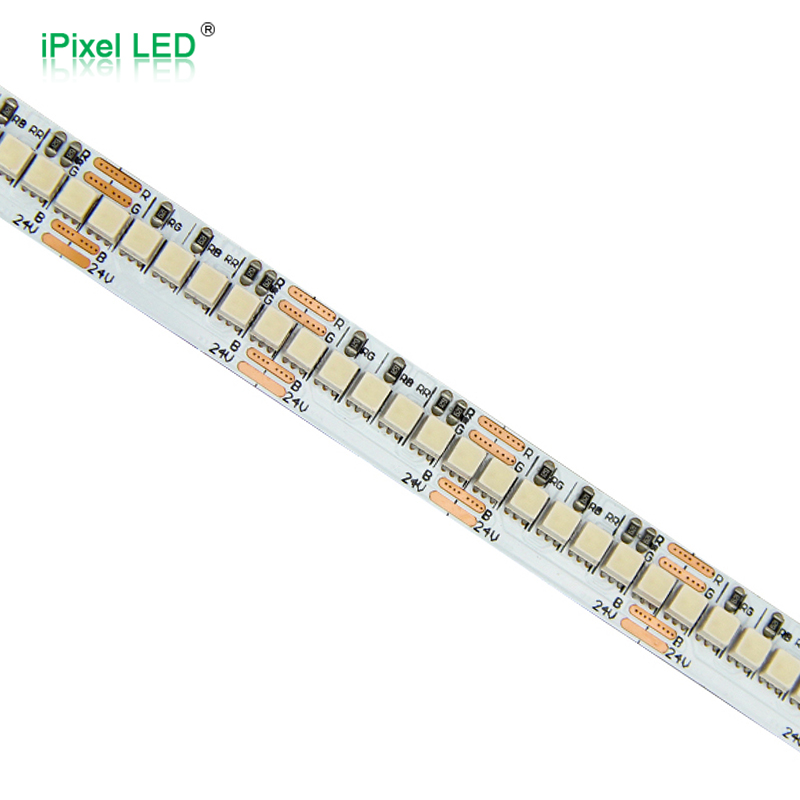

S012240DC3PZ is the high-density version, using DC24V, 240 SMD3535 RGB LEDs per metre, 28.8W/m and a 25mm cutting unit, with multiple model-specific protection options.
2. PWM RGBW LED Strips
RGB strips with an additional independent white-light channel for decorative color effects and functional white illumination.
| Model No. | Structure | LED Type | Voltage | LED Quantity | Power | PCB Width | White CCT | Cutting Length |
|---|---|---|---|---|---|---|---|---|
| S012048CB4PZ | S-Shape / Zigzag | SMD5050 RGBW | DC12V | 48 LEDs/m | 15W/m | 12mm | 3000K / 4000K / 6500K | 62.5mm |
This product uses an S-shape or zigzag FPC that can follow curves, corners and irregular paths. Its standard configuration uses a 12mm PCB, 48 LEDs/m, 15W/m and an IP20 indoor structure.
3. PWM RGB+CCT & Special-Color LED Strips
Multi-channel strips for RGB effects combined with adjustable white light or project-specific wavelengths.
| Model / Reference | Color Channels | LED Structure | Voltage | LED Quantity | Power | PCB Width | Cutting Length | Key Feature |
|---|---|---|---|---|---|---|---|---|
| S012144BJ5PZ | RGB + 3000K WW + 6500K CW | SMD2835 RGB + SMD3528 White | DC48V | 144 LEDs/m | 26W/m | 12mm | 166.66mm | RGB plus tunable-white control |
| 51200626 | RGB + Indigo 450nm | 30 × RGB + 30 × Indigo | DC24V | 60 LEDs/m | 14.4W/m | 10mm | To Be Confirmed | Customized special-wavelength strip |
S012144BJ5PZ uses a six-wire PWM structure with RGB, 3000K warm-white and 6500K cool-white channels. It should therefore be described as RGB+CCT rather than the less precise term RGBWW.
51200626 was developed for a special RGB + 450nm indigo application. It uses a black 10mm PCB, an IP20 structure and 600mm cables at both ends. Its cutting length and complete wire definition must be confirmed from the original BOM before publication.
How to Choose
| Project Requirement | Recommended Product |
|---|---|
| Standard synchronized RGB color effects | PWM RGB Strip |
| Extremely limited installation width | 4mm RGB Strip |
| Dense and more uniform RGB output | 240 LEDs/m RGB Strip |
| Curved, corner or irregular installation | S-Shape RGBW Strip |
| RGB effects plus usable white lighting | RGBW Strip |
| RGB plus adjustable warm/cool white | RGB+CCT Strip |
| Longer centralized 48V installation | 48V RGB+CCT Strip |
| Special wavelength or brand-specific color | Custom Multi-Channel Strip |
| Individual pixel or chasing effects | Use an Addressable SPI or DMX Strip instead |
Customization Options
| Customization Item | Available Options |
|---|---|
| Color Type | RGB / RGBW / RGB+CCT / Special-Color Combination |
| Control | Conventional PWM |
| Voltage | DC12V / DC24V / DC48V |
| PCB Width | 4mm / 10mm / 12mm / Custom |
| PCB Structure | Straight / S-Shape / Ultra-Narrow / High-Density |
| LED Type | SMD2835 / SMD3535 / SMD5050 / Custom |
| White CCT | 2700K / 3000K / 4000K / 6500K |
| Special Wavelength | Project-Specific |
| PCB Color | White / Black |
| Protection | IP20 / Coating / Silicone / Other Model-Specific Options |
| Cable | Bare Wire / Custom Length / Multi-Core Cable |
| Connector | JST / Terminal / Project-Specific Connector |
| Length | Reel or Customized Piece Length |
Not every voltage, PCB width, LED density and color-channel combination is automatically available. Final feasibility must be confirmed through circuit and thermal review.
FAQ
No. These are conventional PWM-controlled strips. LEDs in the same channel or zone change together.
No. The controller must match the number of channels:
RGB: 3 color channels
RGBW: 4 color channels
RGB+CCT: 5 color channels
The voltage and maximum load must also match the selected strip.
A 4mm PCB is suitable for very narrow grooves, compact equipment and structures where a conventional 10mm or 12mm RGB strip cannot fit.
